Fire Fighting Motorcycle with Water Mist System Price Good Quality China Manufacturer

Product Overview

Description

1. The Parameters of Whole Vehicle

1.1 Dimensions: Approx. 2240mm×905mm×1400mm (length×width×height)

1.2 Full load total mass: Approx. 300kg

1.3 Water tank capacity: 45L (2*22.5L)

1.4 Number of crew: 1 person

1.5 Maximum speed with full load: 90km/h

1.6 Ground clearance: 155mm

1.7 Wheelbase: 1430mm

1.8 Paint color: black and red



2. The Parameters of Motorcycle
2.1 Manufacturer: SUZUKI

2.2 Motorcycle Model: DL250 with ABS

2.3 Curb weight: 206kg

2.4 Engine model: 250cc, 4 strokes, two cylinders

2.5 Cooling method: water cooling

2.6 Fuel supply method: EFI

2.7 Start mode: Electric start

2.8 Maximum power: 18.4KW / 8000rpm

2.9 Maximum torque: 23.4N.m / 6500rpm

2.10 Compression ratio: 11.5:1

2.11 Fuel tank capacity: 17.3L

2.12 Front brake: 290mm disc brake

2.13 Rear brake: 240mm disc brake

2.14 Front wheel size: 110/80-17 M/C 57H

2.15 Rear wheel size: 140/70-17 M/C 66H

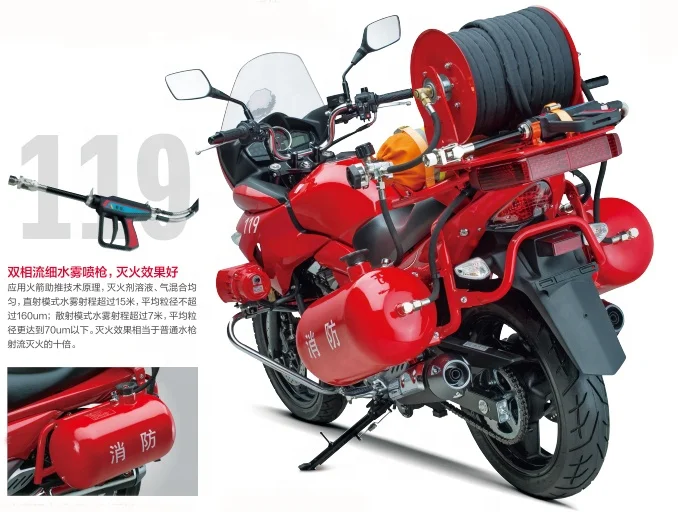

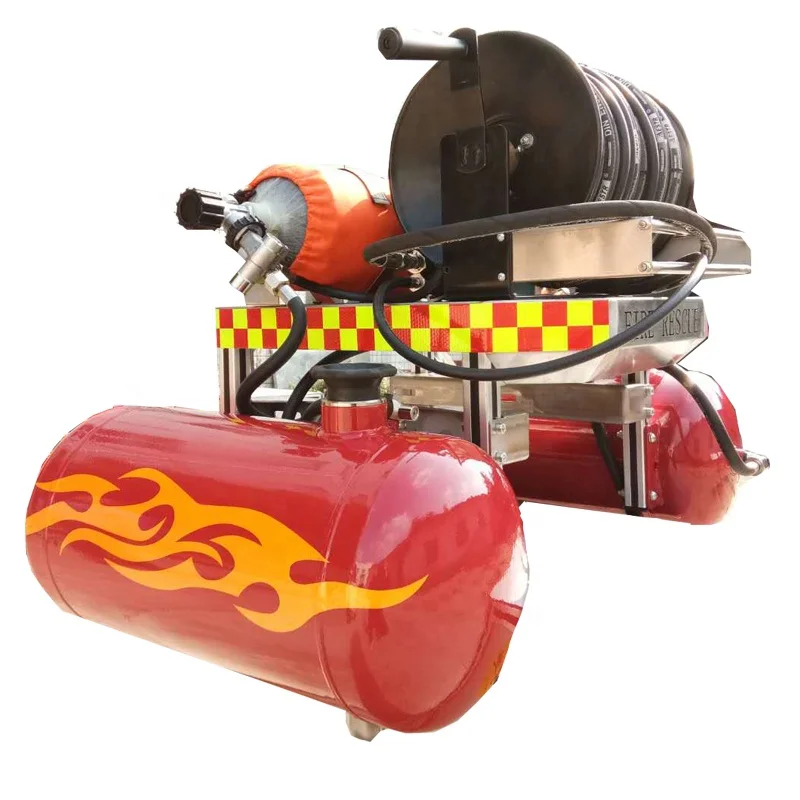

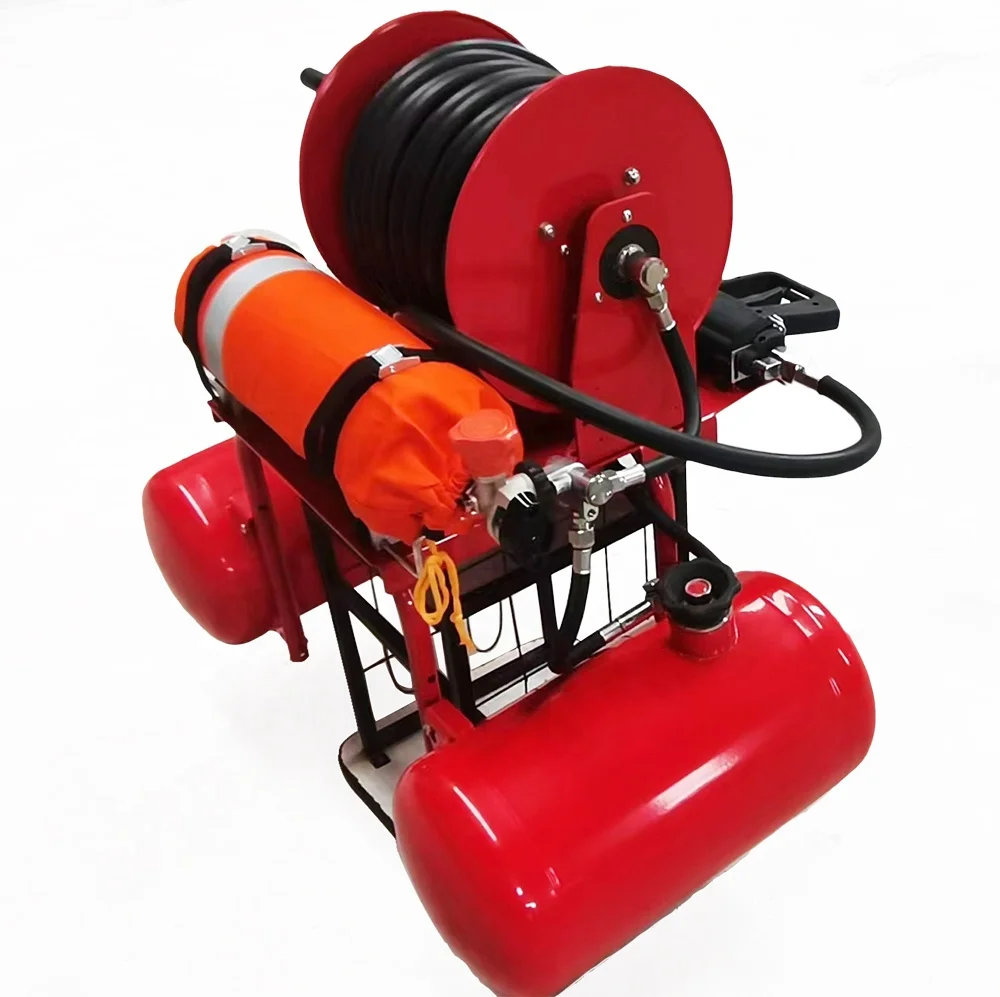

3. The Parameters of Fire Fighting System
3.1 Water Tank capacity: 45L (2*22.5L)

3.2 Air Cylinder Bottle: 6.8L

3.3 Air Cylinder Pressure:30Mpa

3.4 Mixing Ratio: 3% or 6%

3.5 Spray Nozzle Pressure: 0.7-1.1 Mpa

3.6 Spray distance with jet mode: 115m

3.7 Spray distance with fog mode: 7m

3.8 Water mist particle size of jet mode: ≤160um

3.9 Water mist particle size of fog mode: ≤70um

3.10 Fire Class: 4A or 55b
