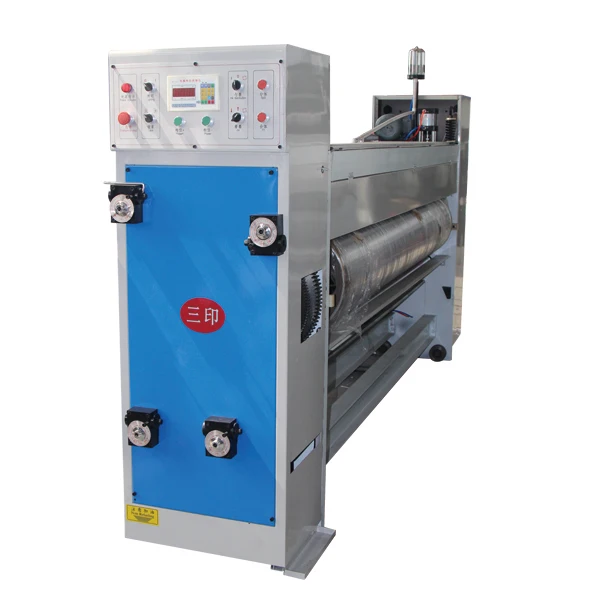

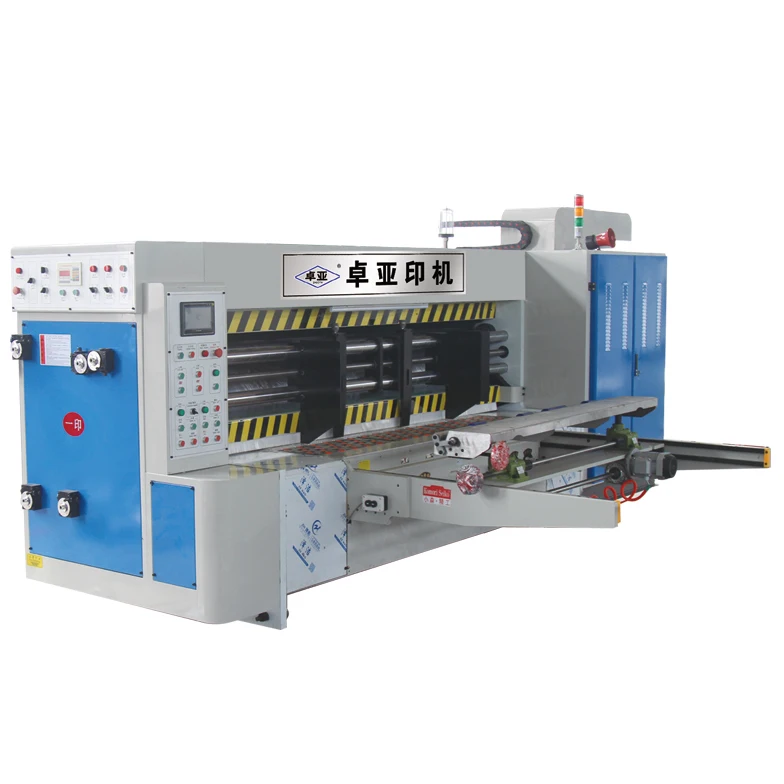

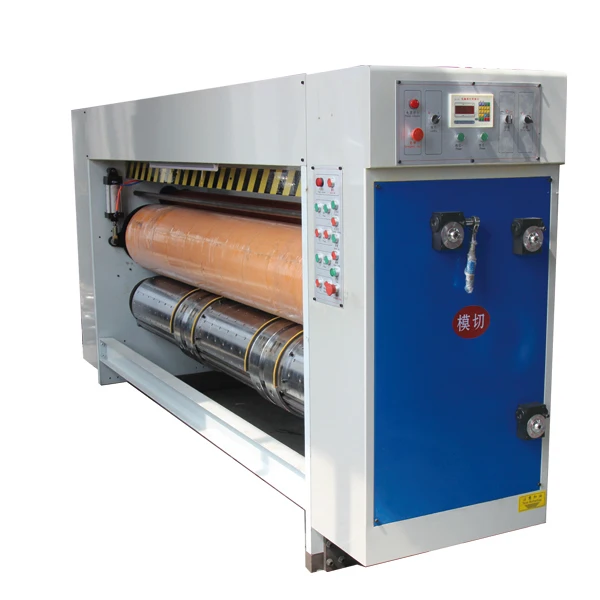

Flexo ink 4 color printing slotting die cutting automatic corrugated box making machine
- Category: Carton Printing Slotting Die-Cutting Machine >>>
- Supplier: Dongguang Zhuoya Packaging Machinery Manufacturing Co. Ltd. [Hebei China]Dongguang
Share on (62511038587):
Product Overview
Description
Product Description
- Automatic high speed 4 color flexo printing slotting die cutting corrugated box printing making machine
- This carton box making machine has function of printing , slotting , die cutting ,and stacking unit .
- Lead edge feeding system , applicable to all kinds of flute profiles , transfer smoothly .
- Main machine motor , fans , and phasing adopted frequency transformer devices .
- The drive gear : 20GrMnTi high frequency-quenched and carburizing done .
- Cross-trundling roller driving system , no wear for long time using ,ensure for transmission accurancy.
- Free-key connection style , roller connects with gear , ensure for registration accurancy .
- Die cutting speed difference compensation system .
- mechanical spray lubrication , pump circulating system for gears ,make gear service long life ,Auto-returen function .
- Function of storage of normal die -cutting orders ,fast and efficient carton printing machine
- Specifications :
Model 900 1224 1424 1624 Max machine speed 300 250 180 150 Max feeding size 900×2400 1250×2700 1450×2800 1600×2700 Max printing area 880×2000 1200×2400 1400×2400 1600×2400 Min feeding size 280×680 350×680 360×680 420×680 Max slotting depth 230 300 300 410 Die cutting precision ≤±1.5 Registration precision ≤±0.4 (4 color) ≤±0.5(four color) printing plate thickness 7.2 ( including plate liner) Effective feeding thickness 2.5-12 ( 10 pcs of rubber ) Min slotting interval (normal knife) 160×160×160×160 ( reverse knife) 300×60×300×60
