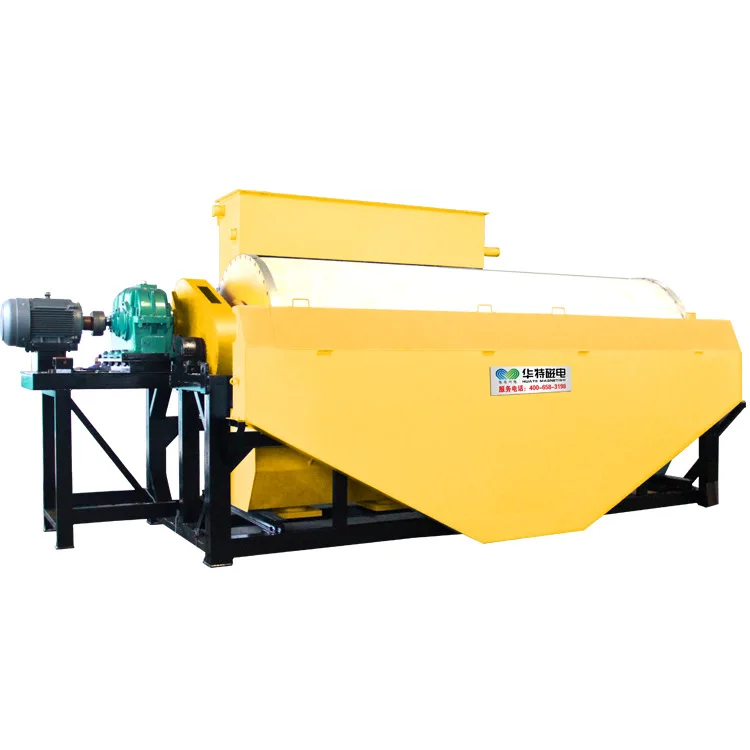

Drum Permanent Magnetic Separator/Magnetic Particles Separator/Non-magnetic Minerals Separator
Application��
For separate the wet magnetic particles or eliminate the waste magnetic from non-magnetic mineral.
(1) Drum using ferrite Y30BH and and NdFeB N40H, adopting NdFeB auxiliary magnetic poles around the circumstance as the enhance of magnetic system, which effectively polymerizes the magnetic field and makes demagnetization less than 3% in 10 years.
(2) The magnetic system adopting bale angle designment. Magnets are fixed in the yoke board using stainless steel screw in the strong magnetic area while the magnets are magnetized after whole bonded in discharge area.The performance of magnets are stable and reliable. Magnetic Group is whole bolted in magnetic yoke, coating with stainless steel bandage for permanent usage.
(3)Magnetic system is connected with main axle by stainless steel plate which guarantees the bearing operation is not affected by magnetic field.
(4)Bearing using Heavy-duty self-aligning roller bearing which improves the performance of magnetic separator in operation process. It can be used for more than 3 years in the case of normal regular lubricating and maintenance.
(5)Aluminum plate is protected by stainless steel band which improves the wear resistance and prolongs its life.
(6)The drum and end plate is sealed by sealant and rubber pad which prevents water.
(7)Drum adopting 1Cr18Ni9Ti stainless steel and vulcanized rubber (δ=4mm)or Wear resistant ceramic chip which prolongs the drum life.
(4)Bearing using Heavy-duty self-aligning roller bearing which improves the performance of magnetic separator in operation process. It can be used for more than 3 years in the case of normal regular lubricating and maintenance.
(5)Aluminum plate is protected by stainless steel band which improves the wear resistance and prolongs its life.
(6)The drum and end plate is sealed by sealant and rubber pad which prevents water.
(7)Drum adopting 1Cr18Ni9Ti stainless steel and vulcanized rubber (δ=4mm)or Wear resistant ceramic chip which prolongs the drum life.
Detailed Images
Tank
(1)Tank adopting computer simulation fluid design, easy for pulp get through and prevent blocking. There are discharging sedimentation devices in both ends which is easy maintenance.
(2)Tank is welded by stainless steel plate, after welding, there is flaw detection to make sure the quality of weld passes and there will be no leaking when is used. There are wear protective measures in tank and prolongs its life.
(3)Flush pipe coating wear-resisting rubber hose to enhance resistance and wear resistance.
(4)Tailings pipe with stainless steel protection shell to enhance resistance and wear resistance.
(5)The arc plate with arc cast slab to enhance resistance and wear resistance
(2)Tank is welded by stainless steel plate, after welding, there is flaw detection to make sure the quality of weld passes and there will be no leaking when is used. There are wear protective measures in tank and prolongs its life.
(3)Flush pipe coating wear-resisting rubber hose to enhance resistance and wear resistance.
(4)Tailings pipe with stainless steel protection shell to enhance resistance and wear resistance.
(5)The arc plate with arc cast slab to enhance resistance and wear resistance

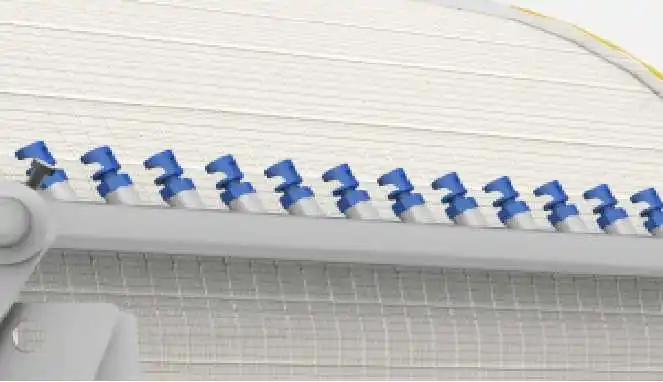

Innovative point concentrate wash pipe
The water outlet of concentrate wash pipe adopting duck bill nozzle with circle shape spray and good discharge effect.
The water outlet of concentrate wash pipe adopting duck bill nozzle with circle shape spray and good discharge effect.
1. is adjusting device to adjust tank position.
2. is duck bill nozzle with better effect and wider range of water spray compared with traditional sprinklers .
2. is duck bill nozzle with better effect and wider range of water spray compared with traditional sprinklers .

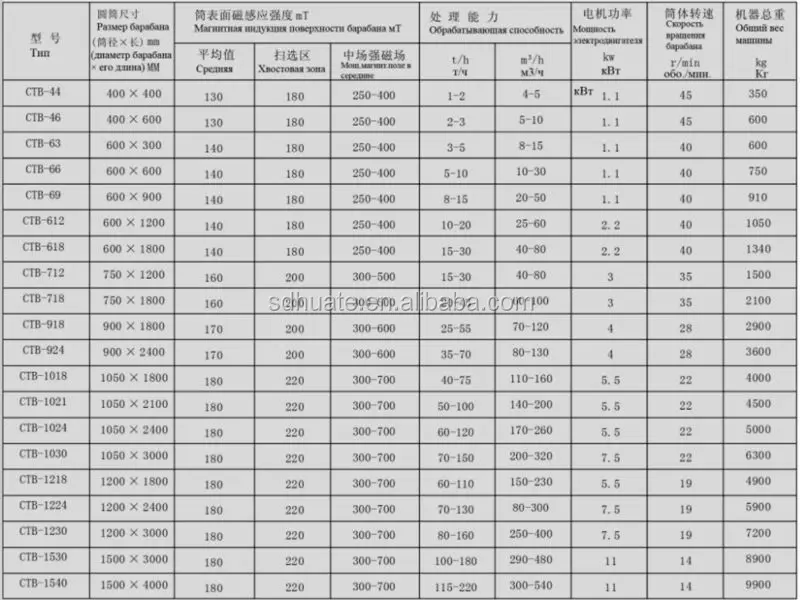

Major Technical Parameters:
Recommend Products
Pictures | At site |
Electromagnetic elutriation separator |
Company Introduction
Company Profile
Huate-China famous Trade -mark, National torch plan key high-tech enterprise, national innovative enterprise, China heavy machinery industry association executive director units, Chinese academy of sciences and technological cooperation enterprise, with postdoctoral research stations .Service scope involves mining, coal, thermal power generation, metallurgy, building material, port, non-ferrous metal, powder, environmental protection, medical treatment and so on, more than 10 fields, specializing in manufacturing low temperature superconducting magnetic equipment, magnetic separator, magnetic stirrer, powder equipment, mining equipment, non-ferrous metal separation equipment, environmental protection equipment and so on more than seven hundred models. Products are exported to the USA, Germany, Brazil, India, Australia and other countries, with more than 20,000customers .

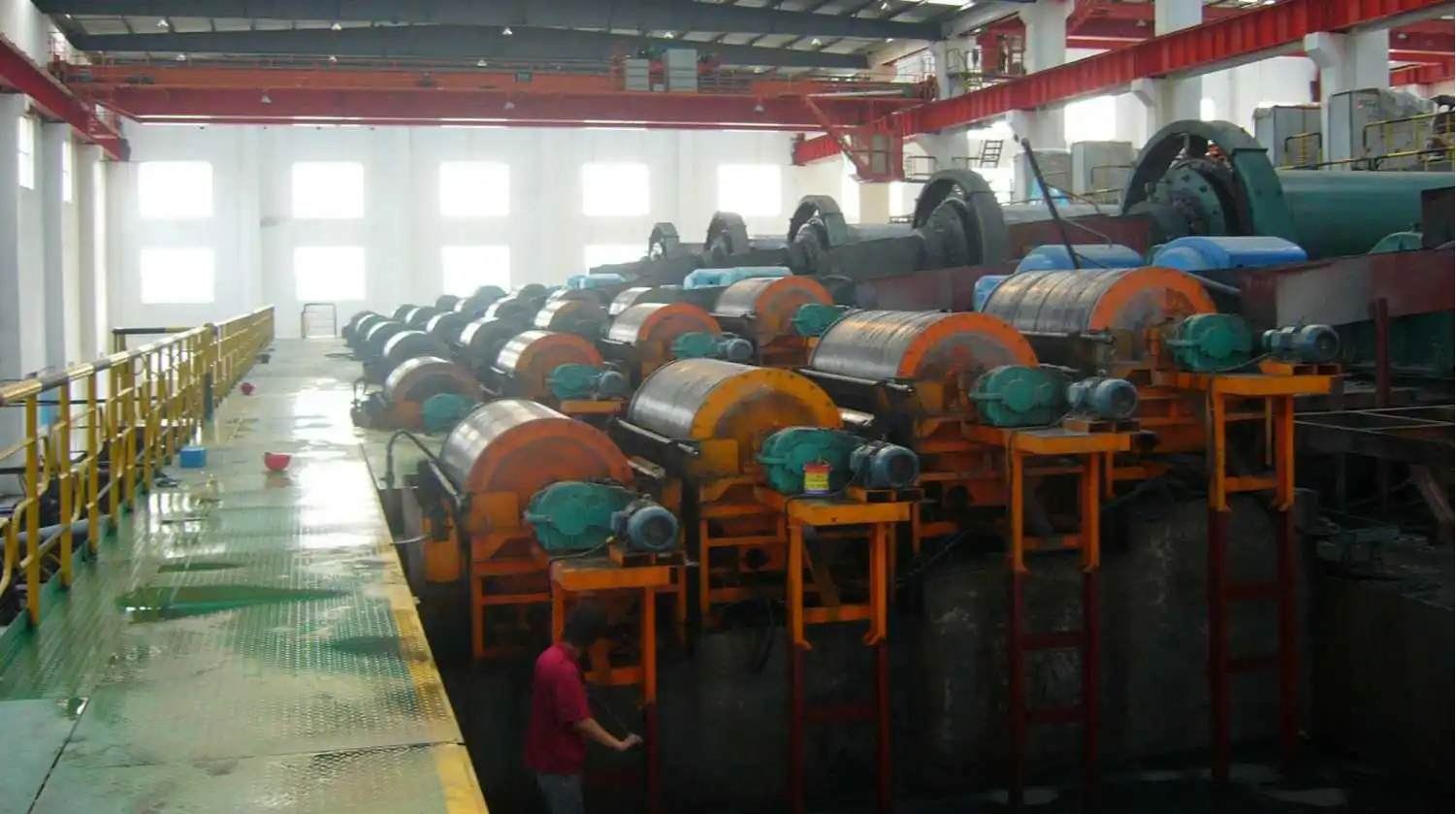

Hualian Application Sites

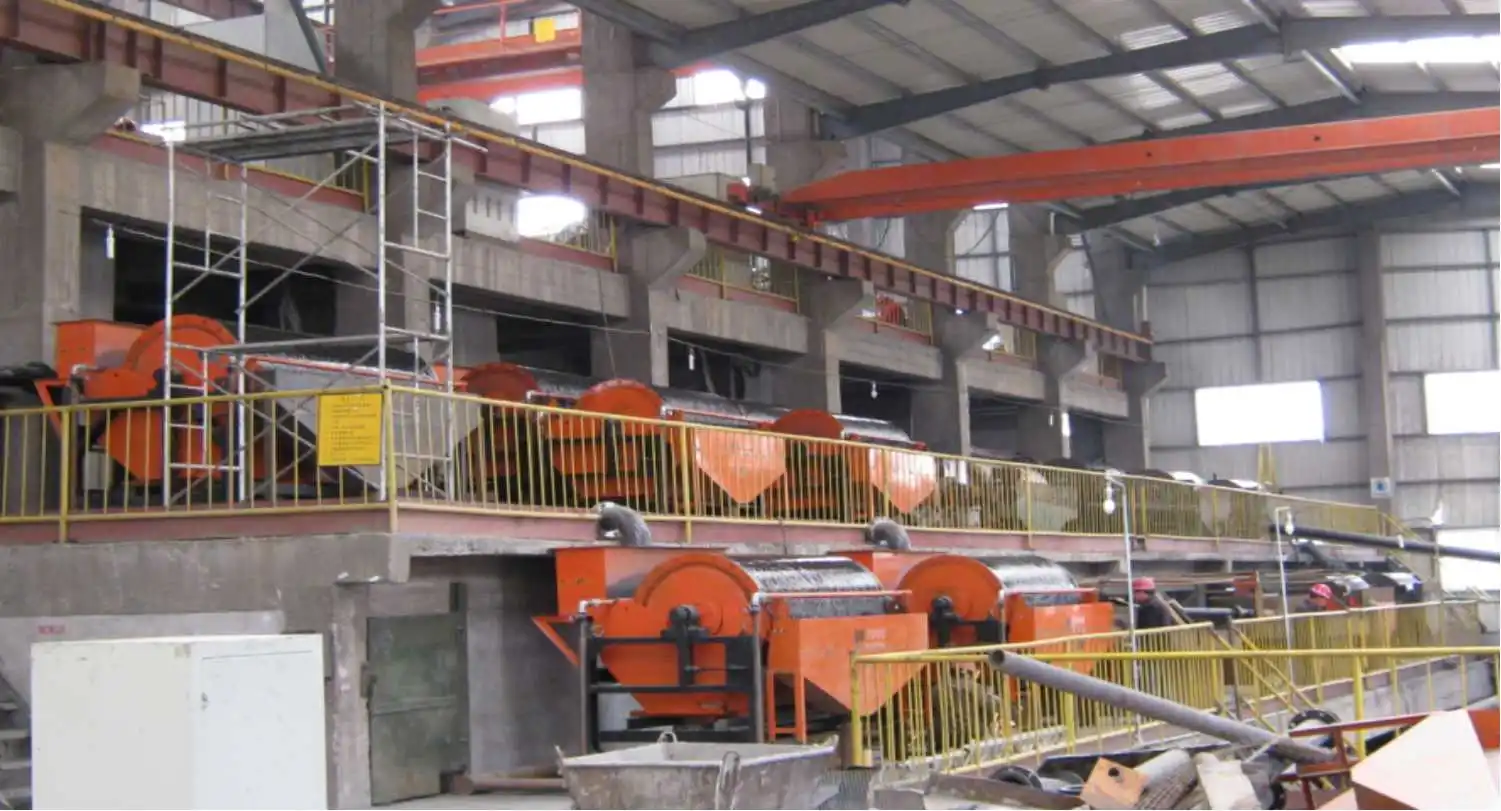

Anhui Dachang applacation site
