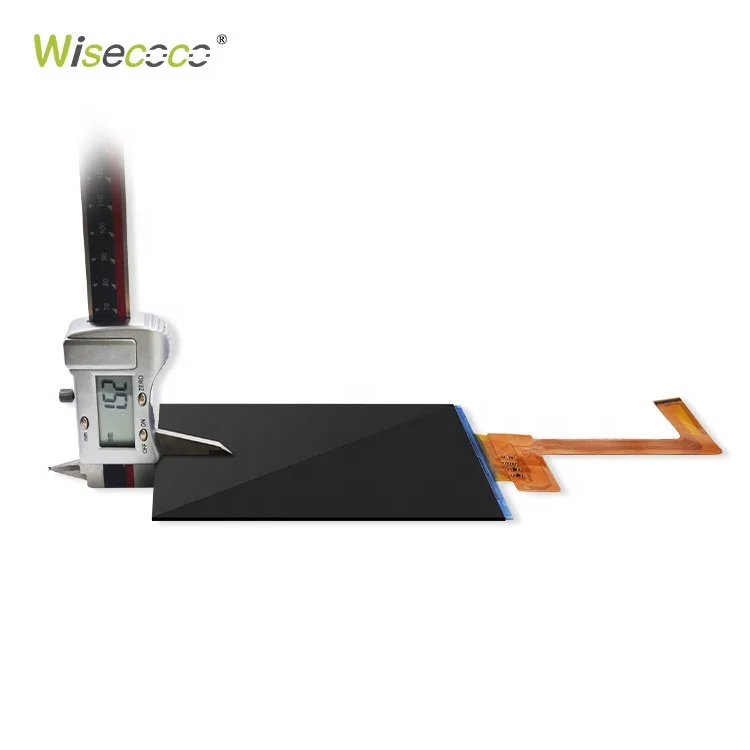

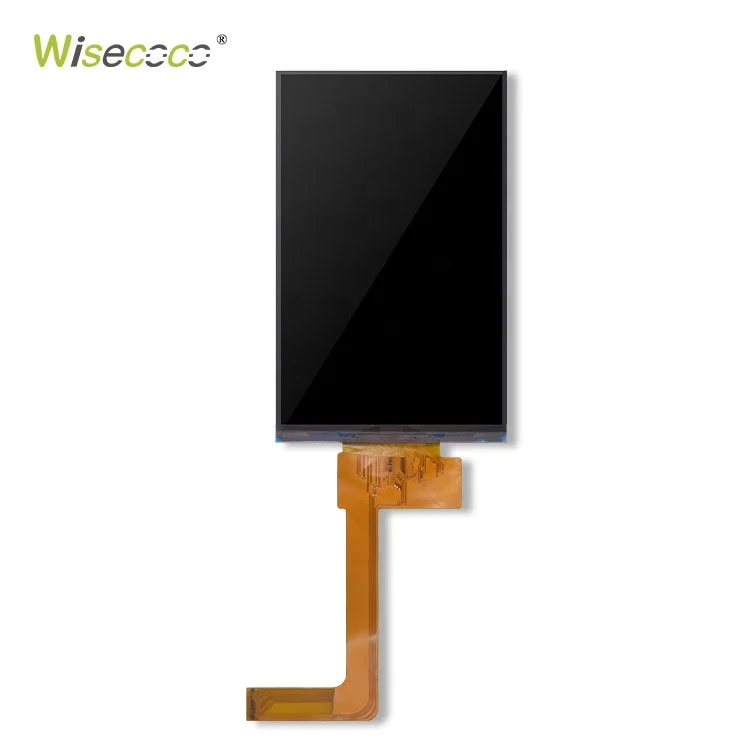

Monochrome screen 6' High PPI 1620x2560 UHD tft lcd panel Dental x ray machine long life armarium display module with board kit

General Features :

Panel Size

6 inch

Panel Type

LCM ,   TFT-LCD

Resolution

1620(RGB)×2560  (FHD)

Pixel Format

RGB Vertical Stripe

Display Area

82.62(W)x130.56(L) mm

Bezel Opening

-

Outline Size

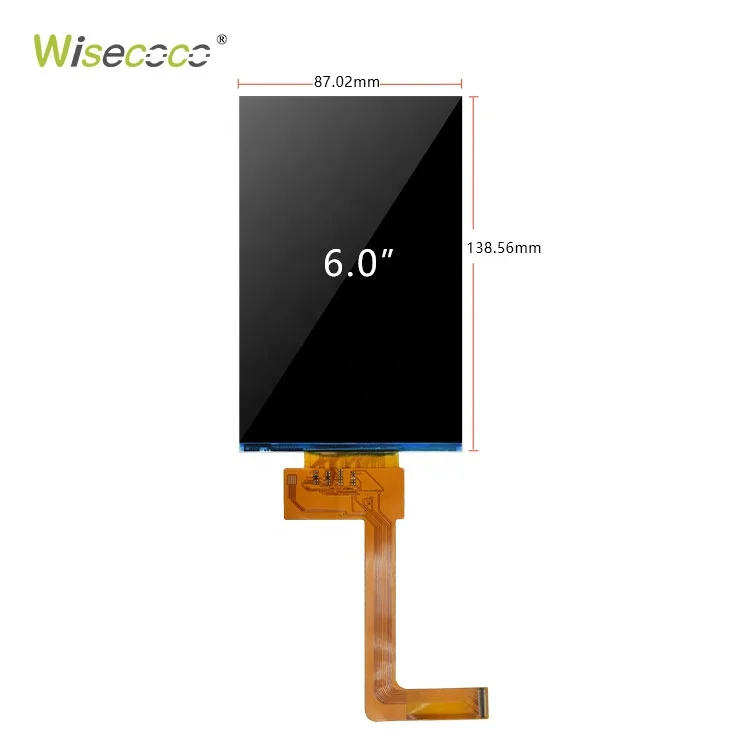

87.2(W)x138.56(L)x1.3(T) mm

Surface

-

Brightness

0 cd/m² (Typ.)

Contrast Ratio

1000:1 (Typ.) (TM)

Viewing Angle

80/80/80/80 (Typ.)(CR≥10)

Display Mode

IPS, Normally Black, Transmissive

Best View on

Symmetry

Response Time

35 (Typ.)(Tr+Td) ms

Display Colors

Monochrome

Lamp Type

No B/L

Frequency

-

Touch Screen

Without

Panel Weight

-

Application

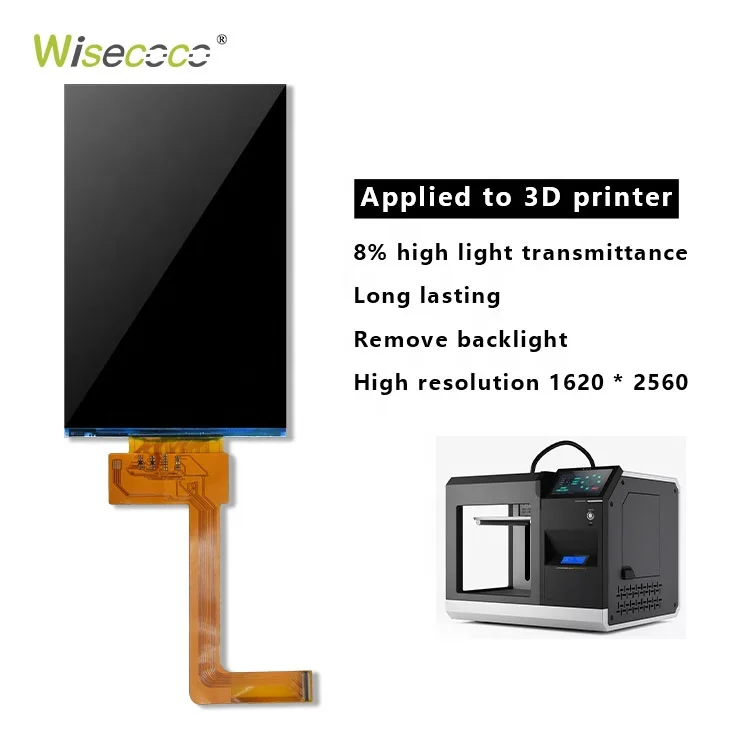

3D printer (without backlight)

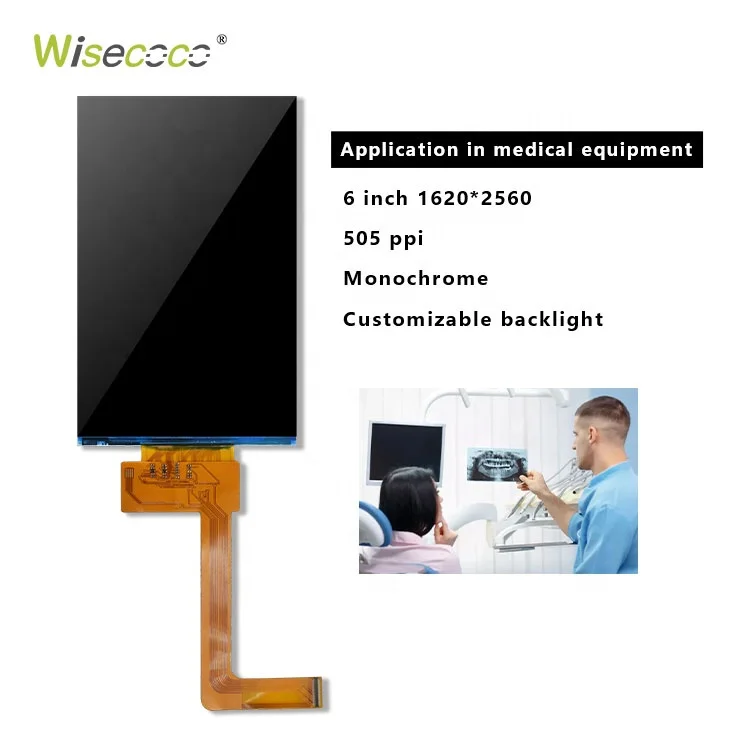

x-ray machine, industrial (add backlight)

Signal Interface

MIPI  , 50 pins FPC

Input Voltage

2.8V (typ.)

Environment

Operation temp.:-20°C~+60°C; Storage temp.: -30°C~+70°C
