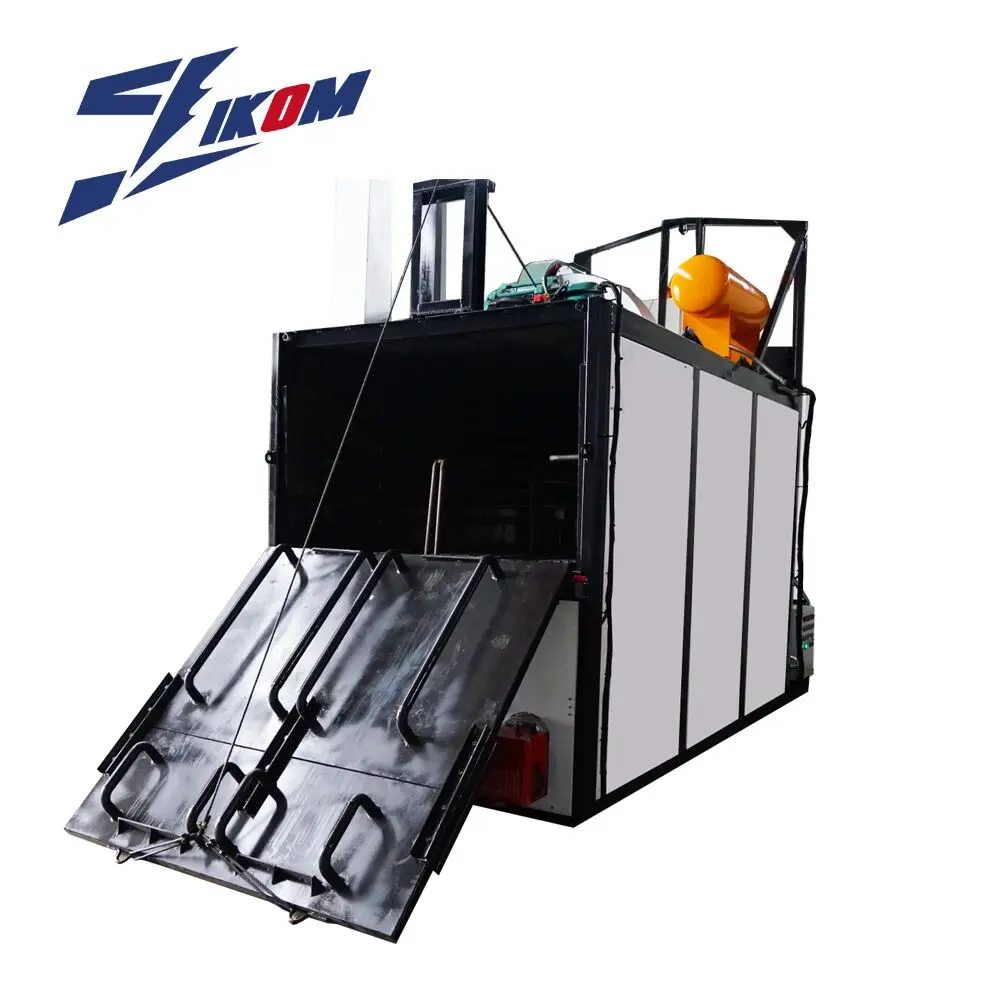

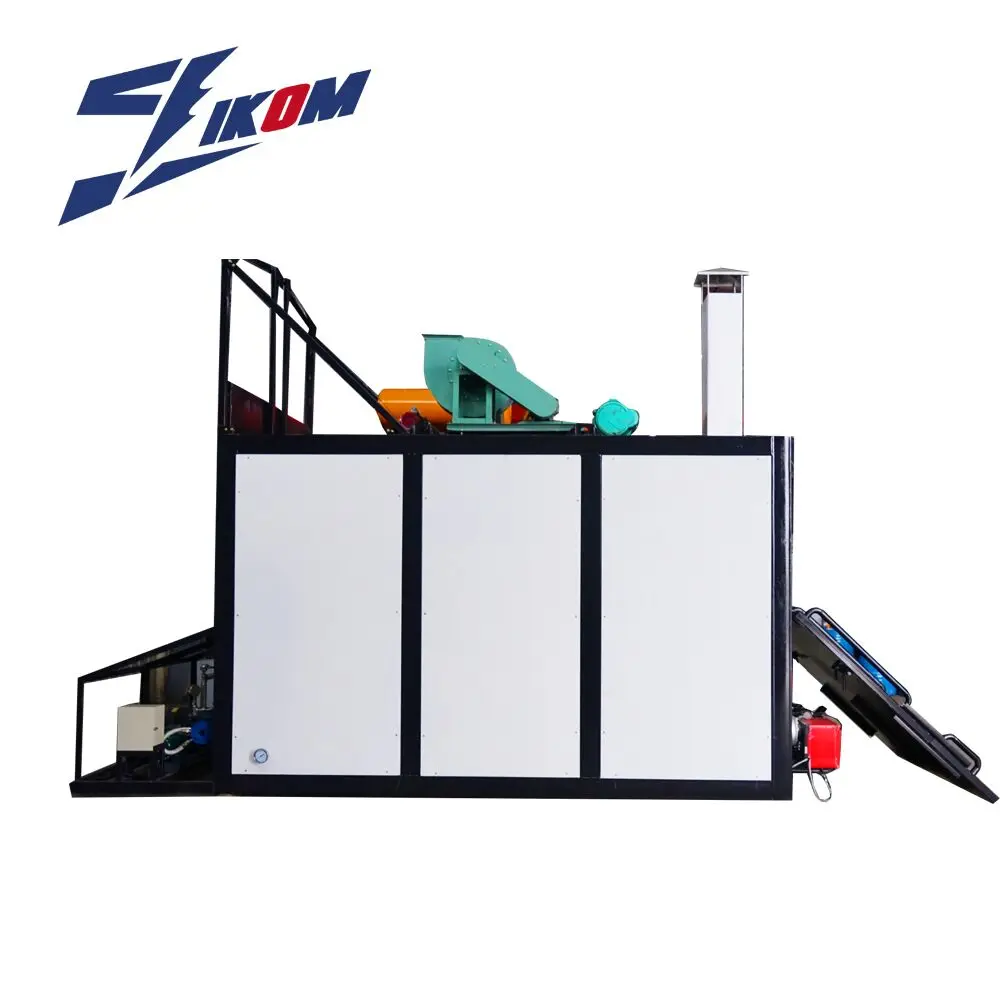

Передвижной барабанный асфальт плавильный битум декантер IKOM
- Category: >>>
- Supplier: HANGZHOU IKOM MACHINERY CO. LTD
Share on (62511310116):
Product Overview
Description
Product Description
Model | ZM-TT3 |
Dimension (LXGXW) mm | 5500x2100x2600 |
Productivity (t/h, temperature ≥25℃） | 2-3 |
Bitumen temperature (℃) | 130-160 |
Drum load quantity | 12 |
Bitumen storage capacity | 6 |
Burner Model | Riello G20 x2 |
Fuel consumption (L/H) | 22-35 |
Heating oil temperature (℃) | 210-240 |
Temperature control | OMRON JAPAN |
Heating oil grade | 320 |
Gross weight (t) | 6 |
Detailed Images
Hydraulic drum-loading system with electric motor driven hydraulic power unit. the front door also controls by hydraulic cylinder to enhance the sealing.
Easy installation and transportation: Just put on the hard ground and connect the pump out line, then can start to use. within 6 hours installation.
Easy installation and transportation: Just put on the hard ground and connect the pump out line, then can start to use. within 6 hours installation.

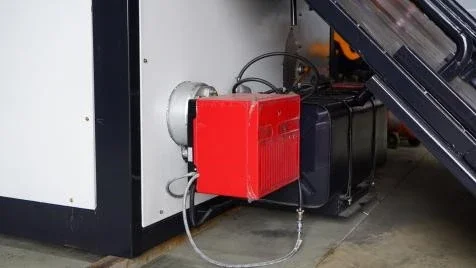

Complete unit equipped with 2 Italy Riello G20 automatic burner and inner heating transfer oi boiler. Not need connect out boiler or heating.

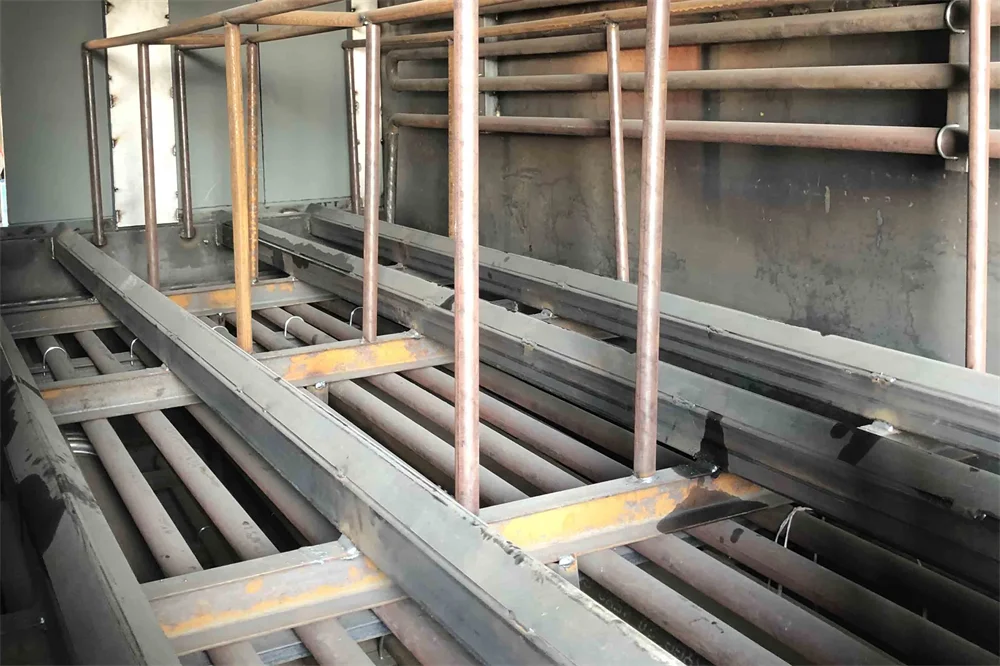

Heating transfer oil pipeline is fully covered under the track, on both sides of the wall and the bottom of the equipment, Maximizes the heat transfer efficiency.
Folded triangle steel track design makes it easier for the bitumen drum entry
Folded triangle steel track design makes it easier for the bitumen drum entry

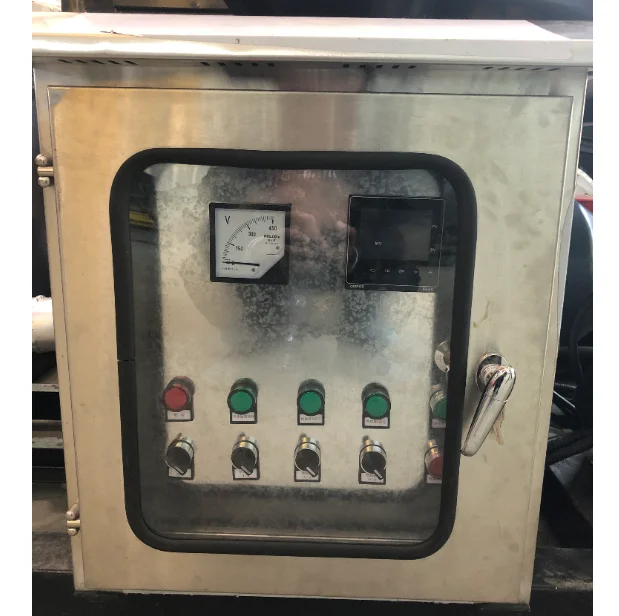

Temperature control panel. Heating transfer oil temperature can automatic adjust by set temperature which can sale the fuel.
Integrated control cabinet, induced draft fan, asphalt pump, front and rear door opening and closing by electric circuit
Integrated control cabinet, induced draft fan, asphalt pump, front and rear door opening and closing by electric circuit
