intelligent PDLC Smart glass manufacturer in China
- Category: Building & Industrial Glass >>>
- Supplier: Shenzhen Vanlong Opto Technology Co. Ltd.
Share on (625113272):
Product Overview
Description
Electric smart Switchable privacy PDLC GLASS
Switchable Smart glass is a kind of high-tech special glass which is laminated of two pieces tempered or clear float glass with PVB/EVA and smart PDLC Film in between.
The glass have same function as smart PDLC Film can switch from opaque to transparent instantaneously. It is transparent when power on and opaque when power off, The transmittance can be adjusted with voltage regulator. The use of smart glass can save costs for heating, air-conditioning and lighting. When opaque , liquid crystal or electrochromic smart glass blocks most UV. And the smart glass can also work as a rear projection screen.
Product Specification
PDLC GLASS | Test Item | Status | Data | Remarks | ||
Optics | Parallel Light Transmittance | On | > 73% | GB/T 5137.2-2002 | ||
Off | < 4% | |||||
Visible light transmittance | On | > 76% | GB/T 2680-94 | |||
Off | > 50% | |||||
U Value | on/off | 5.05W/m2•k | ||||
Haze | On | < 6% | GB/T 2410-2008 | |||
Off | > 90% | |||||
UV block | on/off | > 98% | ||||
Viewing Angle | on | > 160∘ | ||||
Electrical | Operate voltage | on | 50VAC | Multimeter | ||
Response Time | on → off | < 200ms | Liquid crystal measurer | |||
off → on | < 200ms | |||||
Power consumption | on | 5 W / sqm | multimeter | |||
Duribility | Life Span / switch | on > 50000 hours on/off > 5 million times | ||||
Peel Strength | > 70 gf/inch | |||||
Working temperature | - 20℃ to + 70℃ | |||||
Energy | Shading Coefficient | on | 0.86 | |||
off | 0.67 | |||||
Sound insulation | > 35dB | |||||
Heat insulation | > class 2 | |||||
SIZES | Thickness | Size | Length/width/curve tolerance | |||
Clear Glass | 5mm/6mm/8mm/10mm+1.5mm (EVA/PDLC Film)+5mm/6mm/8mm/10mm | Max. 1.5*3.5M | GB15763.3-2009 | |||
Tempered Glass | 5mm/6mm/8mm/10mm+3mm (EVA/PDLC Film)+5mm/6mm/8mm/10mm | Max.1.9*4.8M | ||||
Application

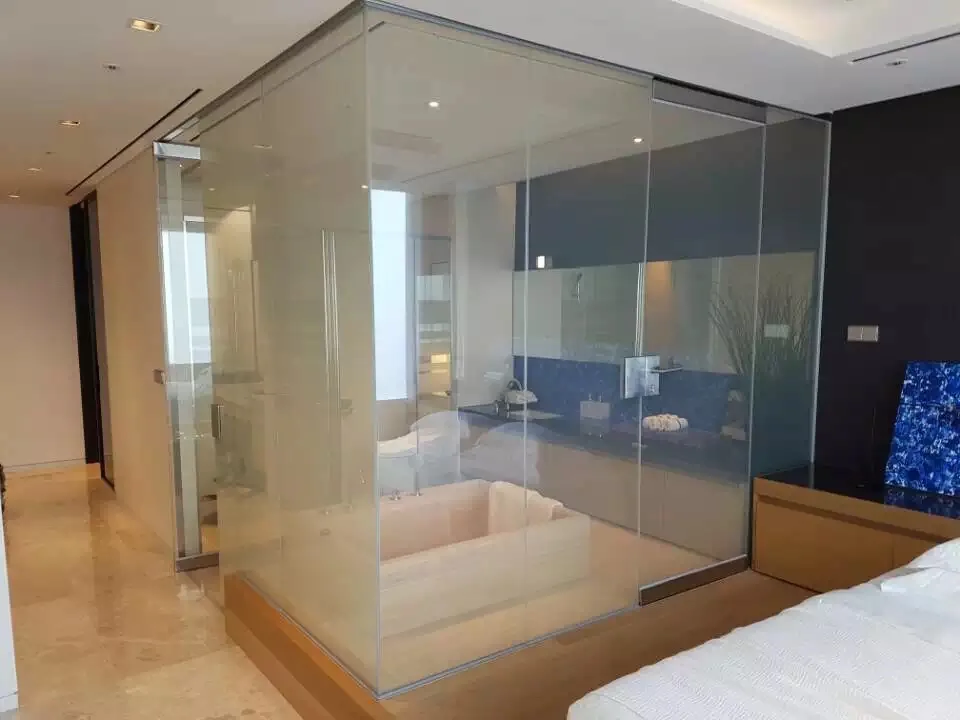

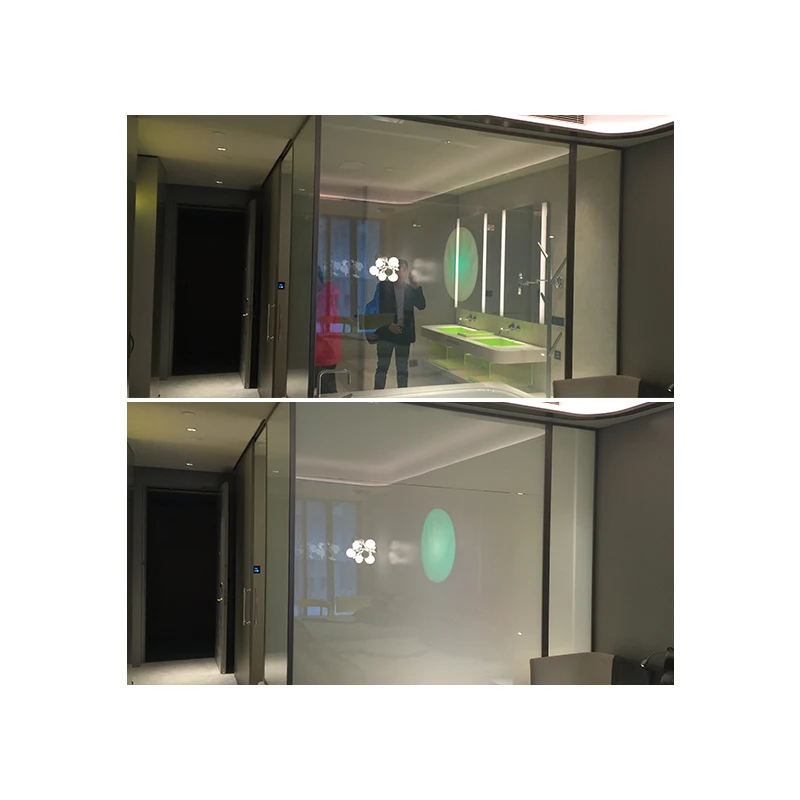

Hotel Bathroom OFF
Hotel bathroom ON
Office OFF
Office ON
Command Center OFF
Command Center ON
Window On
Window OFF
Skylight OFF
Skylight ON
Projection screen OFF
Projection screen OFF
Company Facility
Packaging & Delivery
