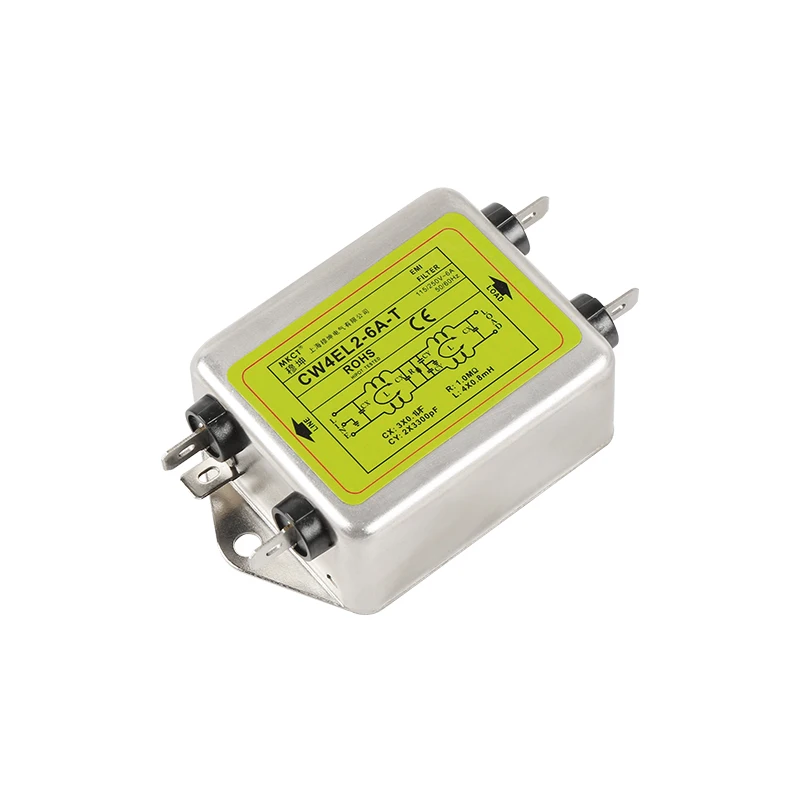

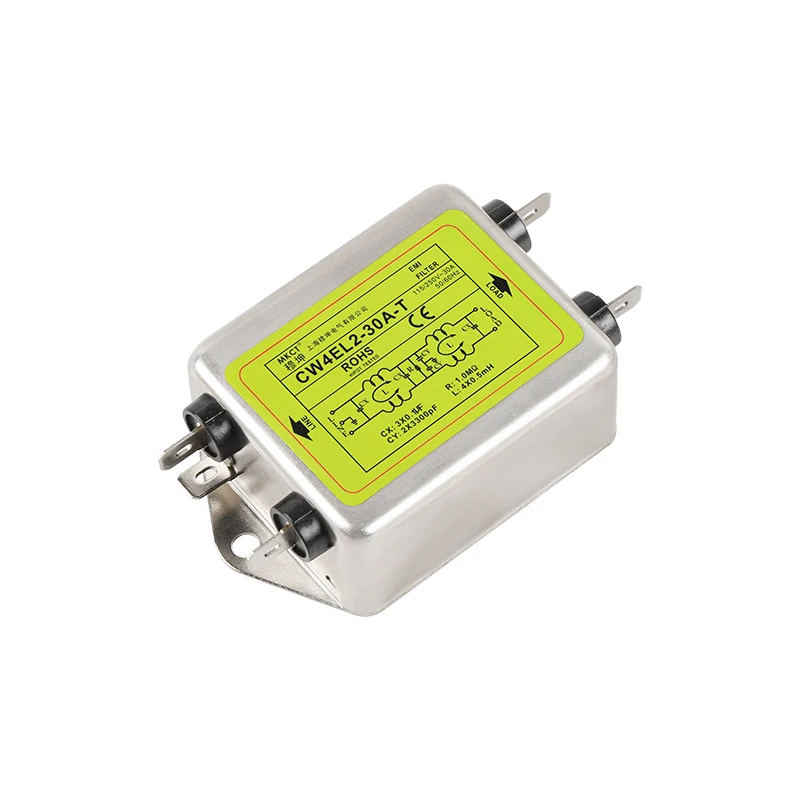

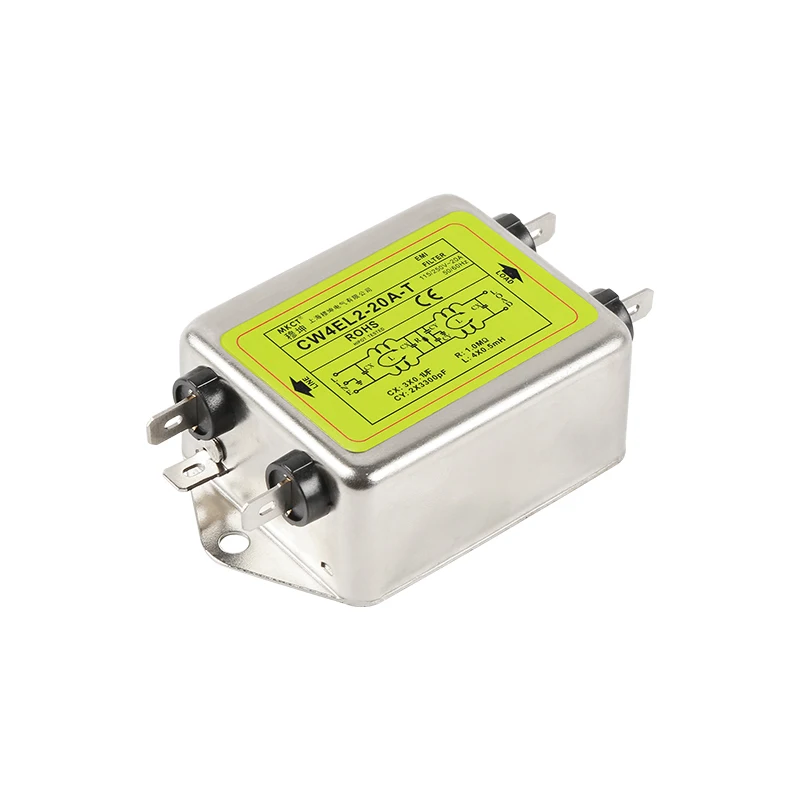

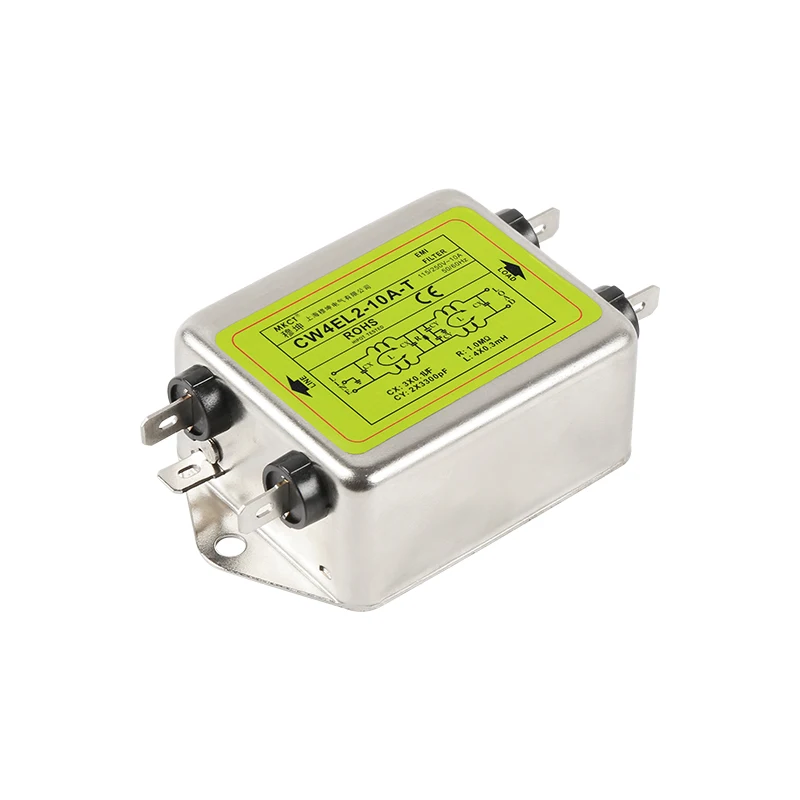

Insert Connection Single Phase 220V EMI Filter Enhanced Bipolar 2 Pins CW4EL2 3A/6A/10A/20A/30A T Power Filter
- Category: >>>
- Supplier: Zhejiang Ximeng Electronic Technology Co. Ltd.
Share on (62511504523):
Product Overview
Description
Features and benefits
-Compact size, fast and easy chassis mounting
-Various terminal connection styles

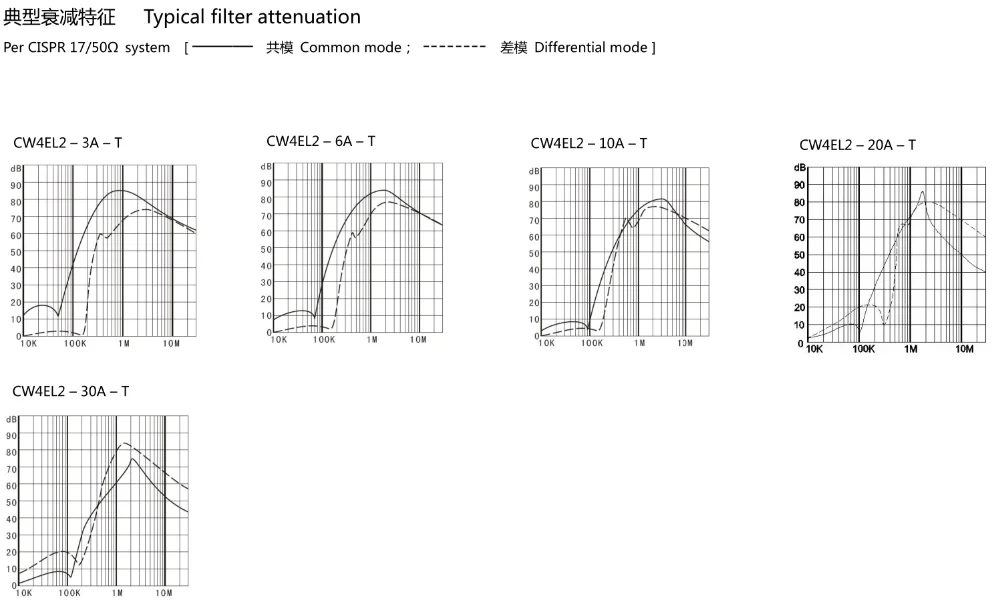

-Good conducted attenuation performance, surge pulse protection and radio frequency interference suppression is present
Typical applications
-Electrical and electronic equipment
-Medical and household equipment
-Automation, datacom and electronic data processing equipment

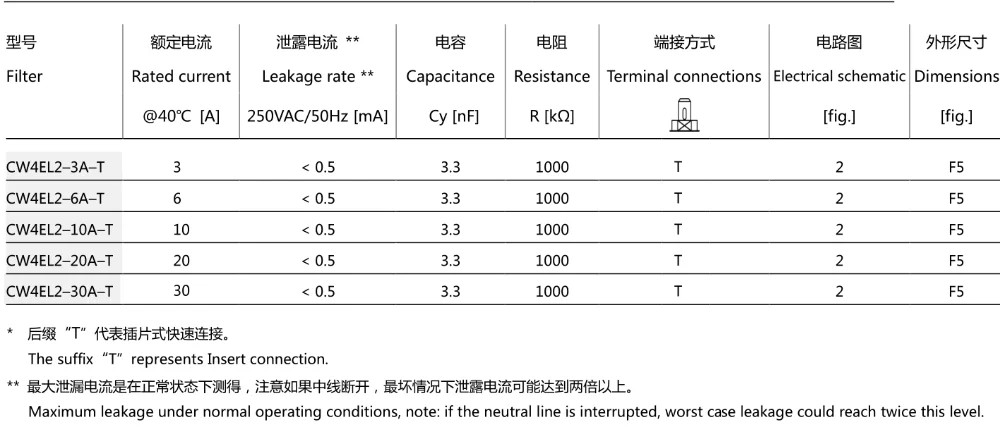

Technical specifications
-Maximum continuous operating voltage: 250VAC
-Operating frequency: 50/60Hz
-Rated currents:3A – 30A @ 40℃ Max
-High potential test voltage(1 min): Line to Line 1500VDC / Line to Ground 1500VAC
-Operation and storage temperature range: -25℃~+85℃ (25/085/21)
