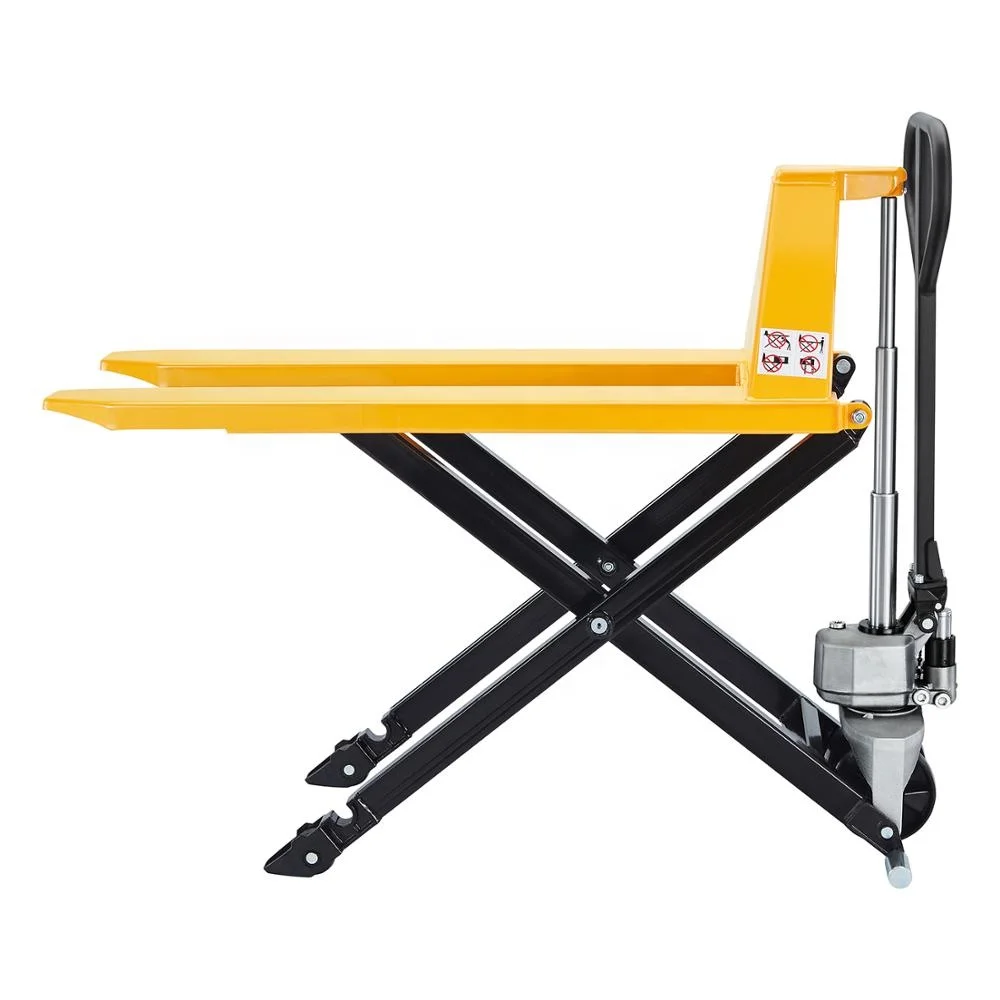

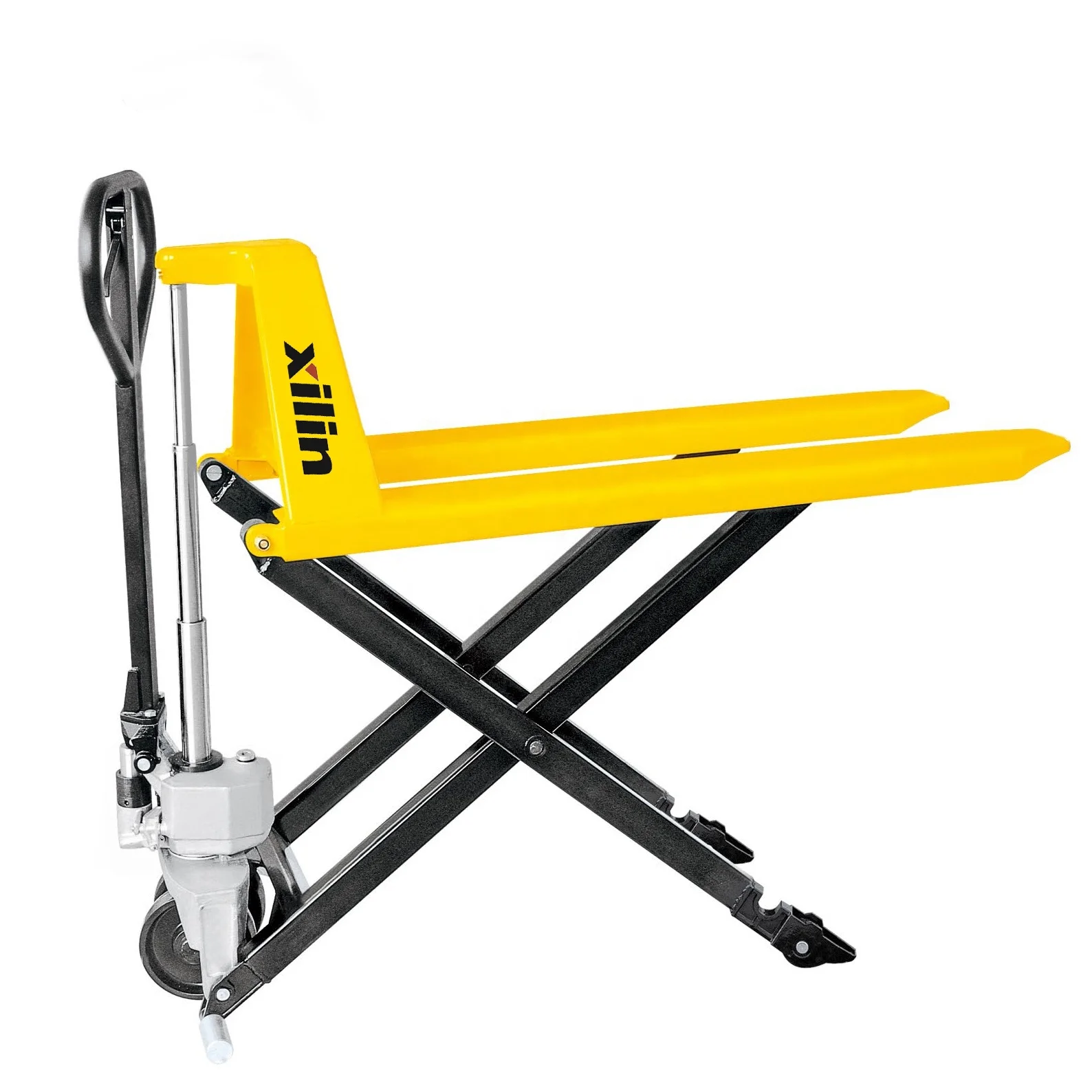

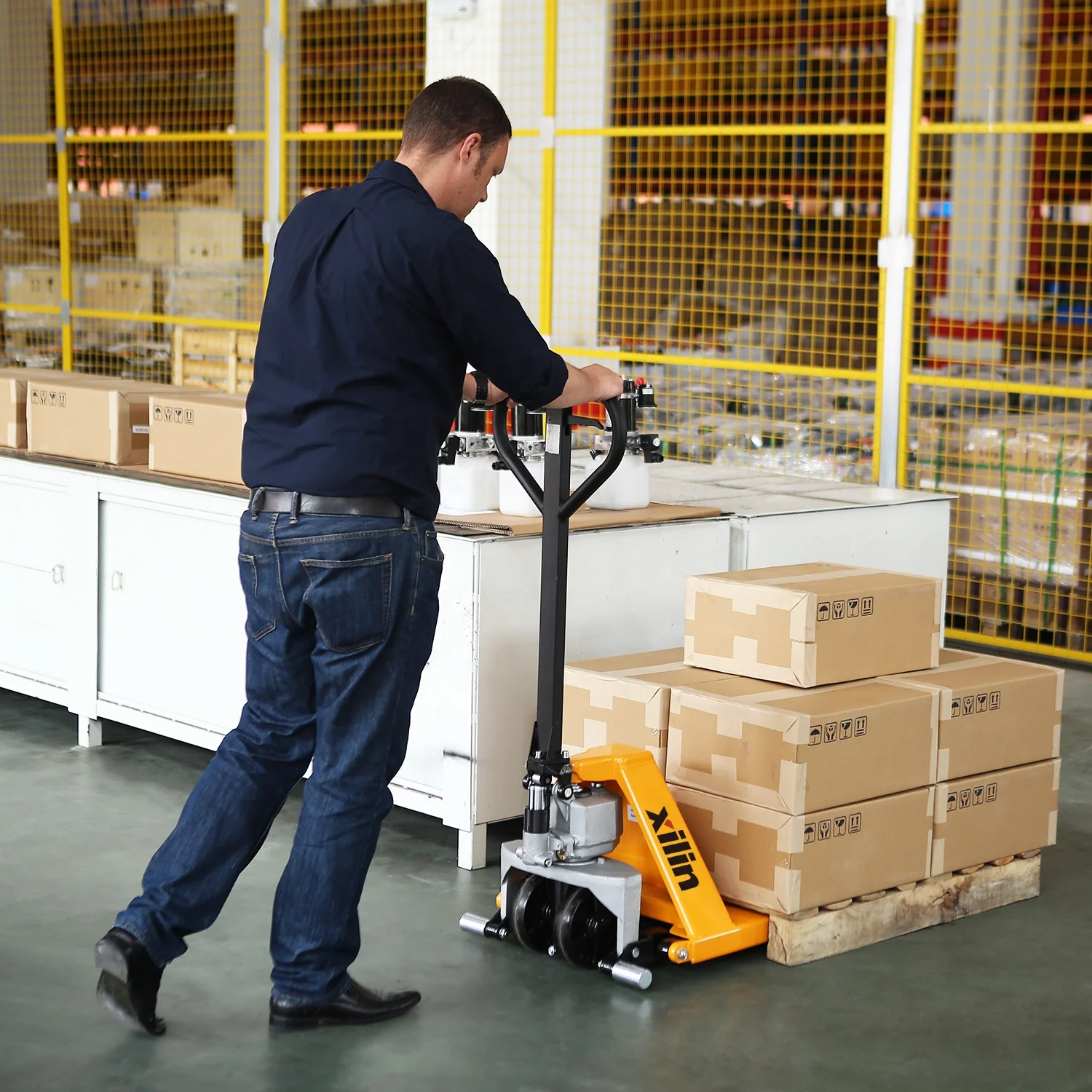

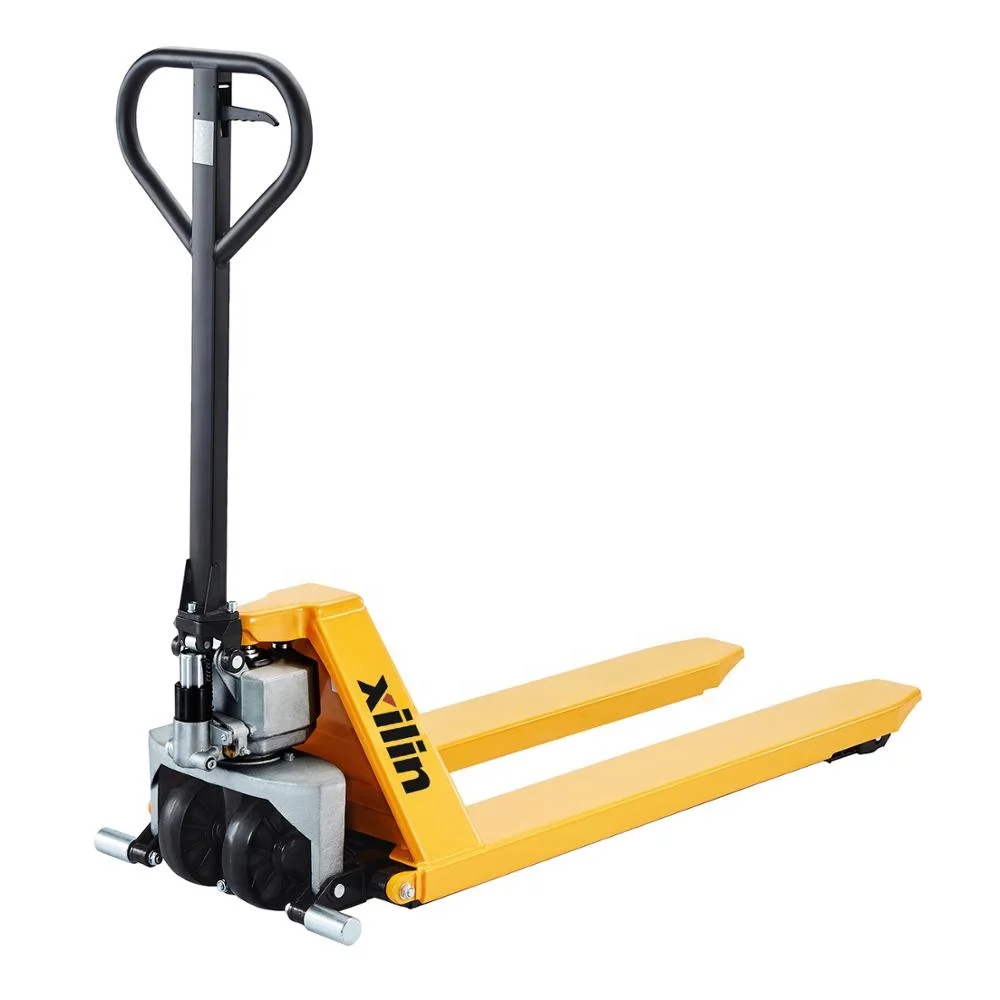

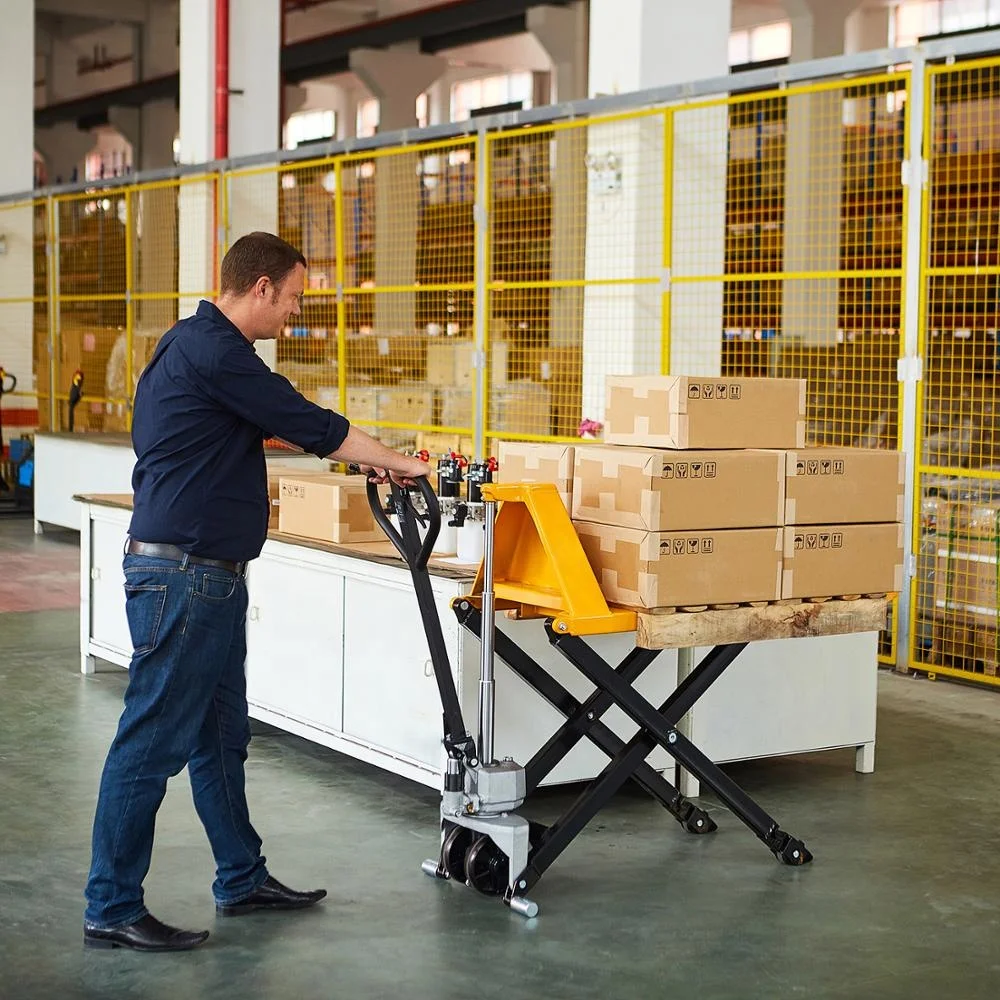

Xilin manual hydraulic Pallet scissor 2200lbs 1000kgs capacity high lift truck

Share on (62511533297):


Price:

Quantity:


Product Overview

Description







Xilin manual hydraulic Pallet scissor 2200lbs 1000kgs capacity high lift truck




Advantages:
1.Ideal design with numerous possibilities makes this unit very suitable as pallet truck/scissor lift table.
2.Telescopic jack composes of 3 piston rods creating light pumping force giving great rigidity.
3.Support legs come into operation automatically.
4.It prevents the unit from moving when the forks are raised to keep the safety of the operator.
5.Truck automatically slows the descending speed when heavy goods loaded to prevent cargo damage.
6.210 degree turning radius.
7.2 lateral stabilizers when raised ensure good stability.
Option: Stainless Steel.






Model


JF
Capacity
Q
(lbs)
2200
(kgs)
1000
Lowered fork height
h13
(inch)
3.3
(mm)
85
Steering wheel

(inch)
Φ7.1x2.0
(mm)
Φ180×50
Fork wheel

(inch)
Φ2.9x2.0
(mm)
Φ74x50
Fork length
l
(inch)
45.3
(mm)
1150
Width overall forks
b5
(inch)
21/21.7/27
(mm)
520/550/685
Aisle width for pallets 1000x1200 crossways
Ast
(inch)
67.5
(mm)
1715
Aisle width for pallets 800x1200 lengthways
Ast
(inch)
69.5
(mm)
1765
Turning radius
Wa
(inch)
53.5
(mm)
1360
Service weight

(lbs)
230-254
(kgs)
104-115








Q1: Are you a factory?
A1:
Of course. Ningbo Ruyi Joint Stock Co. Ltd., established in 1985, is a national hi-tech enterprise, which owns the unique combination of scientific research, development, production, sale and service.
Q2: Can Ruyi provide customized products? OEM products or ODM products?
A2:
Yes, Ruyi can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot of non-standard products, welcome your special custom-made.
Q3: What's the specification of the chargers?
A3: Ruyi have all kinds of the chargers and welcome the customers to custom-made.
Q4: How about the delivery time?
A4: Usually Ruyi producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.
Q5: Do you have agent or representative abroad?
A5: Yes. We have two branches in the US and Russia. We have two warehouses are located in Los Angeles and Chicago with products in stock and ready to ship. We also have Xilin distributors agent in Norway, Thailand, Japan, Vietnam and Malaysia. If you are interesting to be our agent and enjoy more price. Pls contact us then we can discuss more detailed.
Q6: Can we print the LOGO on products?
A6: Yes, the OEM is available with the permission of our customers.
Q7: What is your payment term?
A7: T/T or L/C, if you want any other way, please contact us.
Q8: What can I get from cooperating with Ruyi?
A8: 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
