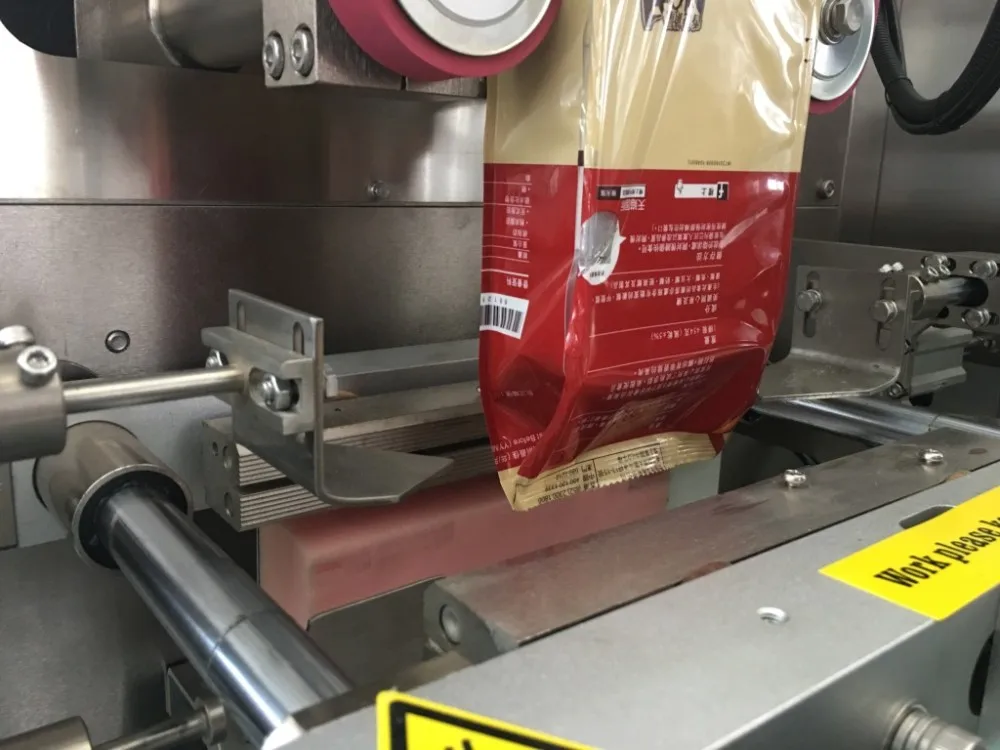

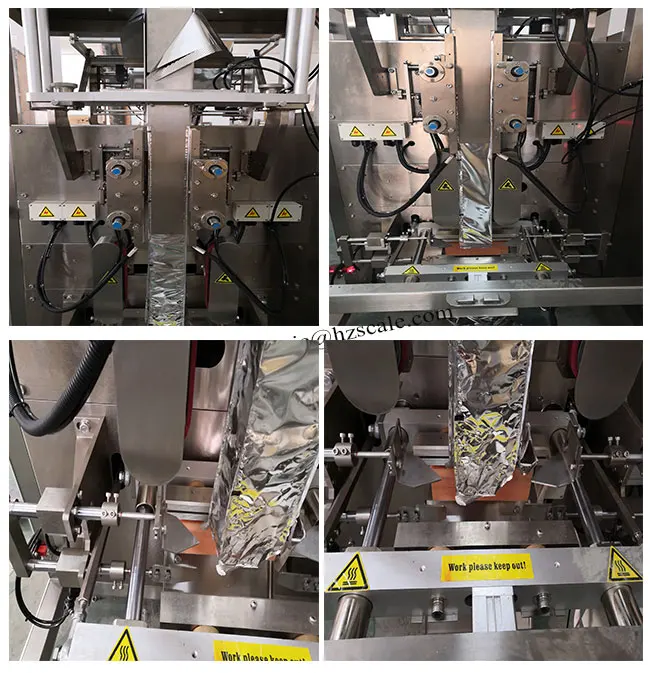

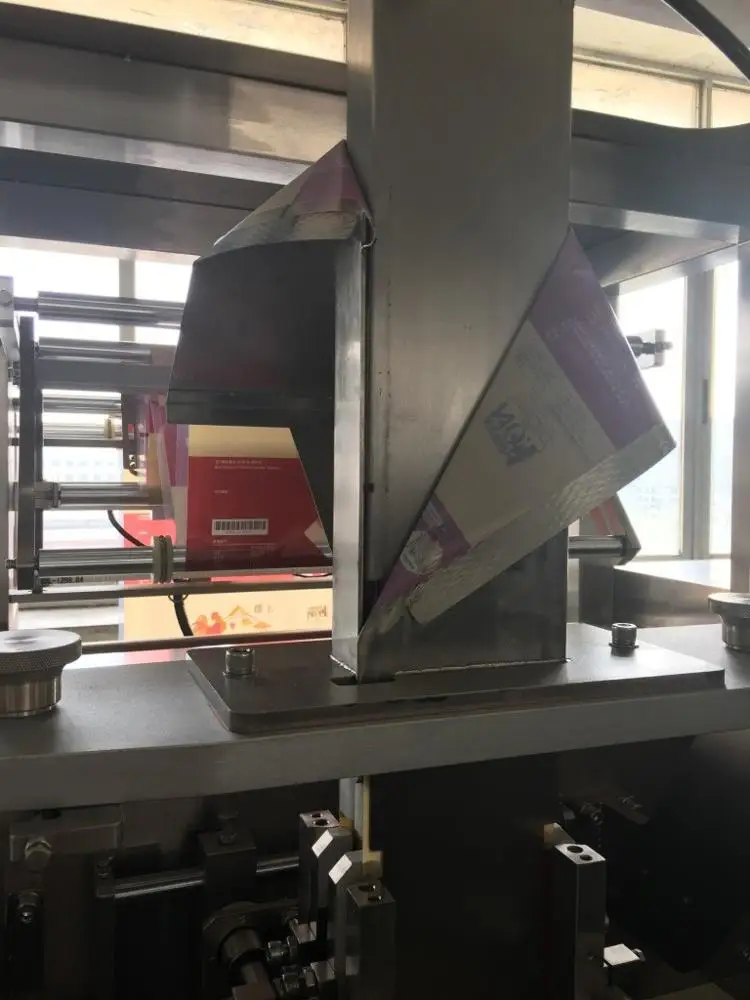

Automatic Square Block Bottom Bag Stabilo Bag Vertical Packing Machine Forming Filling Sealing Packing

                                                                                  Technical Feature

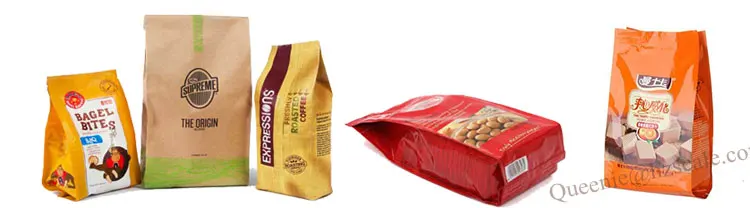

1. Machine only makes stand bag /box-type bag / four edge sealing bag with luxury appearance.

2. Adopting PLC from Japan or Germany to make machine run stable. Touch screen from Tai Wan to make operation easy.

3. Sophisticated design on electronic and pneumatic control system makes the machine with high level of precision, reliability and stability.

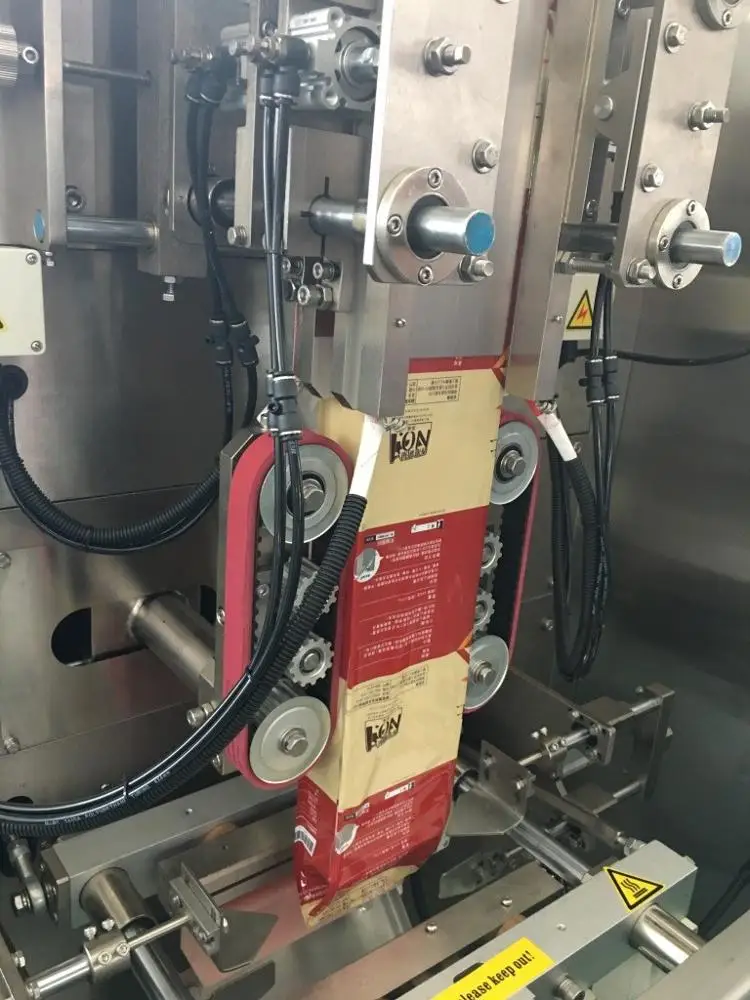

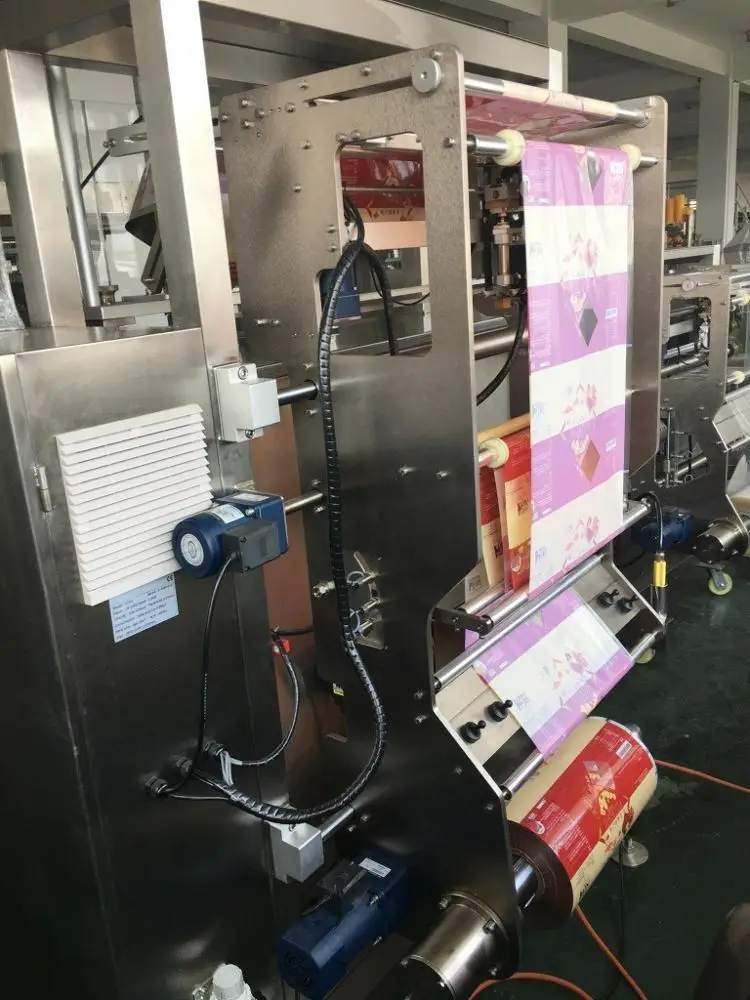

4. Double-belt pulling with servo of high precise positioning makes film transporting system stable, servo motor from Siemens or Panasonic.

5. Perfect alarm system to make problem solved quickly.

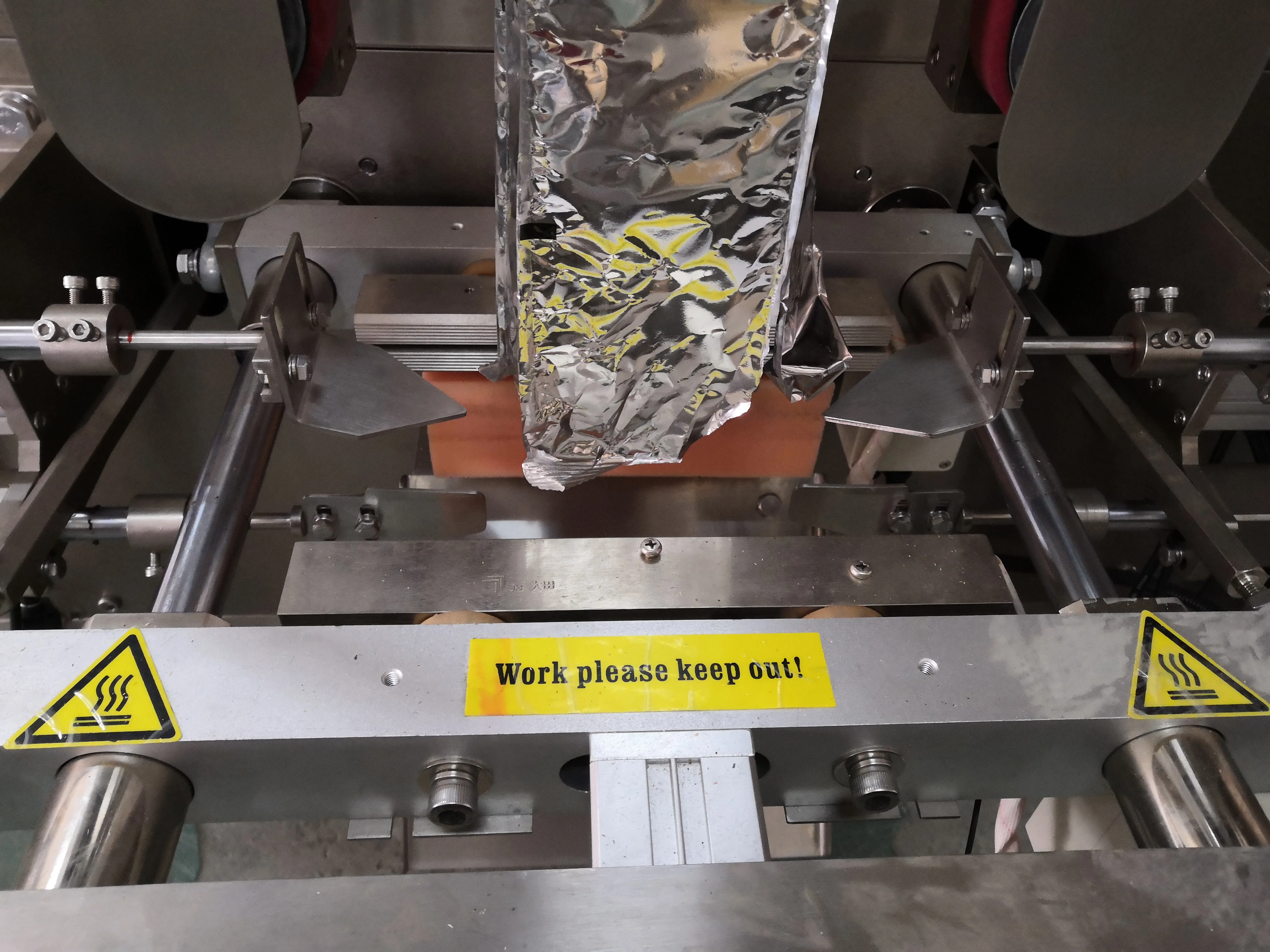

6. Adopting intellectual temperature controller,the temperature is controlled to ensure neat sealing.

7. Working with weighing or filling machines such as multihead weigher, volumetric cup filler, auger filler or feeding conveyor,process of weighing, bag making, filling, date printing, charging (exhausting), sealing, counting and delivering finished product can be completed automatically.

                                                                                   Technical Specification

Model

ZH-V520T

Packing speed

10-40 Bags/Min

Bag size(mm)

Front width 70-180

Side width 60-100

Width of side seal: 5-10

Length:100-350

Range of measuring (g)

1000

Maximum width of packing film (mm)

520

Thickness of film (mm)

0.06-0.10

Air consumption

0.8m3/min 0.8MPa

Packing Material

laminated film such as POPP/CPP, POPP/ VMCPP, BOPP/PE, PET/ AL/PE , NY/PE, PET/ PET

Power Parameter

220V 50/60Hz 4.5KW

Package Volume (mm)

1600(L) ×1400(W) ×2000(H)

Gross Weight (kg)

750
