ZM BL01 Handheld Intelligent Debugger for ZM 7205A brushlees dc motor driver controller

Product Overview

Description

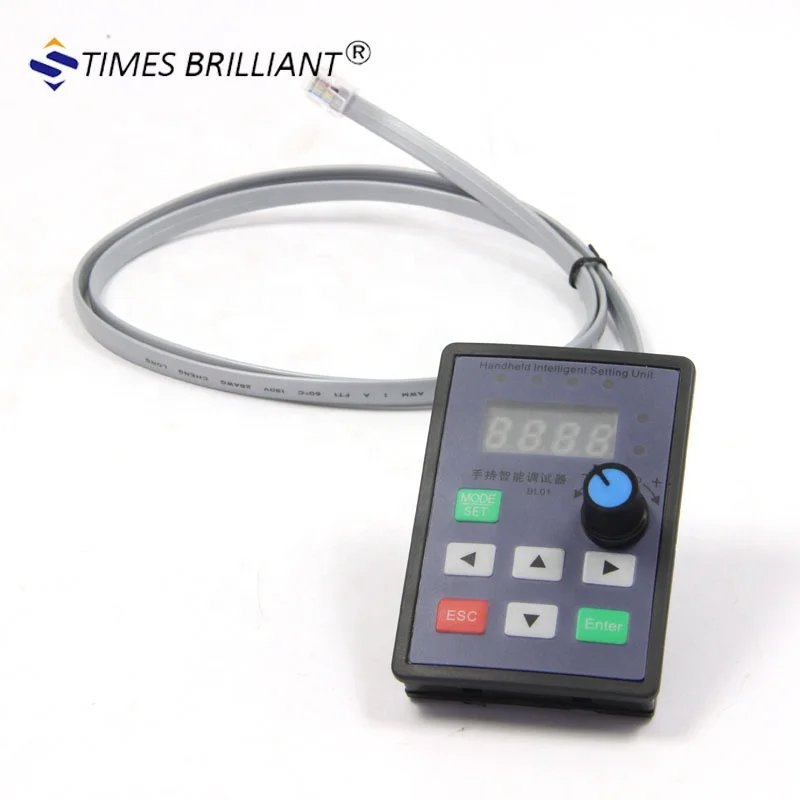

ZM-BL01 Handheld Intelligent Debugger for ZM-7205A brushlees dc motor driver controller

Function Overview

Handheld intelligent debugger is the newest product of our company, it is used to debug and set up our F series Brushless Motor Driver. So that ,all our F series divers can set up parameter by the network port of driver , and still can debug and set up by ZM-BL01.

Instruction

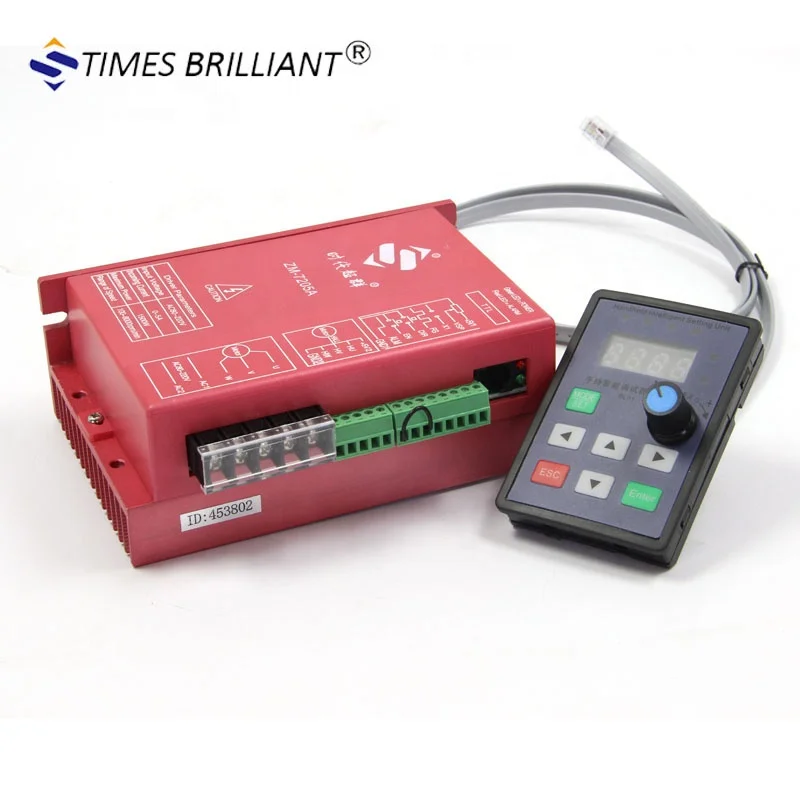

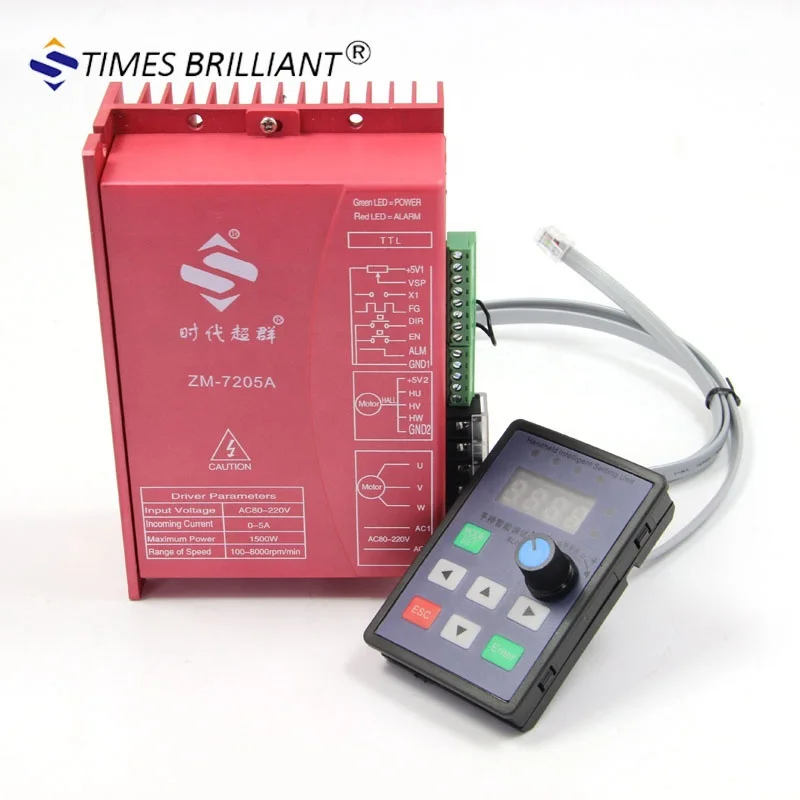

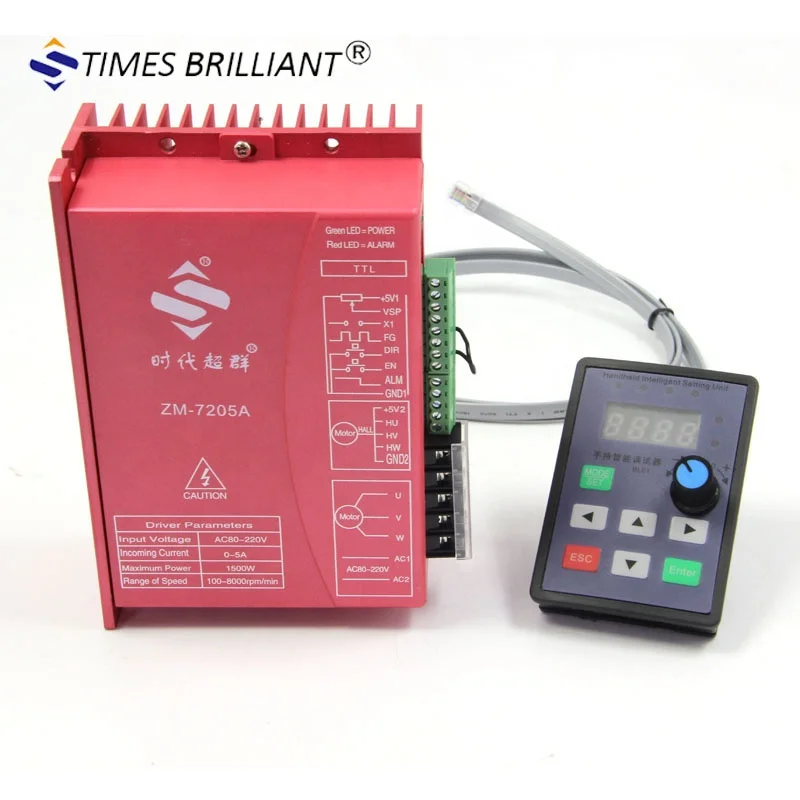

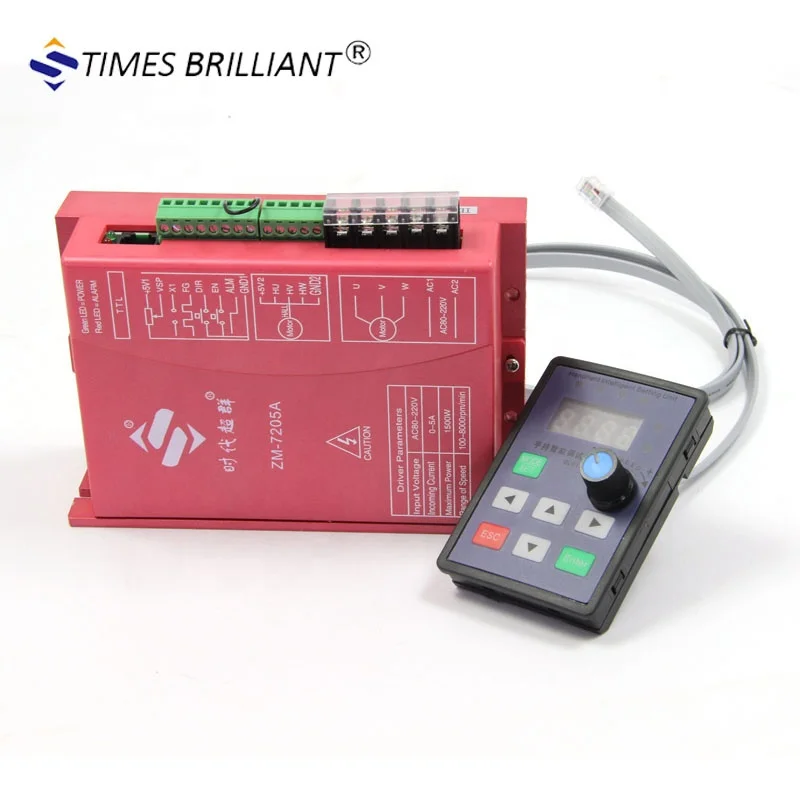

1. connect: one of the phone line connect with driver’s pot, and the other connect with ZM-BL01’s pot, then finished
2. run: press the potentiometer knob, four LED numbers(speed) will be shown on debugger , the range is 0-9999 turn/min,. when Brushless motor start to work, the real-time speed will show on the board of debugger.
3. Stop: On the status of working, press the knob again, led do not light, the debugger stop working, it can be also used to emergency stop for the Brushless motor
