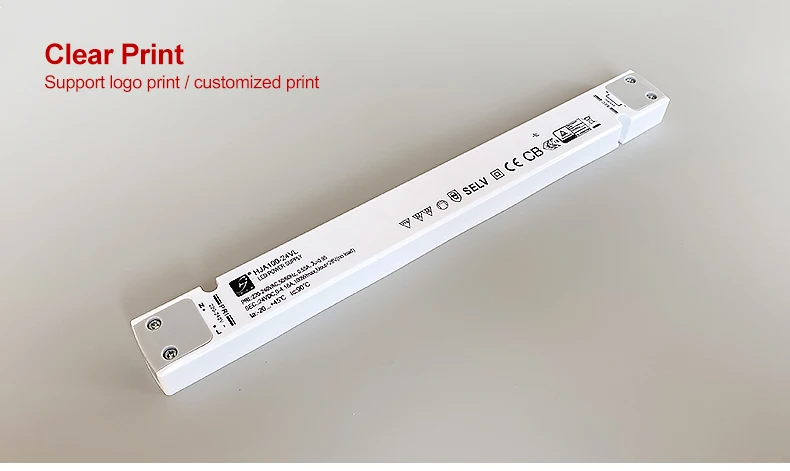

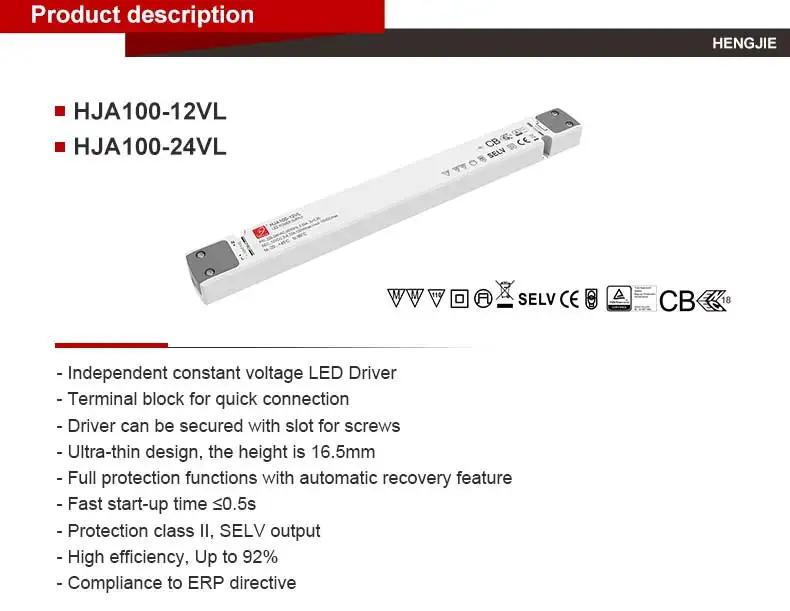

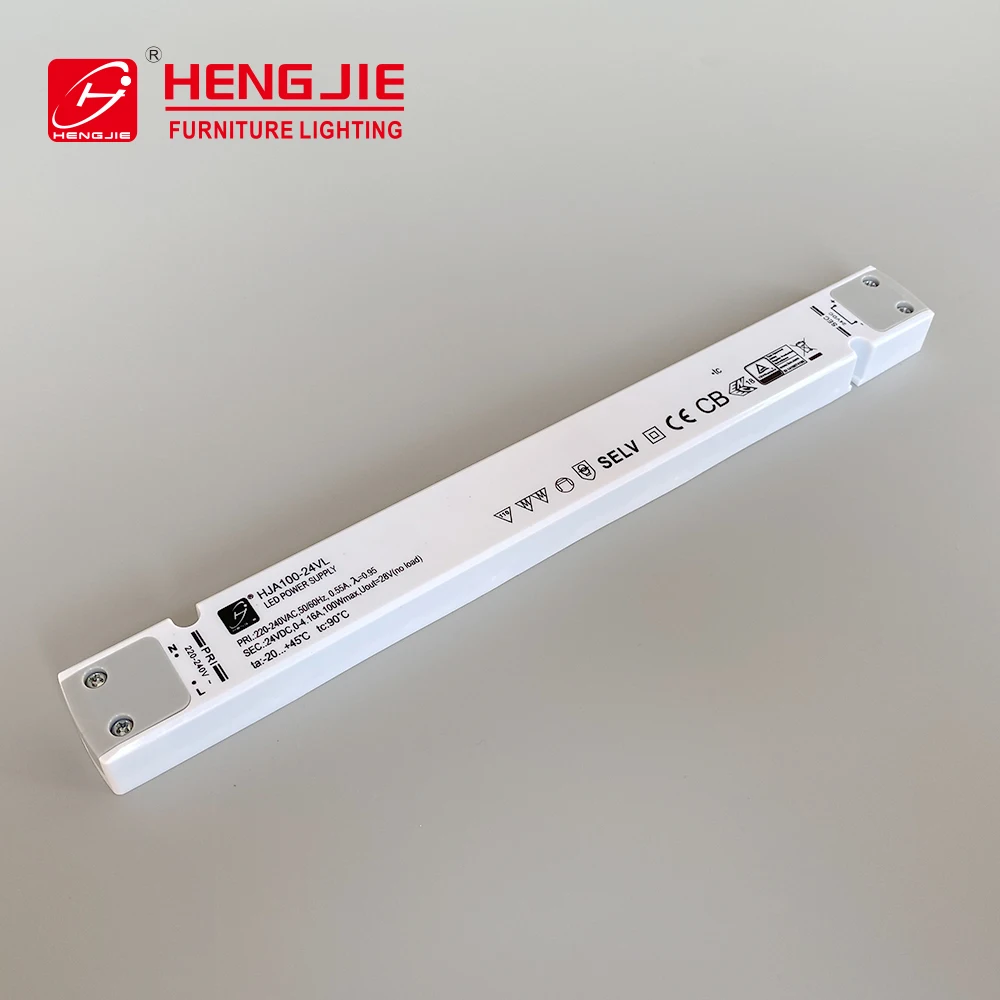

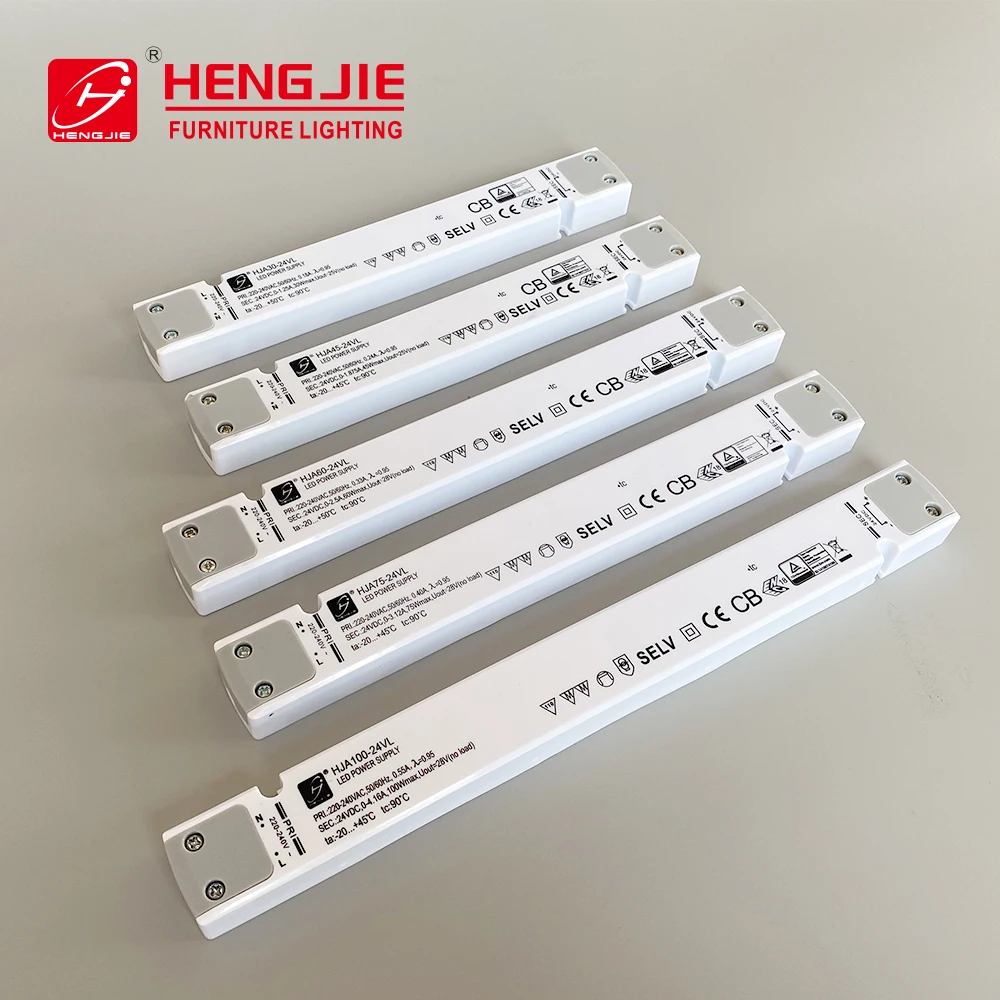

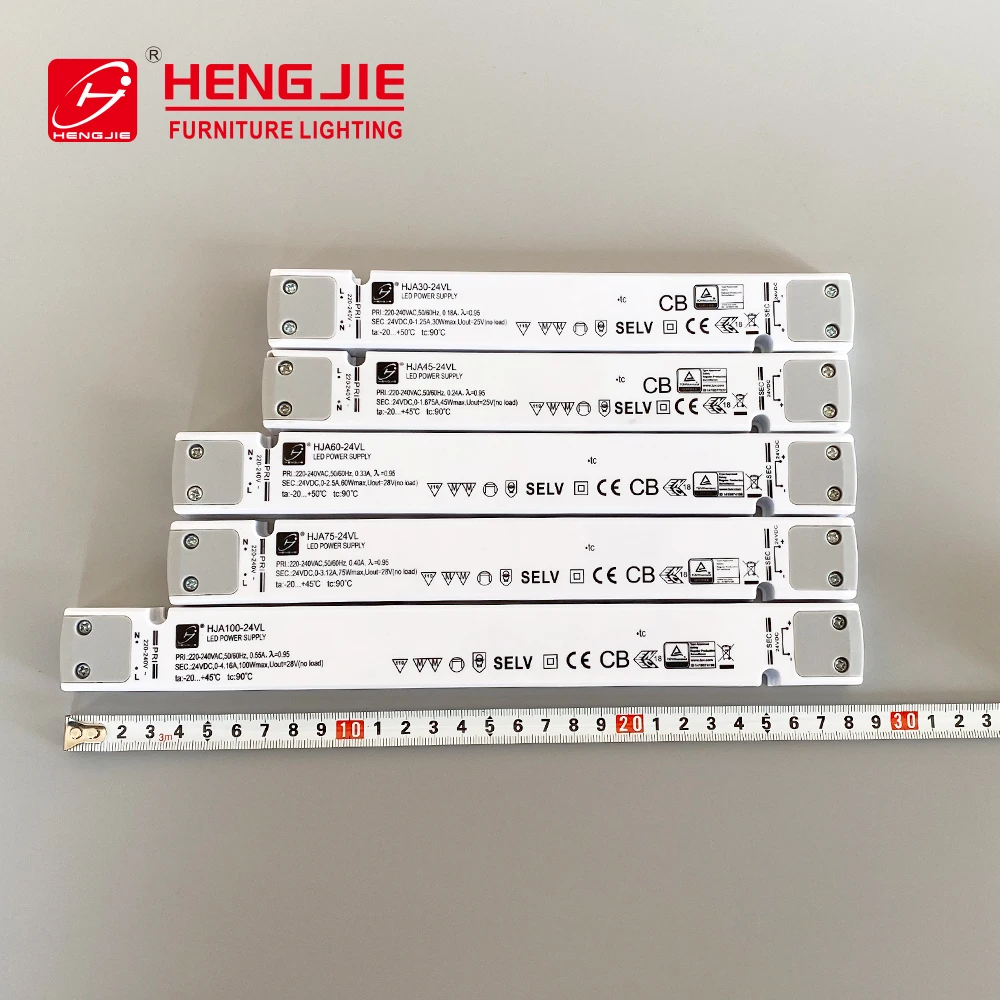

HENGJIE Ultrathin Strip Constant Voltage Driver 100W 12V/24V Transformer
- Category: >>>
- Supplier: Ningbo Technic Lighting Co. Ltd.
Share on (62511811345):
Product Overview
Description
| Input | Rated supply voltage(Vac) | 220-240 | 220-240 |
Voltage range(Vac) | 198-264 | 198-264 | |
Line frequency(Hz) | 50/60 | 50/60 | |
Input current(mA) | 550 | 550 | |
Efficiency with full load | 91% | 91% | |
Power factor(at 230V,50Hz,full load) | >0.95 | >0.95 | |
Total harmonic distortion (at 230V,50Hz,full load) | <20% | <20% | |
No load power consumption(W) | <0.5 | <0.5 | |
Inrush current(peak/duration) | 20A 1mS | 20A 1mS | |
| Output | Turn on time(S) | <0.5 | <0.5 |
Output power(W) | 100 | 100 | |
Output voltage(V) | 12 | 24 | |
Output voltage tolerance | ±5% | ±5% | |
Ripple voltage(mV) | 900 | 1000 | |
Output current range(A) | 0-8.33 | 0-4.16 | |
Max. output voltage(V) | 15 | 28 | |
Isolation output to input | SELV | SELV | |
Dimming interface | N/A | N/A | |
| Dimming range | N/A | N/A | |
| Protection | Overload protection | none | none |
| Over-temperature protection | Y | Y | |
| Short circuit protection | Y | Y | |
| Open circuit protection | Y | Y | |
| Automatic restart after restore | Y | Y | |
| Ambient and life | Ambient temperature in normal working Ta(℃) | -20…+45 | -20…+45 |
Max. casing temperature Tc(℃) | 90 | 90 | |
Nominal life-time(hrs) | 50'000@TC=80℃ | 50'000@TC=80℃ | |
Failure rate | 0.1%/1000h | 0.1%/1000h | |
| Guarantee(Years) | 5 | 5 | |
| Storage Temperature(℃) | -30…+80℃ | ||
| Ambient humidity range | 5%...85%RH, Not condensing | ||
| Others | Weight(gram) | 200 | |
| Housing material | PC | ||
| Housing color | White | ||
| Waterproof rating | IP20 | ||
