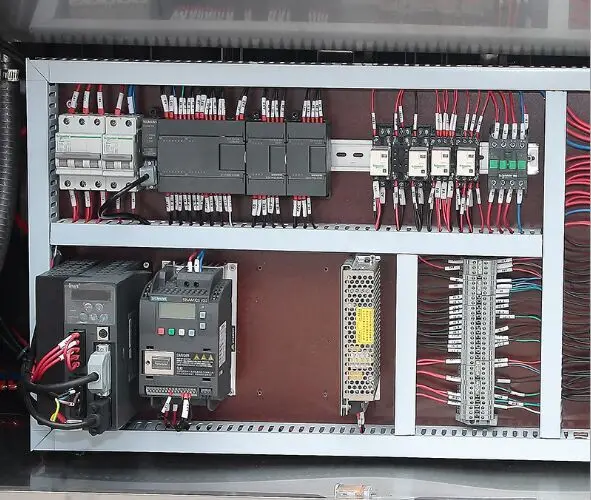

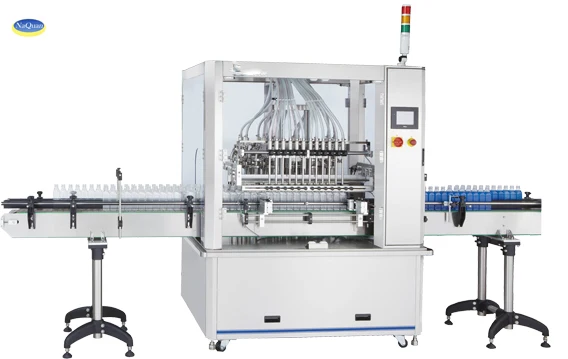

filling machine,filling volume adjustment system adopt frequency motor, PLC and intelligent Touch Screen. Adopt motor forward and reserve motion to adjust the filling volume automatically, it’s very easy to adjust the filling volume. At the same time, there is a micro-adjustment device for each filling cylinder, ensure the filling precision of each container. There is individual air collector inside the machine, ensure the stable action of each filling head.
Filling Heads
6 groups
Filling Range
100-1000 ml (Can be adjust freely)
Capacity
1800-2300Pcs/h (For 1000ml)
Filling Accuracy
+-0.5%
Power Supply
1 Phase, 220V, 50Hz
Power
500W
Air supply
0.4-0.6MPa
Air Consumption
400L/Min
Machine Weight
850KG

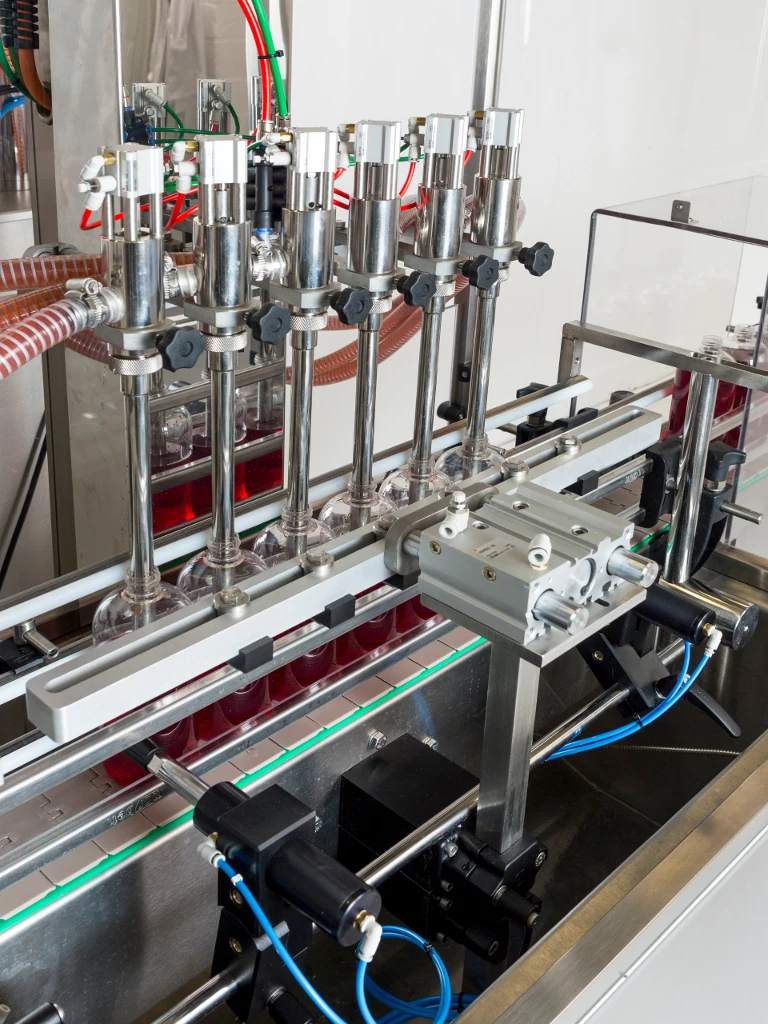

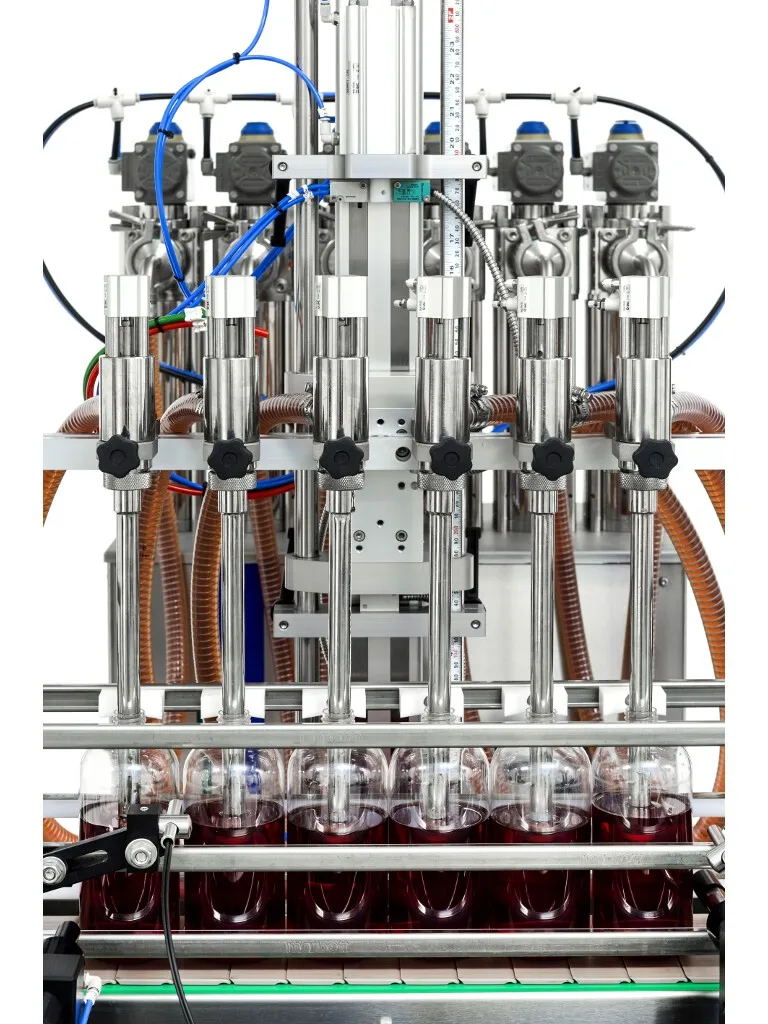

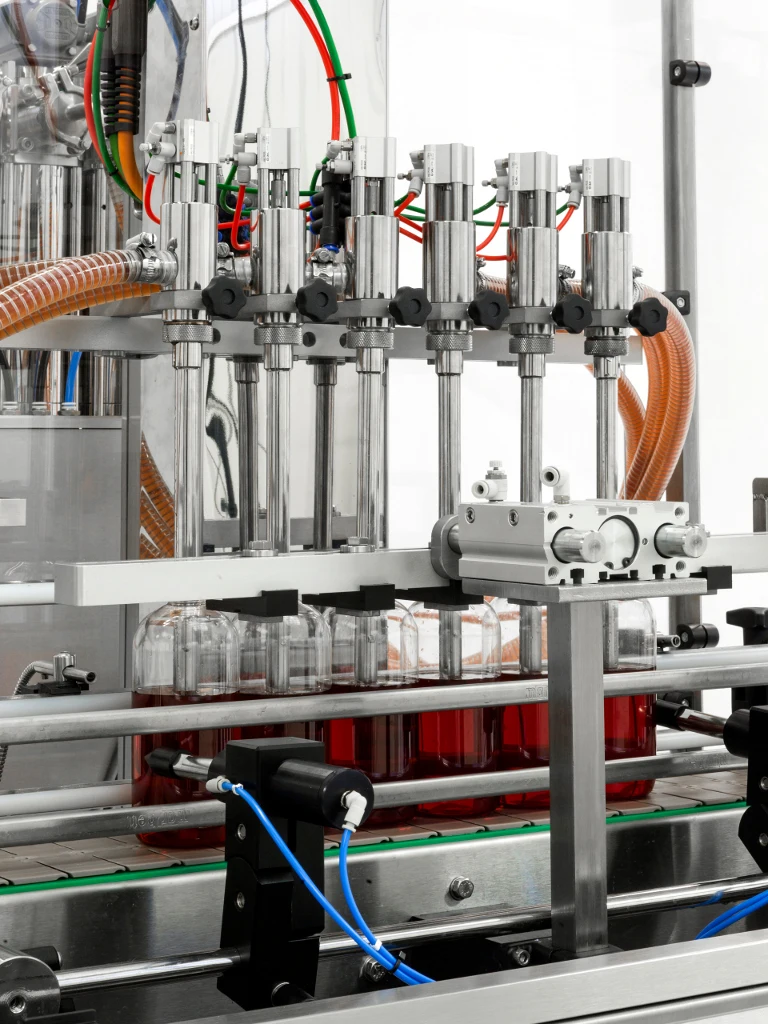

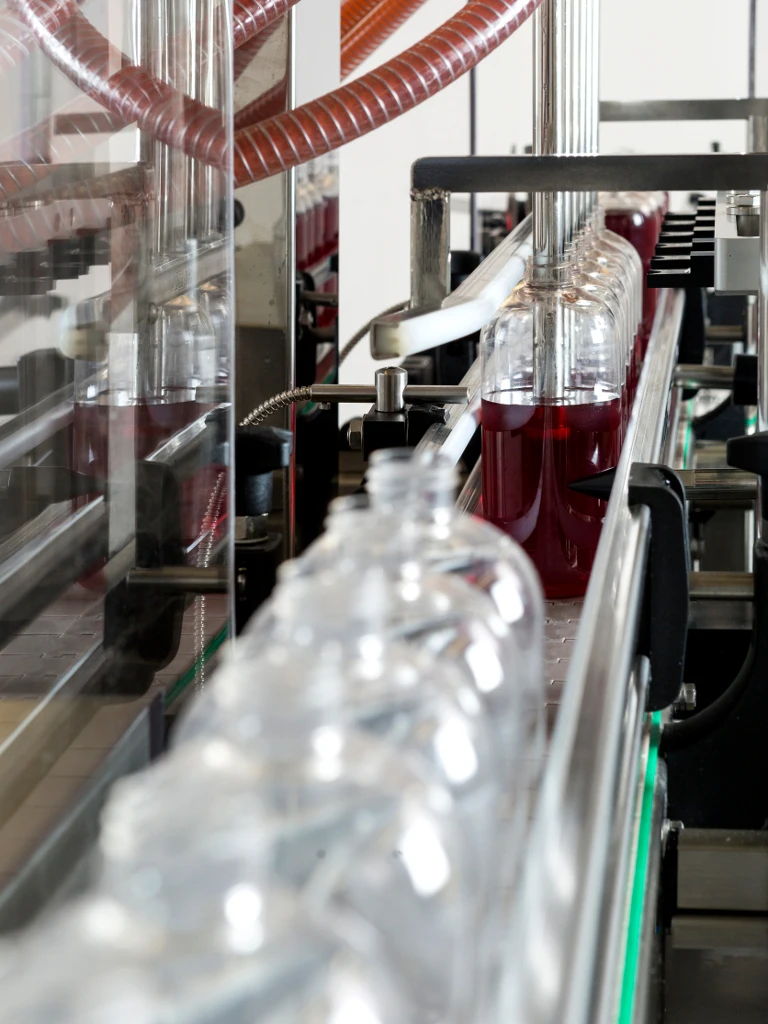

The machine adopt electric air-cylinder driven, containers will be sent to the position, then the filling heads will dive into the container, filling volume and filling time can be set in orderly. When it filled up to the standard, air-cylinder go up, container will be sent out, one working cycle is finished.
