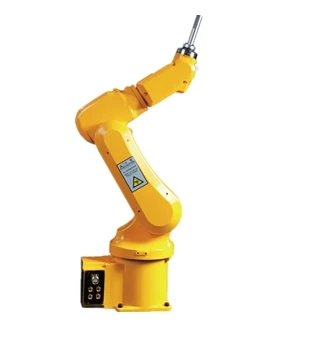

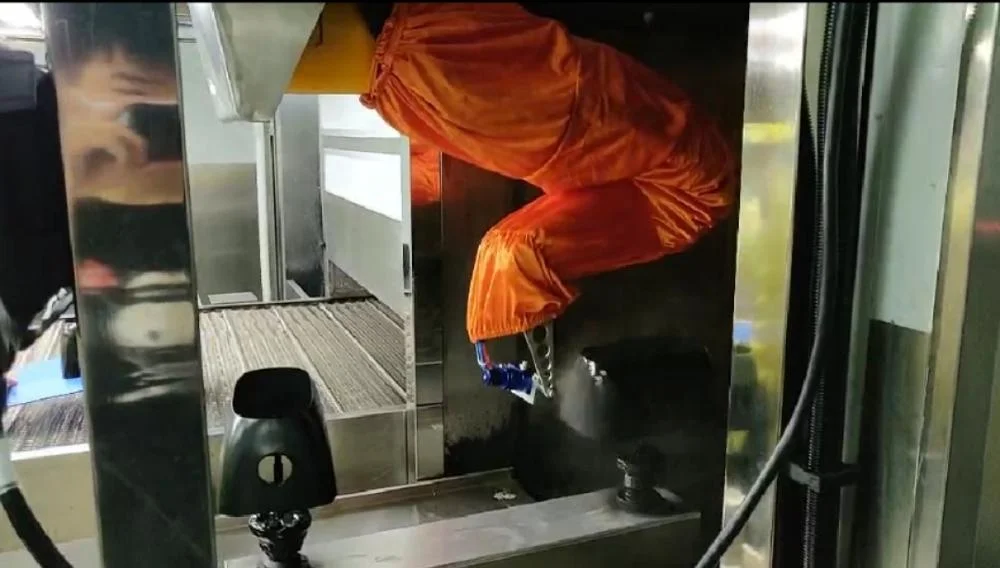

Six axis automatic spray painting robot with electric gun for car toys camera phone shell bike stay bike crank
- Category: >>>
- Supplier: Dongguan Haosheng Automation Equipment Technology Co. Ltd.
Share on (62512063431):
Product Overview
Description
We can customize according to your products, or send some of your products to us for making samples.If you make an inquiry now it,we will give you some discount.
Specification
Model | HS-6-650 | ||||||
Movement Pattern | Articulated Robot | ||||||
Number of Axis | Six axis(J1. J2. J3. J4. J5. J6) | ||||||
Installation Way | Any Angle | ||||||
Maximum Radius of Motion | 650mm | ||||||
Payload | 3KG | ||||||

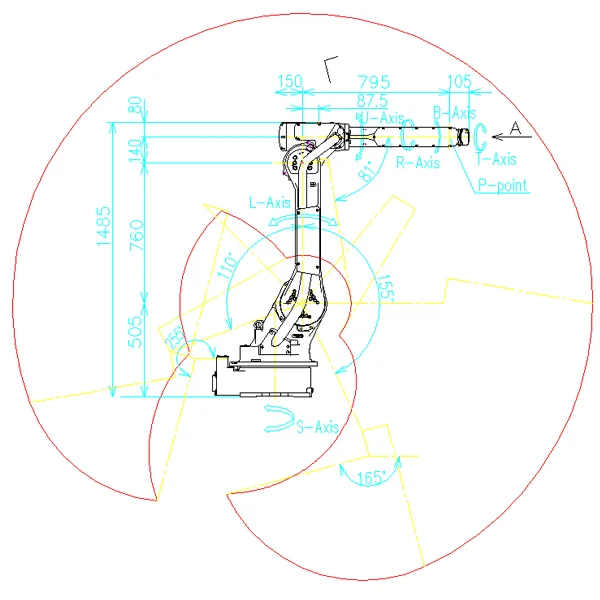

Range of Motion | Maximum Range of Motion | Maximum Speed | |||||
1 axis | ±170º | 400º/sec | |||||
2 axis | +85º/-135º | 330º/sec | |||||
3 axis | +185º/-65º | 510º/sec | |||||
4 axis | ±190º | 520º/sec | |||||
5 axis | ±130º | 550º/sec | |||||
6 axis | ±360º | 850º/sec | |||||
Weight of Body | 270KG | ||||||
Power | 1KW | ||||||
Protection Level | Body | IP40 | |||||
Electric Cabinet | - | ||||||
Position Repeat Accuracy | ±0.02mm | ||||||
Installation Environment | Temperature | 0 - 45ºC | |||||
Humidity | ≤75%RH/≤95%RH (Within one month) | ||||||
Vibration | Vibration Amplitude: <0.5G | ||||||
Other | No condensation | ||||||
Product Description
1.The Capability of HAOSHENG painting robot
1.Increasing the production efficiency;
2.Best finishing quality;
3.Automatizing the paint process;
4.VOC emission is reduces;
5.Labor cost is reduced
Haosheng High quality automatic car painting machine introduction
Robotic Toys Painting Machine, also known as Spray painting robots and Industrial painting robots, Which can be used for automatic painting or spraying other paint industrial robots. Automatic painting robots generally use hydraulic drive, with fast action, explosion-proof performance and other characteristics. Automatic painting robots are widely used inelectrical, aerospace, automotive, toys, plastic, etc.
Our Service
1. Installation Services: In the period of installation and debugging, we shall offer training about effective operation and maintenance.
2. Technical Services: We can assist our clients to solve all kind of technical problems with our capable technical team, and we own adequate experience for production line transformation project.
3. Warranty Services: We offer free after sale service except the engineers' traveling expense for any quality problem occurs during our 12 months warranty period.
2. Technical Services: We can assist our clients to solve all kind of technical problems with our capable technical team, and we own adequate experience for production line transformation project.
3. Warranty Services: We offer free after sale service except the engineers' traveling expense for any quality problem occurs during our 12 months warranty period.
Company Profile

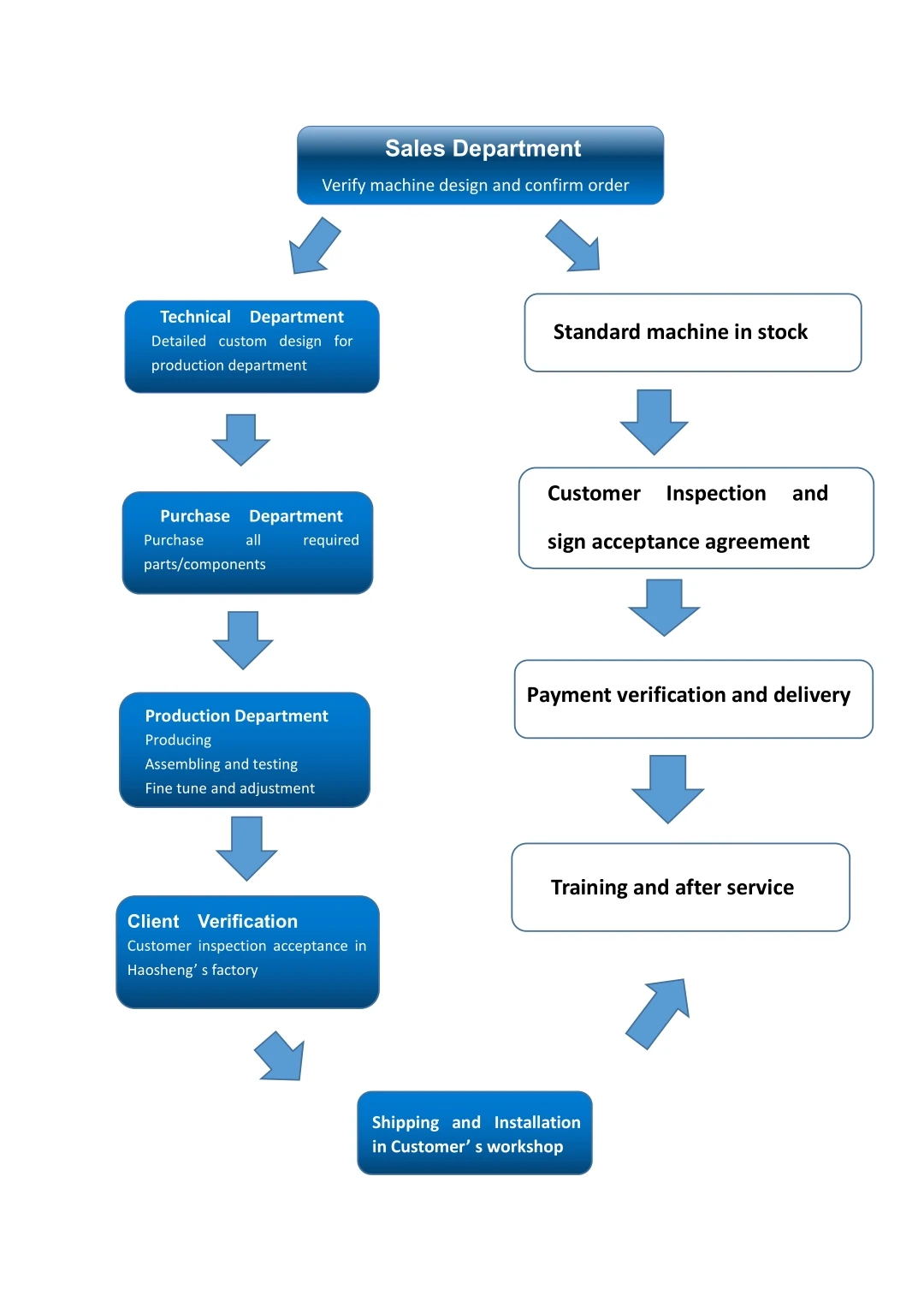

Order Flow Chart
FAQ
Q: What is your MOQ;
A: At present, our MOQ is 1 set;
Q: How long is the delivery time?
A: In general, the delivery time is 12 weeks.
Q: What is your guarantee term?
A: The warranty period for our products is one year along with lift time technical support.
A: At present, our MOQ is 1 set;
Q: How long is the delivery time?
A: In general, the delivery time is 12 weeks.
Q: What is your guarantee term?
A: The warranty period for our products is one year along with lift time technical support.
Q: How about your after-sale service?
A: We can send our technical staff for onsite installation or debugging. Moreover, we can also provide technical support via online communication.
Q: What is your payment term?
A: The payment method is 50% prepayment, 50% balance before cargo delivery if the client does not need onsite installation or debugging;
A: We can send our technical staff for onsite installation or debugging. Moreover, we can also provide technical support via online communication.
Q: What is your payment term?
A: The payment method is 50% prepayment, 50% balance before cargo delivery if the client does not need onsite installation or debugging;
