Water Cooling 2 Impellers 0.75kw/1hp 2 Float Paddle Wheel Aerator For Fish/Shrimp Farming
- Category: >>>
- Supplier: Zhejiang Fordy Imp. & Exp. Co. Ltd.
Share on (62512099348):
Product Overview
Description
Product Description

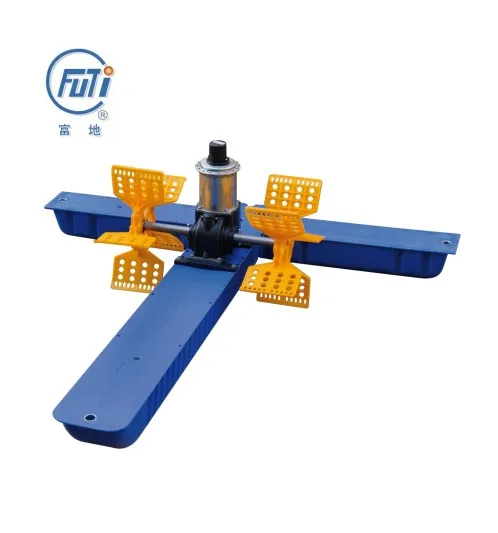

Water-Cooling 2 Impellers 0.75kw/1hp 2 Float Paddle Wheel Aerator For Fish/Shrimp Farming
"FUTI" AERATOR IS THE FIRST ARCUATE BEVEL GEAR PADDLEWHEEL AERATOR RESEARCHED AND DEVELOPED BY ZHEJIANG FORDY MACHINERY CO., LTD IN 2000. FUTI AERATOR IS POPULAR ADOPTED AND USED BY THE CUSTOMERS DUE TO THE GOOD QUALITY AND AFTER SALES SEVERICE. THE AERATORS WE DESIGNED CAN SAVE LOTS BILLS FOR OUR CUSTOMERS. THE OXYGEN TRANSFER CAPACITY IS 36.3% HIGHER THAN THE STANDARD AND POWER EFFICIENCY IS 36.8% HIGHER THAN STANDARD, SAVE 20% ELECTRIC ENERGY THAN THE TRADTIONAL MODEL.
Model | spare parts | unit | special | material | ||||||||||
Stainless Steel Motor | 1 | 1HP 1 PH | Stainless steel 316 housing, aluminum motor fan, 100% new copper | |||||||||||
Inductrial motor, motor to be made according to the customer's requiry for the voltage | ||||||||||||||
Cast iron Reducer | 1 | arcuate bevel gear, mechanical seal, 50Hz/60Hz | cast iron reducer , arcuate bevel gear, made of chromium manganese titanium with carbonitriding on the surface | |||||||||||
501 impeller | 2 | HIGH SPEED 5 Pieces Impeller & 5 Trident Replaceable paddle + confirmation of toughness against corrosion & UV resistance.100% new raw materials | ||||||||||||

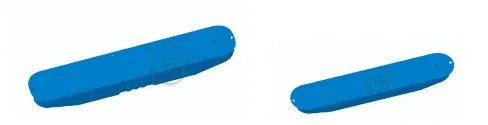

Floats | 2 | 1848*203*145mm 1848*251*178mm | HDPE float made of 100% new HDPE material, resist impact, acid-alkalinity & sun exposure No influence of water | |||||||||||
movable joint | 2 | hole: 25.5mm | cast iron or stainless steel(depends on customer's requiry) | |||||||||||
quantity in one container | ||||||||||||||
bolt and nut bag | 1 | stainless steel 304(SUS 304) | ||||||||||||
CHARACTERISTICS
1.Arcuate bevel gears are used instead of worm gears, thereby economizing on energy with high
efficiency,and saving over 20% electric energy over traditional models.
efficiency,and saving over 20% electric energy over traditional models.
2.Arcuate bevel gear is made of chromium-manganese-titanium with cartonitriding on the surface, Long life span and high rigidity are available
3. mechanical seal is adopted which life span is 2 or 3 times longer than oil seal
4. protector inside motor is available to avoid motor being burnt
accidentally
accidentally
5. HDPE flat, Nylon impeller, stainless steel solid shaft, and frame are available
6The housing of motor and reducer is electrophoresis, the anti-corrosion performance is much better
Main Part:Stainless Steel Motor
MainPart:Motor
Brand:FUTI
Original:China
Power:0.75Kw(1HP)
RPM1440/50HZ 1700/60HZ
Our high-efficiency motor is made of 100%
new copper wire, adopting the automated coil reeler, rotor positioning instrument and following uncompromised precessing and
inspection procedures. good quality, longevity, lower power comsumption.
new copper wire, adopting the automated coil reeler, rotor positioning instrument and following uncompromised precessing and
inspection procedures. good quality, longevity, lower power comsumption.
Main part:Cast iron
Brand:FUTI
Original:China
Ratio 1:14 1:16.8
oi lLiter 0.8L
cast iron reducer , arcuate bevel gear, made of chromium manganese titanium with carbonitriding on the surface, oxygen transfer capacity is 36.3% higher, power efficiency is 36.8% and save at least 20% electric energy than traditional models, mechanical seal on it
Stainless steel movable jiont
Cast iron movable joint

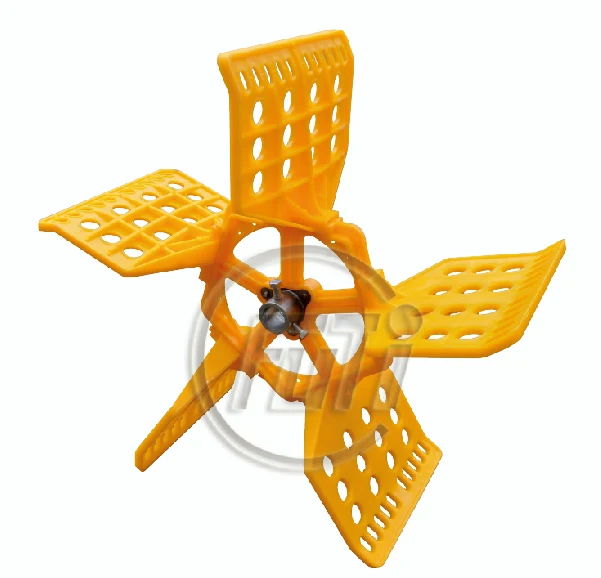

Main Part:Impeller
material:PP
Original:China
5 Pieces Impeller & 5 Trident Replaceable paddle + confirmation of toughness against corrosion & UV resistance.100% new raw materials
Main Part

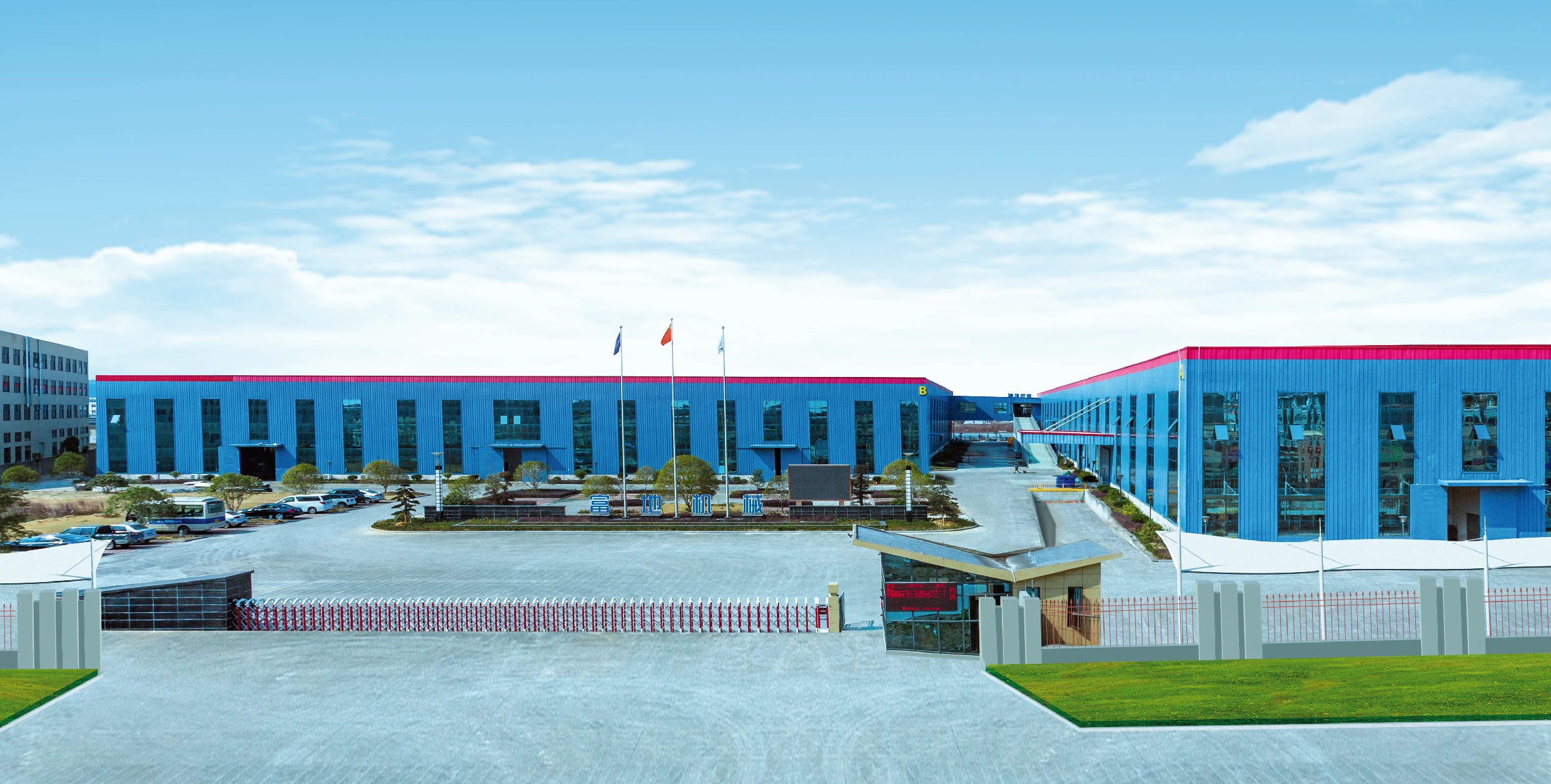

Company Profile
Production Process
Certifications
Exhibition

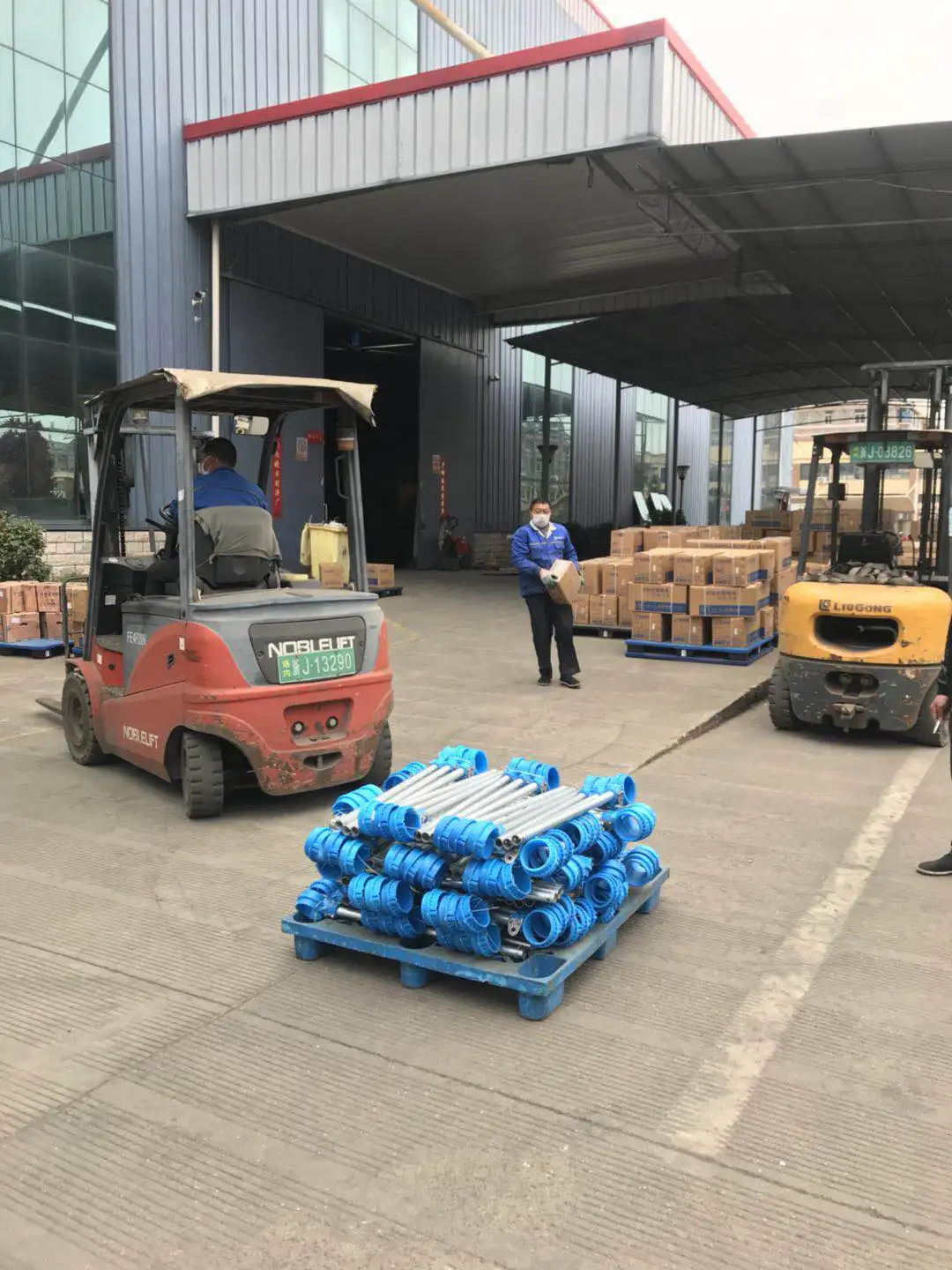

Packaging Logistics
