JTRZG 400 stainless steel steam heating food processing machinery jacketed kettle

Product Overview

Description

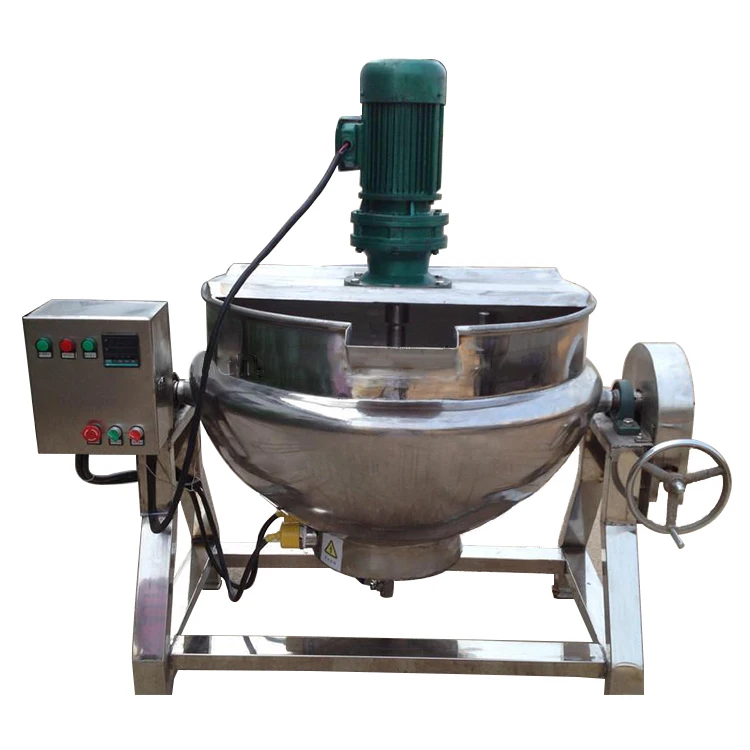

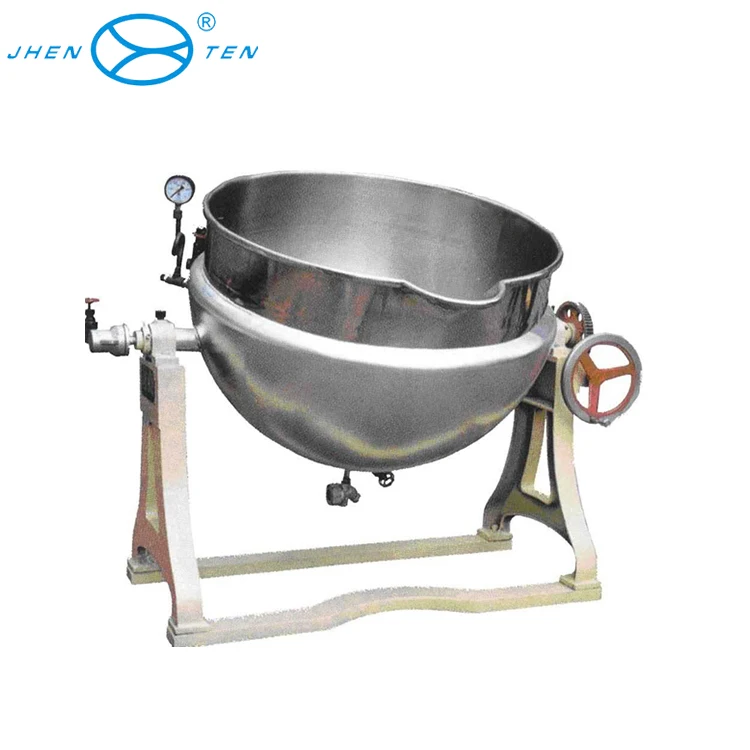

JTRZG-400 stainless steel steam heating food processing machinery jacketed kettle

condensate tank

Feature

• Volume:50L~500L and multiple specification, also can design and manufacture according to customers’

 requirement.

• The double structure of Kettle body is consists of inside and outside spherical kettle body, pass the steam or

 conduction oil  through the jacket as medium to heat.

• The connection adopts Tri-clamp, the tanks’ inner use 304 or 316L. The inner surface mirror polishing

Ra≤0.28μm~0.6μm, outer surface can polishing, wire drawing and sandblasting according to customers’

 requirement.



 Application

• Applied to the processing of all kinds of food, also can be used in large restaurant or dining room to boil

soup, cook, stew, boil congee, etc.

• Used in liquid configuration, decoction and concentration in pharmaceutical, food, chemical industry and light

 industry.



Design Parameter

Design pressure:Barrel according to customers’ requirement(0.02MPa~0.8MPa)

                                 Jacket according to customers’ requirement(0.02MPa~0.5MPa)

Design temperature:Barrel and Jacket according to customers’ requirement(0℃~160℃)



Surface Finish

Finish Type:Mechanical polishing, electrolytic polishing,sand blasting, pickling

Polishing precision:Inner wall 0.4μm,Outer wall 0.6μm



Material

Kettle Liner:304,316L

Kettle outer layer:304

Feet:304



Connection

In-outlet:In-outlet
