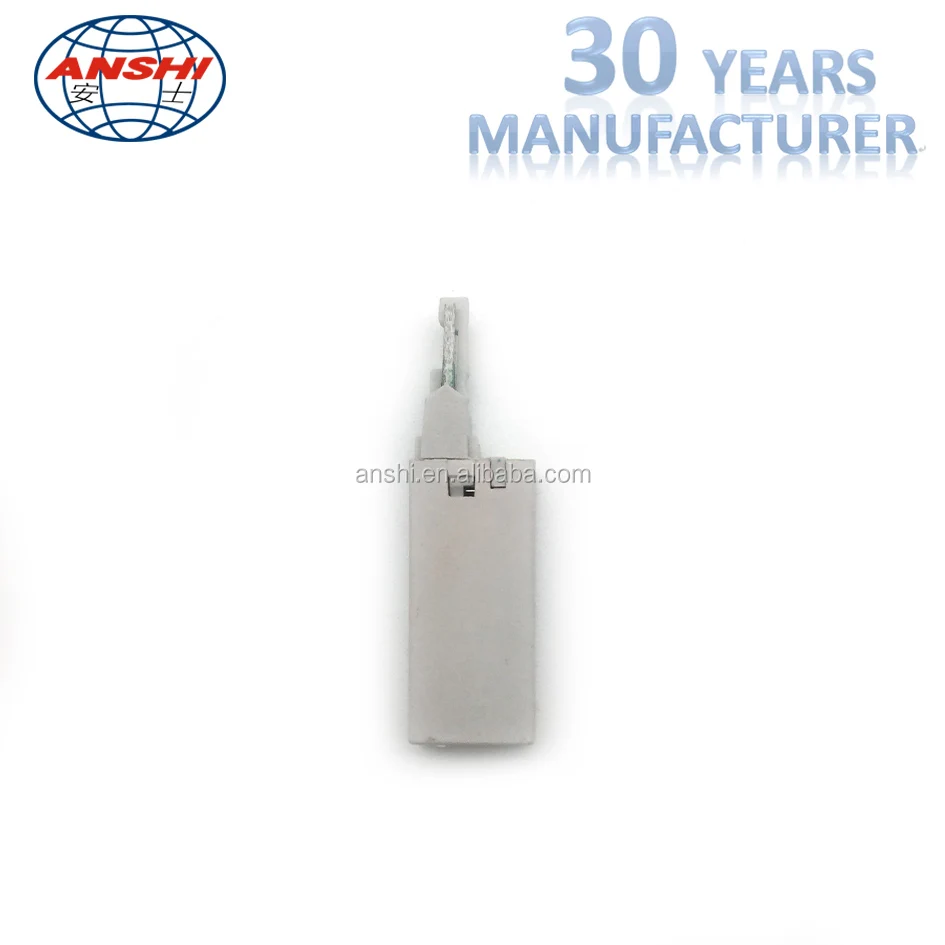

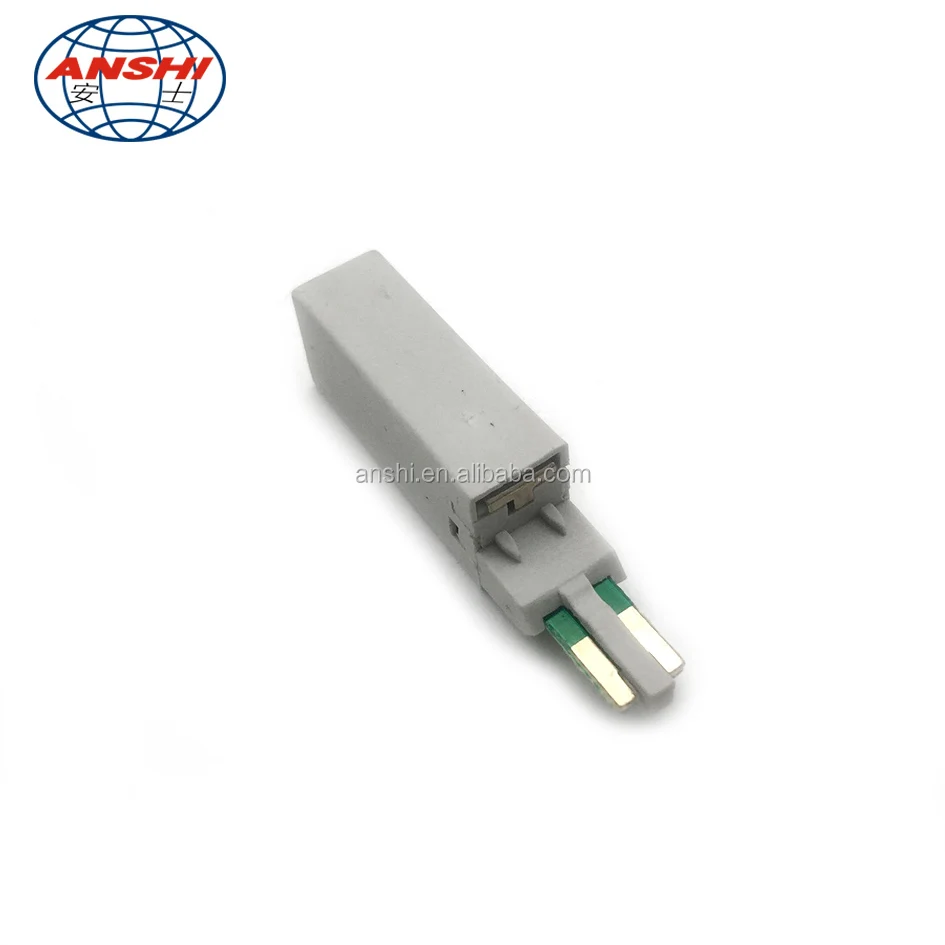

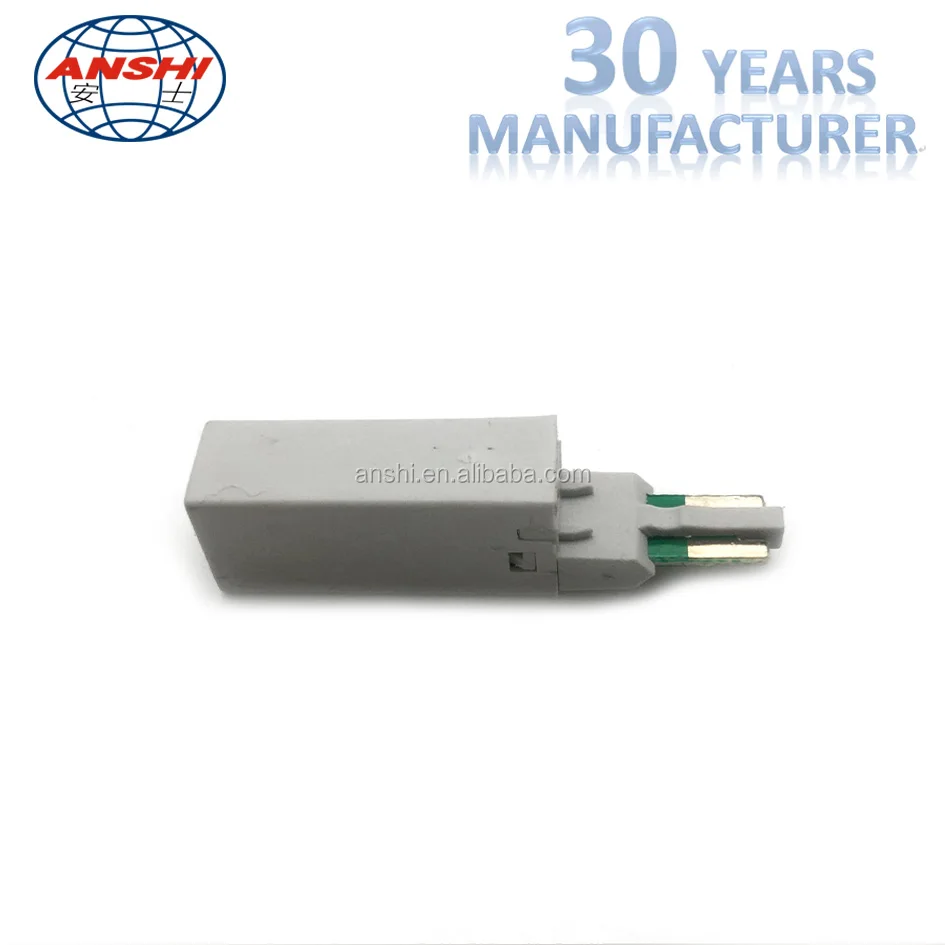

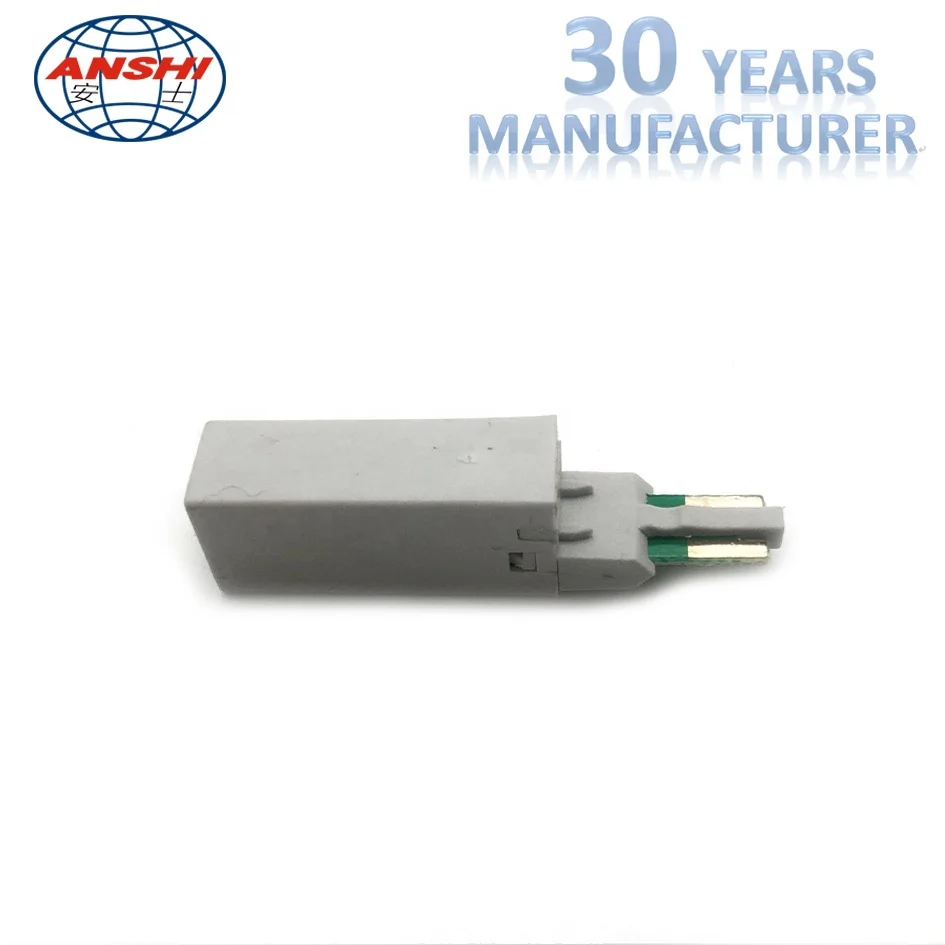

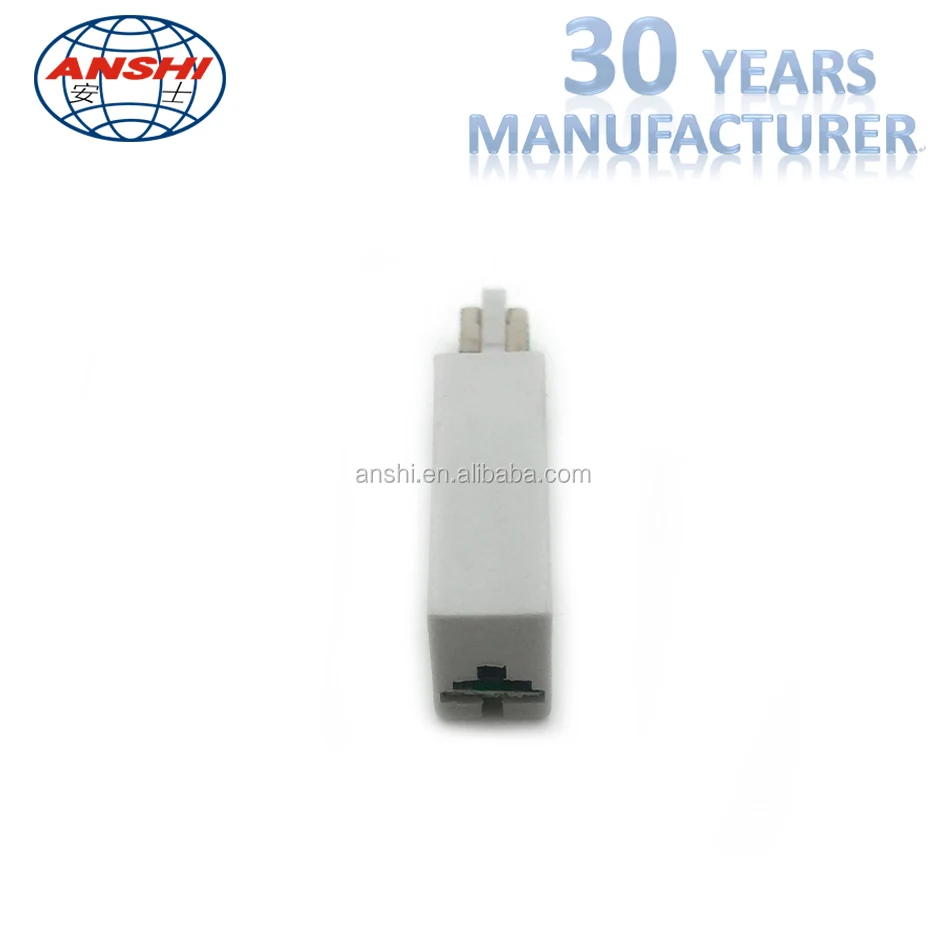

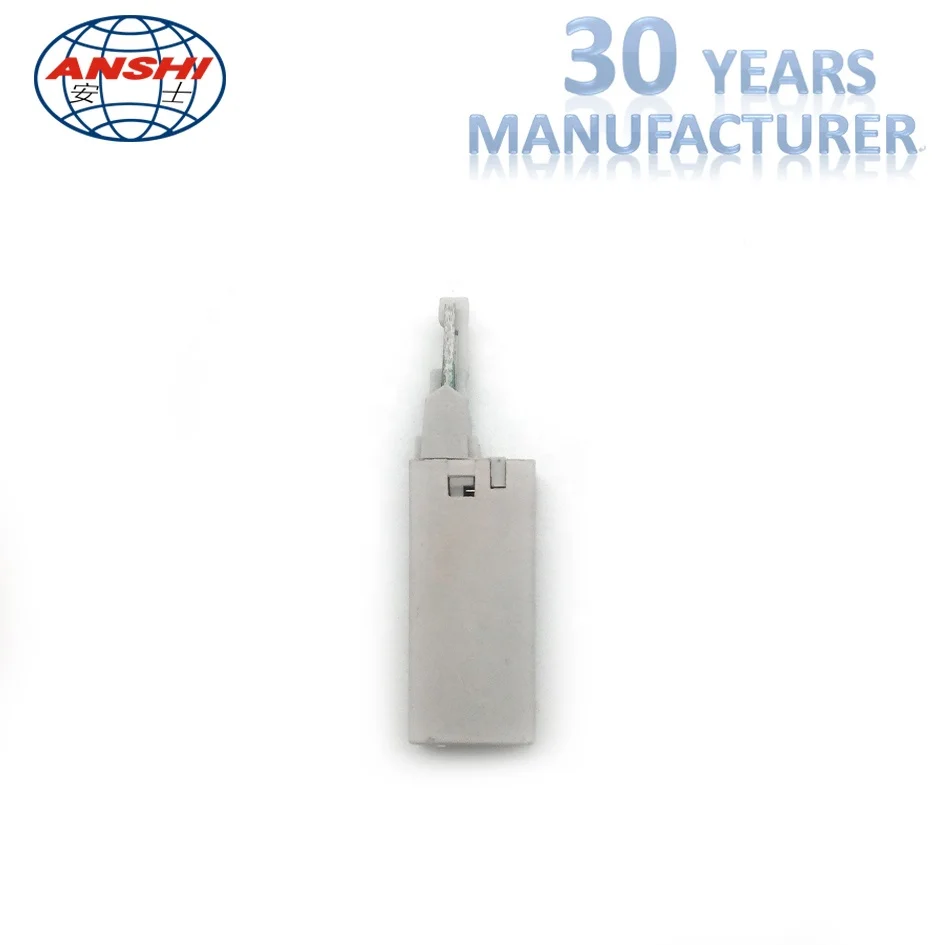

ANSHI Krone Type 1 Pair One pair Overvoltage and Overcurrent Protector Unit for LSA Plus Krone Module

Product Overview

Description

ANSHI Krone Type 1 Pair One pair Overvoltage and Overcurrent Protector Unit for LSA Plus Krone Module



1. Mainly consist of crust, gas or solid tube arrester, thermalresistancePTC, reed and base pin Perfectand reliable over-voltage andover-current protection with sound and lightalarm, and self resulmingfail protection.



2.Theperformance of anti-burn: PPT(UL94V-0) or anti-burn ABS(UL94V-0),combustibility achieved GB/T 5169.7-1985 standard

3.DC puncture voltage: 190-260V

4.Pulsepuncture voltage: ≤800V(1KV/us  voltage increasing rate)

5.Insulationresistance: 1000MΩbetween any twoseparable modules

6.Normaltemperature resistance: ≤22ΩR≤2Ωover-currentprotection

7. Contactresistance: ≤3mΩ

8. Contactresistance between reeds: ≤7mΩ

9. Normaltemperature current: I=falling from 500mA to 150mA  t20s

I=fallingfrom 1A to 500mA     t1.3s

I=fallingfrom 2A to 500mA     t0.5s

I=fallingfrom 3A to 500mA     t0.2s

10. Sactivetime:I=2.5A  t15s(220V/AC), When discharge achieve 2.5Ar.m.s, the a line orb line should be5-15S internal earthing in the discharge loop

11. Resistanceto voltage: ≥1000V(AC)/1minwithout breakdown or arc

Over-Current and Over-Voltage Protector Units

Front-mounted, fast-acting protection plug for installation in all VS Standard disconnection modules – Integral testing and measuring interface



OVER-CURRENT PROTECTOR UNIT
Protection Magazine
ANSHI Protection Unit
Disconnection Module
LSA Protector Magazine



ANSHI Over-Current and Over-Voltage Protector Unit
