Tray Bowl Sealing Machine Linear Type Filling Machine For Mixed Congee Porridge Rice

Product Overview

Description

Tray Bowl Sealing Machine Linear Type Filling Machine For Mixed Congee Porridge Rice

This tray filling machine is suitable for filling and sealing of foods that require 121 degrees sterilization, vacuuming,such as rice, nutrient porridge, mixed congee,seafood, soup, vegetables,etc. It is especially suitable for bowls and trays package with large diameter and high capacity.



Model	The diameter of cup	Production Capacity
GF-L6C	80-200MM	7200-12000 cups per hour
GF-L8C	80-200MM	9600-15000 cups per hour
GF-L12C	80-200MM	12000-24000 cups per hour
GF-L16C	80-200MM	18000-32000 cups per hour

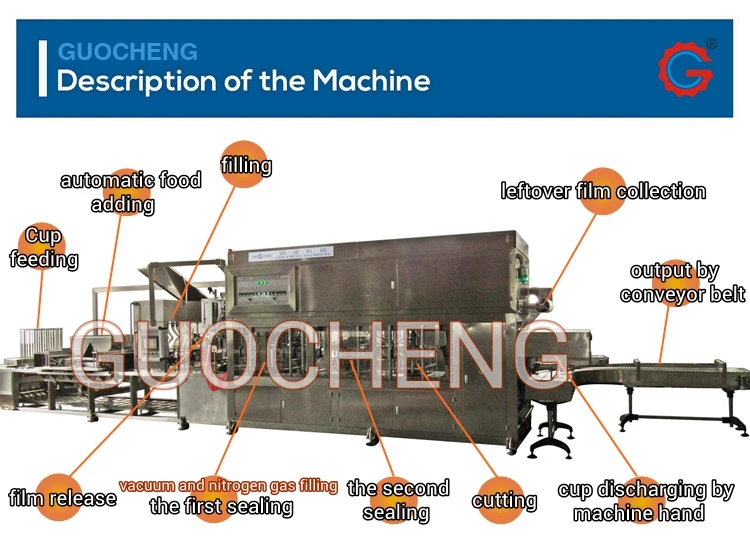

 Advantages:

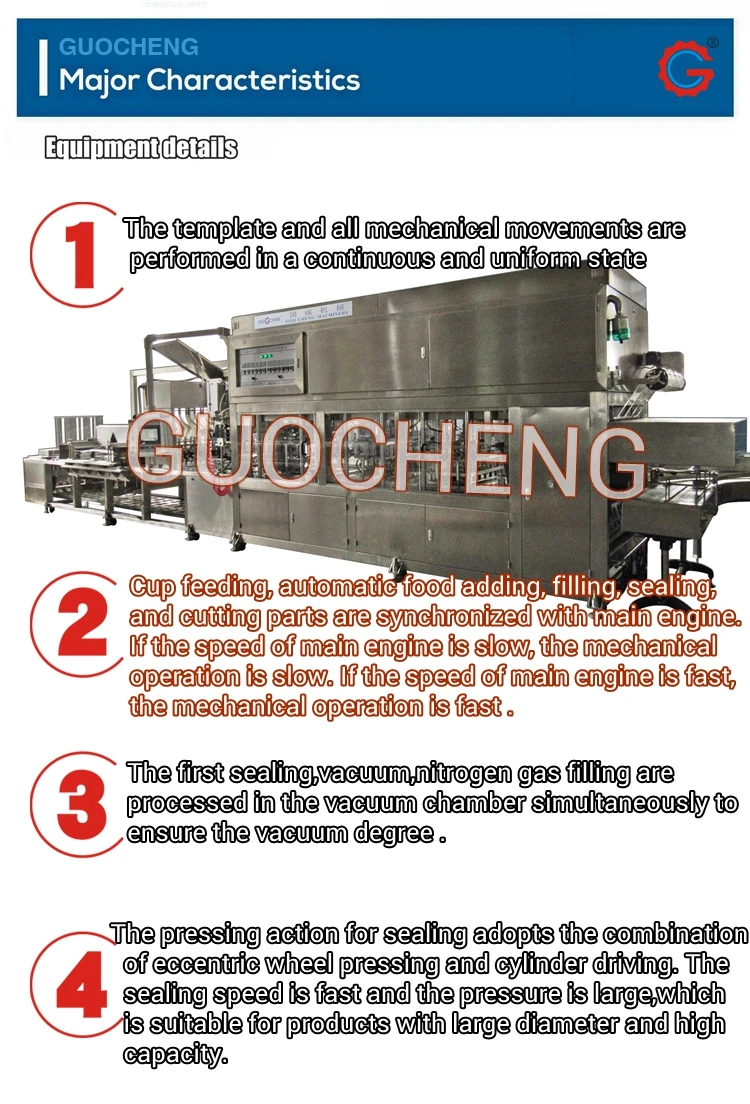

 1. The machine works continuously,so its production efficiency is twice that of the traditional stepping type sealing machine.



2. The template runs continuously and uniformly, it adopts cam linkage, planar linkage and servo driving. Each mechanical action can be synchronized with the main engine and the speed is consistent.



3. The cup feeding structure adopts follow-up type to load cups. The cup feeding mouth is automatically aligned with the main engine when the template runs continuously without stopping.



4. The filling time and filling capacity can be adjusted.The filling head automatically aligns with the center of cup.With photoelectric detection and positioning.



5. Vacuum and nitrogen gas filling structure operate with main engine continuously at a uniform speed.

6. The first sealing is completed in the vacuum chamber to ensure the vacuum degree of the product.The sequence, time and frequency of vacuuming, nitrogen filling  can be adjusted.



7. The sealing is independently floating control.The sealing pressure,time and temperature can be adjusted independently. The sealing part has function of positioning guide, and the sealing position do not move.



8. Sealing and cutting structure adopt eccentric wheel pressing and cylinder driving.The speed of sealing and cutting is high and the pressure is high,which is suitable for products with large diameter and high capacity.



9. The cutting structure is with photoelectric detection, it can automatically position the template to cut the film when the main engine is running continuously, and the cutting edge is controlled within plus or minus 1mm.
