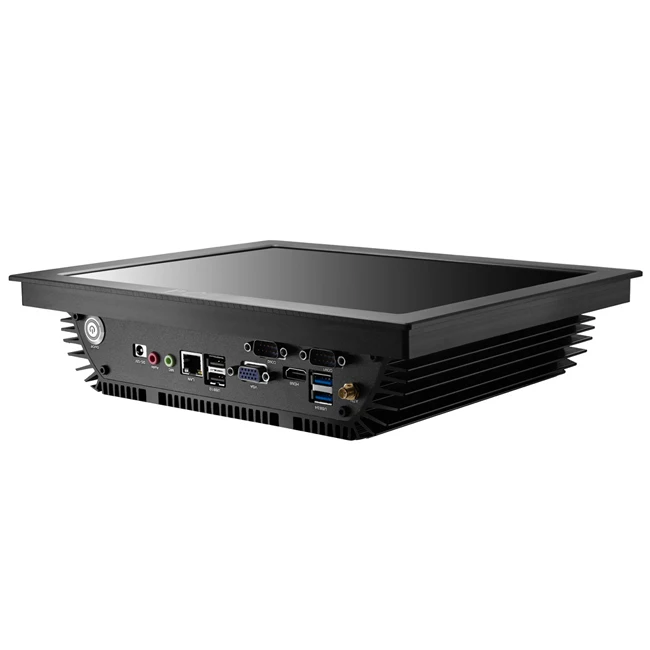

10inch, 12.1inch waterproof Rugged Panel PC , resistive/capacitive compact panel computer, Dual Lan Linux touch pc
- Category: >>>
- Supplier: Dongguan Haxun Technology Co. Ltd.
Share on (62512735591):
Product Overview
Description

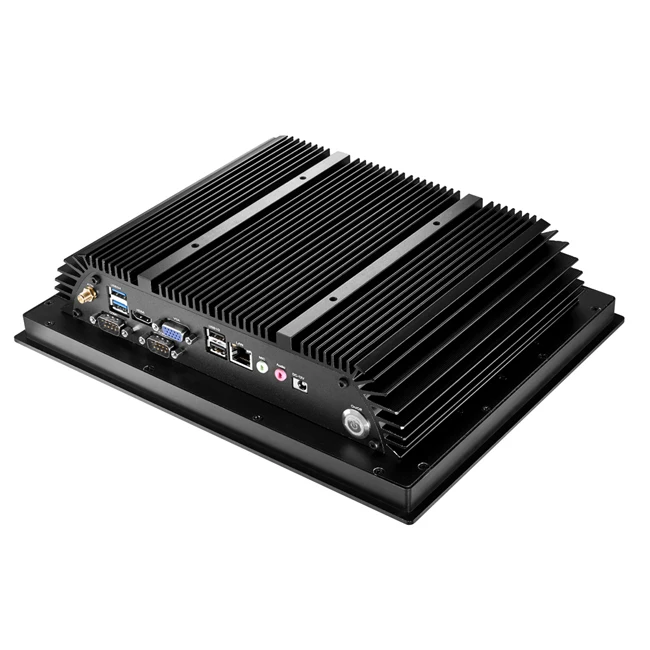

As an industrial panel PC, IPC201 was made of Aluminum Alloy chasiss, fanless design, widely use in 24H/7 operating applications.
For industrial panel PC, IPC1201 with industrial grade 12inch 1024*768 resoluiton TFT LED screen, up to 50,000 hours life time.
IP65 Degree of protection, industrial design for Harsh environments，such as Miliary control,vehicle control.
IPC1201 use wide temperture industrial SSD, Memory, suitable for rugged environments.
For industrial panel PC, IPC1201 with industrial grade 12inch 1024*768 resoluiton TFT LED screen, up to 50,000 hours life time.
IP65 Degree of protection, industrial design for Harsh environments，such as Miliary control,vehicle control.
IPC1201 use wide temperture industrial SSD, Memory, suitable for rugged environments.
5Wire-Resistive Touch / Capacitive Touch
CPU: Atom,Celeron, Core i3,i5,i7 Full series
Up to 16GB Ram
Storage: 1*2.5inch HDD+1*Msata SSD
Expansion: Com RS232, RS422 RS485, GPIO, GPRS, 3G/4G Network, Dual Lan
System Parameters | ||
Processor&Chipset | •Onboard Intel® Atom™ D2550 Dual Core 1.86GHz, NM10 Chipset •Onboard Intel® J1900 Four Cores, 2.0GHz, 2M Cache ,NM70 Chipset •Onboard Intel® i3,i5,i7, 4th~9th Generation | |
Memory | 1 x DDR3 SO-DIMM socket, 2GB/4GB/8GB/16GB | |
Storage | 1 x 2.5" SATA 500GB/1TB/2TB 1 x Msata 16GB/32GB/64GB/128GB/256GB | |
BIOS | AMI 16MB DPI Flash | |
Watchdog Timer | 255 level, 0~255 sec | |
LAN | 1 x Realtek RT8111E, 10/100/1000M, Support PXE, Wake on Lan | |
Audio | Realtek ACL662 Audio controller, Line-out, Mic-in. | |
Expansion Port | 2 x MINI PCI-E full slot, 1 x SIM | |
OS | Linux/ Win dows XP/7/8/10 | |
Expansion Function | ||
GPIO | Optional | |
3G/4G | Optional | |
WIFI/BT | Optional(802.11 a/b/g/n, Bluetooth 4.0) | |
RS422/485 | Optional | |
Speaker | Optional | |
Water-Proof | ||
Front Panel IP65 | Default | |
Whole IP65 | Optional | |

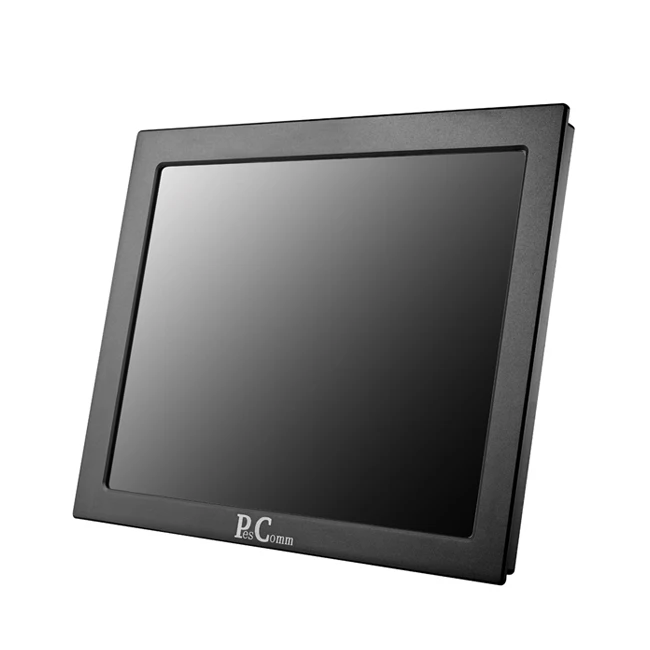

Display Parameters | ||
LCD Size | 12" TFT LCD(LED Backlight) | |
Resolution | 1024*768 | |
Brightness | 420cd/m² (1000cd/m² optional) | |
Aspect ratio | 4:3 | |
Life Time | 50,000hrs | |
Contrast Radio | (700:1) | |
Response Time | 8ms | |
Viewing Angle | Whole View Angle 80/60(U/D), 80/80(L/R) | |
Color Resolution | 16.7M | |
Touch Screen Parameters | ||
Touch Type | 5 wired Resistive Touch | |
Touch Validity: | >1,000,000 | |
Capacitive Touch | Optional | |
Surface Hardness | 6H>(Capacitive Touch) | |
Resolution | 4096*4096 | |
Life Time | 50,000hrs | |
Transparent Rate | >81% | |

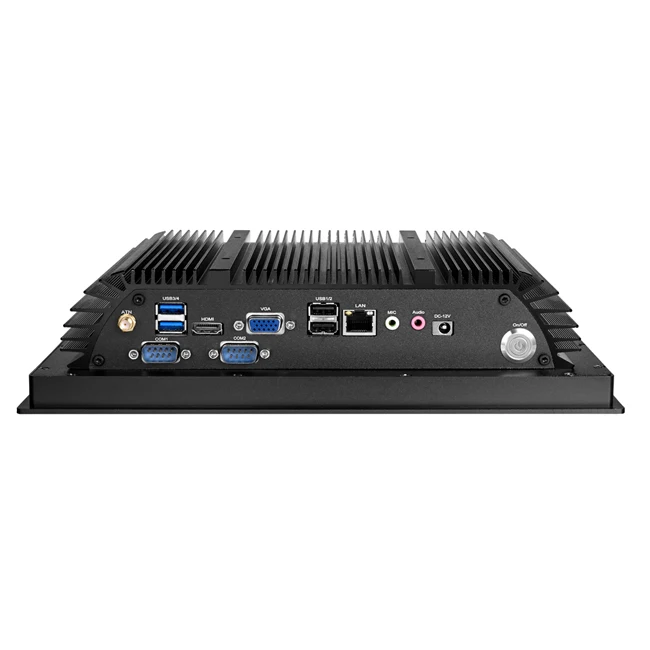

IO Interface | ||
COM | 2 x COM(Default RS232, 6 maximum) | |
RS422/485 | Optional (1x RS485/422) | |
USB | 3 x USB2.0+1 x USB2.0 | |
LAN | 1 x RJ45, 10/100/1000M(2RJ45 Optional) | |
Audio | Line-out, Mic-in | |
VGA | 1x | |
HD MI | 1x | |
Power Supply | ||
Power Supply | 12V DC Power Input | |
Power Comsuption | <45W | |
Wide Voltage | Optional (DC 6~36V Wide Voltage, IPTS ) | |
Installation | ||
VESA | 100mm*100mm | |
Embedded | Cabinet Hole Size: 298mm*234mm | |
Environments | ||
Operating Temp | -10℃~50℃ | |
Storage Temp | -30℃~70℃ | |
Relative Humidity | 5~95%@10℃ (Non-condensing) | |
Vibration | 5~500Hz,1.5G,0.15mm peak value | |
Shake | 1.5 Grms, IEC 60068-2-64, 5 ~ 500 Hz, 1 hr/axis | |
Shock | 10 Grems, IEC 60068-2-64, Half sine wave,for 11 ms | |
EMC | CE/FCC Class A | |
Phiscal | ||
Housing Material | Aluminum-Alloy Enclosue | |
Net Weight | 4KG | |
Dimensions | 303 mm (W) x 239mm (D) x 67 mm (H) | |
