low cost China industrial robot arm 6 axis with robot controller for palletizing grinding welding
low-cost China industrial robot arm 6 axis with robot controller for palletizing grinding welding
low-cost China industrial robot arm 6 axis with robot controller for palletizing grinding welding
low-cost China industrial robot arm 6 axis with robot controller for palletizing grinding welding
low-cost China industrial robot arm 6 axis with robot controller for palletizing grinding welding
low-cost China industrial robot arm 6 axis with robot controller for palletizing grinding welding
low-cost China industrial robot arm 6 axis with robot controller for palletizing grinding welding

low cost China industrial robot arm 6 axis with robot controller for palletizing grinding welding

Share on (62512745314):


Price:$3,999.00 - $6,000.00

Quantity:


Product Overview

Description



Poster




Products Description

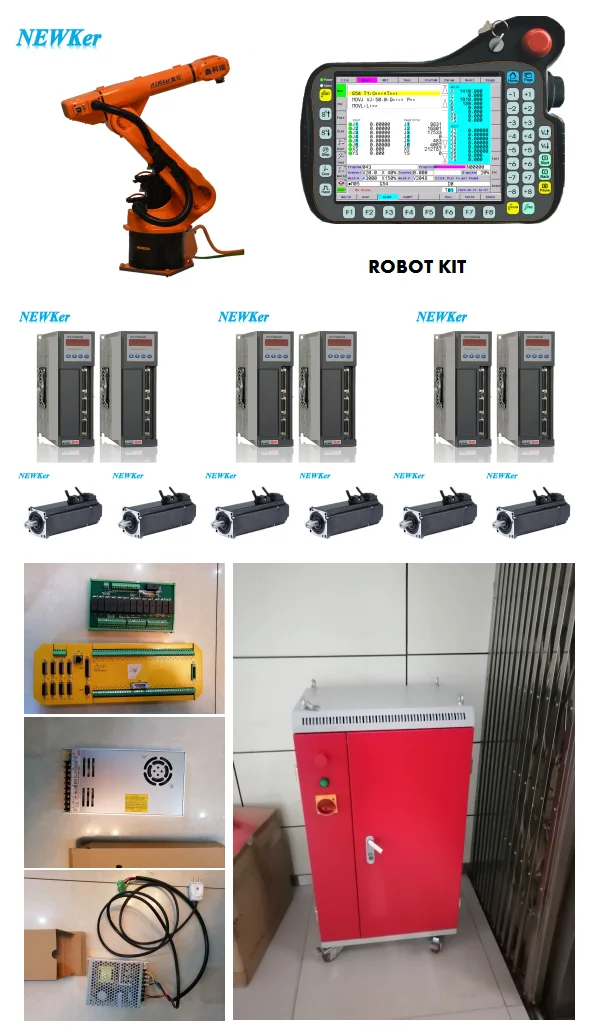

A set of robot arm includes robot arm body, controller, motor and drive, and we can also provide you with application fixtures according to your needs, such as teaching demonstration, making coffee, writing and painting, etc

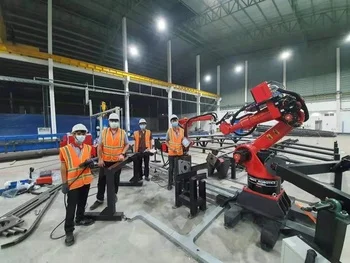

Customer Application Cases

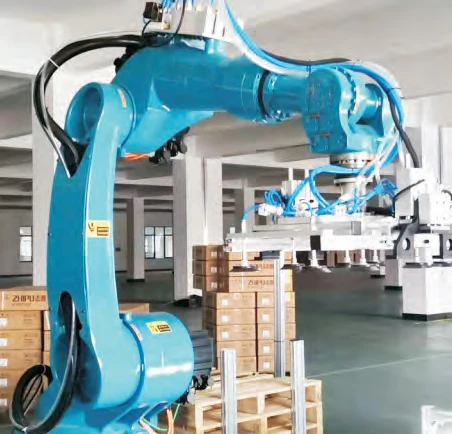

Palletizing（Visual recognition）
Visualization calibration


Loading and unloading of machine workpieces

Coffee robot

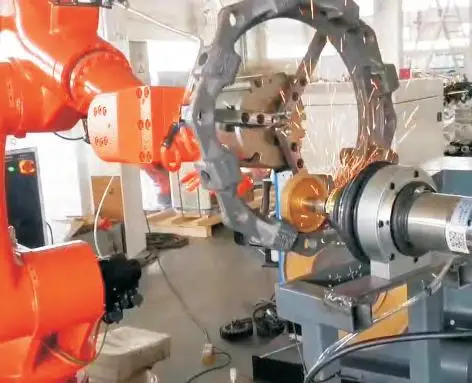

Grinding application

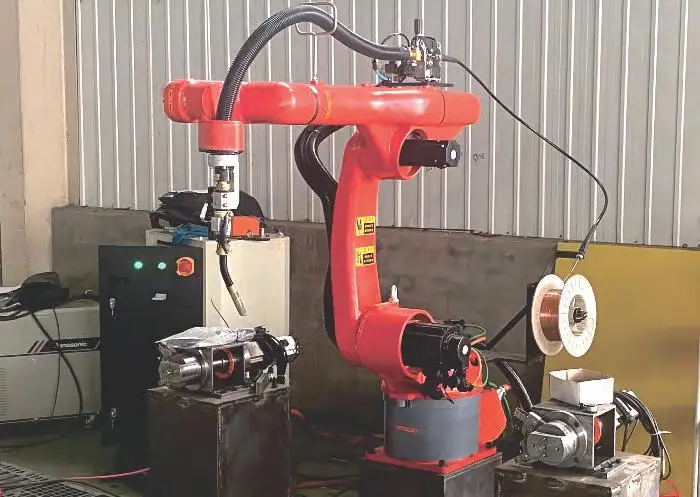

Welding - double station
Detection sorting

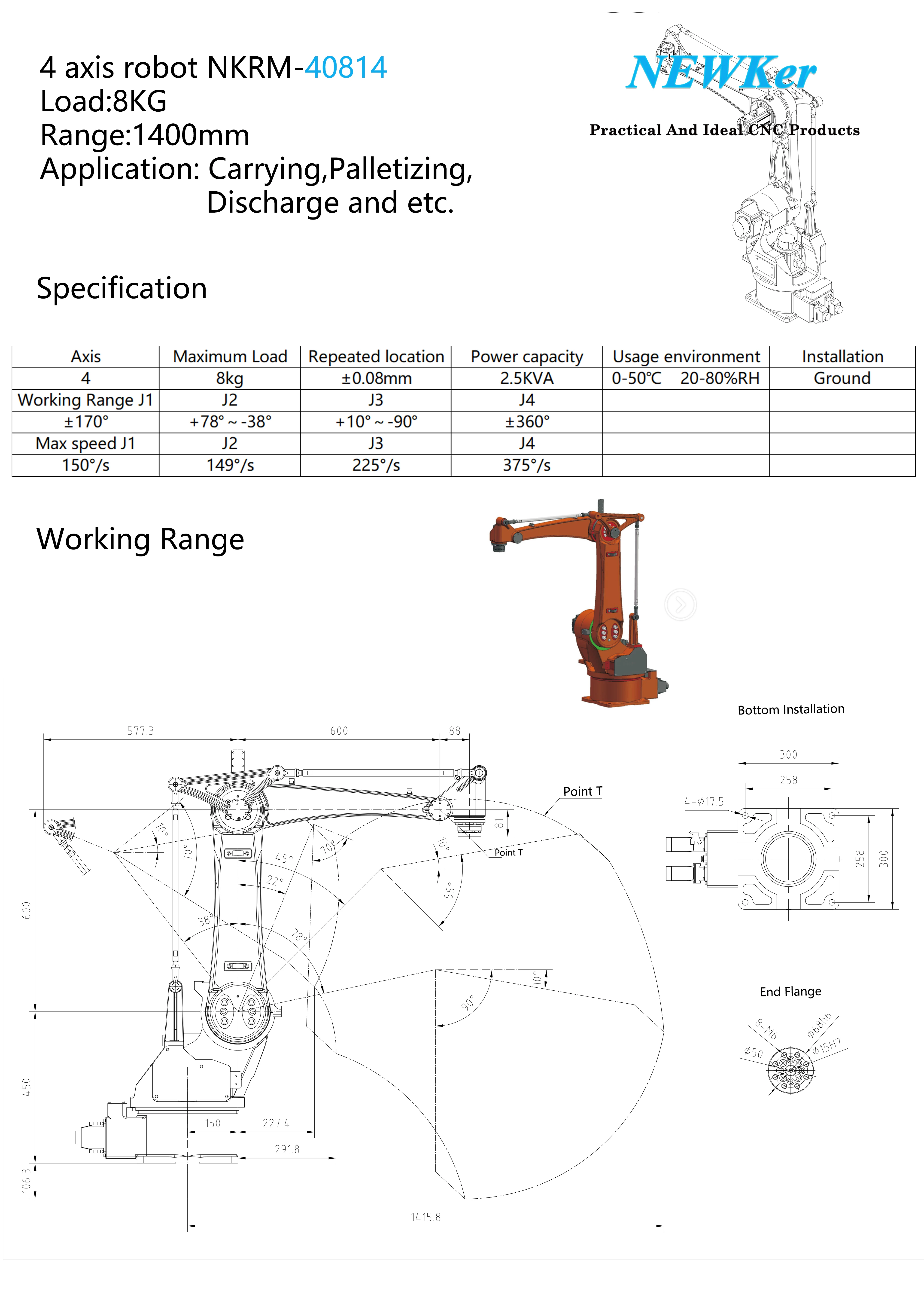

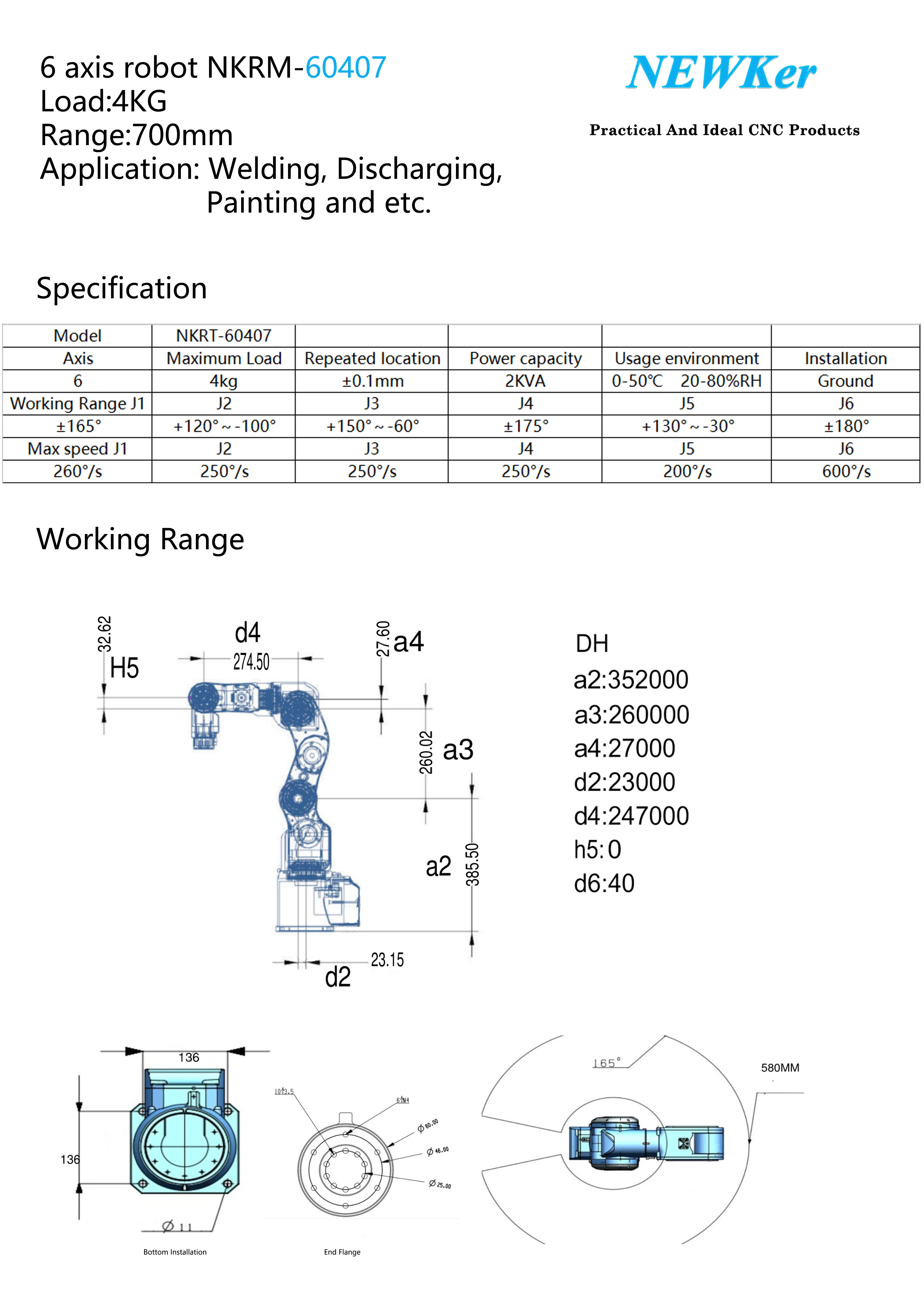

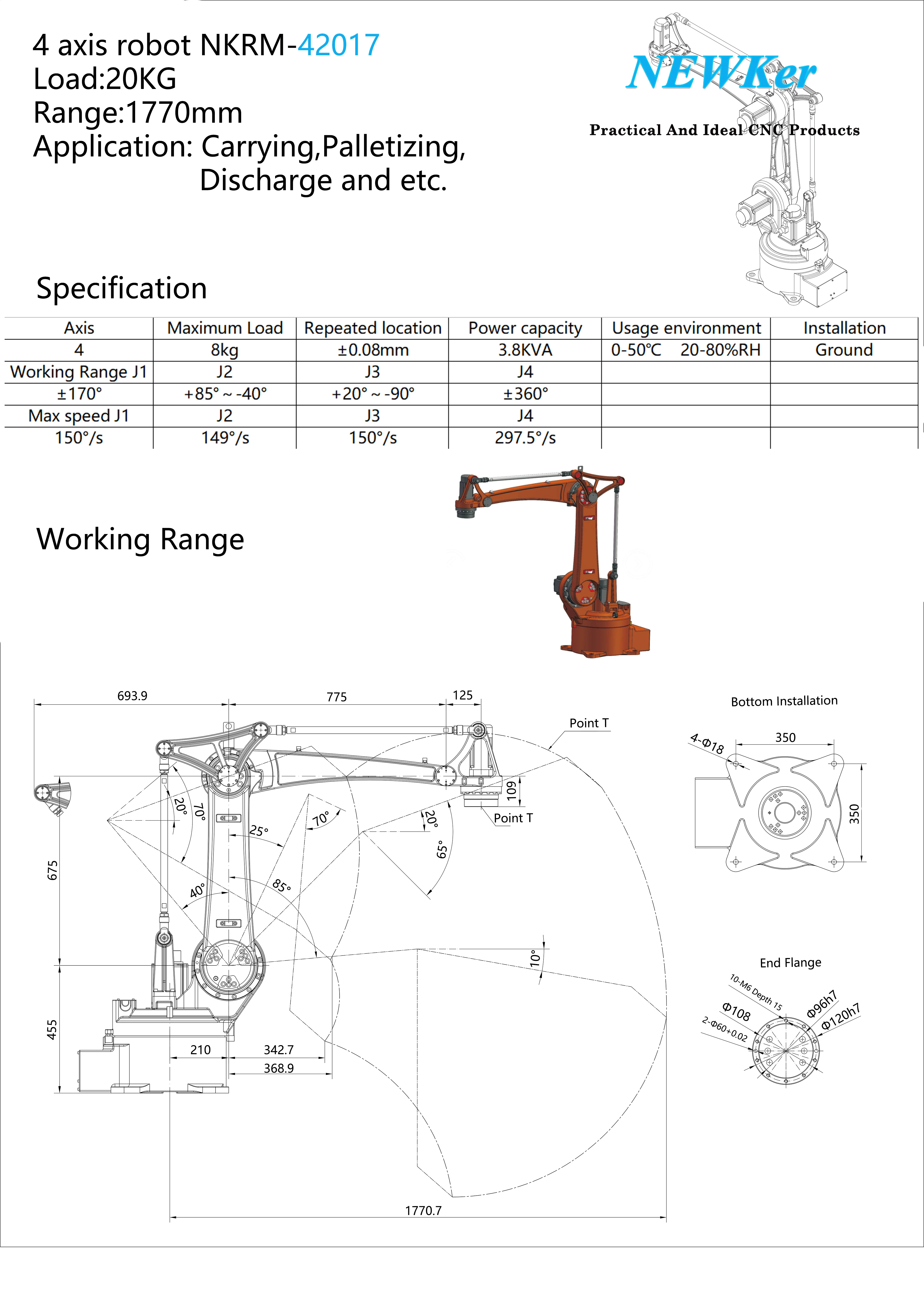

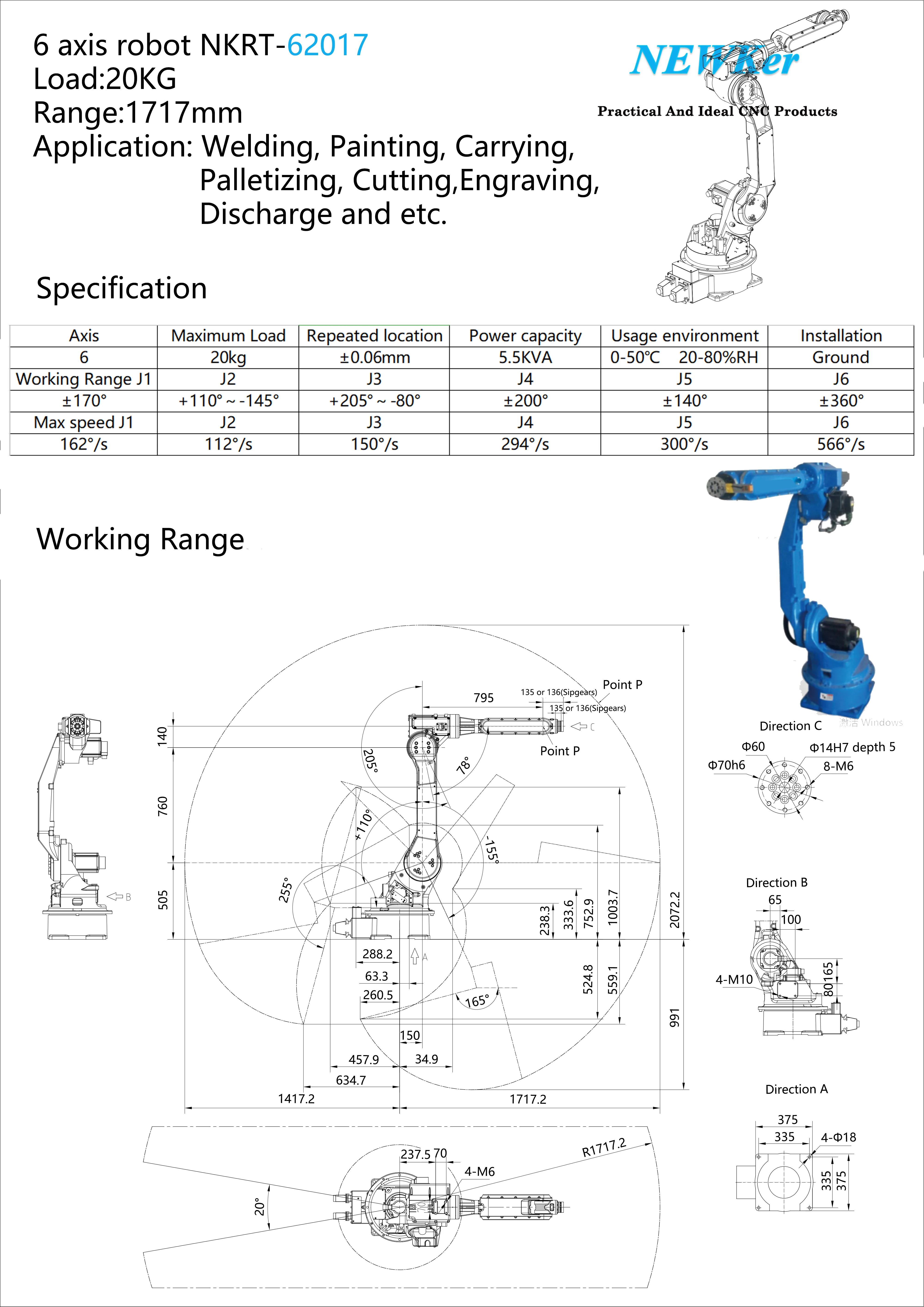

Robot Specification






Controller Connection




Parameter details


No. of controller shaft
4-8 axiscontrol panelof industrial automatic motoman arc welding robot(j1,j2,j3,j4,j5,j6)
Specify the welding current:
AA/S
Type:
Bus absolute type and servo type
Specify the welding voltage:
VV/SS
The most programminng:
±99999.999
Start welding:
AS*
Encoder of motor:
17bits and 23bits
End welding:
AE*
I/O points:
48*32 I/O
Start swing weld:
WS*
0-10V analog:
2 ways 0-10V analog
End swing weld:
WE
Operation:
Teach,Repaly,Remote
Movement of joint:
MJ or MOVJ or GO
Wifi function:
Connect with phone to send program
Movement od straight line:
ML or MOVL or G1
RS 232 function:
RS232 to connect with PC
Movement of arc:
MC or MOVC or G6
USB function:
Update and send program
Specify the speed:
V=to specify the feeding speed
Program mode:
Teach,G code,Technics parameter
Specify the ratio:
VJ= to specify the feeding ratio
Motion function:
Point to point,straight line,arc
The speed of changing track:(smoothness
PL=
Instructions:
Movement,Logic,Calculation,Technics,G code in CNC
Start parallel translation:
SN*
Coordinate system:
Joint,User,Tool,World
End parallel translation:
SF
PLC function:
Edit the ladder,8000 steps
Read the current position:
PK***
Alarm information:
Emergency,drive,maintenance,error of starting arc and coordinate
Calculate the value of two position:
PX***=PT***-PT***
Limit function:
Soft limit
Start searching:
ST*P*
Algorithm of controller:
1)Vertical multi joint serial tobot;
2)Vertical articulated parallelogram robot; 3)Vertical multi joint L shape wrist robot;
4)Pole coordinate robot;
5)SCARA robot;
6)Delta robot;
7)Special robot;
End searching
SE
Password protection:
Multilevel random password protection
Straight earching instruction:
SX+/-,SY+/-,SZ+/-,
User macro program:
Have
The parallel value:
PX***=PX***+PX*** and PX***=PX***-PX***
Electrical gear function:
Have
G code:
The same as the standard cnc controller
Application:
Welding,palletizing,Painting,Tending,Laser cutting and other special robor arm
Marco program instructions:
If..THEN;WHILE;GOTO;WAT


Function advantage




Product features
Never Crush the machine, the system with memorial function (Abosolute feature)

Needn't install hard limit in this 4-8 joint axis welding robot controller all kit and back to the zero point (Abosolute feature)

Use phone connect with controller by Wifi function, easier and more convenient to send program (NewKer feature)

G code program, only NewKer-CNC robot controller could work with G code program like cnc controller (NewKer feature)

Teach function with technics parameter, easier to operate (NewKer feature)

PLC and macro program are all opened (NewKer feature)

Only one cable come out from controller, easier to connect (Bus type feature)

Multilevel random password protection, more safety (NewKer feature)


Product applications








NEWKer is the manufacturer
We are a factory, not a trader, so we can provide you with low price but high quality products
