industrial grade 4g router for solar energy industry and elevator monitoring provides fast reliable and stable Internet
- Category: >>>
- Supplier: Xiamen Alotcer Communication Technology Co. Ltd.
Share on (62512747780):
Product Overview
Description
Product Description
1.General Information

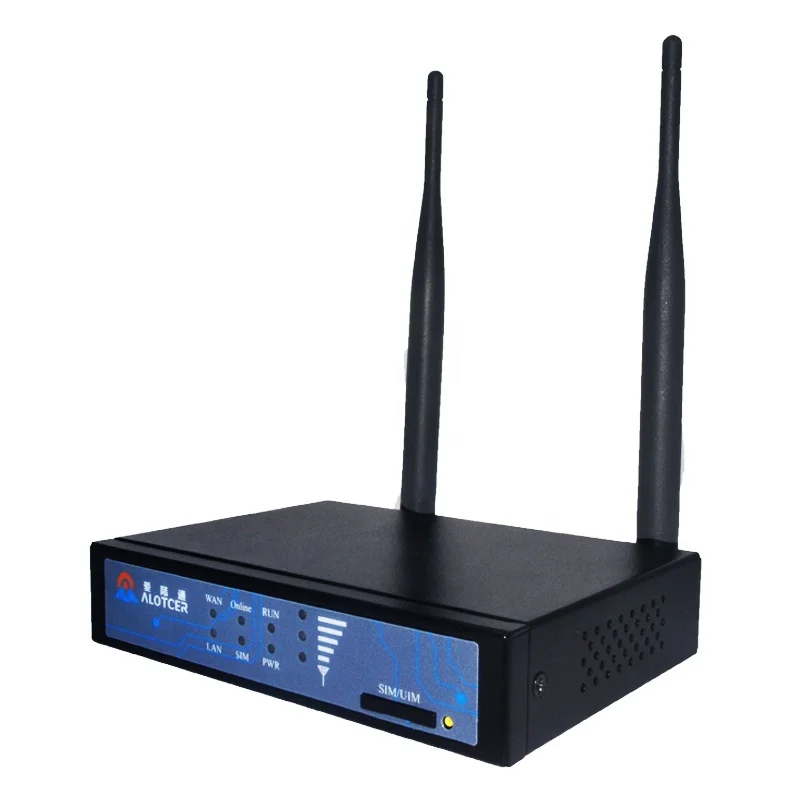

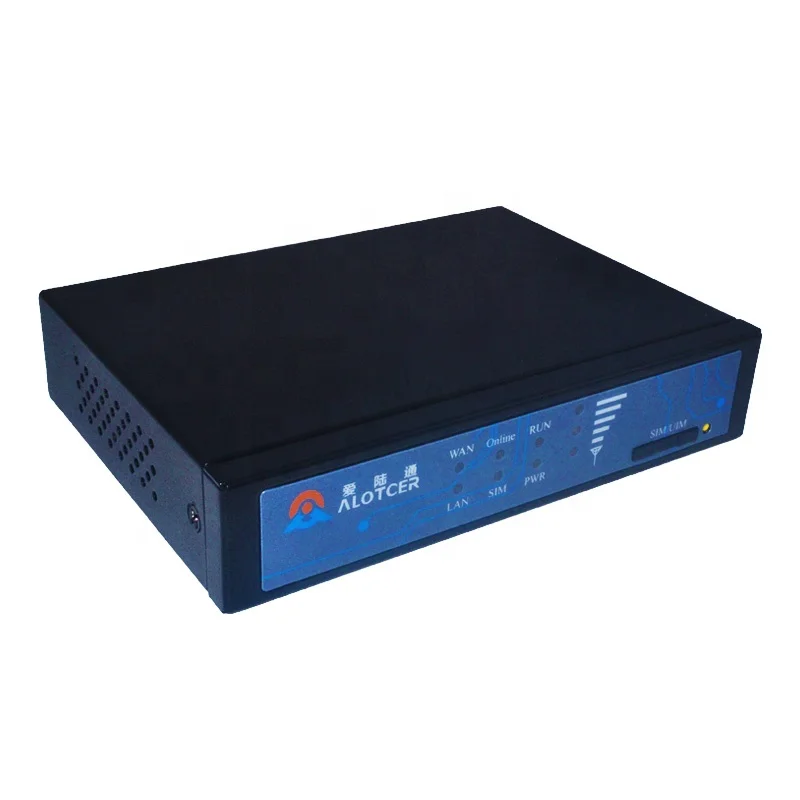

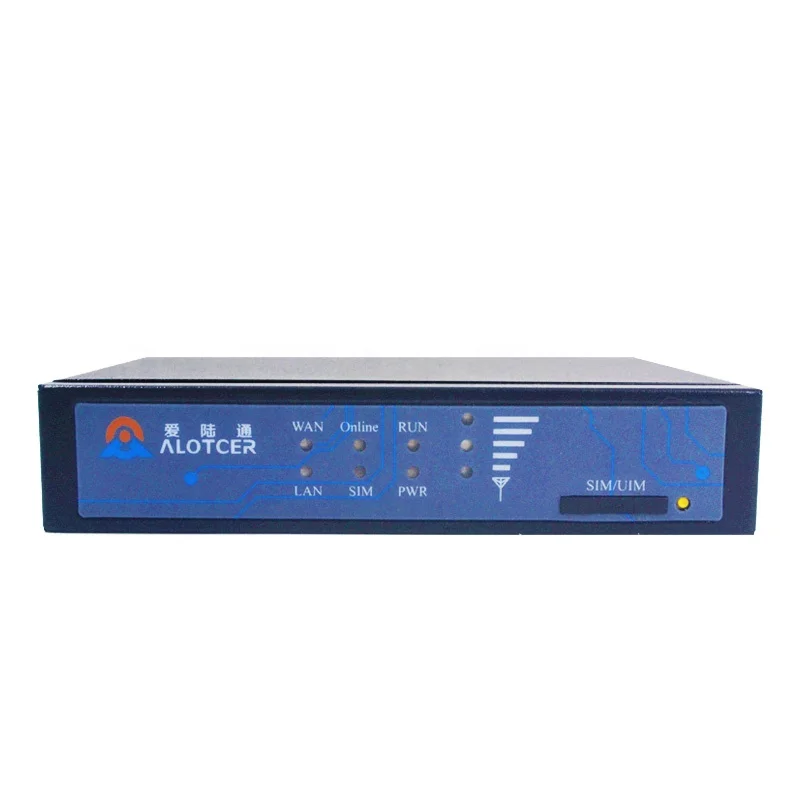

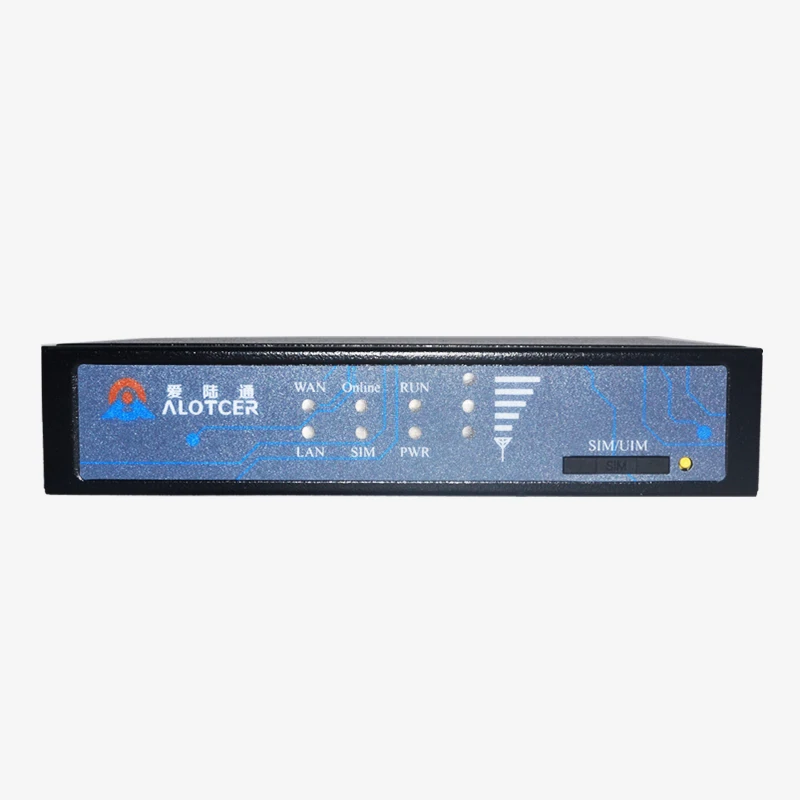

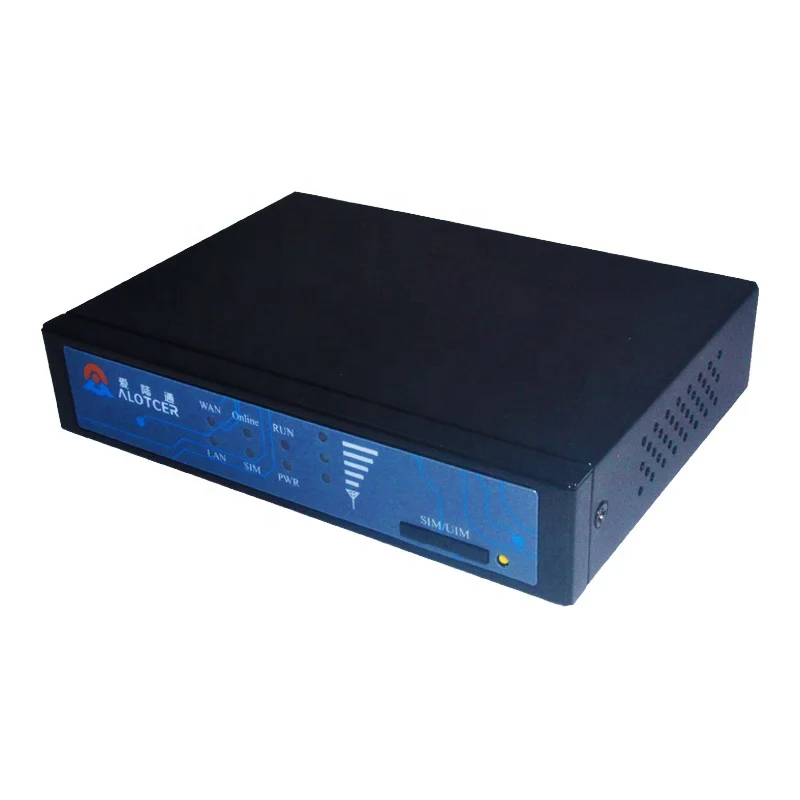

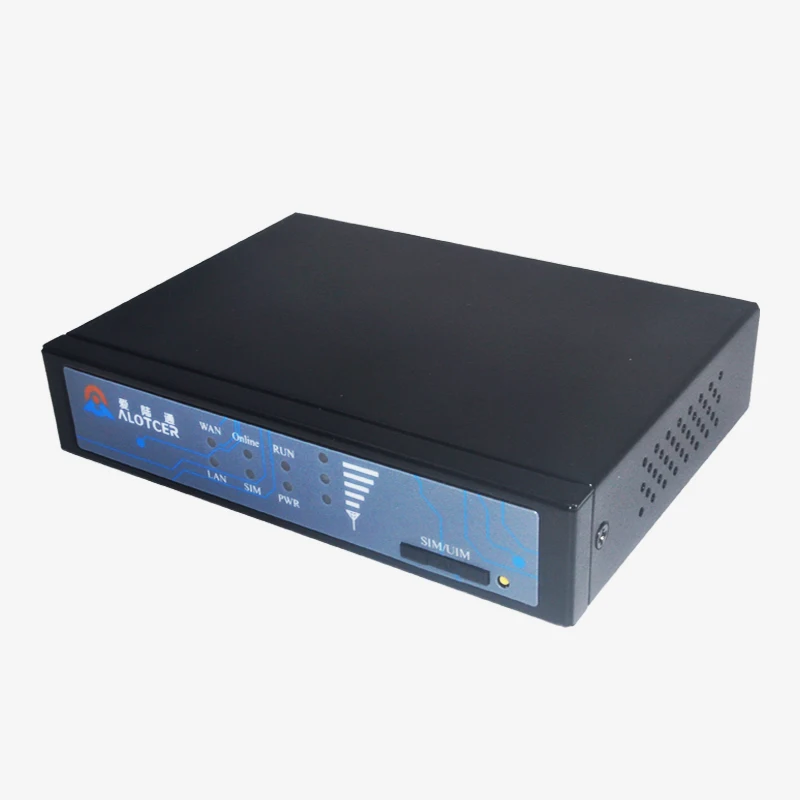

AR7088 ROUTER is a kind of terminal device that developed based on 2G/3G/4G, WIFI, VPN technology. It adopts high-powered industrial 32-bits CPU and embedded real time operating system. It supports RS232(RS485/RS422) Ethernet and WIFI port that can conveniently and transparently connect one device to a cellular network, allowing to connect to your existing serial, Ethernet and WIFI devices with only basic configuration.
It has been widely used on M2M fields, such as intelligent transportation, smart grid, postal services,industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on.
2.Products Specifications
Item | Contents | |
Hardware System | CPU | Industrial 32bits CPU |
FLASH | 16MB (Extendable to 64MB) | |
SDRAM | 128MB | |

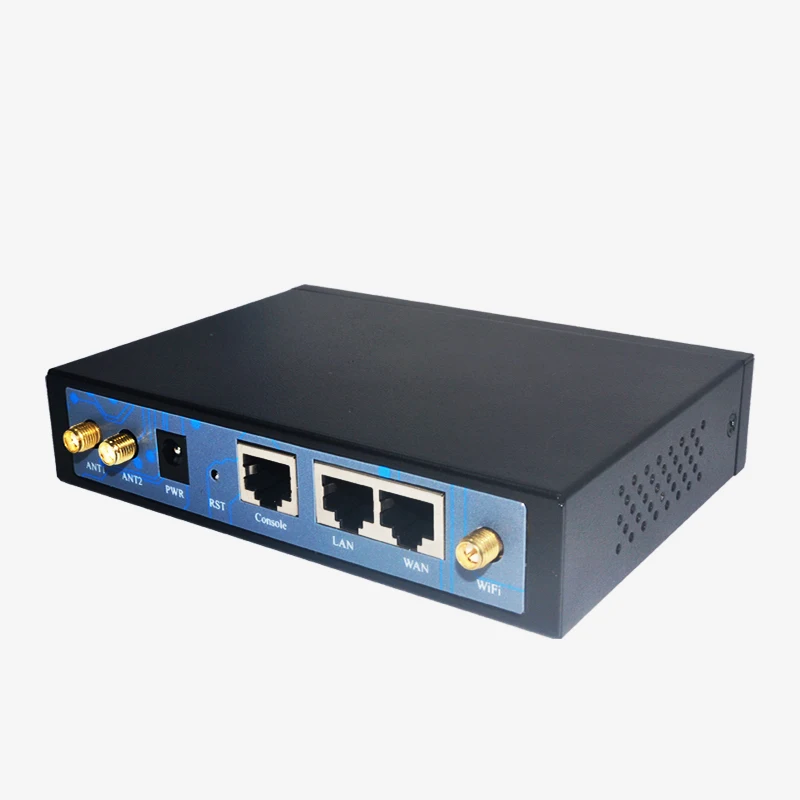

Interface | WAN
| 1 10/100Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
LAN
| 1 10/100Mbps Ethernet ports(RJ45), auto MDI/MDIX,1.5KV magnetic isolation protection | |
Serial
| 1 RS232(or RS485/RS422) port, 15KV ESD protection Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5(optional), 2 Parity: none, even, odd, space(optional), mark(optional) Baud rate: 2400~115200 bps | |
Antenna
| Cellular: Standard SMA female interface, 50 ohm WIFI: Standard SMA male interface, 50 ohm | |
SIM/UIM
| Standard 3V/1.8V user card interface, 15KV ESD protection | |
Network |
Wireless Network | GSM/GPRS/EDGE: 850/900/1800/1900MHz CDMA: 800/1900MHz WCDMA/HSUPA/HSPA+: 850/900/1900/2100MHz CDMA2000 1x/ EVDO Rev. A: 800/1900MHz TD-SCDMA: 1880-1920/2010-2025MHz(A/F) TDD-LTE: Band 38/39/40/41& Band 61/62 FDD-LTE: Band 1/2/3/4/5/7/8/13/17/20/25/28 |
WAN | Support PPP/PPPOE | |
LAN | Support APR | |
Network Authentication | Support CHAP/PAP Authentication | |
Network Access | Support APN/VPDN | |
Environmental Limits | Operating Temperature | -35~+75ºC (-31~+167℉) |
Storage Temperature | -40~+85ºC (-40~+185℉) | |
Operating Humidity | 95% ( unfreezing) | |
Physical | Dimensions | 136x99x28mm |
Packaging & Shipping
Industrial package with 10 pcs router in a main box, 1kg/pcs.
Individual package with 1 pcs router, 5 pcs router in a main box, 1.5kg/pcs.
With standard export package, shipping via DHL, Fedex, UPS, TNT, EMS is optional.
Our Company
Xiamen Alotcer Communication Technology Co., Ltd. is a leading provider of M2M, IOT communication products and solutions.vDeeprooted in Networking Wireless Communications for 5 years, both from the product quality and the company's scale are in theindustry-leading level. We have obtained SGS certification and are ISO9001 certified, along with CE, FCC, EMC, ROHS, RED National Network Center certifications. There are more than 200 employers in Alotcer, R & D personnel is about 30%, and with 3000 squaremeters of office space. Because focused, so specialized. Our products are sold all over the world and well received by customers.
Certifications
FAQ
1.What's the shipping cost?
Shipping bia DHL, UPS, Fedex, TNE is 3-5 days. For 1 pc router,shipping cost is 23 USD to United Sates by Express DHL.
2.What's the package?
Industrial package with 10 pcs router in a main box, 1kg/pc.
3.What's the warranty?
Repair rate less than 0.1%, even after a one- year warranty, we will only charge a small amount of maintenance cost.
4.How can i visit you?
You are welcome to visit Alotcer in Xiamen,China. And we have booth world wide every year.
Contact us
As we are the manufacuturer, and the top vendor for National power grid, we have stocks more than 20000 pcs in the warehouse, delivery is 1 day.Please feel free to contact us anytime when you have a nice idea for 4g/g industrial modem.
Atten: Ritta,Zhao
Mob/Wechat/Whatsapp/Skype:+8615396259755
QQ: 2045044157
Website:en.alotcer.com
Add:No.146-148 Xingbei Road, Jimei District, Xiamen City, 361002
