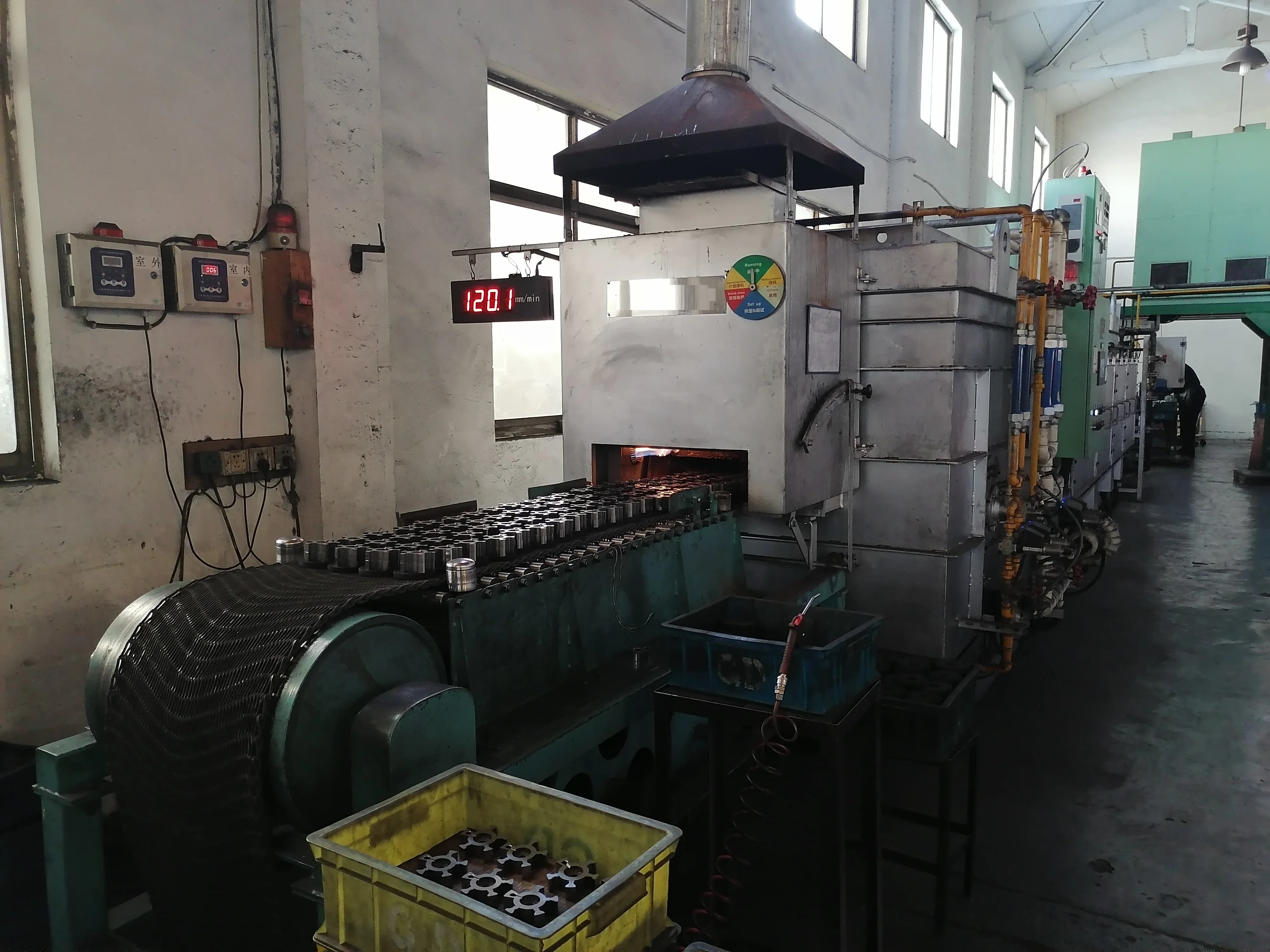

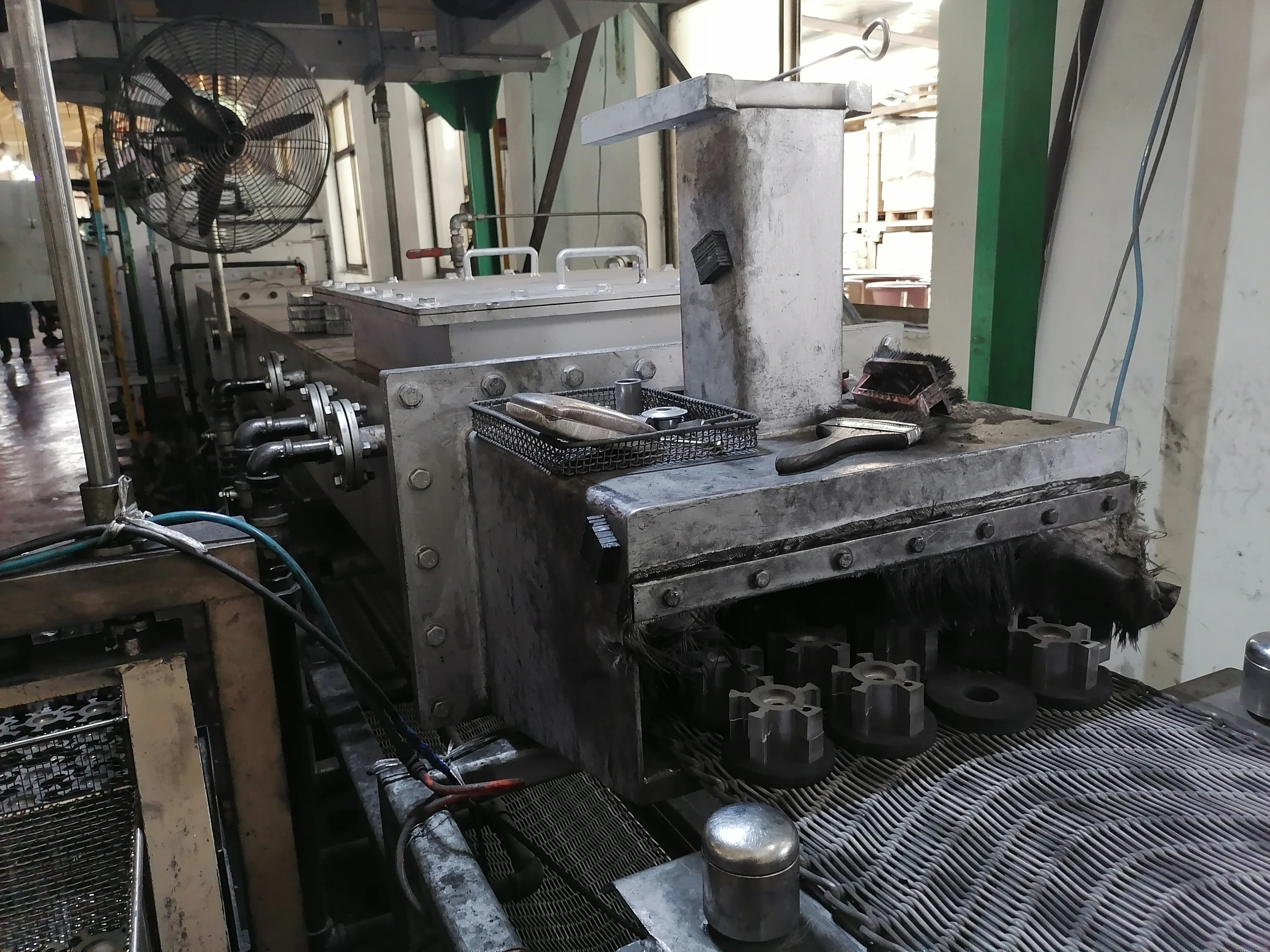

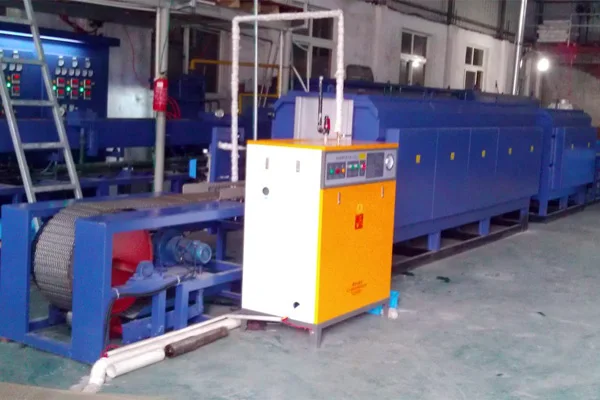

mesh belt sintering furnace
- Category: >>>
- Supplier: Yangzhou Haili Precision Machinery Manufacturing Co. Ltd.
Share on (62512802993):
Product Overview
Description
Product Description
Continuous sintering furnace
Continuous belt sintering furnaces used in the powder metal industry. Sintering is a heat treatment applied to a powder compact in
order to impart strength and integrity. The temperature used for sintering is below the melting point of the major constituent of
the powdered metal material.
We are design and build sintering furnaces around our clients’ manufacturing needs – the time, temperature, and atmosphere
requirements for their specific product manufacturing process.
order to impart strength and integrity. The temperature used for sintering is below the melting point of the major constituent of
the powdered metal material.
We are design and build sintering furnaces around our clients’ manufacturing needs – the time, temperature, and atmosphere
requirements for their specific product manufacturing process.
Characteristic | Description |

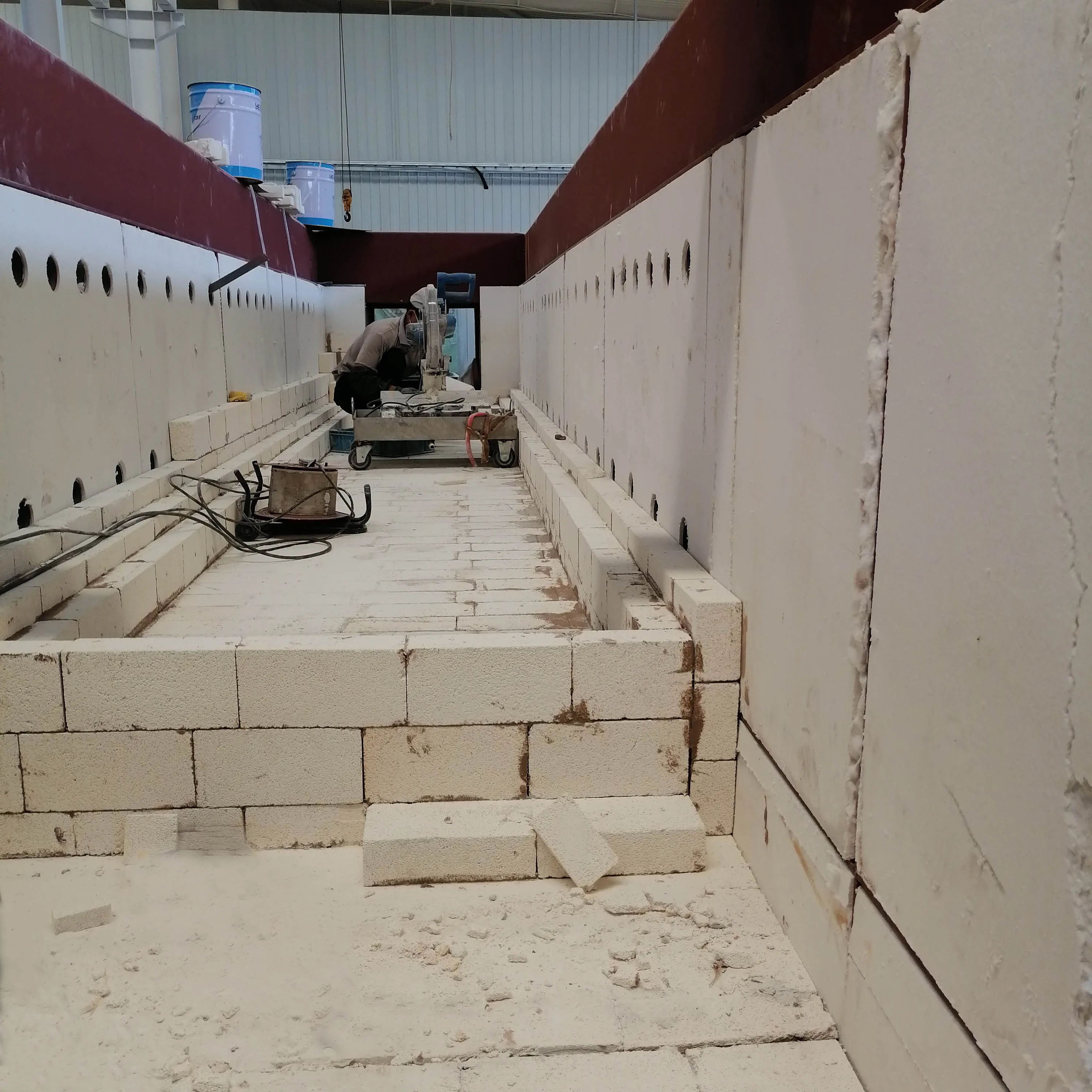

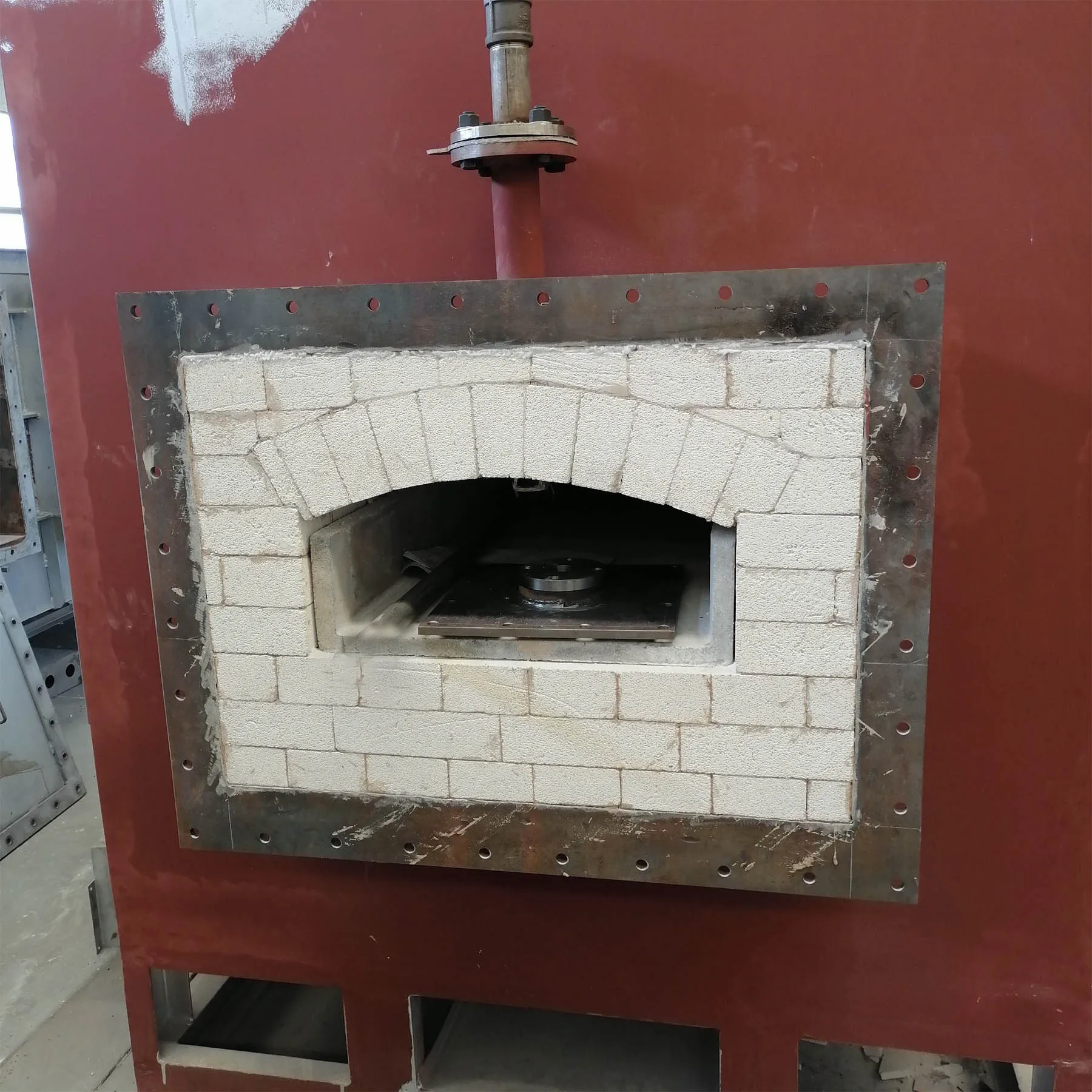

Metal or ceramic Muffle | Ceramic Muffle furnace can ensure 5 years using. |
Electric heat | Combined metal belt and Carbon-Silicon stick heat component can ensure the temperature homogenous distributed in the furnace. |
Advanced de-wax equipment | Special designed burn off room, atmosphere adjust control and our bottom heat system can ensure the de-wax process finished perfectly. |

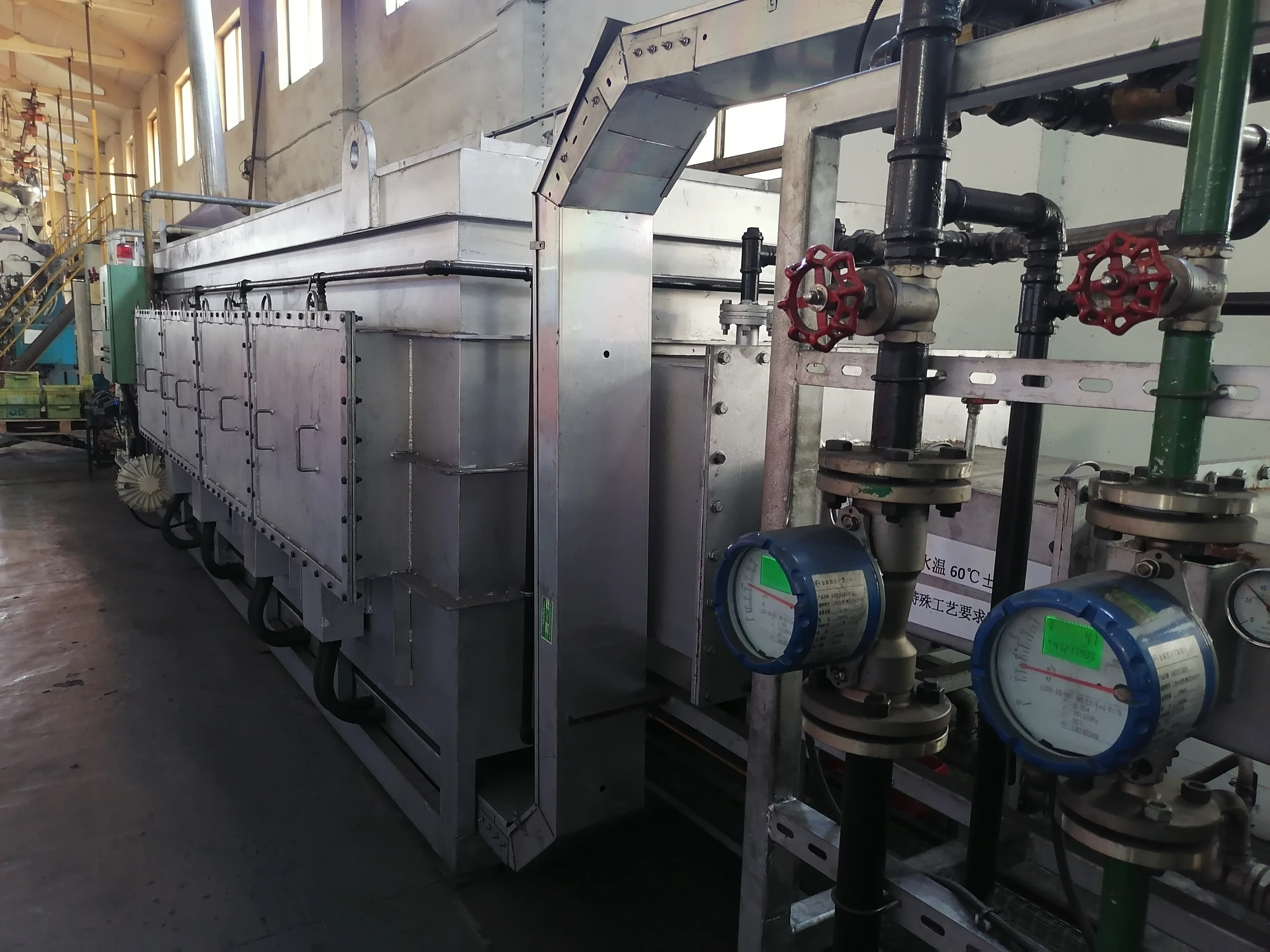

Rapid Cooling System (Chosen system) | An advanced cooling system combined the cycle air cooling and classic water-jacket cooling system to a good economic cooling equipment. |
Atmosphere dew point | Adjust the dew point to ensure suitable atmosphere all the time. |

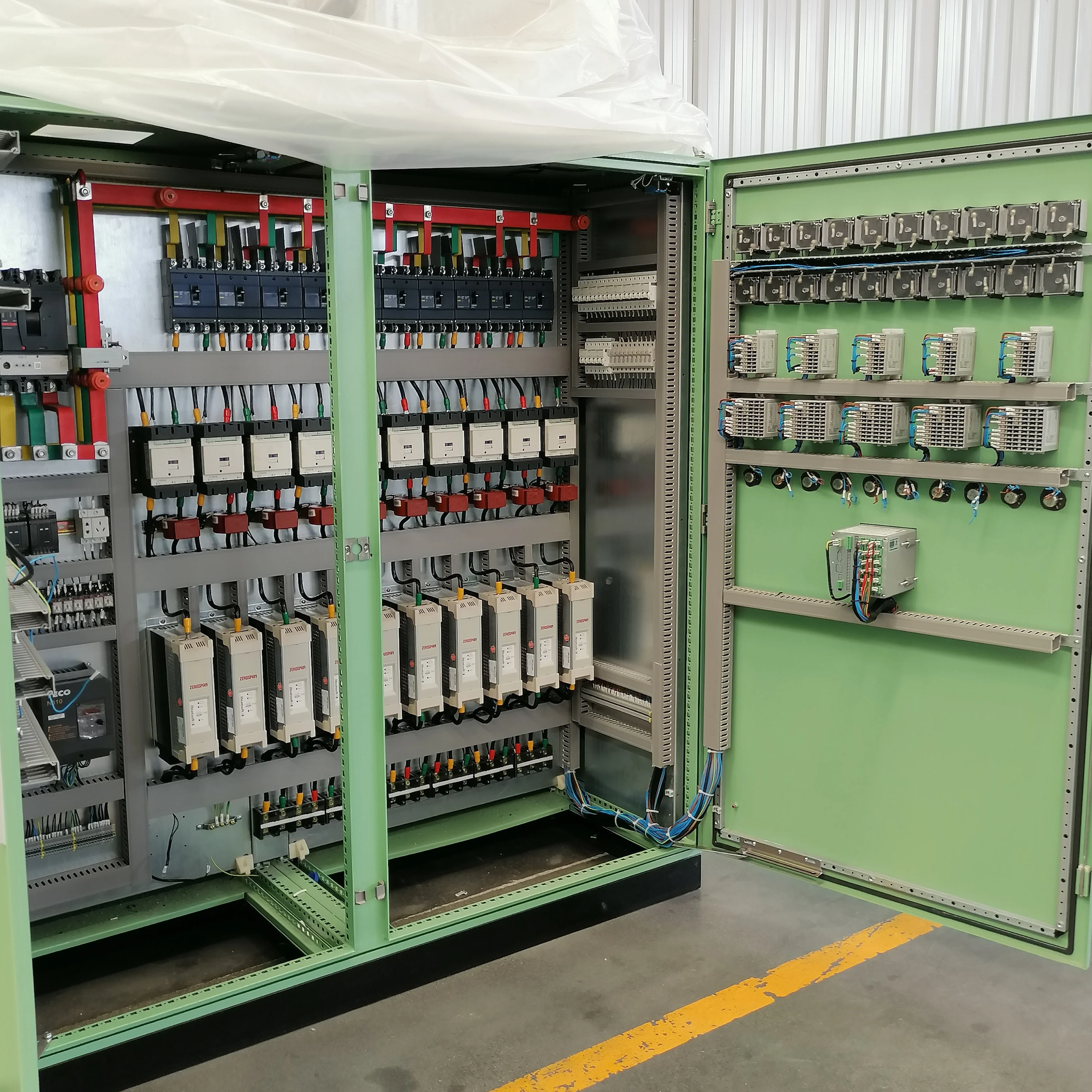

Process monitor and control | Advanced computer monitor and control system, include：Inner temperature、atmosphere flow, dew point, oxygen and carbon content and belt speed, etc. |

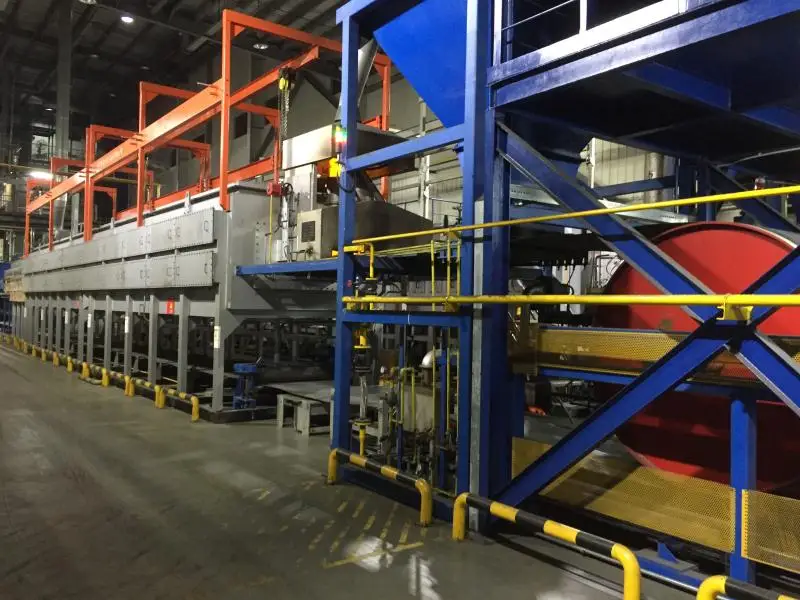

Detailed Images
Type | Pre-heating Section Temp (℃) | Sintering Section Temp (℃) | Heating Power (kw) | Mesh Belt Width (mm) | Mesh Belt Speed (mm/mim) |
RSL-300 | 850 | 1150 | 162 | 300 | 80 |
RSL-350 | 850 | 1150 | 198 | 350 | 100 |
RSL-450 | 850 | 1150 | 252 | 450 | 100 |
RSL-610 | 850 | 1150 | 388 | 610 | 120 |
Packing&Shipping
After Sales Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the furnace, training how to use the furnace.
* Engineers available to service machinery overseas.
* Training how to instal the furnace, training how to use the furnace.
* Engineers available to service machinery overseas.
