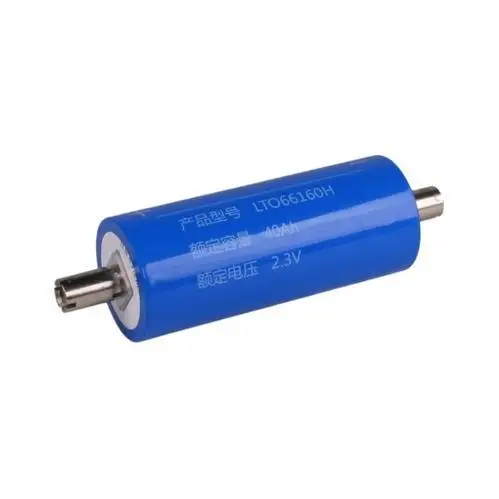

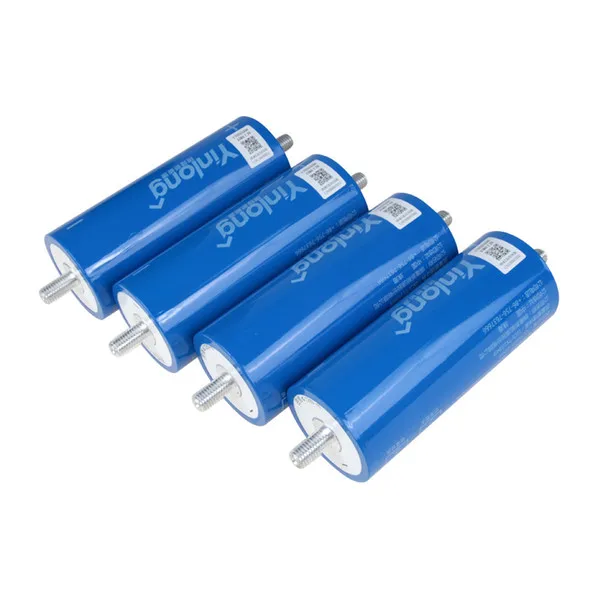

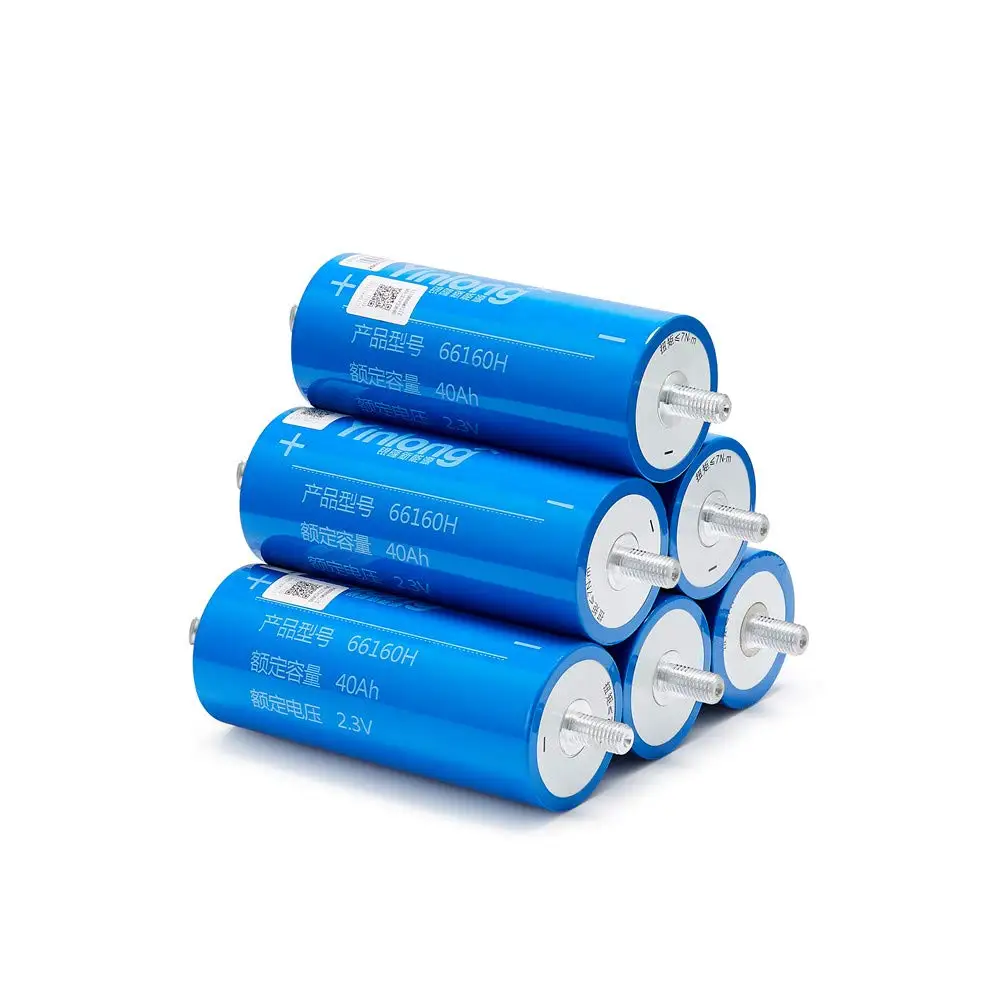

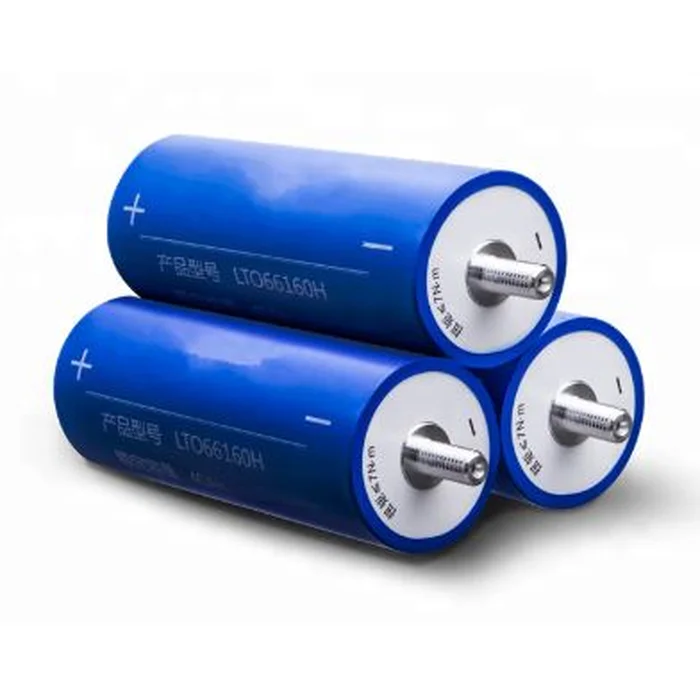

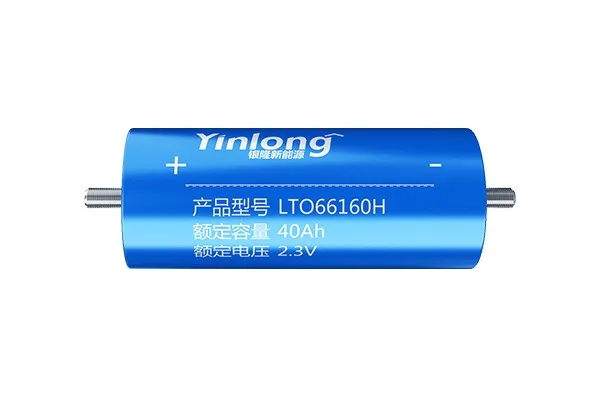

Yinlong LTO Battery 2.3V Lithium Titanate Battery LTO 66160H 40Ah
- Category: >>>
- Supplier: Shenzhen Vodno Technology Co. Ltd.
Share on (62512944219):
Product Overview
Description
Product Description
LTO battery is named Lithium titanate battery(Li4Ti5O12), is a new generation lithium ion battery that used the LTO as cathode material instead of graphite, the anode can be LiCoO2, LiMn2O4, LiFePO4,and NiCoMn. as a new type rechargeable lithium battery, LTO battery has great performances of perfect high safety, high stability, super long cycle life, fast charging/discharging performance, and strong temperature tolerance.
It can be widely used in electrical vehicles, city buses, charging station, ESS, Solar/Wind Energy Storage System, UPS, back-up power, Telecommunication, Home Solar Energy Storage System, Car Audio, Car Starter, Forklift, etc.
Nominal Voltage | 2.3V |
Rated Capacity | 40Ah |
High Rated Capacity (240A at 25℃, constant current) | 37Ah |
Rated Power (40A at 25℃, constant current) | 88Wh |
Energy Density | 161Wh/L |
Maxium Charge/Discharge Current | 10C (400A) |
Internal resistance | <1mΩ |
Dimensions | (DIA)66 mm *(H)160 mm |
Weight | 1.23kg |
Lithium Battery Five Worldwide Challenges
1. High Safety: With spinel structure and zero strain material, No SEI layer occurs, ZERO EV accident worldwide, and No fire or
explosion even after steel needle penetration, sea water submerging, cutting or burning testing, etc.
2. Long Circle Life: 80% capacity after 25,000 times life for 100% DOD charging/discharging. First 10 years used on electrical
vehicles and also another 20 years on energy storage system products.
3. High Power: Large power similar to super capacitor. Have great advantages on grid peak load and frequency regulation.
4. Fast Charging/Discharging: 10 times capacity charging, 6 minutes charging tme for single cell, 10~20 minutes charging time for
electric vehicles packs.
explosion even after steel needle penetration, sea water submerging, cutting or burning testing, etc.
2. Long Circle Life: 80% capacity after 25,000 times life for 100% DOD charging/discharging. First 10 years used on electrical
vehicles and also another 20 years on energy storage system products.
3. High Power: Large power similar to super capacitor. Have great advantages on grid peak load and frequency regulation.
4. Fast Charging/Discharging: 10 times capacity charging, 6 minutes charging tme for single cell, 10~20 minutes charging time for
electric vehicles packs.
Details Images
Product Usage
It can be widely used in electrical vehicles, city buses, charging station, ESS, Solar/Wind Energy Storage System, UPS, back-up
power, Telecommunication, Home Solar Energy Storage System, Car Audio, Car Starter, Forklift, etc.
power, Telecommunication, Home Solar Energy Storage System, Car Audio, Car Starter, Forklift, etc.
Related Products

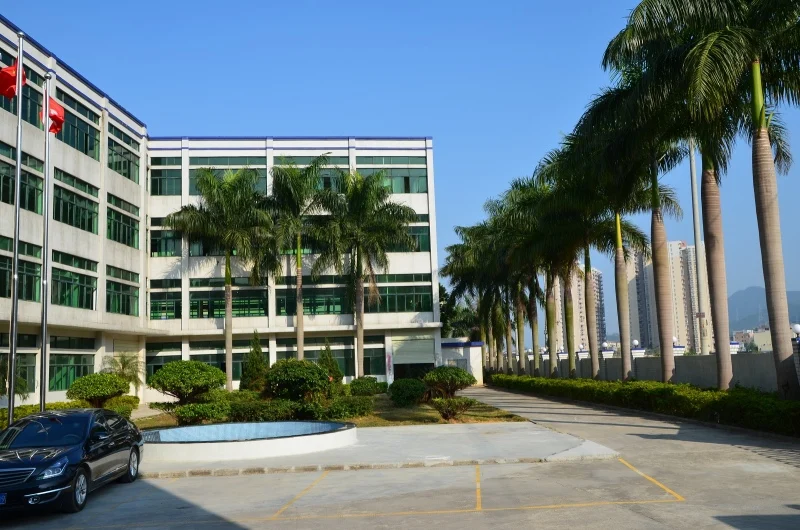

Company Introduction
Vodno Technology Co., Ltd. was founded in 2010, the predecessor of the lithium material, electric bike battery, and the core
production-based manufacturers, after nearly seven years of development, has developed into a product design and development,
battery solutions and electronic circuit program Design, battery production and quality control, sales in one of the high-tech
Co., Ltd., and become the battery industry's leading enterprises.
Vodno take a senior engineer of the engineering and technical team as the core, after the years of practice summed up a set of
highly efficient and accurate design standards and production management practices to ensure that each design, each product is
uncompromising attention to excellence.
"Treat every client with sincerity, implement every promise" is Vodno's corporate culture, scientific management, rigorous
attitude, high-quality elite to Vodno brought rapid growth, won the recognition of overseas customers around the world. Now, Vodno
Technology Co., Ltd. has more than 20 countries and regions around the world with a number of well-known enterprises to cooperate,
many of them like "Foxconn" the world's top 500 enterprises, and most products have been CE, ROHS, UN, etc. International Standard
Certification. Today, Vodno has grown into a trusted gold supplier in the battery industry.
production-based manufacturers, after nearly seven years of development, has developed into a product design and development,
battery solutions and electronic circuit program Design, battery production and quality control, sales in one of the high-tech
Co., Ltd., and become the battery industry's leading enterprises.
Vodno take a senior engineer of the engineering and technical team as the core, after the years of practice summed up a set of
highly efficient and accurate design standards and production management practices to ensure that each design, each product is
uncompromising attention to excellence.
"Treat every client with sincerity, implement every promise" is Vodno's corporate culture, scientific management, rigorous
attitude, high-quality elite to Vodno brought rapid growth, won the recognition of overseas customers around the world. Now, Vodno
Technology Co., Ltd. has more than 20 countries and regions around the world with a number of well-known enterprises to cooperate,
many of them like "Foxconn" the world's top 500 enterprises, and most products have been CE, ROHS, UN, etc. International Standard
Certification. Today, Vodno has grown into a trusted gold supplier in the battery industry.
