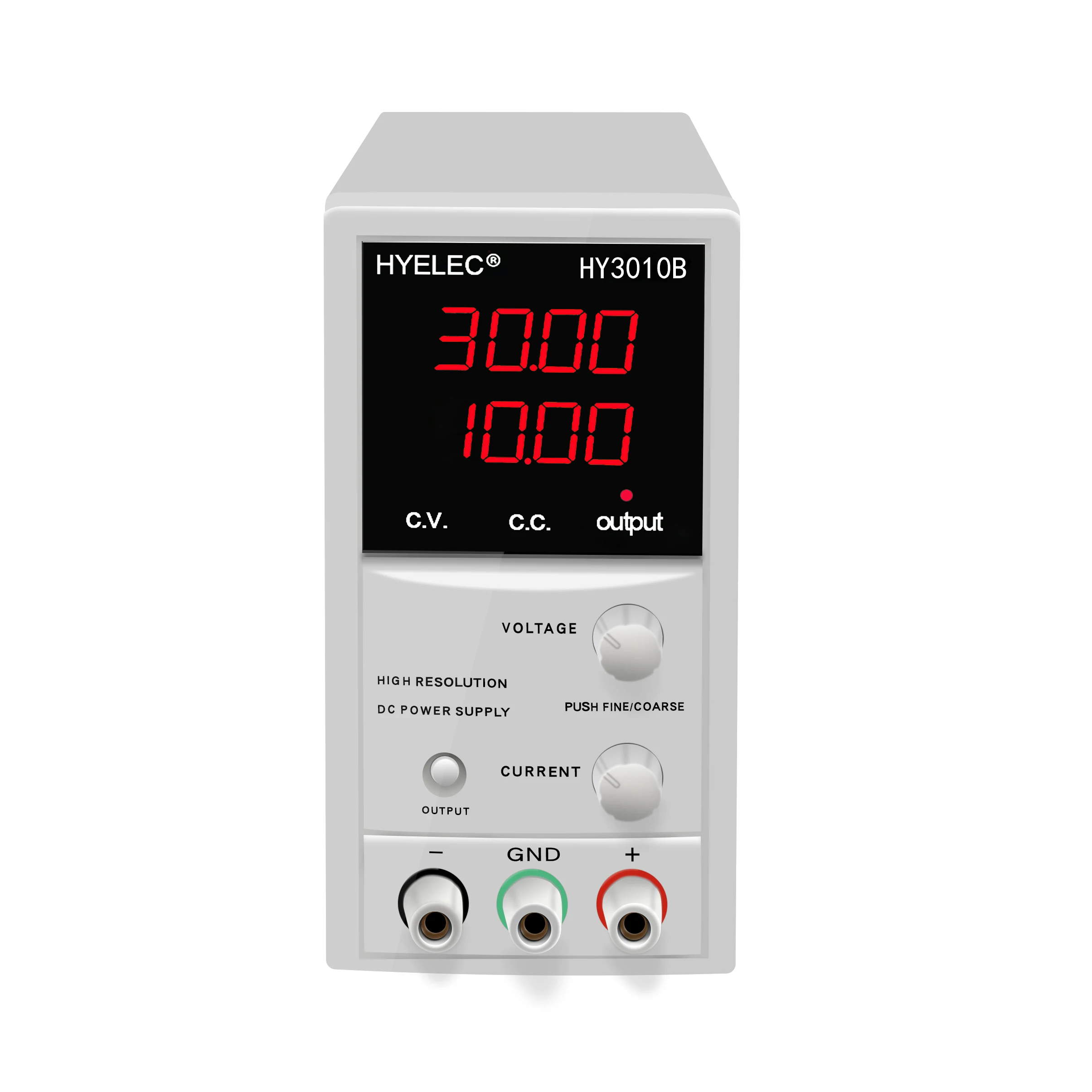

HYELEC 30V 10A Adjustable Laboratory Power Supply Linear Variable DC Power Supply

Product Overview

Description



The HY3010B variable DC power supplies are very stable, regulated DC power supplies allowing continuous adjustment of both the output voltage and output current levels.

MODELS:

1. TECHNICAL PARAMETERS

1.1 Input voltage :       230V/115V AC±10%          50HZ/60Hz±2Hz

1.2 Line regulation:     CV≤0.02%+5mV            CC≤0.2%+1mA

1.3 Load regulation:    CV≤0.02%+10mv             CC≤0.5%+10mA

1.4 Ripple and noise:   CV≤10mVr.m.s               CC≤10mAr.m.s

1.5 Protection: constant current and short-circuit protection

1.6 Voltage indication accuracy:  LED±0.5%+5digits,

1.7 Current indication accuracy:  LED±0.5%+5digits,

1.8 Environment: 0 _~ +40 ⁰C  relative humidity:<90%
