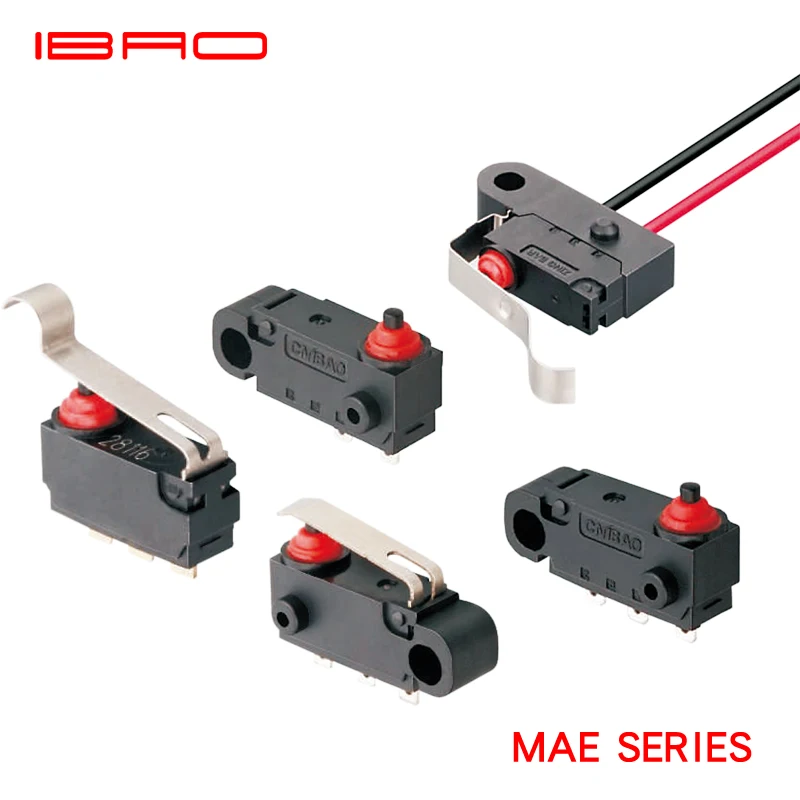

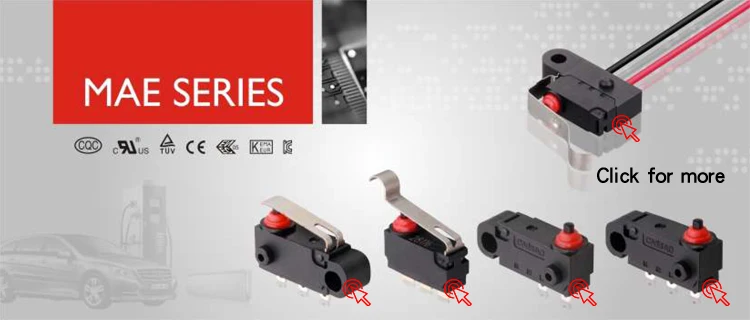

IBAO CNIBAO MAE SERIES Micro Switch Car Waterproof Micro Switch 12v Omron Micro Switch 250V 40~85°C CN;ZHE ≤100mω ≥100MΩ IP67
IBAO CNIBAO MAE SERIES Micro Switch Car Waterproof Micro Switch 12v Omron Micro Switch 250V -40~85°C CN;ZHE ≤100mω ≥100MΩ IP67
IBAO CNIBAO MAE SERIES Micro Switch Car Waterproof Micro Switch 12v Omron Micro Switch 250V -40~85°C CN;ZHE ≤100mω ≥100MΩ IP67
IBAO CNIBAO MAE SERIES Micro Switch Car Waterproof Micro Switch 12v Omron Micro Switch 250V -40~85°C CN;ZHE ≤100mω ≥100MΩ IP67
IBAO CNIBAO MAE SERIES Micro Switch Car Waterproof Micro Switch 12v Omron Micro Switch 250V -40~85°C CN;ZHE ≤100mω ≥100MΩ IP67
IBAO CNIBAO MAE SERIES Micro Switch Car Waterproof Micro Switch 12v Omron Micro Switch 250V -40~85°C CN;ZHE ≤100mω ≥100MΩ IP67
IBAO CNIBAO MAE SERIES Micro Switch Car Waterproof Micro Switch 12v Omron Micro Switch 250V -40~85°C CN;ZHE ≤100mω ≥100MΩ IP67

IBAO CNIBAO MAE SERIES Micro Switch Car Waterproof Micro Switch 12v Omron Micro Switch 250V 40~85°C CN;ZHE ≤100mω ≥100MΩ IP67

Share on (62513400629):


Price:

Quantity:


Product Overview

Description

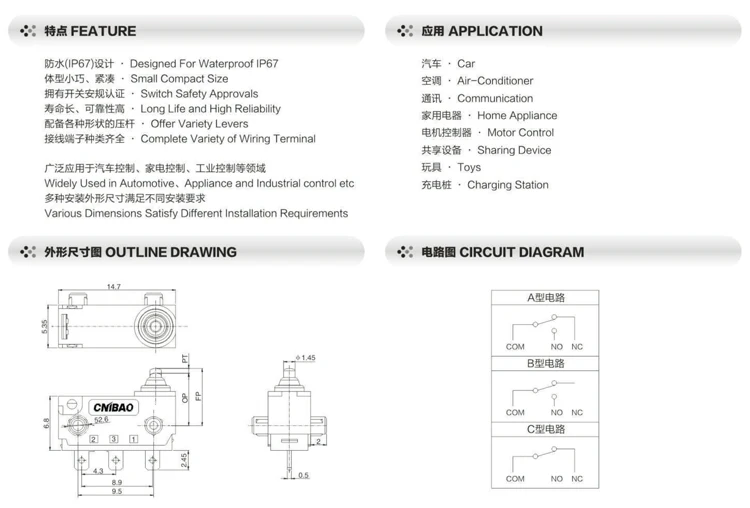

  PARAMETERS
Rating
0.1A 125/250VAC;3A/12VDC;0.1A/48VDC μ 1E5
Contact Resistance
100mΩMAX(without wire type)
Operating Temperature
-40℃~+85℃
Service Life
Electrical
100,000(1E5)/Cycles Min(Depend on Part NO)
Mechanical
500,000/Cycles Min
