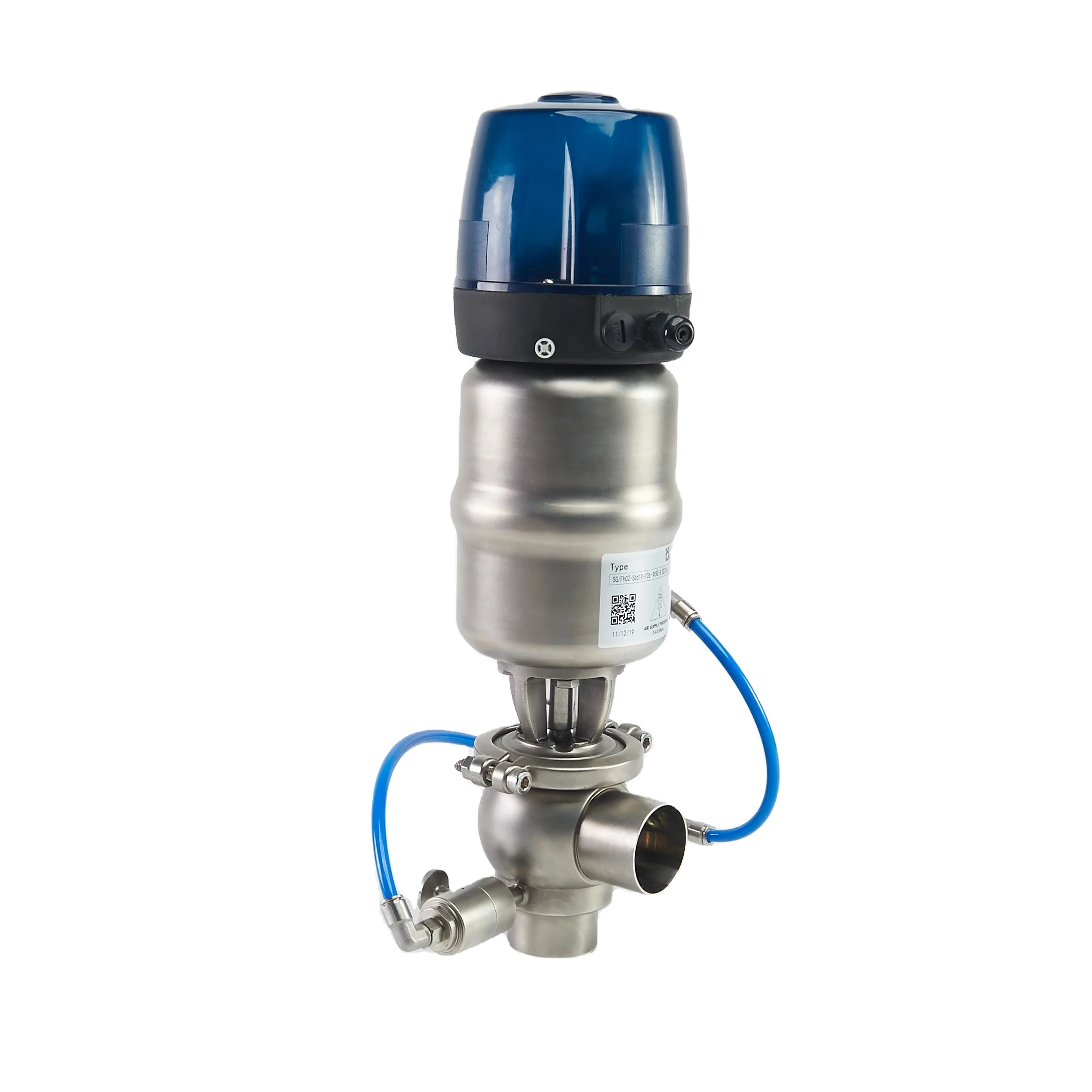

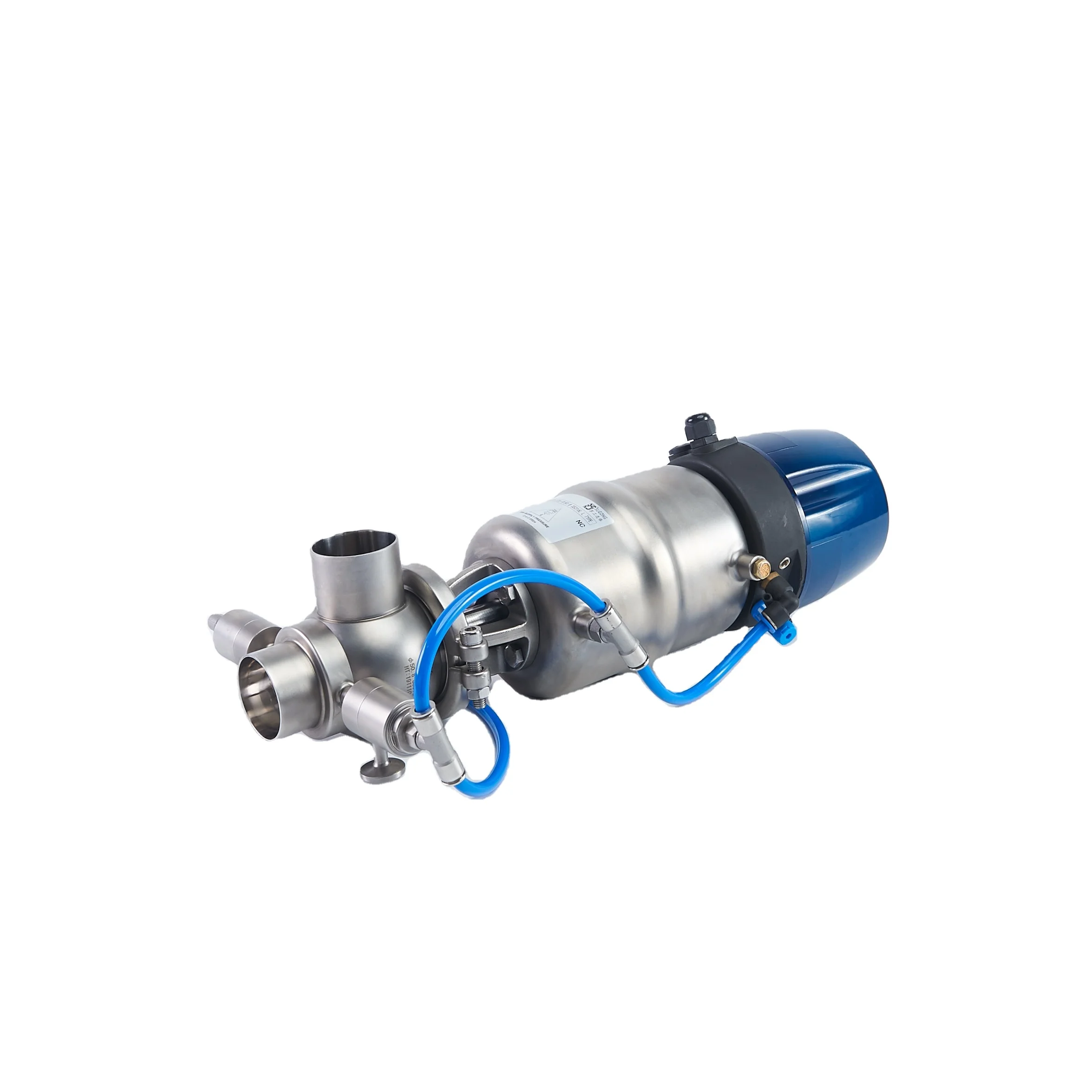

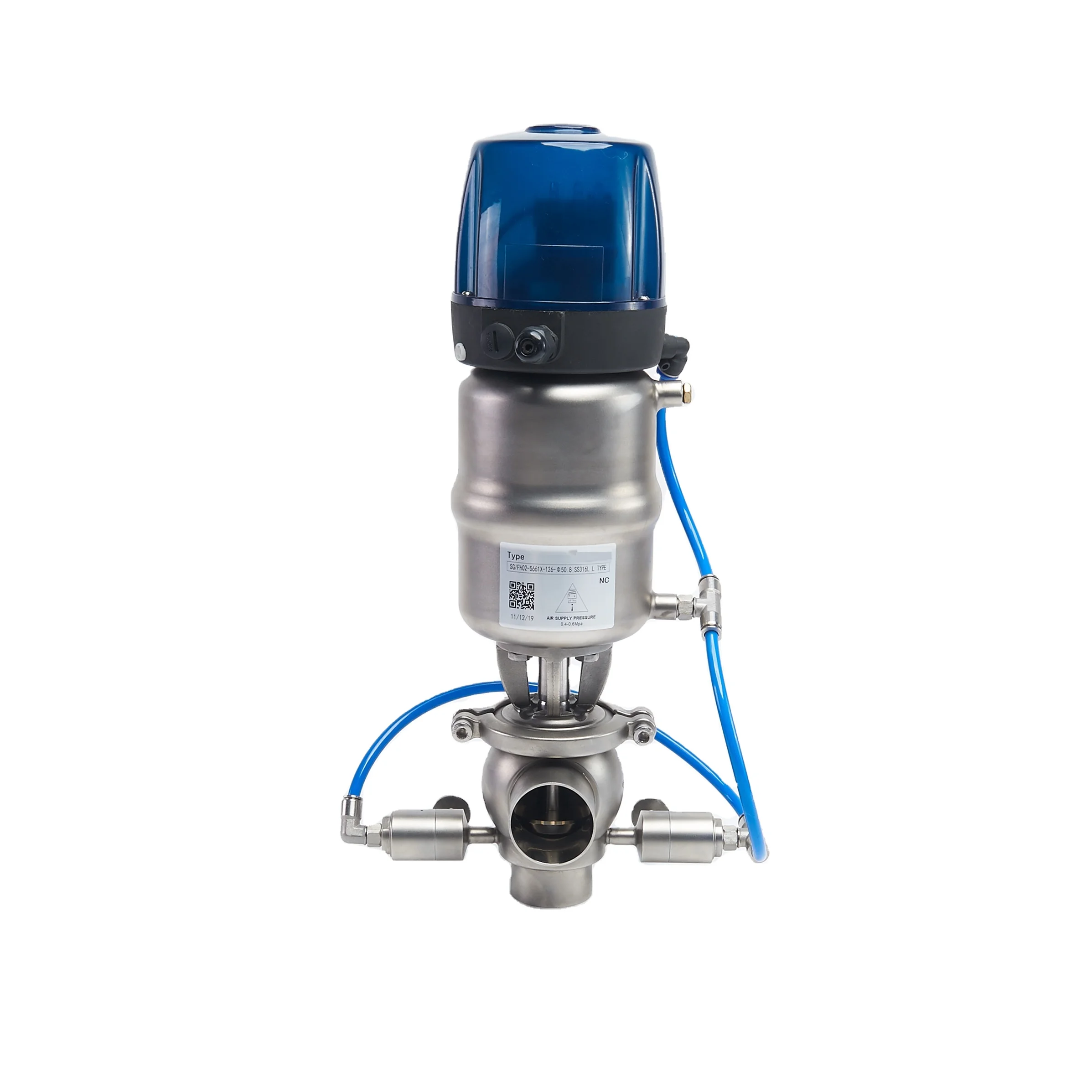

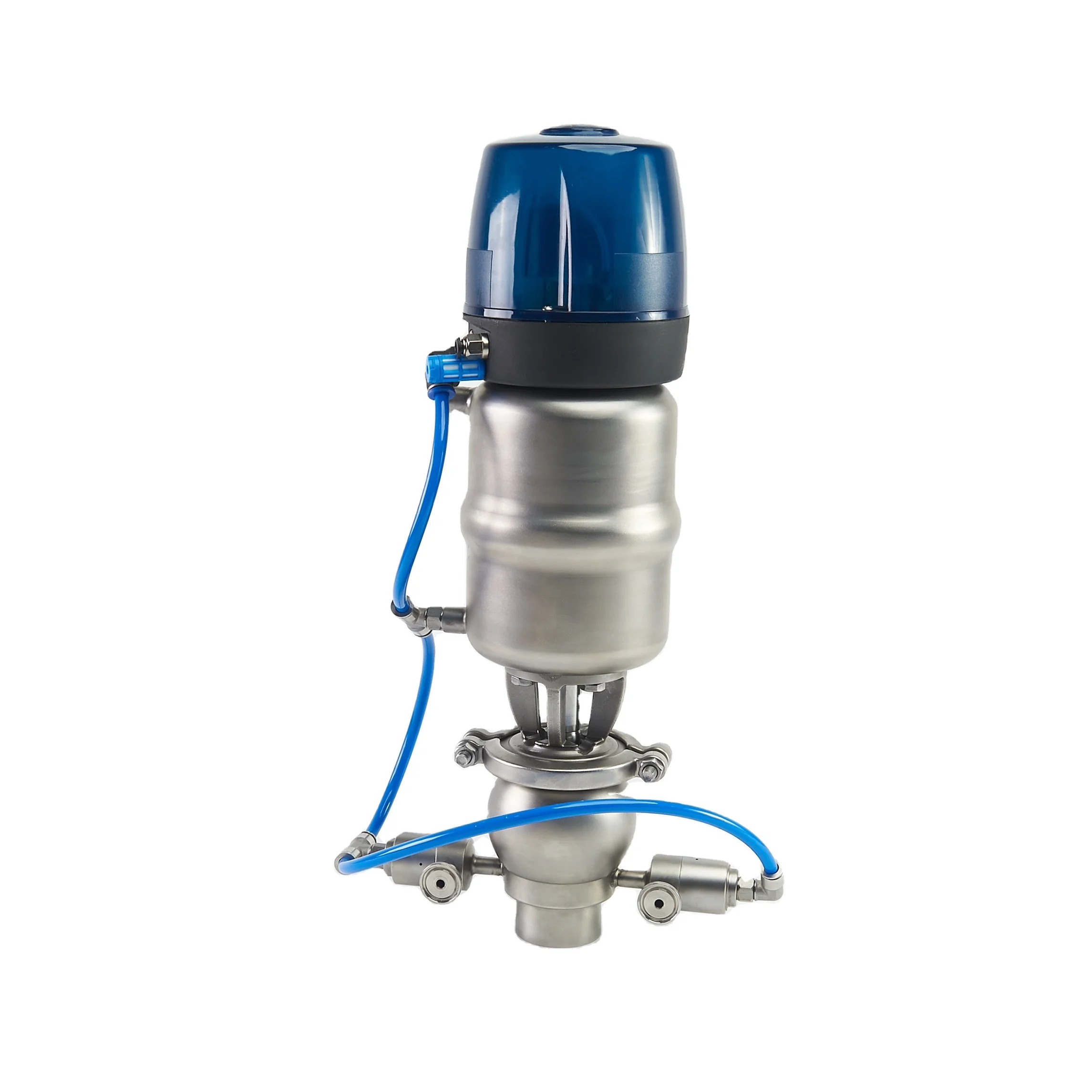

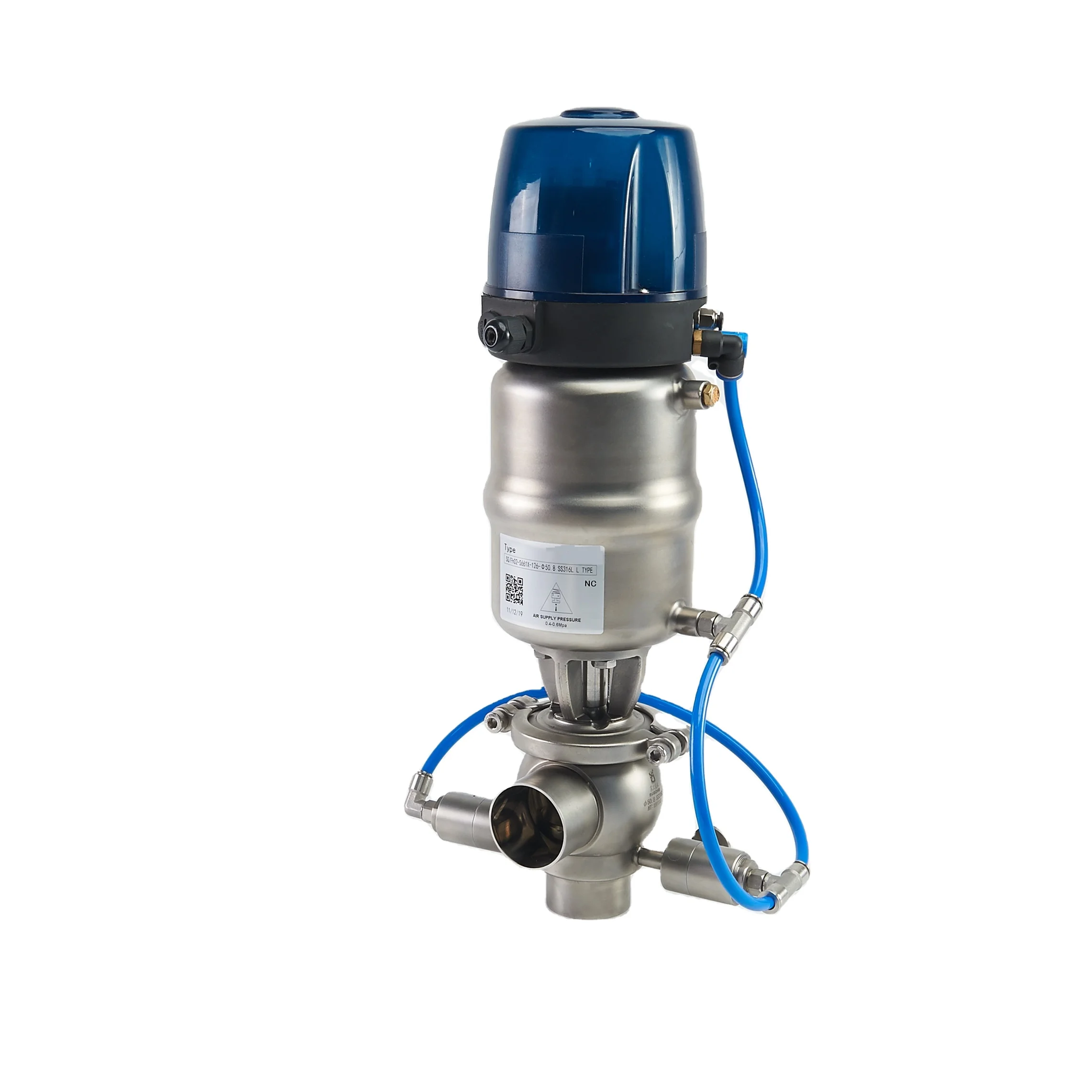

FH02 Sanitary Stainless Steel SS304 SS316L External Cleaning Four Ways Single Seat Double Seal Mix proof Valve

Product Overview

Description

Size	1.5"-4" Or DN40-DN100
Material	SS304 or SS316L
Seal	SILICON, EPDM.
Pressure	Max is 10bar
Temperature	-20°C ~+135°C
Surface	Mirror  polishing, matte polishing
Connection	welding, clamp
Application	Used for protection mixing products in brewing,dairy and drink,etc.

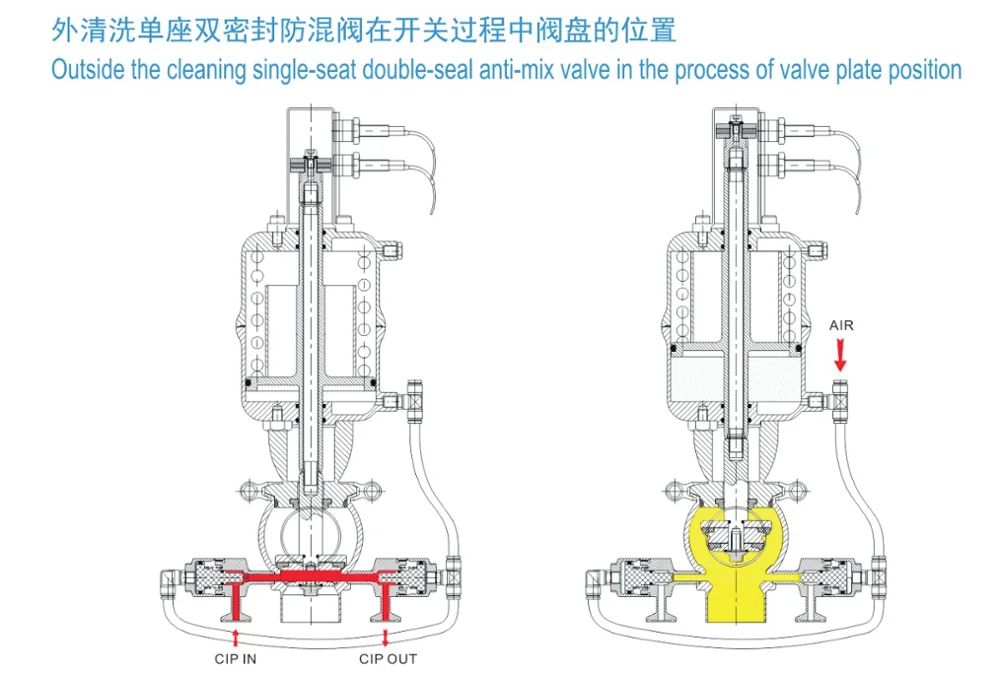

Working Principle: Single/Double seat mix-proof valve is controled through compressed air. The valve us a normally closed(NC) valve. The single/double seat valve has two divided seals of valve disc.It has a interlinked cavity of leak between two seal at working.while it happen leaking,the product will inpour the cavity and flow away from exit.it will not caused pollution and mixing.the leaking cavity closed wguke the valve working.it is impossible to overflow for the products.so the products can be transported from one pipe to another.also the valve can be washing CIP.







Q: Why choose us?
We have more than ten years of production and export experience, advanced imported equipment and continuous innovation ability.
All products are tested for size, material, quantity, surface damage and roughness.
For customers, we will quickly quote and production delivery, but also guide customers to install and use, and provide complete after-sales service.

Q:Can you provide OEM service?
Yes, we have five designers and a complete design team ready to provide you with detailed solutions.

Q: How long is the delivery time?
Standard item are in stocked--Normally 3-5 days.  Bulk order usually takes about 20-25 days.

Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.

 Q: What's the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.

Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.
