Metal Steel Spur Gear Pinions Helical Gear Shaft for Mining Industry
- Category: >>>
- Supplier: Shanghai Michigan Mechanical Co. Ltd.
Share on (62513522880):
Product Overview
Description
Products Description

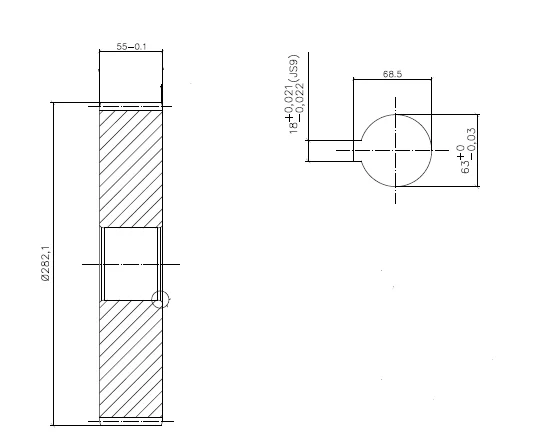

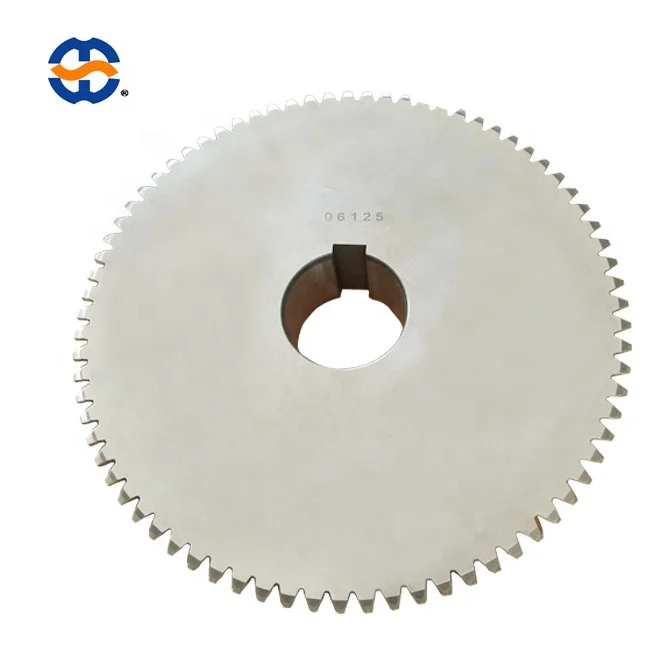

Specification | ||
Precision Grade | ISO 1328,grade 7 | |
Center Distance | 172.3mm | |
Module(M) | 3.5 | |
Number of Teeth(Z) | Z1=76 | |
Helix Angle(β) | 15° | |
Pressure Angle(α） | 20° | |
Material | SAE 8620 or 20CrMnTi | |
Heat Treatment | Carburizing | |
Hardness | 58±2 HRC, depth 0.8~0.95 mm | |
Catalog No. | Module | No. of Teeth | Helix Direction | Bore (A) | Pitch Diameter (C) | Outside dia. (D) | Face width (E) | Total Length (G) | Mating gear |
I0001434 | 2.25 | 85 | left | 76 | 191.25 | 202.5 | 42 | 42 | I0001402 |
I0005887 | 2.5 | 68 | left | 45 | 170 | 181 | 30 | 30 | I0001418 |
I0005888 | 2.5 | 76 | left | 55 | 190 | 201.8 | 36 | 36 | I0005223 |
I0005222 | 3 | 74 | right | 88 | 222 | 235.7 | 45 | 45 | I0005220 |
I0003897 | 3.5 | 76 | left | 63 | 266 | 282.1 | 55 | 55 | I0005219 |
I0003896 | 3.5 | 76 | left | 63 | 266 | 282.1 | 50 | 50 | I0005219 |
I0005224 | 3.5 | 74 | right | 112 | 259 | 275.2 | 50 | 50 | I0006057 |
I0003898 | 4.5 | 74 | right | 145 | 333 | 354.3 | 60 | 60 | I0005218 |
I0003899 | 4.5 | 74 | right | 145 | 333 | 354.3 | 85 | 85 | I0001412 |

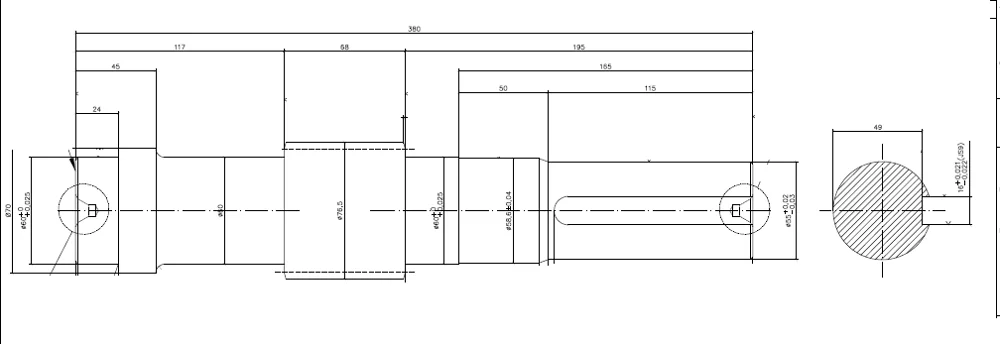

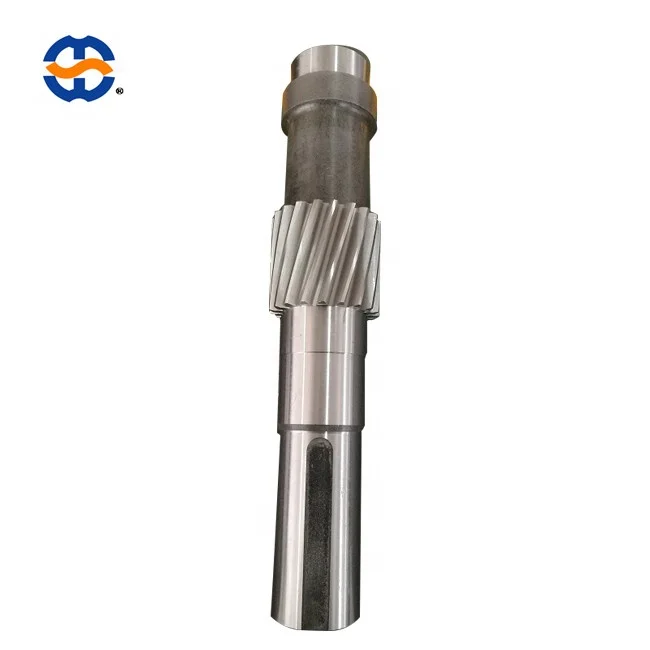

Specification | Specification | |
Precision grade | ISO 1328, grade 7 | |
Number of teeth | Z2=19 | |
Helix Angle(β) | 15° | |
Pressure Angle(α） | 20° | |
Material | SAE 4320 | |
Heat Treatment | Carburizing | |
Hardness | 58±2 HRC, depth 0.8~0.95 mm | |
Catalog No. | Module | No. of teeth | Helix Direction | Pitch dia. (d) | Tip dia. (OD) | Face width(B) | Dia. (d1) | Total length (L) | Mating Gear |
I0001402 | 2.25 | 20 | left | 46.69 | 51.56 | 49 | 41 | 116 | I0001434 |
I0001418 | 2.5 | 17 | right | 44.00 | 49.00 | 36 | 30 | 241 | I0005887 |
I0005223 | 2.5 | 19 | right | 49.18 | 54.18 | 45 | 54 | 281 | I0005888 |
I0001404 | 3 | 21 | left | 65.22 | 71.31 | 50 | 35 | 146 | I0005222 |
I0005220 | 3 | 21 | left | 65.22 | 71.31 | 50 | 35 | 175 | I0005222 |
I0005219 | 3.5 | 19 | right | 68.92 | 76.51 | 68 | 55 | 380 | I0003897 |
I0006056 | 3.5 | 21 | left | 72.26 | 83.78 | 54 | 45 | 205 | I0003896 |
I0006057 | 3.5 | 21 | left | 72.26 | 83.78 | 54 | 60 | 164 | I0005224 |
I0005218 | 4.5 | 21 | left | 97.83 | 106.83 | 65 | 60 | 262 | I0003898 |
I0001412 | 4.5 | 21 | left | 97.83 | 106.83 | 92 | 50 | 262 | I0003899 |
Company Profile
Shanghai Michigan Mechanical Co. Ltd - Concentrate on OEM Transmission Parts for More Than 15 Years.
Mission: Supporting the Further Success of Clients and Partners with Mechanical Solution & Premium Service.
Core Value: Customer First; Integrity; Never Stop Improving.
EQUIPMENT
Related Products
Production Process
Testing
CNC Gear Testing TTI-150E Kingelnberg GmbH P26 Mahr UD130 Automatic Inspection Line
How Do Our Technical And Quality Team Support Our Clients And Partners?
Our english speaking engineers do not simply relay messages. We help both customers and partners to strive for real solutions and we practise Kaizen in every single work.
Quality Warranty : 12 months from the delivery of the goods.
Product packaging
Inner Package Carton Non-solid Wood Packing Iron box packing
To be packed in new strong case(s)/carton(s), suitable for long distance ocean/air and inland transportation.
In addition,we are willing to customize packaging per your request.
Certifications
ISO 9001 certification
ISO/TS 16949 certification
Main Application Fields
Over 15 years accumulating, SMM gears are used in various industries in numerous machines. The main application fields
including,but not limited to machine tools,UAV,Tobacco machinery,new energy automobile,electical tools,cement vertical mill,oil drilling machine.
SMM have been working with some global leading companies more than 10 years.
including,but not limited to machine tools,UAV,Tobacco machinery,new energy automobile,electical tools,cement vertical mill,oil drilling machine.
SMM have been working with some global leading companies more than 10 years.
