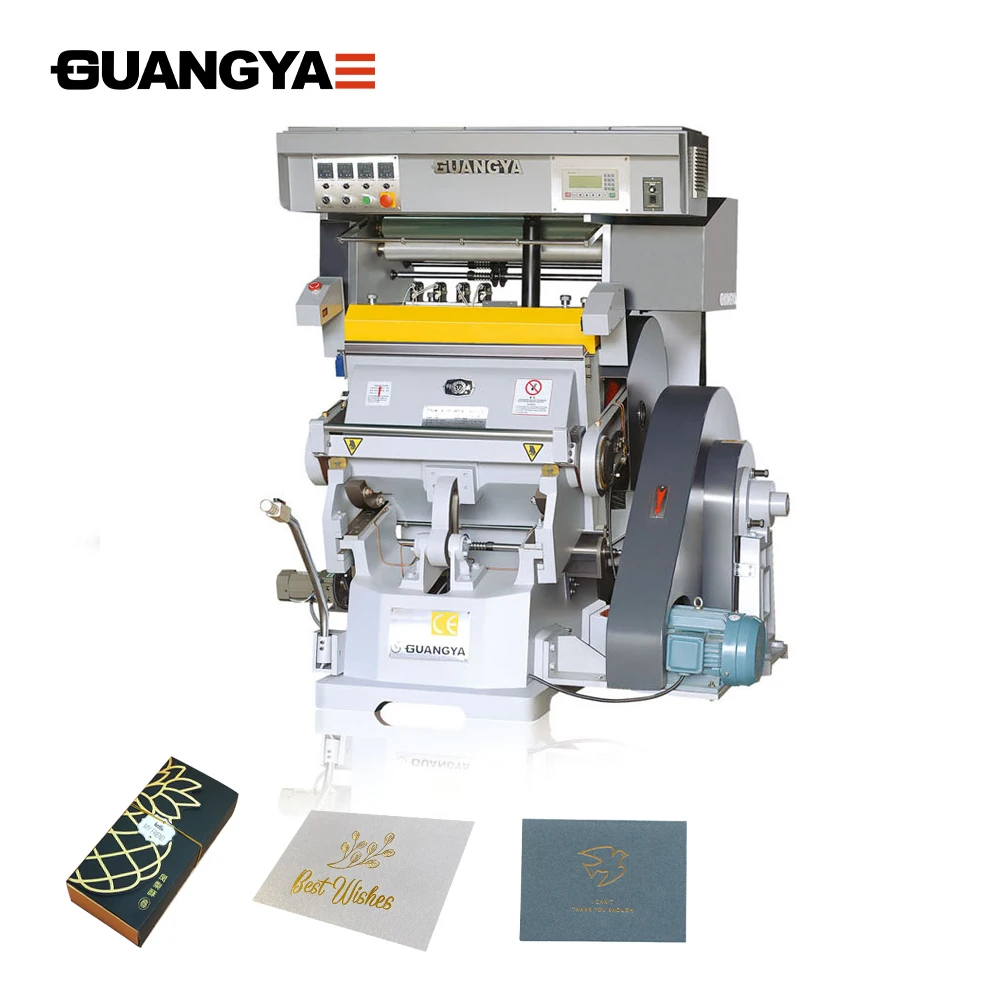

TYMC press hot foil stamping machines with creasing and die cutting function
- Category: >>>
- Supplier: Wenzhou Guangya Machinery Co. Ltd.
Share on (62513587655):
Product Overview
Description
PRODUCT FEATURES
Manual hot foil stamping and die-cutting machine is the ideal equipment for stamping and die-cutting all kinds of paperboard, leather, plastic, and so on. This machine is the ideal equipment for printing factories.
A manual Foil Stamping Machine is one kind of basic stamping machine for sampling and customizing products. Increasing and decreasing temperature accurately, changing the stamping plate easily, operating easily, and perfecting the protection system are the main reasons that can win the market. it is also the perfect model for embossing and creasing, suitable for many kinds of different-weight cardboard.
Our “SHIWEI” brand TYMC series Manual Foil Stamping and Die Cutting Machine is widely used in the post-press industry, this platen converts paper, carton board, heavy solid board, semi-rigid plastic, corrugated into different products with high efficiency, such as food/beverage/ personal care/ home&office/ industrial package and so on.
As a professional manufacturer of hot stamping die-cutting machines with a long history, GUANGYA - SHIWEI has laid the foundation for current mainstream manual foil stamping and die-cutting machines in the market.
1. TYMC series hot foil stamping and die cutting machine is very versatile, with the functions of hot stamping, die cutting, creasing concave-convex forming, and so on.
2. The display system with LCD screen greatly improves the productivity.
3. All the castings are treated with annealing. it will reduce the wear of machine.
4. This machine adopts PLC microcomputer control from Japan, and a stepper motor drive for reliable operation and convenient adjustment.
5. The heating plate is divided into 4 zones, and each zone can be adjusted independently. Fast heating, low energy, constant temperature control, and real-time temperature display will ensure high product quality.
A manual Foil Stamping Machine is one kind of basic stamping machine for sampling and customizing products. Increasing and decreasing temperature accurately, changing the stamping plate easily, operating easily, and perfecting the protection system are the main reasons that can win the market. it is also the perfect model for embossing and creasing, suitable for many kinds of different-weight cardboard.
Our “SHIWEI” brand TYMC series Manual Foil Stamping and Die Cutting Machine is widely used in the post-press industry, this platen converts paper, carton board, heavy solid board, semi-rigid plastic, corrugated into different products with high efficiency, such as food/beverage/ personal care/ home&office/ industrial package and so on.
As a professional manufacturer of hot stamping die-cutting machines with a long history, GUANGYA - SHIWEI has laid the foundation for current mainstream manual foil stamping and die-cutting machines in the market.
1. TYMC series hot foil stamping and die cutting machine is very versatile, with the functions of hot stamping, die cutting, creasing concave-convex forming, and so on.
2. The display system with LCD screen greatly improves the productivity.
3. All the castings are treated with annealing. it will reduce the wear of machine.
4. This machine adopts PLC microcomputer control from Japan, and a stepper motor drive for reliable operation and convenient adjustment.
5. The heating plate is divided into 4 zones, and each zone can be adjusted independently. Fast heating, low energy, constant temperature control, and real-time temperature display will ensure high product quality.
TECHNICAL PARAMETER
Model | TYMC-750 |
Max. effective plate area | 750*520mm |
Max. stamping size | 750*520mm |
Groups of foil feeding | 2 |
Max. foil feeding length | 520mm |
Leapfrogging scope | 0-99 |
Individual zones of heating plate | 4 |
Power of heating plate | 8kw |
Main motor power | 2.2kw, 6 pole |
Total power | 10.2kw |
Speed | 28±2 sheets/min |
Gross weight of machine | 2300kg |
Overall machine dimensions | 1660*1540*1970mm |
MAIN FEATURES
Main Host
• Highest strength casting iron, strong, stable, and sturdy
• All the castings are treated with annealing, which will reduce the wear of the machine
• Pressure micro-adjustment device, easy for setting up
• Excellent workmanship, quality assurance
• Good appearance and design concept
• All the castings are treated with annealing, which will reduce the wear of the machine
• Pressure micro-adjustment device, easy for setting up
• Excellent workmanship, quality assurance
• Good appearance and design concept

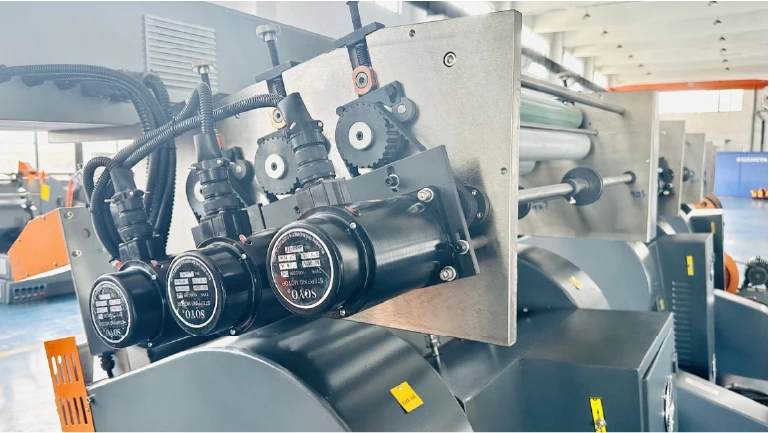

Foil Stamping System
• 2 foil shafts, easy to set up
• 4 foil stamping zone, individually controlled, save energy
• Constantly temperature control, real-time temperature display, which ensures high product quality
• Up to 99 foil stepping scope, which can solve different foil die patterns and save foils
• Controlled by imported PLC system, reliable and faster in operation
• 4 foil stamping zone, individually controlled, save energy
• Constantly temperature control, real-time temperature display, which ensures high product quality
• Up to 99 foil stepping scope, which can solve different foil die patterns and save foils
• Controlled by imported PLC system, reliable and faster in operation
Safety System

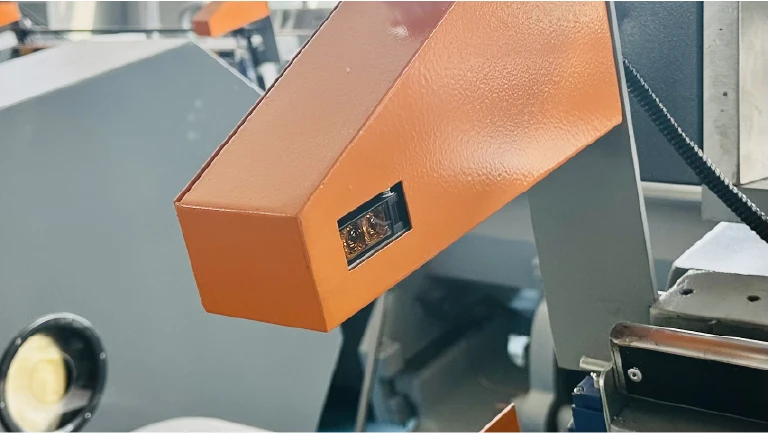

• Inferred sensor to protect the operator's safety, it is very sensitive and responds quickly
• Several sensors can control the machine’s stop, which ensures the safety of the operator
• Several sensors can control the machine’s stop, which ensures the safety of the operator

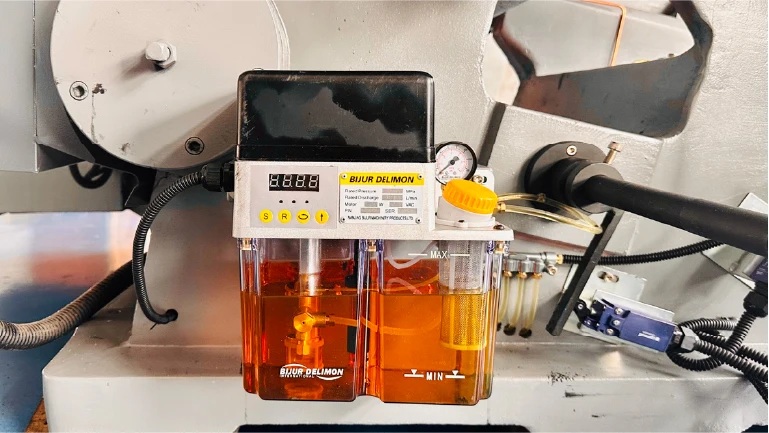

Lubrication System
• Automatic centralized lubrication system
• The frequency of lubricating can be adjusted
• Easier for maintenance
• The frequency of lubricating can be adjusted
• Easier for maintenance
Control System
Operating System
• Equipped with LCD screen, easy to operate
• Delay function can control machine open and creasing time.
• Equipped with LCD screen, easy to operate
• Delay function can control machine open and creasing time.

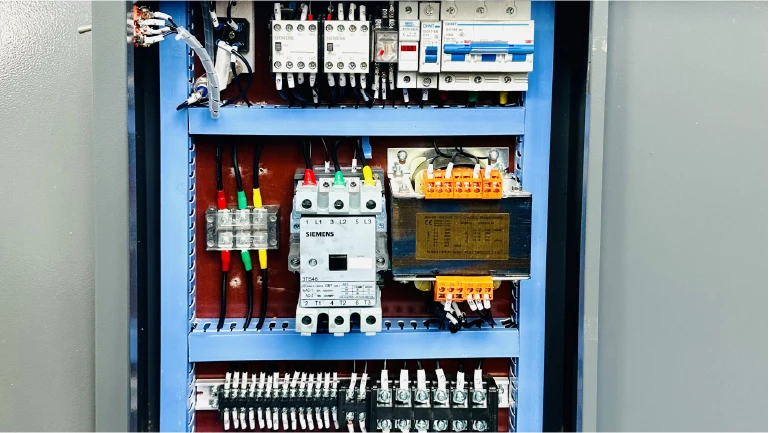

Electrical System
• Modular design of the electrical system
• CE standard electric system
• Imported electrical appliances, quality assurance
• CE standard electric system
• Imported electrical appliances, quality assurance
*FOR MORE DETAILS, PLEASE ASK YOUR SALES CONSULTANT
SAMPLES
ABOUT US
VR
Pre-Sales Service
* Inquiry and consulting the support
* Testing support in our factory
* Inspect machine in our Factory
* Testing support in our factory
* Inspect machine in our Factory
After-Sales Service
* Training how to install the machine, training how to
use the machine
* Engineers available to service machinery overseas
use the machine
* Engineers available to service machinery overseas
PROCESSING EQUIPMENT
DELIVERY
CERTIFICATIONS
SALES SERVICE
THE UNIQUE HUMAN CARE AND PROFESSION
PASSIONATE SALES SERVICE SYSTEM
We have professional sales and engineers who are ready to send emergency repair parts in 24 hours and easily damaged parts in 5 days with professional knowledge.
We focus on customer service, all-year non-stop service, personal training, and so on.
Not only provide customer service. But also a pre-sales system, including solutions to product selection, storage of parts, technical guidance, operating training, exchange management platform, and so on.
Realizing the idea of focusing on customer success, creating value to customers.
We focus on customer service, all-year non-stop service, personal training, and so on.
Not only provide customer service. But also a pre-sales system, including solutions to product selection, storage of parts, technical guidance, operating training, exchange management platform, and so on.
Realizing the idea of focusing on customer success, creating value to customers.
