Price:$0.42 - $0.44

Quantity:


Product Overview

Description



Product Description

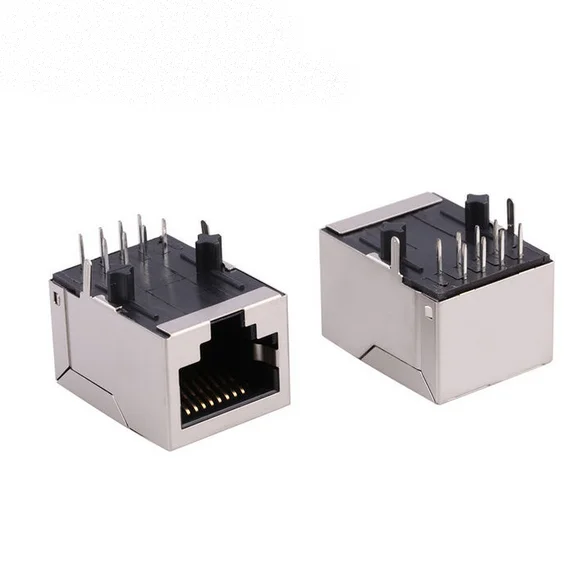

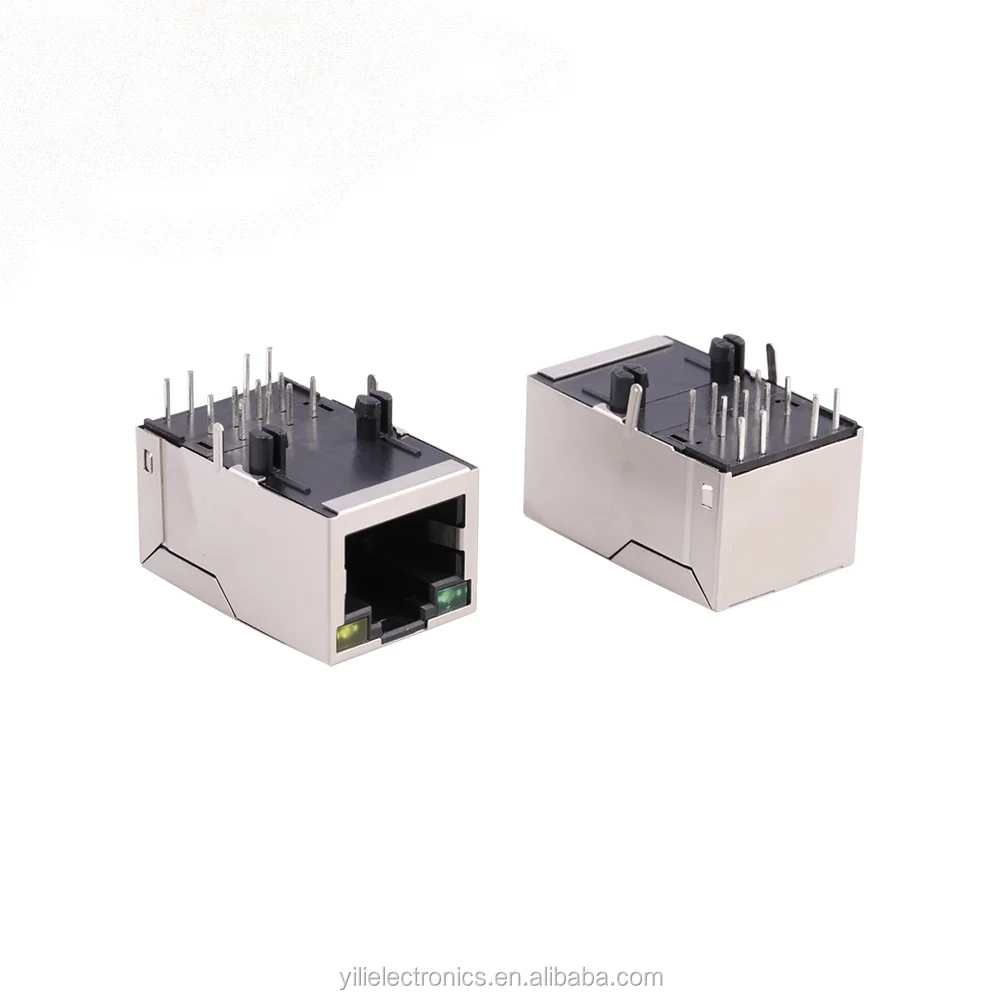

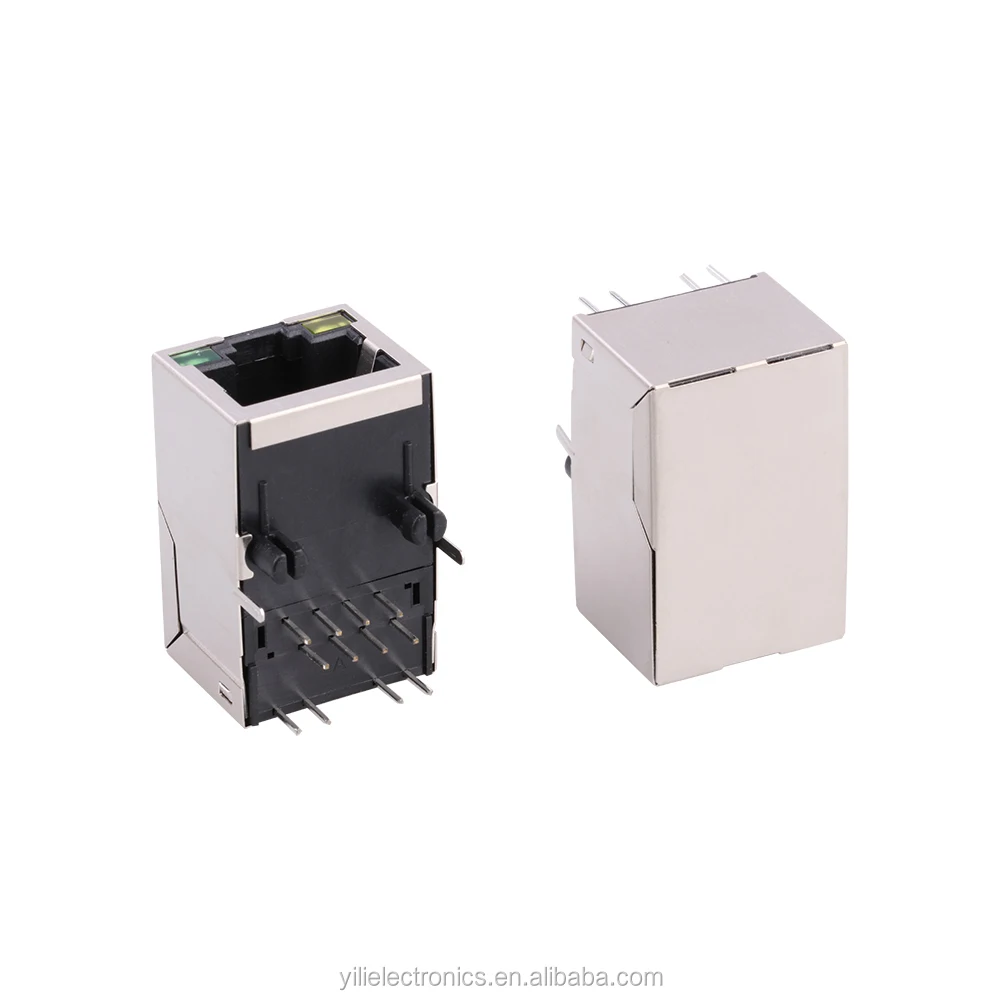

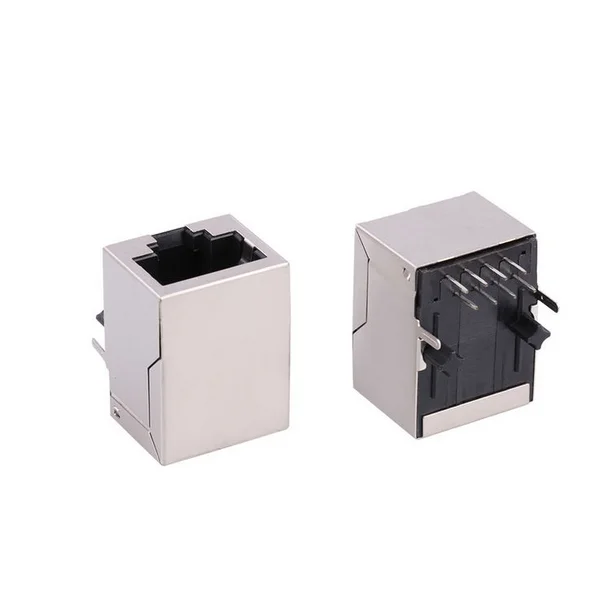

RJ45 Connector with LED Black Housing with Transformer Material PBT/PA66/PA46


1.MATERIAL:
1-1.SHELL:
BRASS
1-2.HOUSING:
PBT+30%G.F. UL94 V-0 BLACK
1-3.TEMINARL:
Phosphor Bronze
2.PLATING SPECIFICATION
2-1.TERMINAL:
GOLD PLATED/3U"/6U"/15U"/30U"
2-2.SHELL:
NICKEL PLATED
3.MECHANICAL PERFORMANCE
3-1.INSERTION FORCE:
5N~20N.
3-2.WITHDRAWAL FORCE:
 INITIAL 8N~20N , AFTER 1000 MATING CYCLES 6N~20N.
3-3.DURABILITY:
750 Cycles MIN.
4.ELECTRICAL PERFORMANCE
4-1.CURRENT RATING:
1.5A.
4-2.CONTACT RESISTANCE:
30milliohm Max
4-3.INSULATION RESISTANCE:
500 MΩ MIN @ 500V DC.
4-4.DIELECTRIC WITHSTAND VOLTAGE:
100V/AC.
5.OPERATING TEMPERATURE RANGE:
-40℃ to +85℃
6.RoHS COMPLIANT OR HALOGEN FREE COMPLIANT.
