SPECIFICATION Of 6×4 TRACTOR truck
Dimension(Lx W xH)(mm) | 9800*2496*3718 | ||||
Cargo body size(LxWxH) | 7100x2326x600 side 1.5mm bottom3mm behind 1.5 | ||||
Wheel base (mm) | 4325+1350 | ||||
Max speed(km/h) | 102 | ||||
Curb weight(kg) | 11120 | ||||
Engine (Steyr technology, made in China) | Model | WD615.87,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection | |||
Fuel type | Diesel | ||||
Power,max(kw/rpm) | 290HP 196/2200 | ||||
Emission | EUROⅡ | ||||
Fuel tanker capacity (L) | 400 | ||||
Transmission | Model | HW19710,10 forward&2 reverse | |||
Brake system | Service brake | Dual circuit compressed air brake | |||
Parking brake | spring energy, compressed air operating on rear wheels | ||||
Steering system | Model | ZF8098 | |||
Front axle | HF7 | ||||
Rear axle | ST16,Pressed axle housing, central double reduction with differential locks between axles and wheels | ||||
Tyre | 295/80R22.5 | ||||
Electrical system | Battery | 2X12V/165Ah | |||
Alternator | 28V-1500kw | ||||
Starter | 7.5Kw/24V | ||||

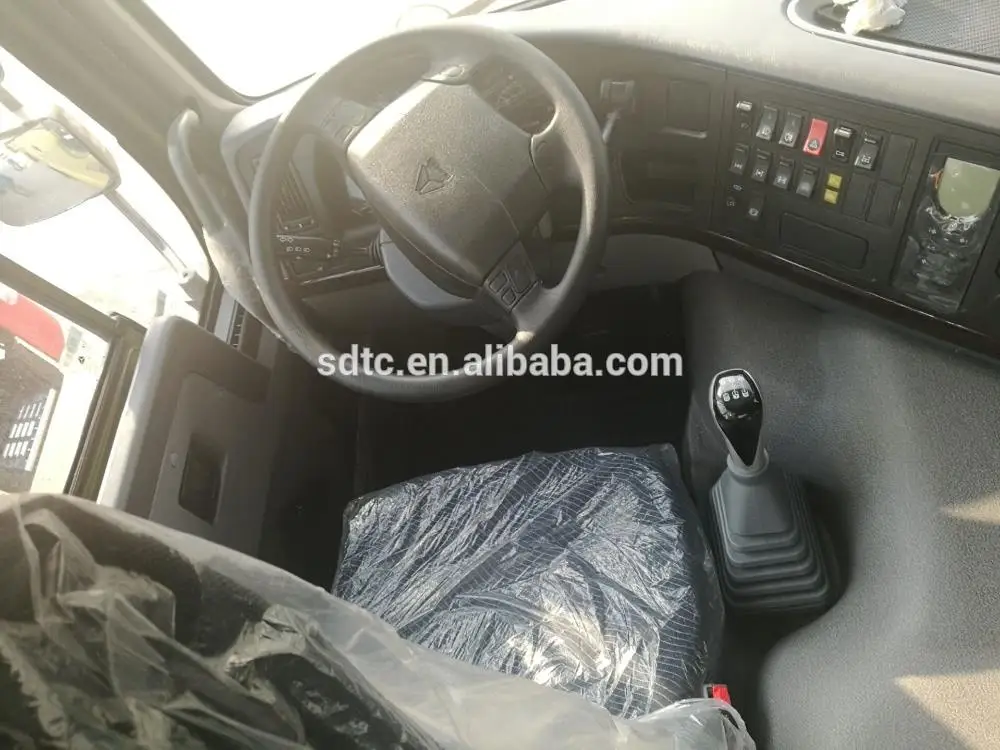

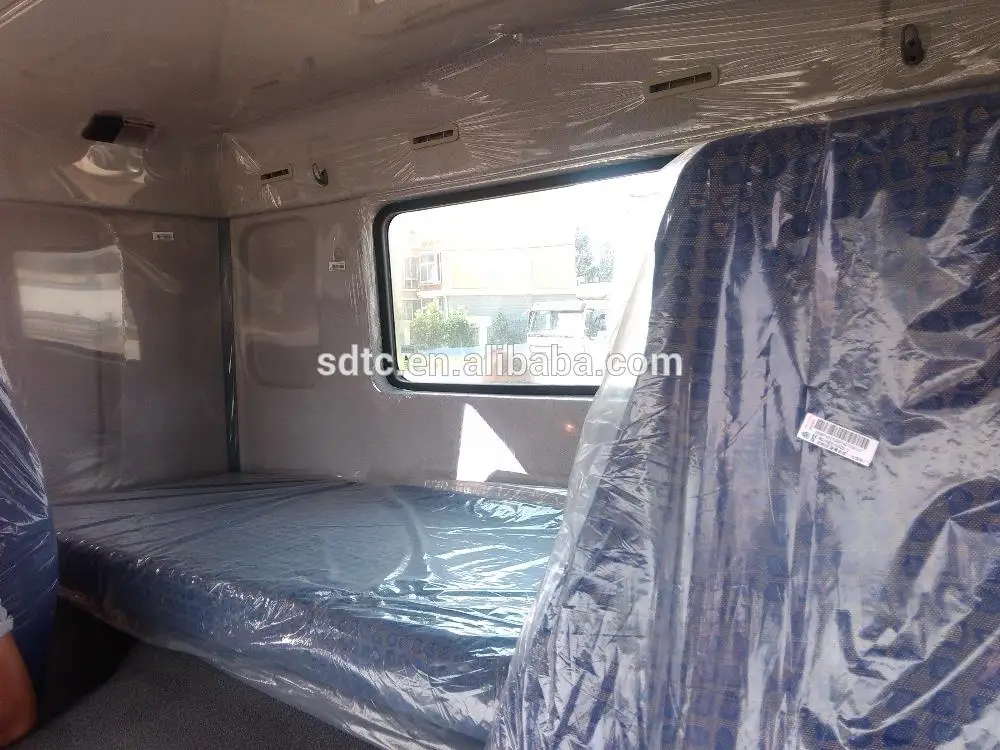

Cab | HOWO76 Standard cab,(one bed) all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | ||||

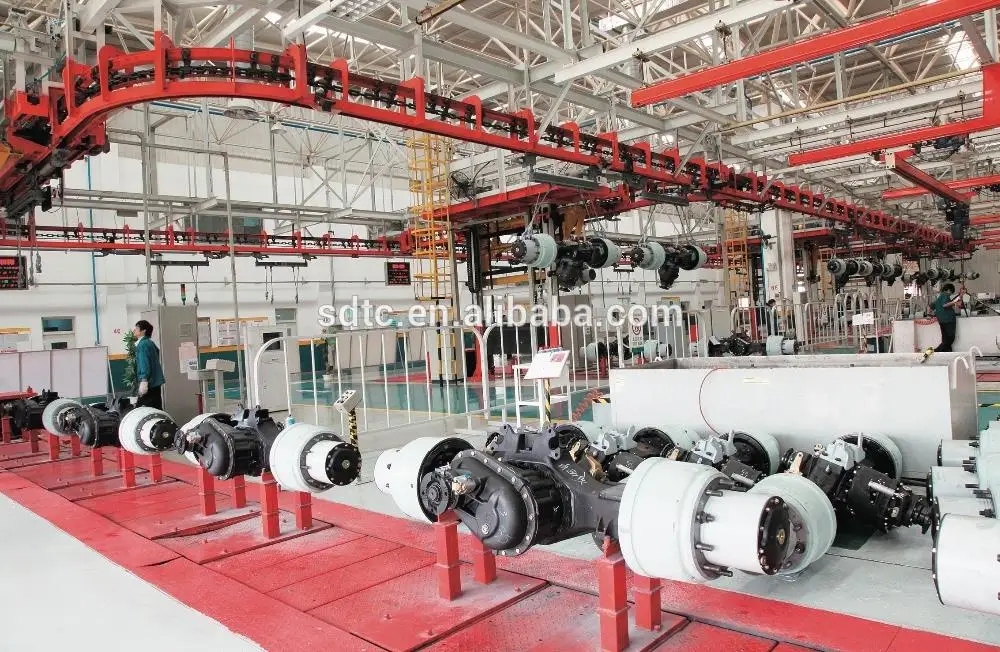

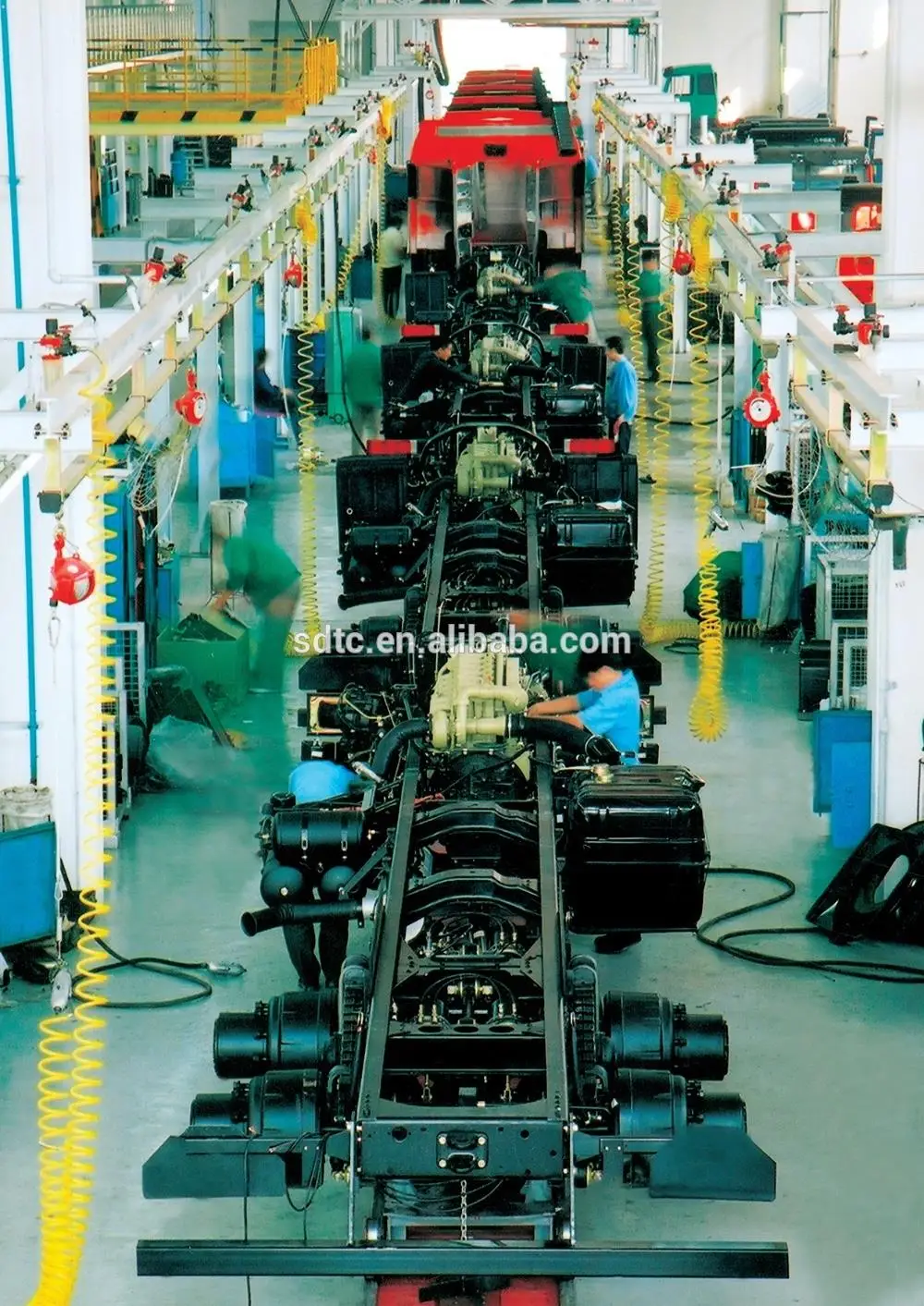

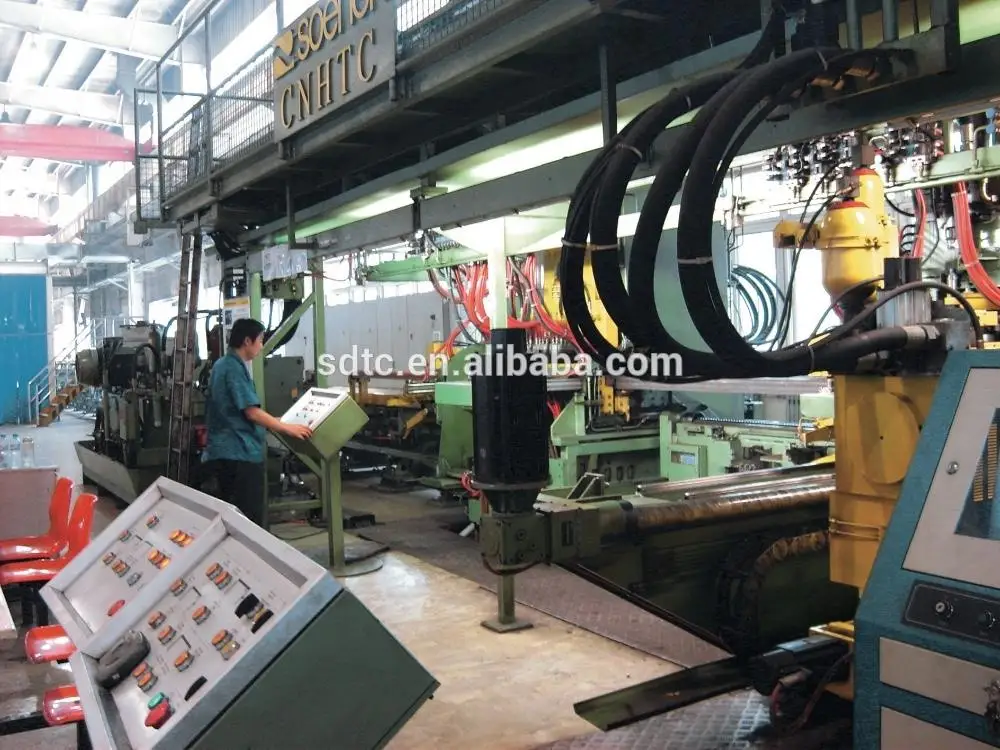

Production Process



FAQ
1. What's your MOQ?
One unit
2. What's your delivery time?
Within 35 days according to our production arrangements.
3. Where is your loading port?
Tianjin, Shanghai, or Qingdao Port
4. Which kid of import documents can you supply to us for our import?
Commercial invoice, packing list, contract, B/L. and according to buyer nation, and also some specific documents for your import, shch as:
Company profile
Shandong Jixin Auto Sales Co., Ltd.registered in SAIC is an independent incorporated and complex enterprise which integrates truck sale, part & components supply, truck maintenance and repair, truck refitting and supporting services.
Since the establishment, we made great efforts on domestic market developing; successively setup 32 subsidiaries in 15 different districts of the country. And we have established a long term and stable business cooperation relationship with dealers, customers and end-users.
Now we continue enlarging the domestic market and also the overseas market. We pay close attention to foreign aid projects and exporting engineering truck for SINOHYDRO, CRCC, CSCEC, SINOPEC SHENLI OILFIELD, BIGM, CGGC and other state-owned lager scale companies. Meanwhile we established subsidiaries and office in some countries including Vietnam, Sudan, Ukraine, and Angola to develop oversea end-users. Our products have been exported to more than 10 countries including Ghana, Congo, Tanzania, Kenya, Indonesia, Iran etc. There are 120 employees with rich exporting experiences working abroad. Our truck sale income reach about 6.5 billion RMB and truck export value reaches about 150 million US dollar; truck parts sale income reach 200 million RMB, truck parts export value reach 50 million US dollar.
Based on principle of “criterion, integrity, development, win-win”, we establish thorough rules and regulations, scientific efficient incentive mechanism, all-round service to customer, and devote to Chinese heavy duty truck enterprise development.
