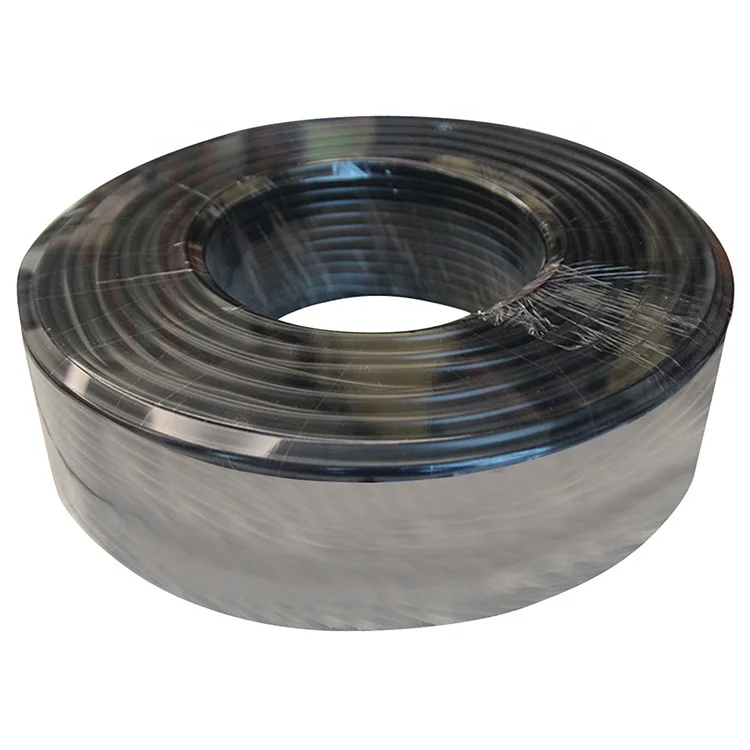

Factory price high quality cable rg59 rg6 coaxial cable
- Category: >>>
- Supplier: Dongguan Hop Industrial Co. Ltd.
Share on (62513666741):
Product Overview
Description
Cable Introduction:

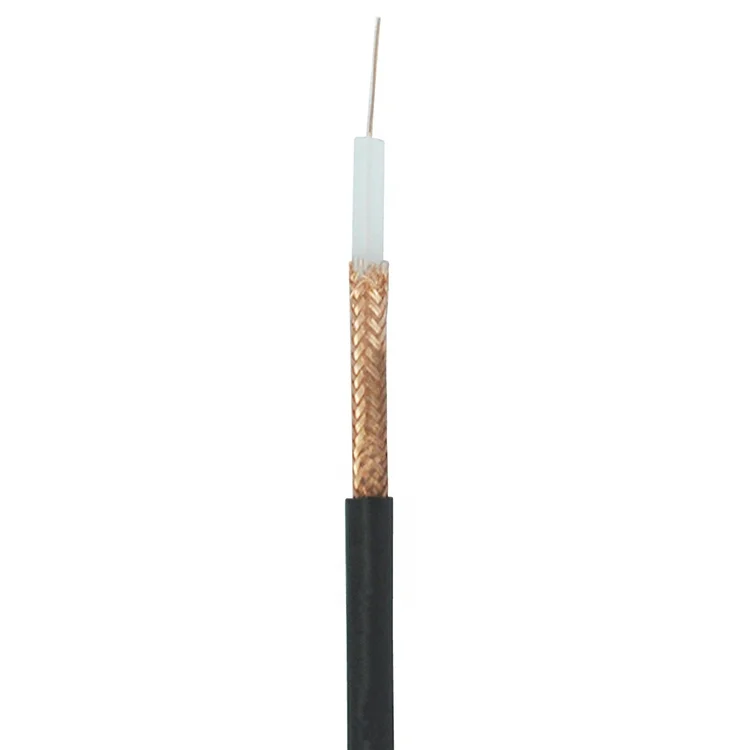

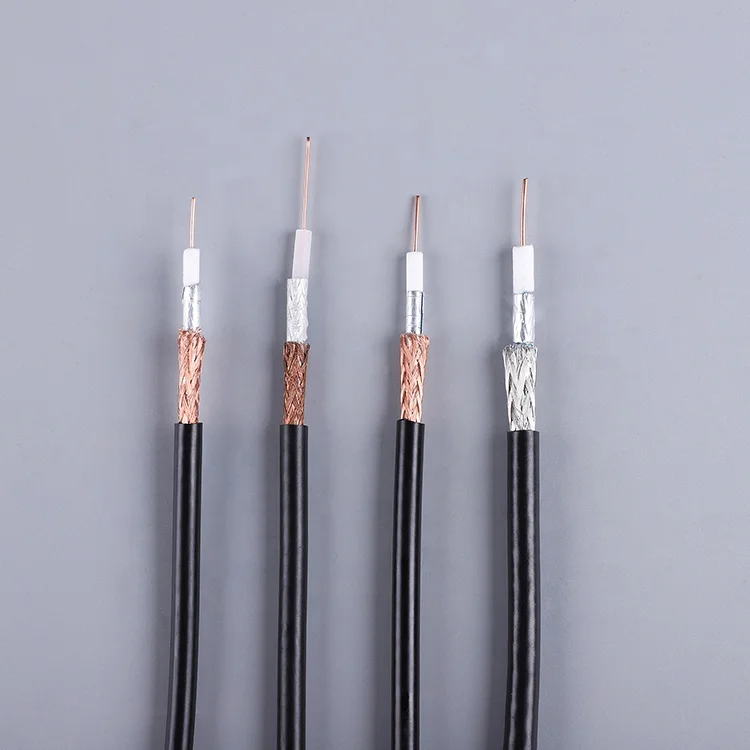

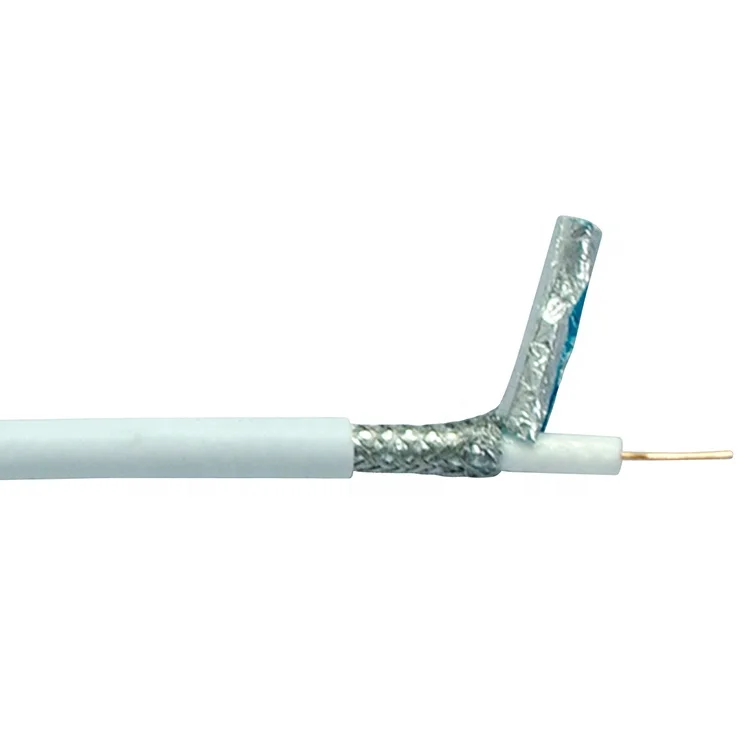

Coaxial Cable is the most common cable used for transmitting video signals. This cable is consist of a solid or stranded central conductor, PE or Foam PE insulation, braiding with foil shield and surrounded by a PVC sheath.
Coaxial Cable is the most common cable used for transmitting video signals. This cable is consist of a solid or stranded central conductor, PE or Foam PE insulation, braiding with foil shield and surrounded by a PVC sheath.
This cable is designed to carry a high-frequency or broadband signal, as a high-frequency transmission line. Sometimes DC power cable is added to the signal to supply the equipment at the other end. Such as in Close-Circuit Television(CCTV),Community Antenna Television(CATV) and direct broadcast satellite receivers.
Conductor | Solid/stranded Bare Copper, CCA or CCS |
Insulation | Solid PE or Foam PE |
Shield | Bonded Al foil and Al Braid Shielded to prevent Interference |
Braid | Bare Copper, Tinned Copper, CCA,CCS,AL-MG in Single, Dual,Tri or Quad shield |
Braid coverage | 95%,85%,80%,any braid coverage. |
Sheath | PVC (Polyvinyl Chloride) |
Sheath Color | Black, White |
Impedance | 75Ohm & 50ohm |
Temperature Range | -20 to +80℃ |

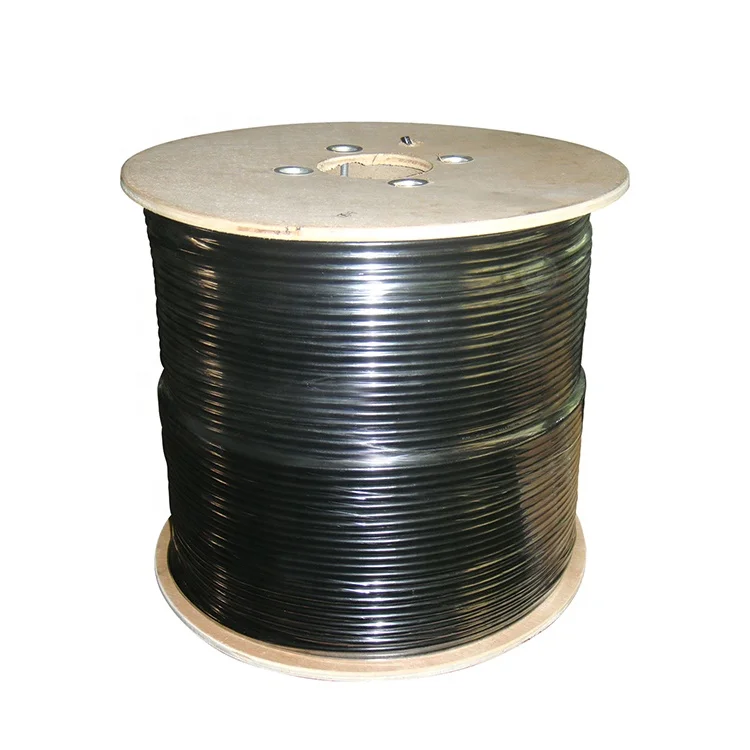

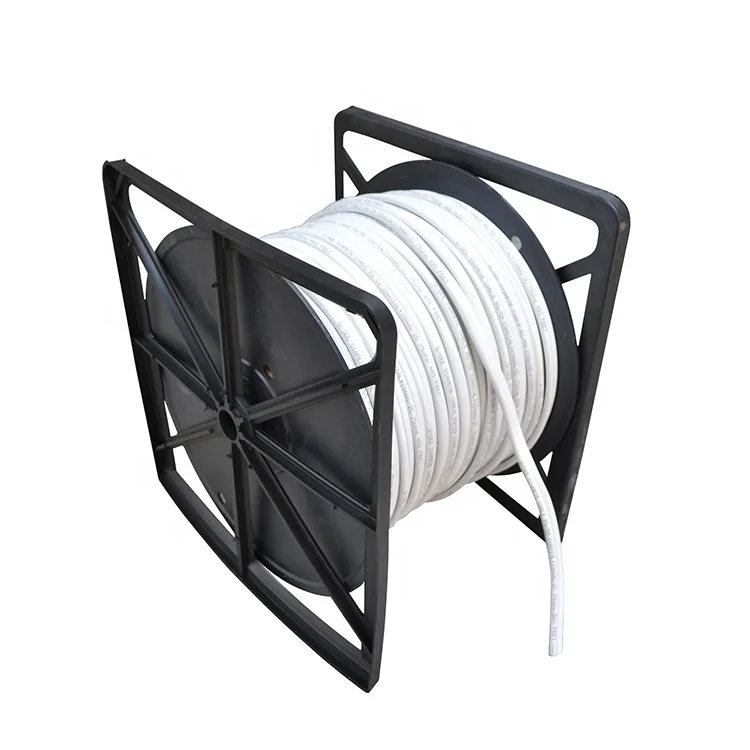

Package | 100 M,300 M and 500 Mtr’s per spool. |
