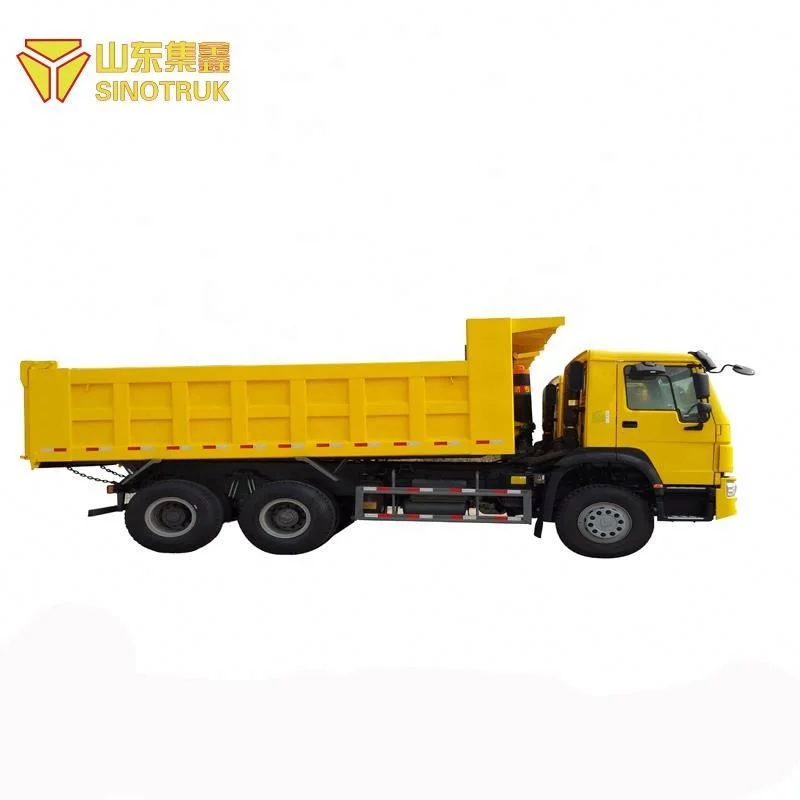

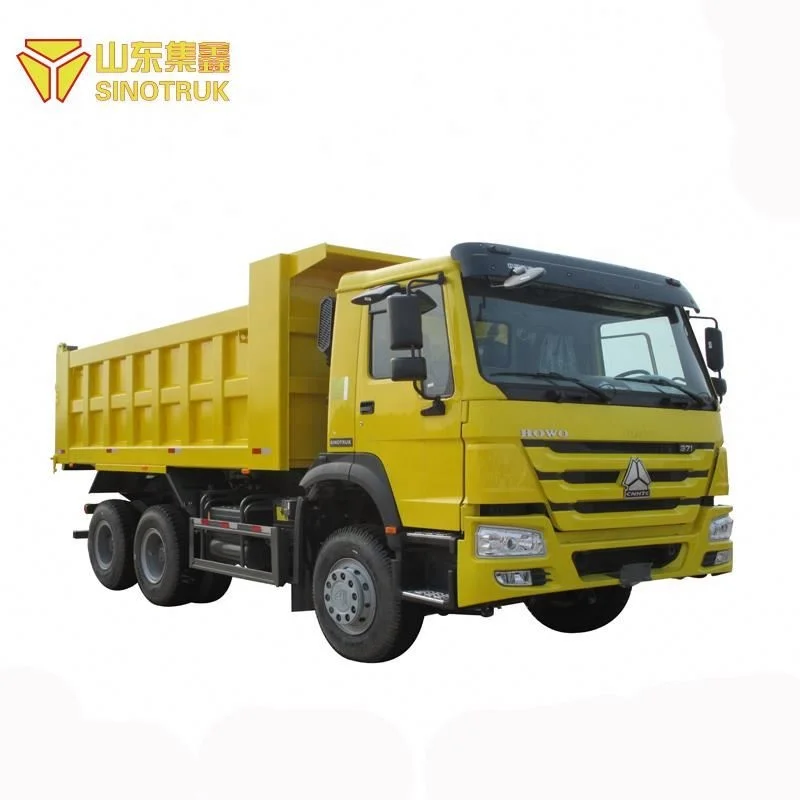

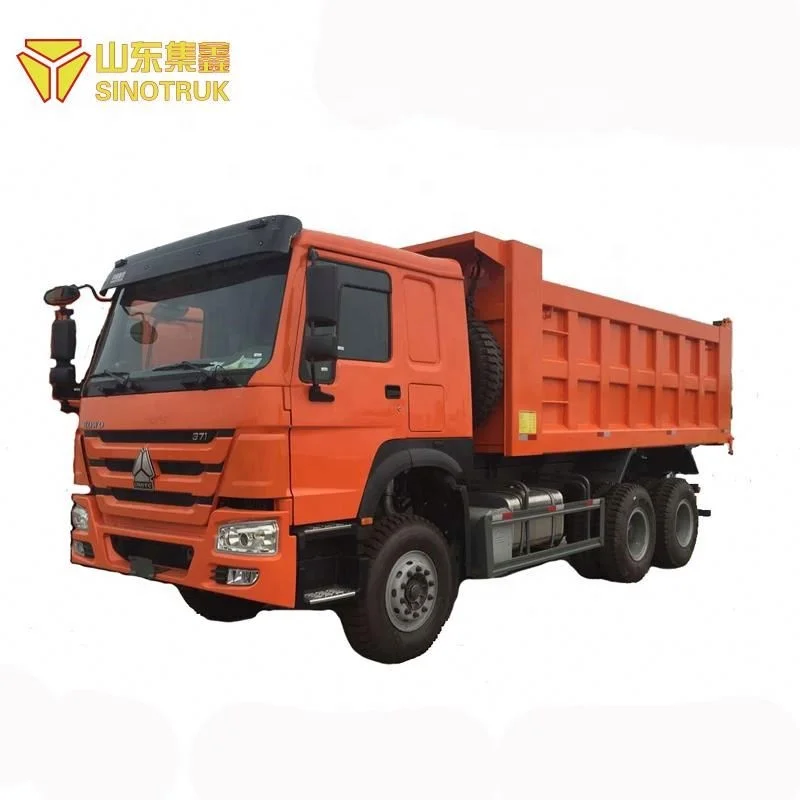

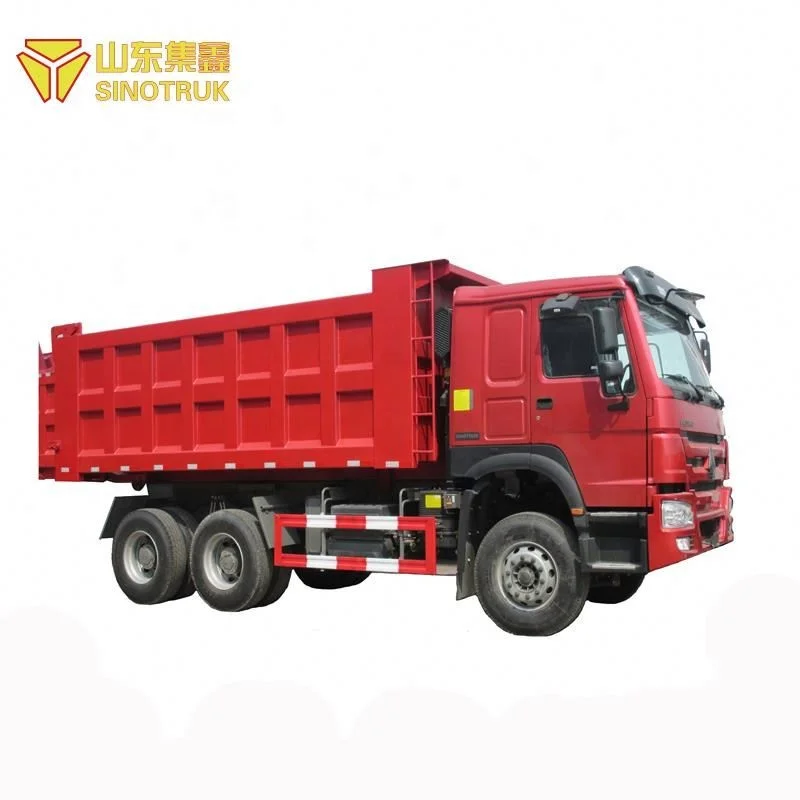

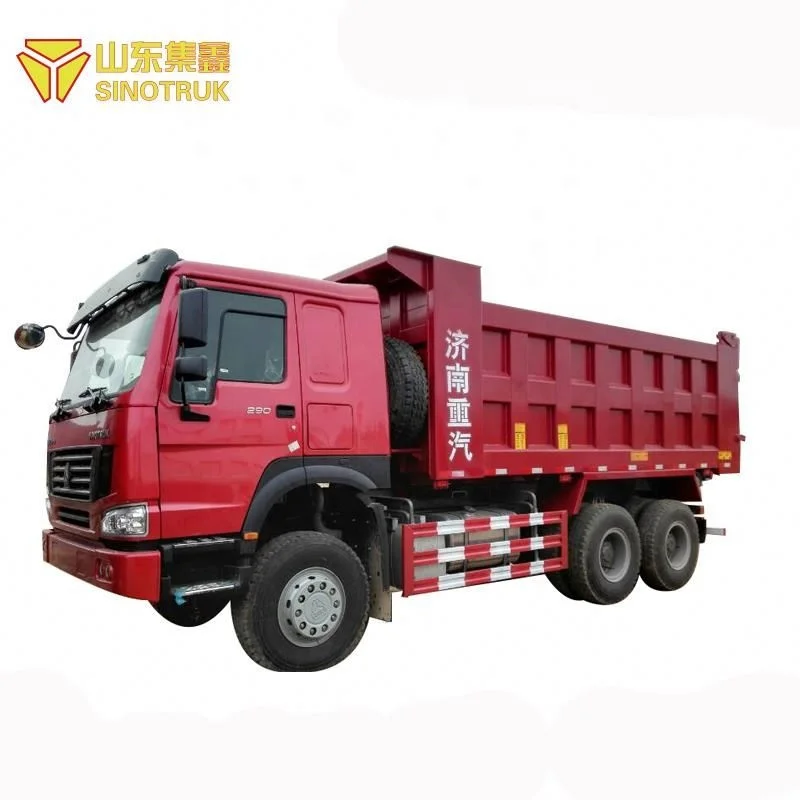

New Sinotruk Howo 6x4 Diesel 30 Ton Right Hand Drive Tipper Truck for Sales in Usa Heavy Truck Dump Truck Euro 2 12 21 30T OEM

Model

ZZ3257N3647A

Engine

Make:SINOTRUK

Engine model: : WD615.47, Euro Ⅱ emission standard

4 stroke direct injection diesel engine

6 cylinder in-line with water cooling, turbo-charging & intercooling

Maximum output: 371hp(273Kw) at 2200 rpm according to DIN

Maximum torque: 1500Nm at 1100~1600 rpm

Bore: 126mm;  Stroke: 130mm;

Displacement: 9.726L; Compression ratio: 17: 1

Specific fuel consumption: 195g/kWh;  Engine oil filling quantity: 23L

Cooling system filling quantity (long-term filling): 40L

Thermostat opening temperature: 80℃

Tvuin cylinder air compressor              Rigid fan

Option: Thermostat  with 71℃  opening begin          Visco fan

Clutch

Single- plate dry diaphragm spring clutch, diameter 430mm, hydraulically operating with air assistance

Transmission

Transmission, model HW19710,10 forward and 2 reverse

Ratio:14.28 10.62  7.87  5.88  4.38  3.72  2.43  1.80  1.34  1.00  13.91/3.18(R)

Option:HW1971OT, HW20716

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Front Axle

Steering with double T-cross section

Rear Axles

Casted axle housing, central single reduction with planetary wheel reduction (hub reduction) and differential locks between

wheels and axles

Ratio: 5,73

0ption: 4.80  5.45  4.77  6.5

Chassis

Frame: U-profile parallel ladder type with section of 300 x 80 x 8 mm, all cold riveted cross members and reinforced subfrarne

Front suspension: 10 semi-elliptic leaf springs wth hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension:  12 semi-elliptic leaf springs with bogie spring and stabilizer

With one spare wheel

Fuel tank: with 300 L fuel tank with locking fuel cap

Steering

ZF8118  hydraulic steering with power assistance

Ratio:22.2-26.2:1

Brakes

Service brake: dual circuit compressed air brake

Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary  brake: engine exhaust brake

Wheel&Types

Rims: 8.5-20, 10 hole-steel

Types  12.00R20 tube

Option: 315/80R22.5

Driver! s cab

Long cab, all steel forward control, 55°hydraulically tiltable to the front,2-arrn windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver' s seat and rigid adjustable co-driver' s seat, heating & ventilation system, adjustable roof flap, with stereo radio/cassette recorder, sun visor, and  adjustable steering wheel, air horn, single berth vuith 4-point support fully floating suspension and shock absorber with   transverse stabilizer, safety belt, air conditioner

Electrics

Operating voltage:24V, negative grounded; Starter: 24V, 5.4KW

Alternator: 28V:1540W; Batteries: 2 x 12, 165Ah

Cigar-Iighter, horn, headlamp, fog light, reverse lamp

Dimensions in mm

Wheel base

Front wheel track

Rear wheel track

Front overhang

Rear overhang         .

Approach angle(°)

Departure angle(°)

Overall Dimension

Body size

3625+1350

2022

1830

1500

1670    .

19

26

8145 x 2496 x 3386(mm)

5400 x 2300 x1500 (mm)

Weight in kg

Permissible loading capacity on chassis

Dead weight

Gross vehicle weight

Front axle loading capacity

Rear axle loading capacity

19620

12250

32000

6500

13000 x 2

Performance

Maximum driving speed(km/h)

Maximum gradeablility (%)

Minimum ground clearance(mm)

Minimum turning circle(m)

75

37

314  .

18
