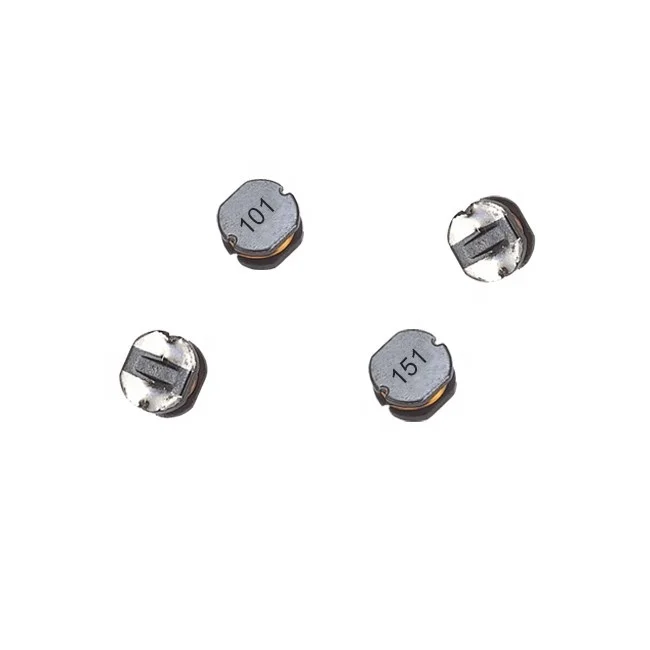

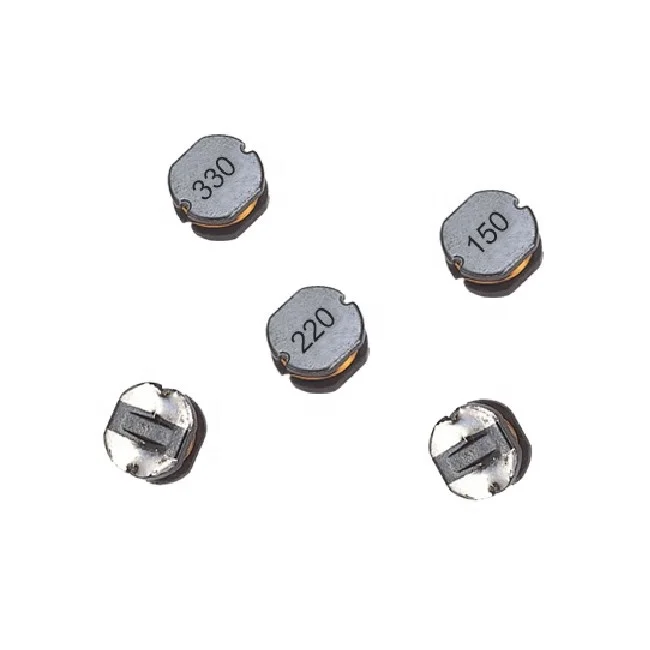

CODACA RoHS Compliant SP43 331K 330uh Medical Electronic LED Lighting SMT SMD Power inductors
- Category: >>>
- Supplier: Shenzhen Codaca Electronic Co. Ltd.
Share on (62513844458):
Product Overview
Description
Features
- Small size, high rated current, low DCR.
- Lead free product, RoHS compliant.
- Carrier tape packing, suitable for SMT process.
- Widely used in buck converter, displayer, laptop, network communication equipment, and etc.
- Operating temperature : -40℃+125℃ (Including coil’s temperature rise
Product Description
1. Key Parameter
| Type | SMD Power Inductor |
| Inductance (μH) | 330 |
| Tolerance | 10% |
| DCR(mΩ) | 3,850mΩ Typical, 3,420mΩ Max |
| Isat(A) | 0.3A Typical, 0.21A Max |
| Irms(A) | 0.32 |
| Temp.Range(℃) | -40~+125 |
| Dimension(mm) | 4.5*4.0*3.2 |
| Construction | SMD |

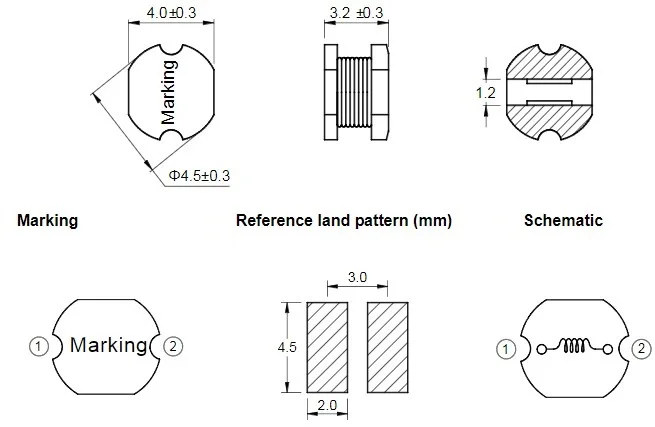

2. Product Dimension

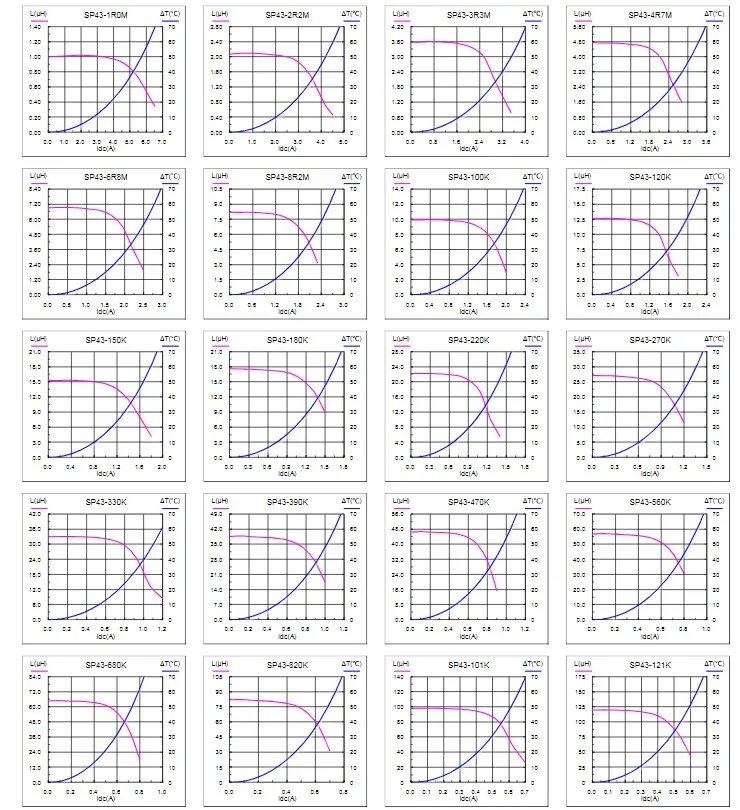

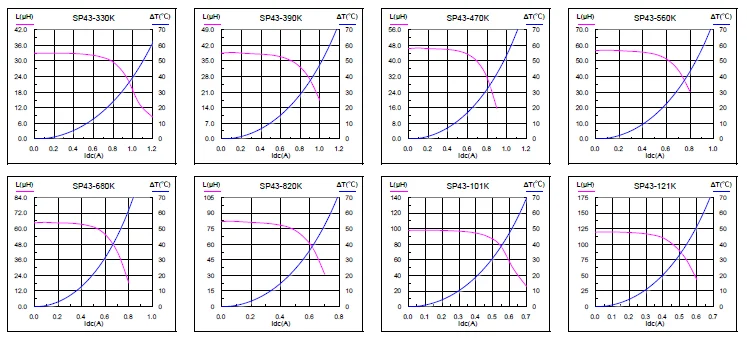

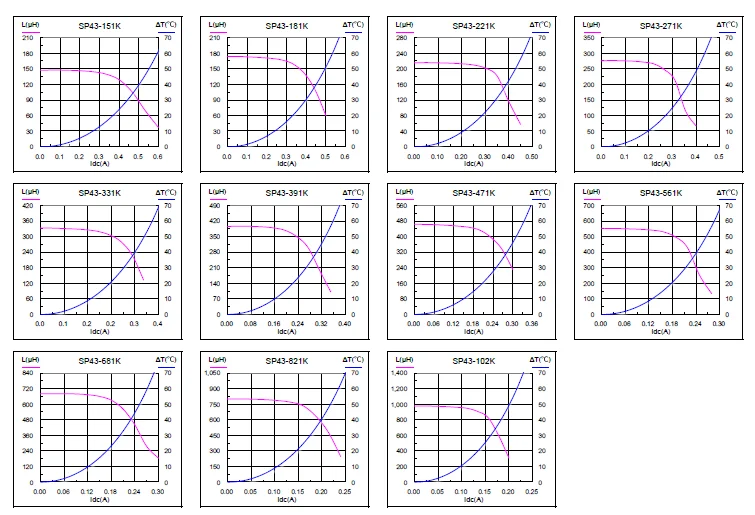

3. Saturation Current VS Temperature Rise Current Curve
4. Series Reference
| Part No. | Inductance(μH) | DCR(mΩ) | Saturation Current(A) | Temperature rise current(A) | |
| Typical | Max | ||||
| SP43-1R0M | 1.00 ±20% | 12.8 | 15.4 | 5.3 | 5.18 |
| SP43-2R2M | 2.20 ±20% | 24.6 | 29.5 | 3.3 | 3.81 |
| SP43-3R3M | 3.30 ±20% | 34.3 | 41.2 | 2.6 | 3.19 |
| SP43-4R7M | 4.70 ±20% | 44 | 52.8 | 2.2 | 2.82 |
| SP43-6R8M | 6.80 ±20% | 64 | 76.8 | 1.92 | 2.34 |
| SP43-8R2M | 8.20 ±20% | 72 | 86.4 | 1.7 | 2.2 |
| SP43-100K | 10.0 ±10% | 100 | 120 | 1.6 | 1.87 |
| SP43-120K | 12.0 ±10% | 109 | 131 | 1.38 | 1.79 |
| SP43-150K | 15.0 ±10% | 128 | 154 | 1.3 | 1.51 |
| SP43-180K | 18.0 ±10% | 150 | 180 | 1.2 | 1.39 |
| SP43-220K | 22.0 ±10% | 186 | 223 | 1.08 | 1.25 |
| SP43-270K | 27.0 ±10% | 221 | 265 | 0.95 | 1.15 |
| SP43-330K | 33.0 ±10% | 290 | 348 | 0.88 | 1.0 |
| SP43-390K | 39.0 ±10% | 340 | 408 | 0.82 | 0.93 |
| SP43-470K | 47.0 ±10% | 385 | 462 | 0.74 | 0.88 |
| SP43-560K | 56.0 ±10% | 490 | 588 | 0.68 | 0.77 |
| SP43-680K | 68.0 ±10% | 660 | 792 | 0.63 | 0.66 |
| SP43-820K | 82.0 ±10% | 750 | 900 | 0.56 | 0.62 |
| SP43-101K | 100 ±10% | 940 | 1128 | 0.54 | 0.56 |
| SP43-121K | 120 ±10% | 1000 | 1200 | 0.47 | 0.54 |
| SP43-151K | 150 ±10% | 1160 | 1392 | 0.43 | 0.5 |
| SP43-181K | 180 ±10% | 1440 | 1728 | 0.39 | 0.45 |
| SP43-221K | 220 ±10% | 1930 | 2316 | 0.36 | 0.39 |
| SP43-271K | 270 ±10% | 2150 | 2580 | 0.31 | 0.37 |
| SP43-331K | 330 ±10% | 2850 | 3420 | 0.3 | 0.32 |
| SP43-391K | 390 ±10% | 3200 | 3840 | 0.26 | 0.3 |
| SP43-471K | 470 ±10% | 3660 | 4392 | 0.24 | 0.28 |
| SP43-561K | 560 ±10% | 4990 | 5988 | 0.21 | 0.24 |
| SP43-681K | 680 ±10% | 5560 | 6672 | 0.2 | 0.23 |
| SP43-821K | 820 ±10% | 7200 | 8640 | 0.19 | 0.2 |
| SP43-102K | 1,000 ±10% | 8500 | 10200 | 0.16 | 0.18 |
