Brushless ROV waterproof motor thruster maker hobby robot and underwater camera motor

 All specification can be customized :

Product Introduction & Features:

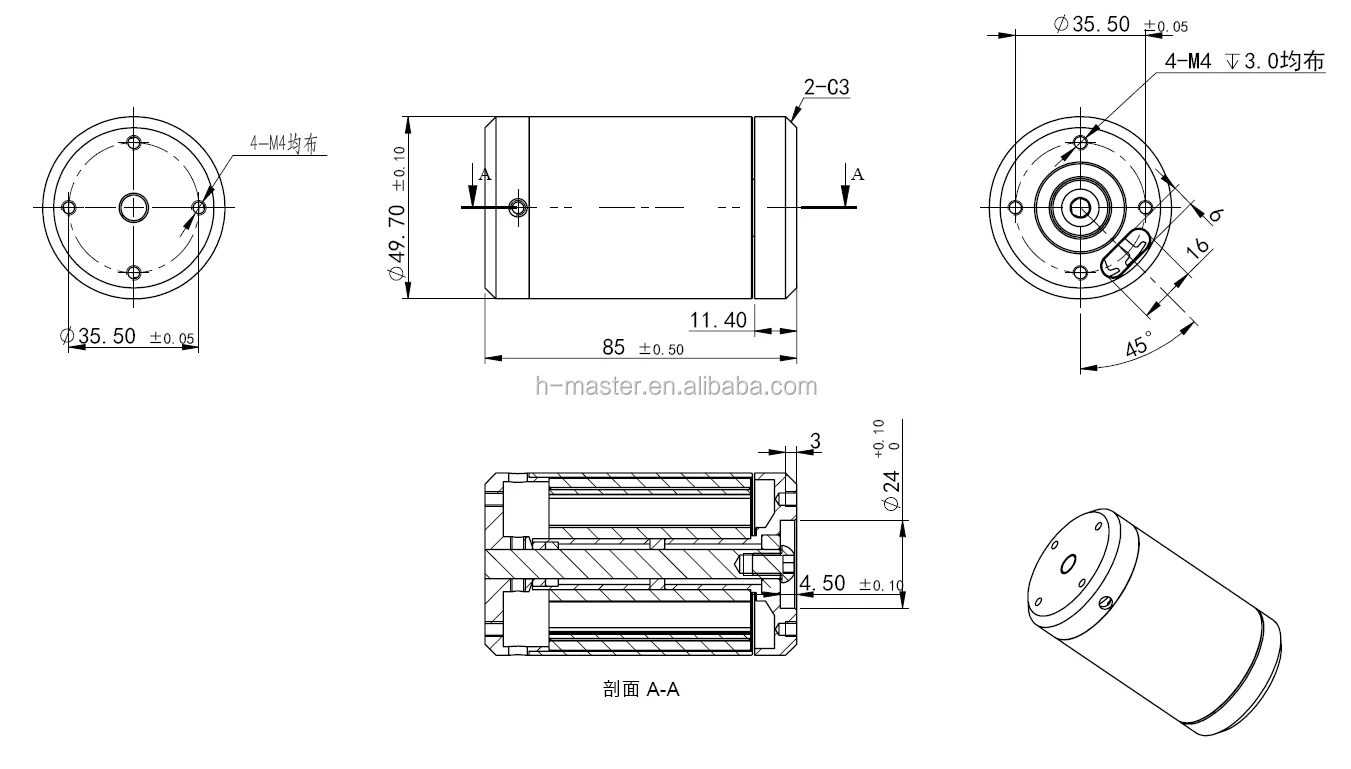

*Motor appearance size: 50mm*85mm (can be customized 28/36/42/48/70mm outer diameter)

*Working temperature: -30 ° C ~ +85 ° C

*Rated working voltage: 12V~36V

*Rated speed: 1300~6000rpm (customizable KV value)

*Power: 130~900W

*Typical use: submersible propeller, electric boat propeller, ROV robot, electric lifebuoy

                 Electric surfboard waterproof, underwater propeller, unmanned boat, AUV underwater robot

*The bearing is made of super corrosion-resistant steel, and the corrosion resistance and rust resistance are improved by more than 20 times.

*The stator winding and magnetic steel of the motor adopt special waterproof technology, which can work 200 meters underwater.

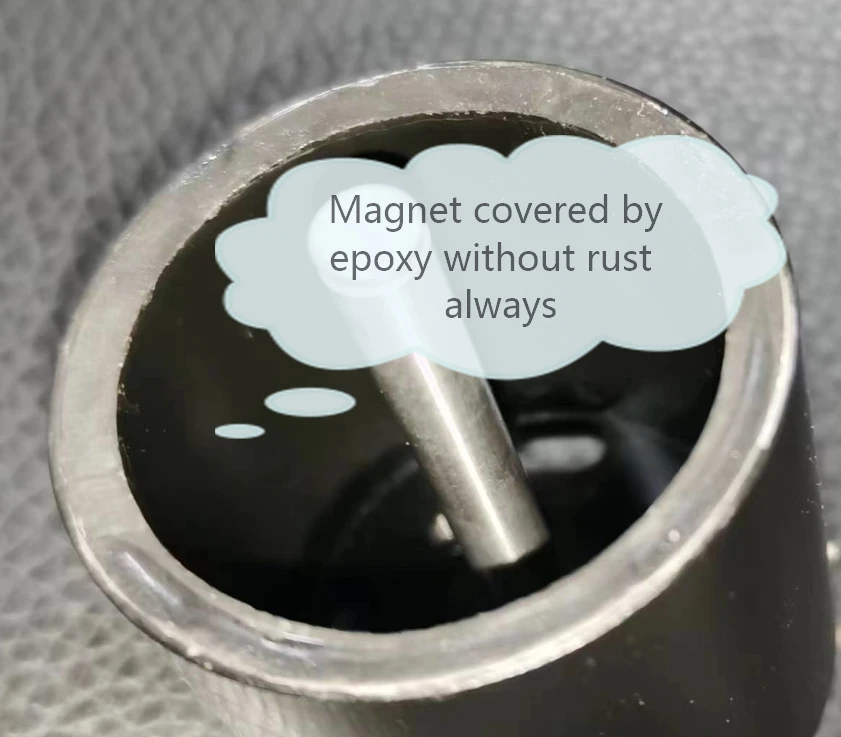

*The motor rotor is professionally surface treated with water resistance and corrosion resistance.

 Motor Performance:

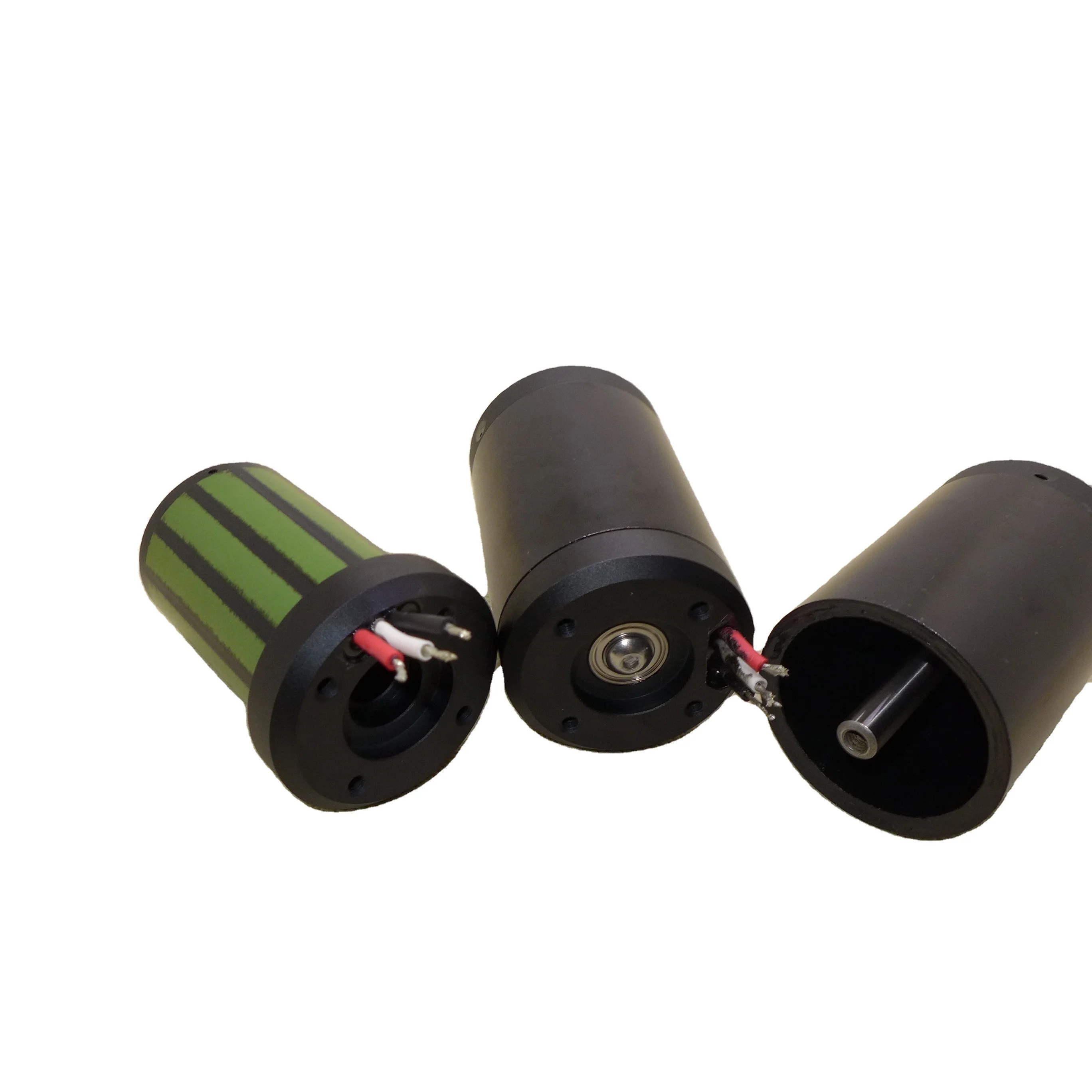

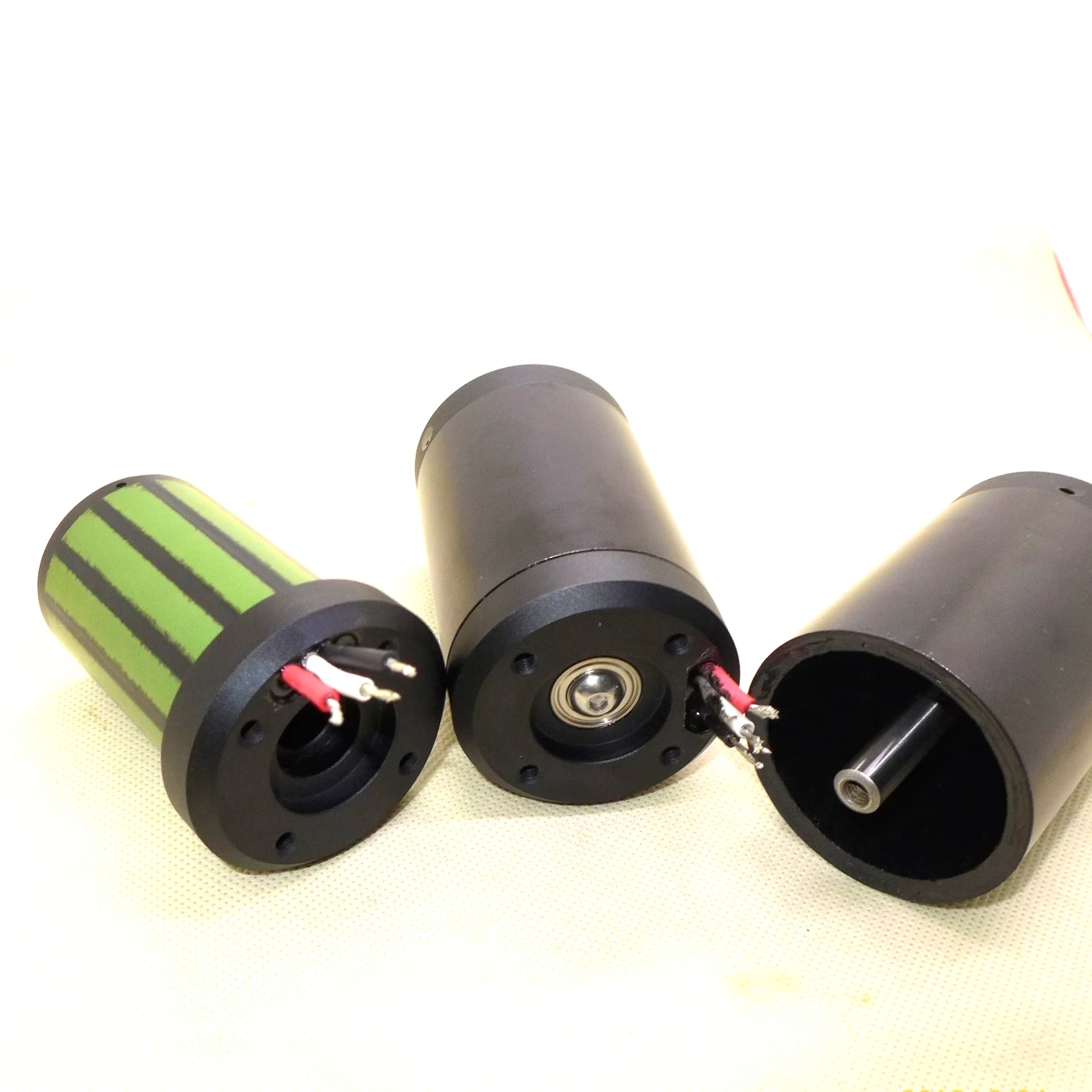

Motor Picture:

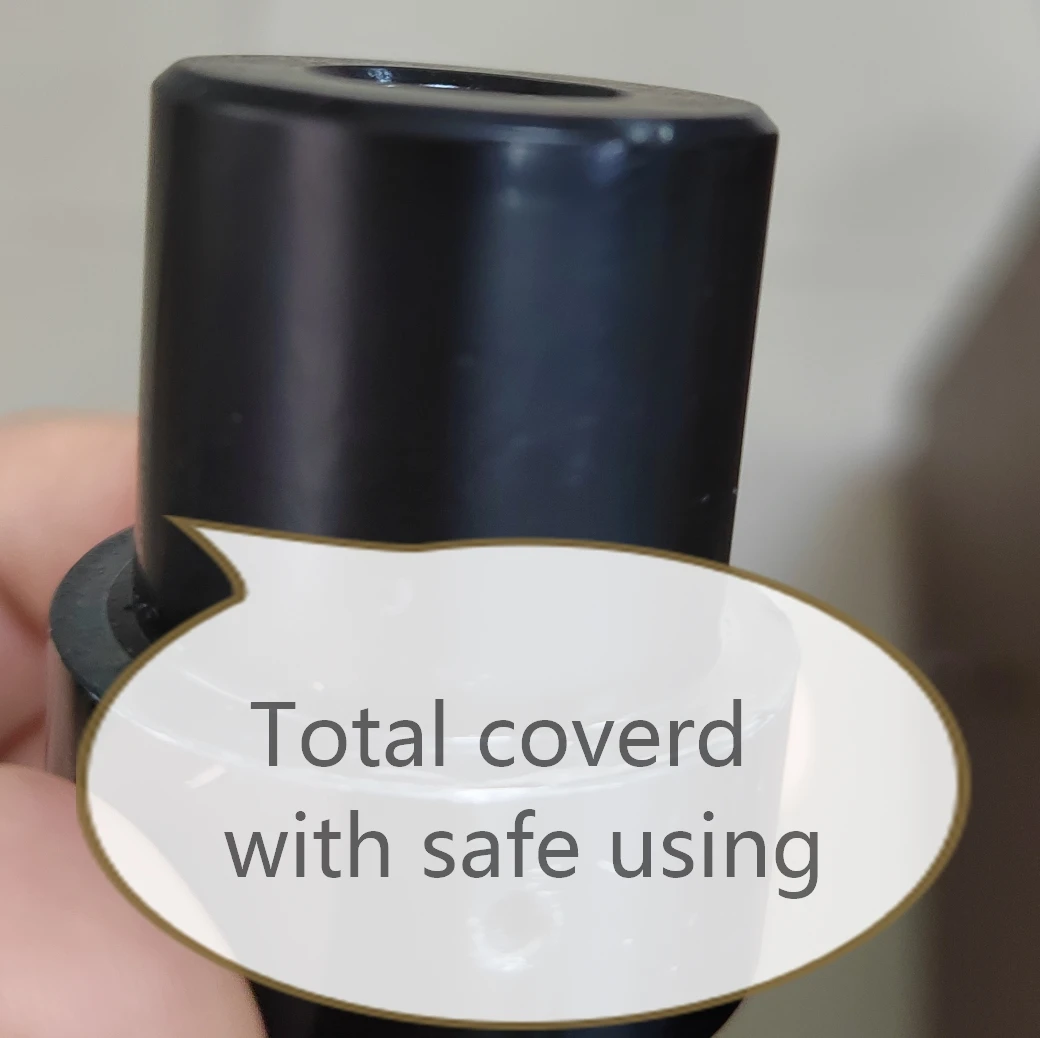

Motor details :

Stator details :

Other size recommend:

Feed back from Customer

Motor Application:
