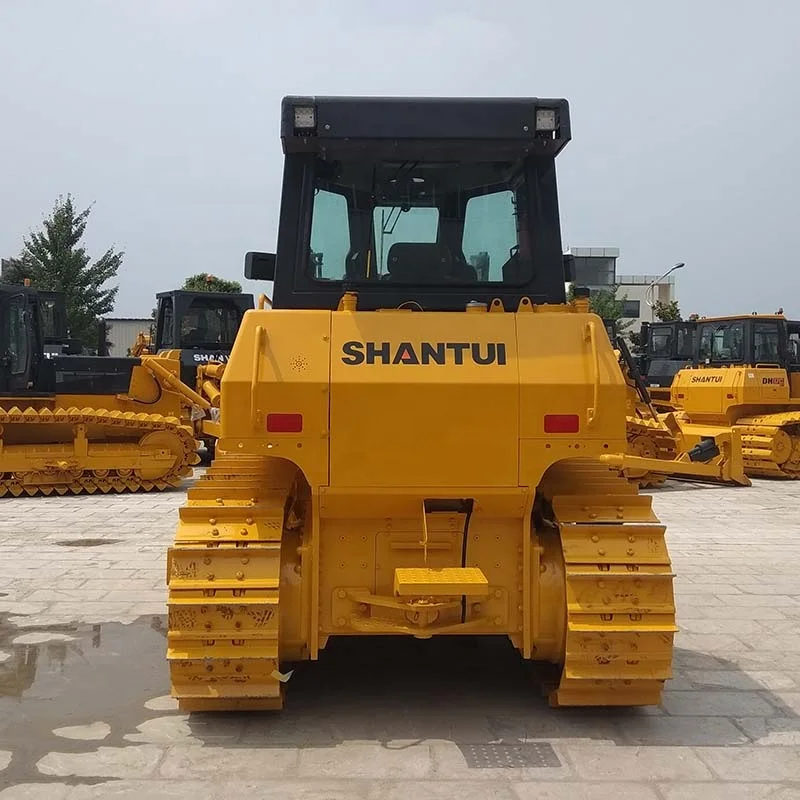

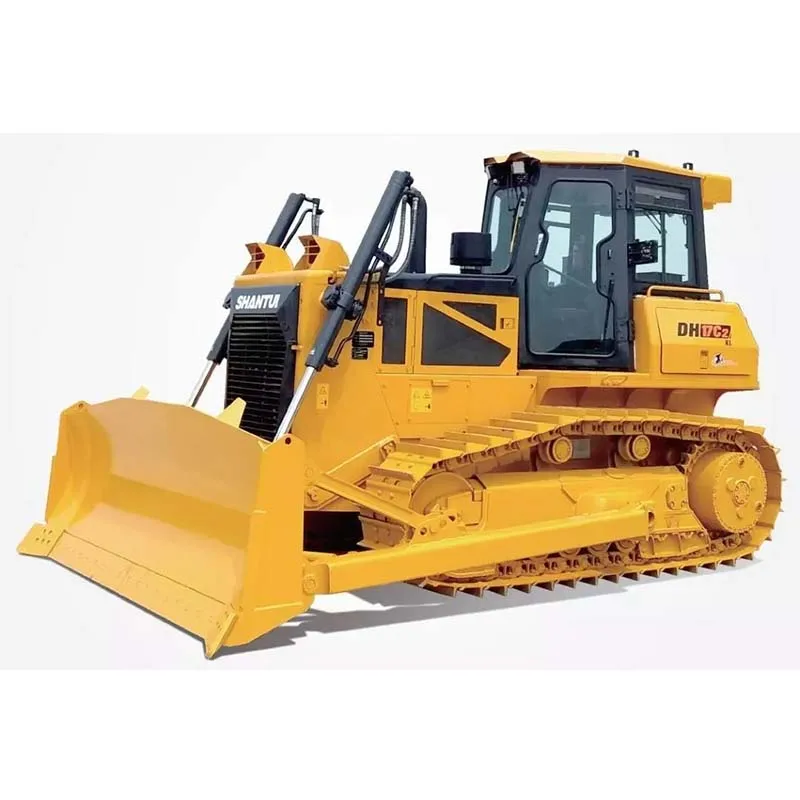

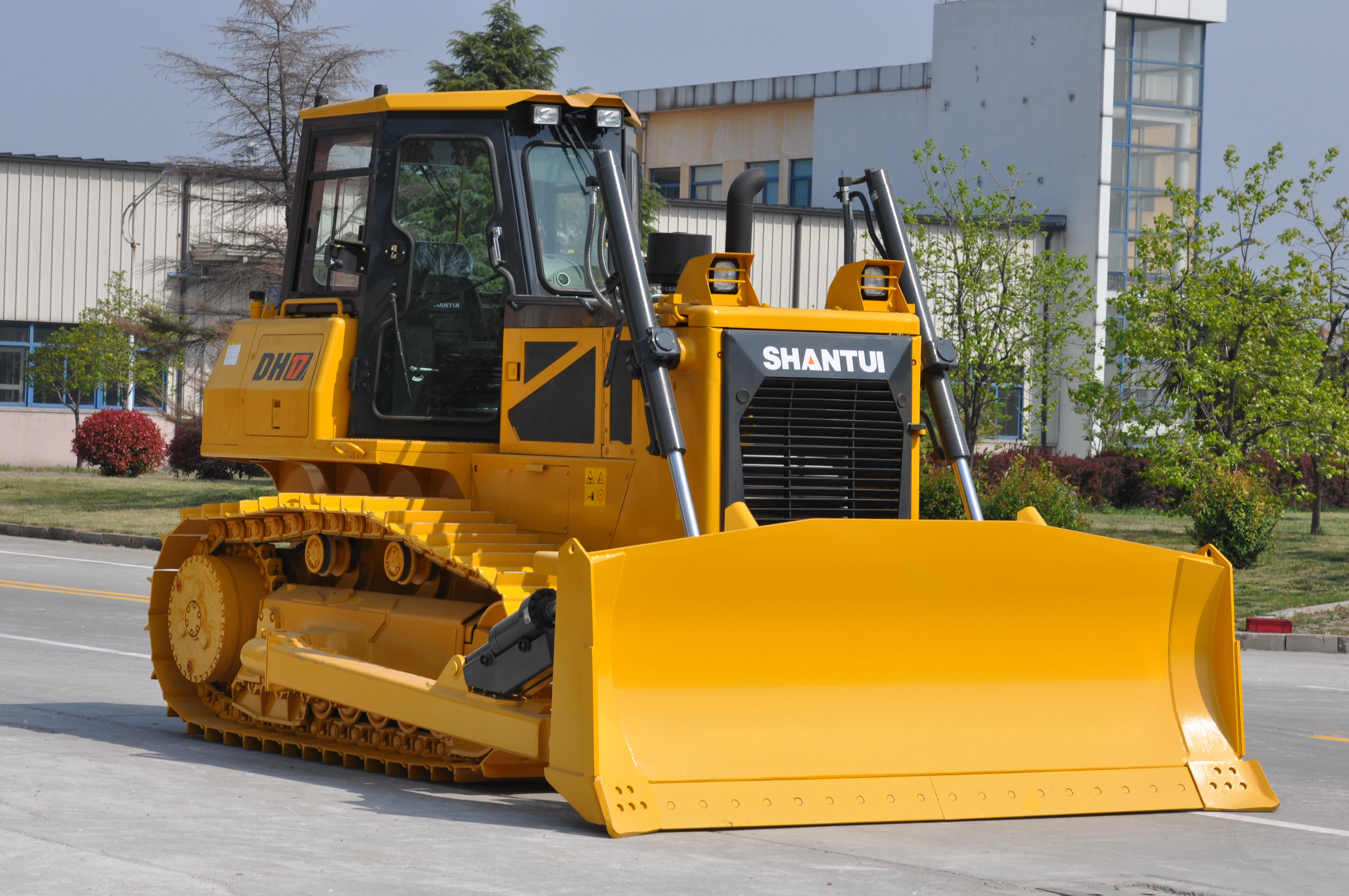

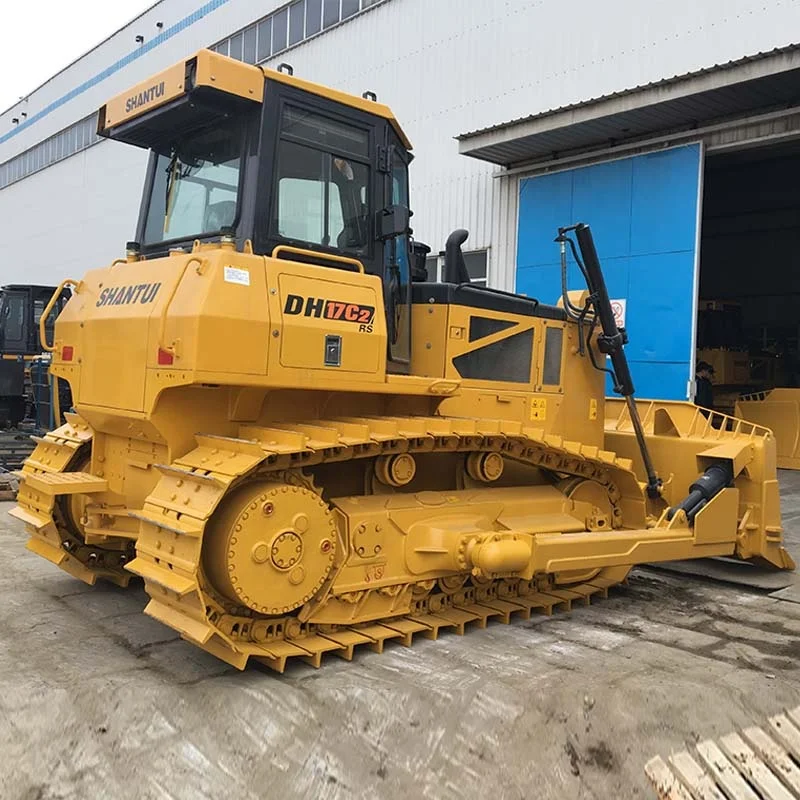

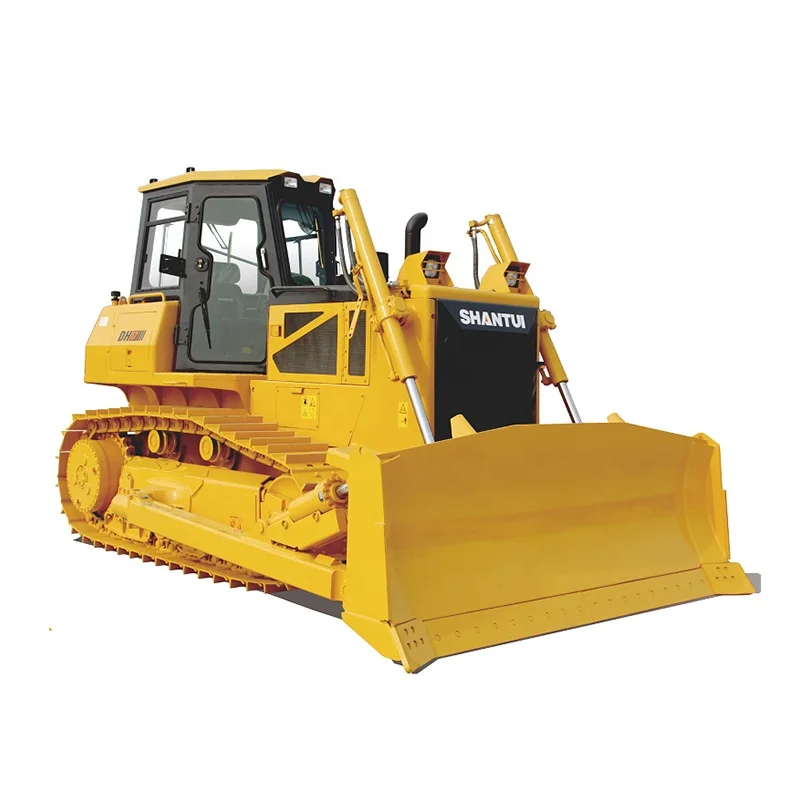

Shantui Official Bulldozer Price Mini Dh17 Hydrostatic Dozer
- Category: >>>
- Supplier: Shandong Shantui Construction Machinery Import And Export Co. Ltd.
Share on (62514214358):
Product Overview
Description
Products Description

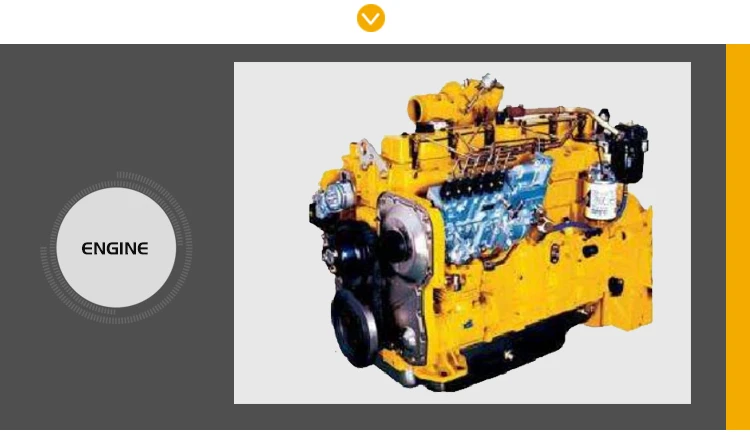

* Weichai engine and high-efficiency fuel injection pump features high torque, high performances, high parts universality, and low maintenance cost.
* The electronically controlled static pressure drive system equipped can automatically adapt to the load variation and provide best bulldozing speed under different working loads.
* The intelligent matching technology can achieve best working efficiency and most reasonable fuel economy, with the composite fuel consumption reduced by 10~15%.
* The electronically controlled static pressure drive system equipped can automatically adapt to the load variation and provide best bulldozing speed under different working loads.
* The intelligent matching technology can achieve best working efficiency and most reasonable fuel economy, with the composite fuel consumption reduced by 10~15%.

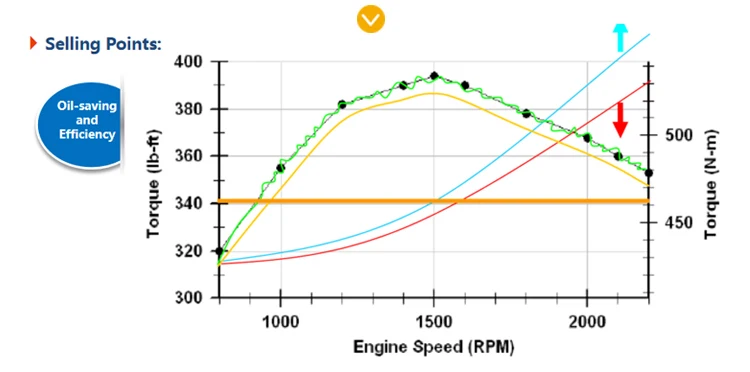

* Oil-saving and Efficiency
* Hydrodynamic drive can not make full use of engine power when in low speed, and the engine will be over capacity when in high speed.
* Hydrostatic drive with electrical control system can ensure the pump absorb all engine torques.
* When engine works in high latitude or has abrasion, the control system can detect the performance reduction and make reduce absorb the torque.
* Hydrodynamic drive can not make full use of engine power when in low speed, and the engine will be over capacity when in high speed.
* Hydrostatic drive with electrical control system can ensure the pump absorb all engine torques.
* When engine works in high latitude or has abrasion, the control system can detect the performance reduction and make reduce absorb the torque.

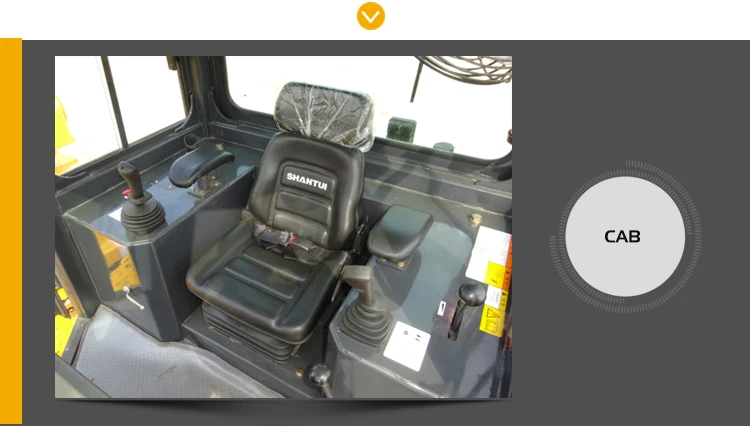

* The ergonomic hexahedral cab features large space and excellent visual field.
* The suspended single accelerator pedal features small volume, large foot space, and high operation comfort.
* The extensively adjustable seat and armrests provide the driver with the most comfortable operation posture.
* The integrally sealed shock-absorbing system of the cab reduces the interior noise by 3~4dB.
* The safety passage system of the whole machine guarantees the driver’s safety.
* The suspended single accelerator pedal features small volume, large foot space, and high operation comfort.
* The extensively adjustable seat and armrests provide the driver with the most comfortable operation posture.
* The integrally sealed shock-absorbing system of the cab reduces the interior noise by 3~4dB.
* The safety passage system of the whole machine guarantees the driver’s safety.

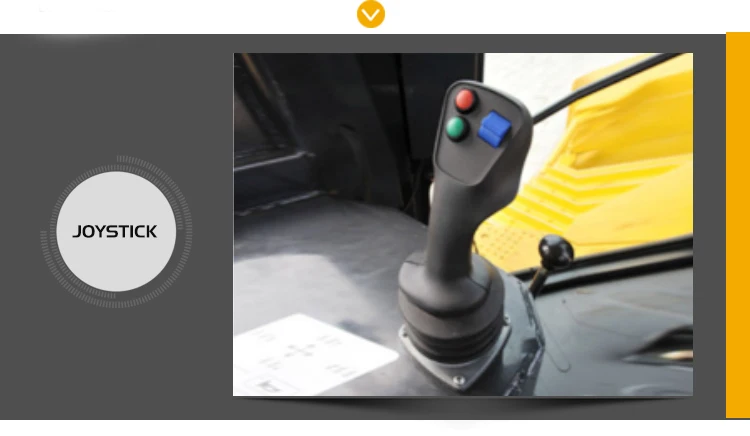

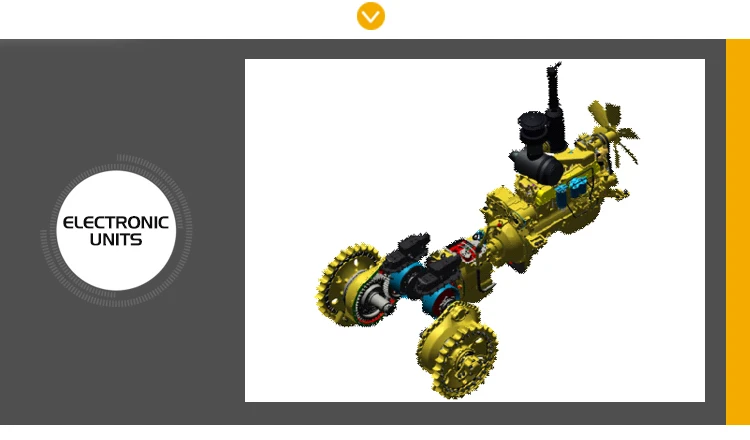

* With electronically controlled traveling system and hydraulic pilot controlled working device, the traveling system and the working device can be controlled by single joystick.
* The accurate control can be achieved by low operating forces, featuring flexible and light operations, high operation comfort, and high working efficiency.

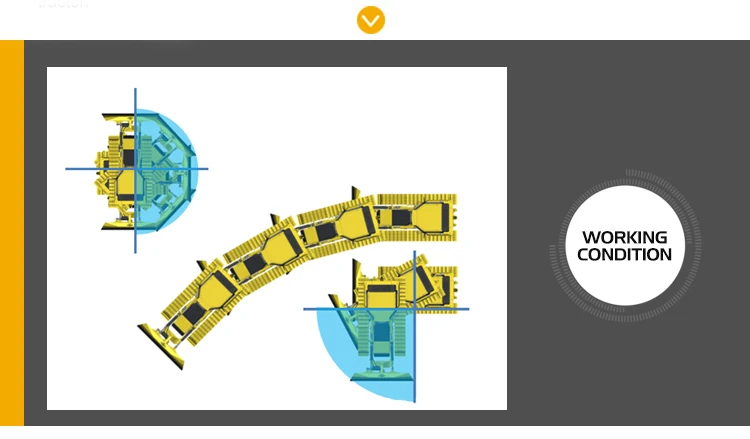

* The static pressure drive system is capable of stepless speed change, loaded steering, and pivot steering, featuring high flexibility and mobility and applicability for diversified working conditions.
* The accurate control can be achieved by low operating forces, featuring flexible and light operations, high operation comfort, and high working efficiency.
* The static pressure drive system is capable of stepless speed change, loaded steering, and pivot steering, featuring high flexibility and mobility and applicability for diversified working conditions.
* The accurate control can realize the bulldozing operations in narrow spaces.
* The chassis system features long ground length, high ground clearance, stable traveling, and excellent trafficability and the semi-U blade equipped features powerful operation capability.

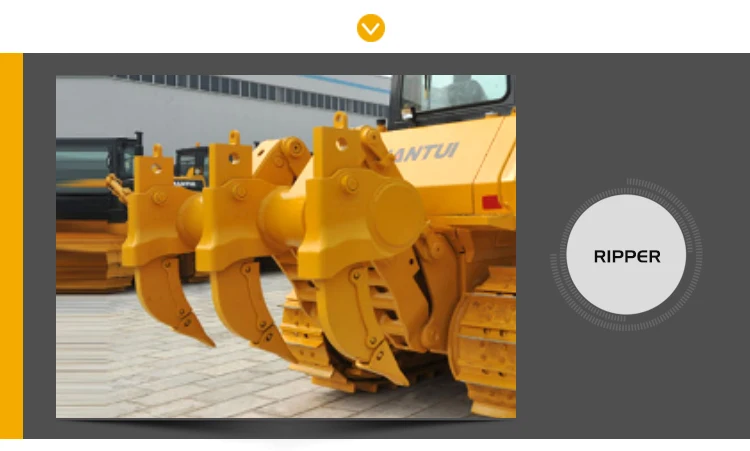

* The optional three-tooth ripper and traction frame are available to meet the diversified operation needs.
* The chassis system features long ground length, high ground clearance, stable traveling, and excellent trafficability and the semi-U blade equipped features powerful operation capability.
* The optional three-tooth ripper and traction frame are available to meet the diversified operation needs.
* The structural parts inherit the excellent quality of Shantui mature products.
* The electric harnesses adopt seamless corrugated pipes and branching deconcentrators, featuring high protection grade.
* The core electric and hydraulic units adopt imported products, featuring stable and reliable quality and extremely high reliability.
* The static drive system features compact structure, small volume, light weight, and easy maintenances.
* The modular structure eases the disassembling of parts and ensures low maintenance cost.
* The electric harnesses adopt seamless corrugated pipes and branching deconcentrators, featuring high protection grade.
* The core electric and hydraulic units adopt imported products, featuring stable and reliable quality and extremely high reliability.
* The static drive system features compact structure, small volume, light weight, and easy maintenances.
* The modular structure eases the disassembling of parts and ensures low maintenance cost.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.
producing PET plastic containers and bottles in all shapes.
Technical Specifications
Engine | Model & type | Weichai VP10G190E354(CHINA II) Weichai ViD1 0G190E214(CHINA I) |
Gross pover | 140/1 88/1900 KW /HP/rpm | |
Net pover | 127/170/1900 KW /HP/rpm | |
Piston displacement | 9.726 L | |
Number of cylinders | 6 -126 X 130 mm (bore X strolæe) | |
Maximum torque | 900 N·m@1400-1 600 rpm | |
Walking hydraulic system | Type | Electronic control |
Traveling pump (Rexroth) | 2 | |
Traveling motor (Rexroth) | 2 | |
Traveling system pressure | 42 Mpa | |
Travel speed | Forward | 0-10km/h |
Reverse | 0-10km/h | |
Undercarriage system | Carrier rollers | 2 each side |
Track rollers | 7 each side | |
Width of track shoes | 510/610 mm | |
Pitch | 203 mm | |
Hydraulic System | Type | 2 way bhydraulic pilot control +1 way electric bhydraulic hybrid control |
Maximum pressure | 21 MPa | |
Working pump (Parker} | 1 | |
Main valve (Hydrocontrol) | 1 | |
Blade | Blade type | Straight tilt b lade/ Semi-U Blade |
Dozing capacity | 4.5/4.7 m3 | |
Blade width | 33 88/3400 mm | |
Blade height | 1149/1200 mm | |
Maximum drop below ground | 520 mm | |
Maximum lfting height | 1010 mm | |
Riipper (Optional) | Ripper type | Three shank ripper |
Maximum dgging depth | 475 mm | |
Maximum lift above ground | 570 mm | |
Maximum tilt | 460 mm |
If you need more product information, please feel free to contact us.
