SMD Medical CODACA CSCM1265 R50M Ferrite Core High Current Power Shielded LED Inductor choke coil 0.5uH
- Category: >>>
- Supplier: Shenzhen Codaca Electronic Co. Ltd.
Share on (62514303165):
Product Overview
Description
Features
- Magnetic shielded structure: excellent resistance to electro magnetic interference(EMI)
- Assemblage design, sturdy structure.
- Small volume, high current, low magnetic loss, low ESR, small parasitic capacitance.
- Temperature rise current and saturation current is less influenced by environment.
- Operating temperature : -40℃ ~ +125℃ (Including coil’s temperature rise)
Product Description
1. Key Parameter
| Type | High Current Power Inductor |
| Inductance (μH) | 0.5 |
| Tolerance | 20% |
| DCR(mΩ) | 0.8(Typical) 0.9(Max) |
| Isat(A) | 35.0 |
| Irms(A) | 29.5 |
| Temp.Range(℃) | -40~+125 |
| Dimension(mm) | 13.5*12.5*6.5 |

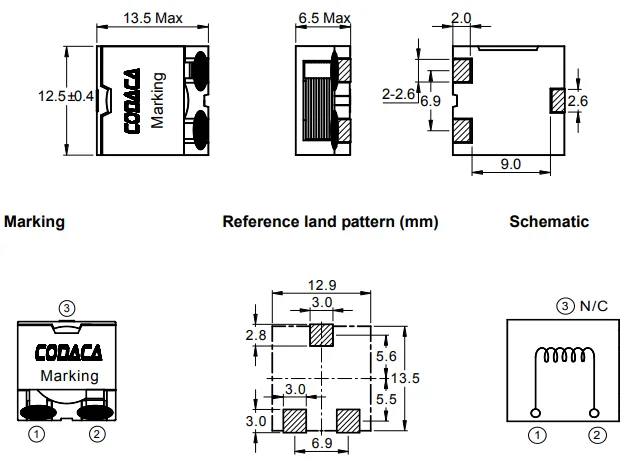

2. Product Appearance and Dimension (mm)

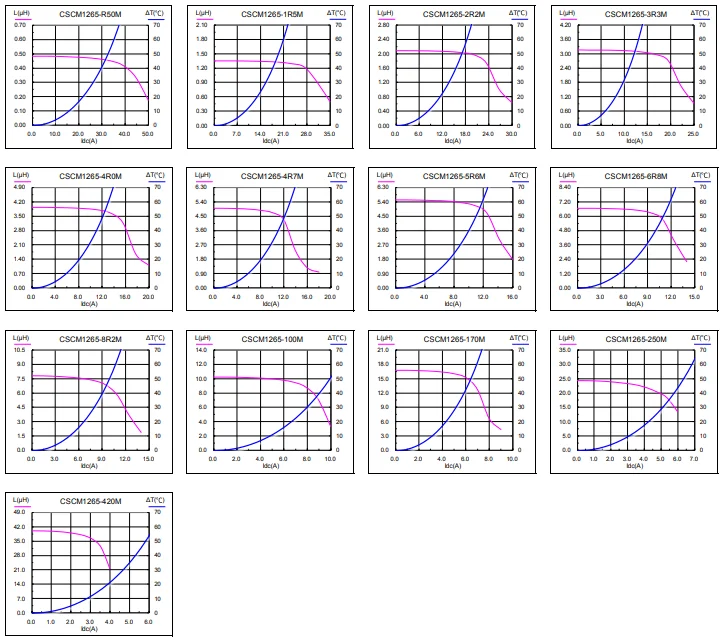

3. Saturation Current VS Temperature Rise Current Curve
4. Series Reference
| Part No. | Inductance(μH) | DCR(mΩ) | Saturation Current(A) | Temperature rise current(A) | |
|---|---|---|---|---|---|
| Typical | Max | ||||
| CSCM1265-R50M | 0.50 | 0.80 | 0.90 | 35.0 | 29.5 |
| CSCM1265-1R5M | 1.50 | 2.26 | 2.65 | 26.0 | 17.5 |
| CSCM1265-2R2M | 2.20 | 2.94 | 3.40 | 22.0 | 15.5 |
| CSCM1265-3R3M | 3.30 | 5.30 | 6.30 | 16.0 | 11.0 |
| CSCM1265-4R0M | 4.00 | 5.30 | 6.30 | 13.0 | 11.0 |
| CSCM1265-4R7M | 4.70 | 5.30 | 6.30 | 12.0 | 11.0 |
| CSCM1265-5R6M | 5.60 | 7.30 | 8.20 | 10.5 | 10.0 |
| CSCM1265-6R8M | 6.80 | 7.30 | 8.20 | 8.50 | 10.0 |
| CSCM1265-8R2M | 8.20 | 7.98 | 9.50 | 8.00 | 9.00 |
| CSCM1265-100M | 10.0 | 7.98 | 9.50 | 6.00 | 9.00 |
| CSCM1265-170M | 17.0 | 18.3 | 22.0 | 5.00 | 6.00 |
| CSCM1265-250M | 25.0 | 19.8 | 23.0 | 3.80 | 5.80 |
| CSCM1265-420M | 42.0 | 23.5 | 27.0 | 2.40 | 5.30 |
