Tube steel pipe e pneumatic electric Automatic Feeding Portable Split frame CS Aluminum Body Metal Pipe edge bevel Machine
- Category: >>>
- Supplier: Zhejiang Wellnit Mechanical Technology Co. Ltd.
Share on (62514315039):
Product Overview
Description
Product Description
Easy operated hot selling stainless pipe cutting machine.
Rugged design and powerful function makes these machines widely adopted in many kinds of fields, such as Petrochemical, Beer,
Dairy Beverages, Pharmaceutical, Metallurgy, Water Treatment, Shipbuilding, Electric power Industries.
All types of metal pipe.All Series orbital pipe saws deliver a precise, square and clean cut, making it unnecessary to do any
additional preparation work on the cut-off face for orbital welding
Rugged design and powerful function makes these machines widely adopted in many kinds of fields, such as Petrochemical, Beer,
Dairy Beverages, Pharmaceutical, Metallurgy, Water Treatment, Shipbuilding, Electric power Industries.
All types of metal pipe.All Series orbital pipe saws deliver a precise, square and clean cut, making it unnecessary to do any
additional preparation work on the cut-off face for orbital welding
Model | OCP-168 |
Working Range | 50-168mm |
Pipe thickness | ≤30mm |
Power supply | 0.8-1.0mpa,1000-2000L/min |
Application | Metal Pipe Cutter |
Rotation | 18r/min |
1. Measure the OD of the pipe, and choose the proper clamp pad install on the machine.
2. Put the pipe end into the machine, rotate the clamping handle clockwise, and make the machine mounted on the pipe firmly.
3. Install the proper tool bit on the cutter. Make sure the tool bit in clockwise.
4. Turn on the motor, press down the tool feed wheel, the machine start working
Caution.
5. After job completed, pull up the tool back wheel, then turn off the motor. Clean the iron scrap.
6. Rotate the clamping handle anticlockwise, take off the machine. Clean and dry it, then storage.
2. Put the pipe end into the machine, rotate the clamping handle clockwise, and make the machine mounted on the pipe firmly.
3. Install the proper tool bit on the cutter. Make sure the tool bit in clockwise.
4. Turn on the motor, press down the tool feed wheel, the machine start working
Caution.
5. After job completed, pull up the tool back wheel, then turn off the motor. Clean the iron scrap.
6. Rotate the clamping handle anticlockwise, take off the machine. Clean and dry it, then storage.
Description of application effect

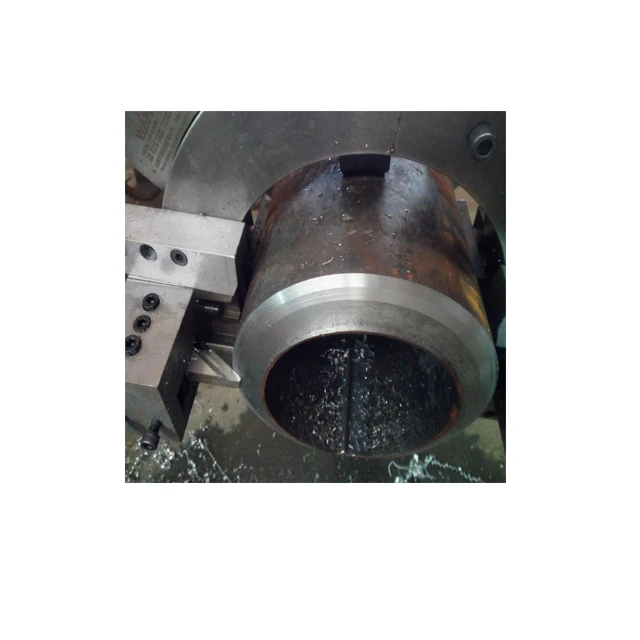

1:Square, burr-free and deformation-free pipe end
2:The pipe saw adopt cold cut to prevent thermal distortion, is the cutting solution for material like stainless pipe,copper etc,
carbon steel, etc. cutting in seconds

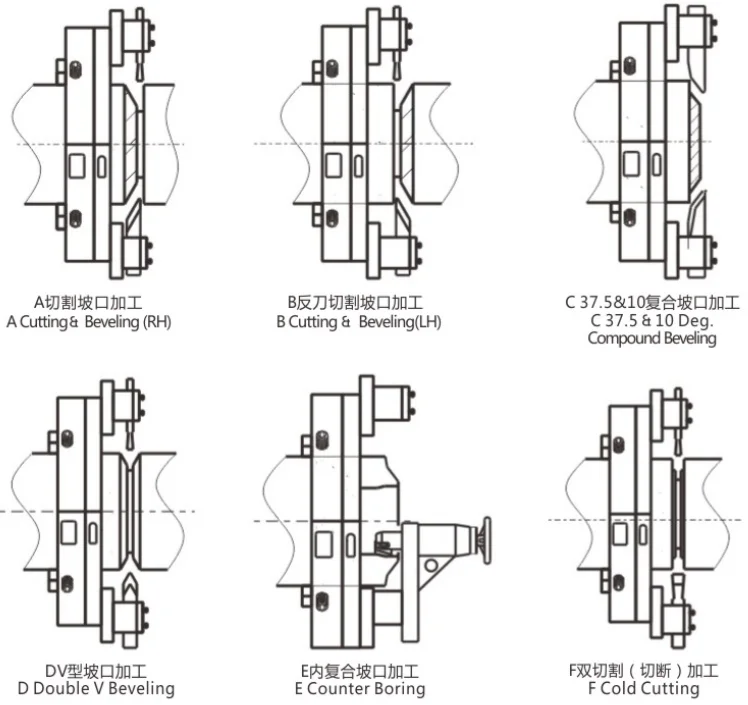

3:Simultaneous or separate cutting and beveling
4:Cost-effective, increasing productivity
5:The pipe saw/pipe cutter has fast pipe clamping, deformation-free clamping system
6:The pipe saw can be easily set up regardless of the pipe diameter
7:The pipe saw is easy to operate, almost no training is needed
8:The cutting speed regulation can be adjusted to cut different wall thickness pipe
2:The pipe saw adopt cold cut to prevent thermal distortion, is the cutting solution for material like stainless pipe,copper etc,
carbon steel, etc. cutting in seconds
3:Simultaneous or separate cutting and beveling
4:Cost-effective, increasing productivity
5:The pipe saw/pipe cutter has fast pipe clamping, deformation-free clamping system
6:The pipe saw can be easily set up regardless of the pipe diameter
7:The pipe saw is easy to operate, almost no training is needed
8:The cutting speed regulation can be adjusted to cut different wall thickness pipe
Detailed Images
Related Products
Packing&Shipping

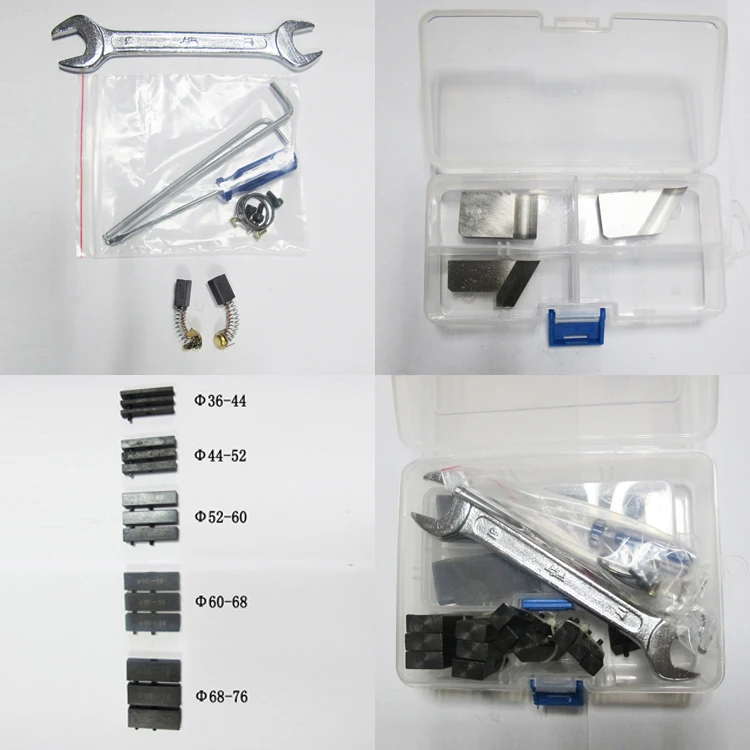

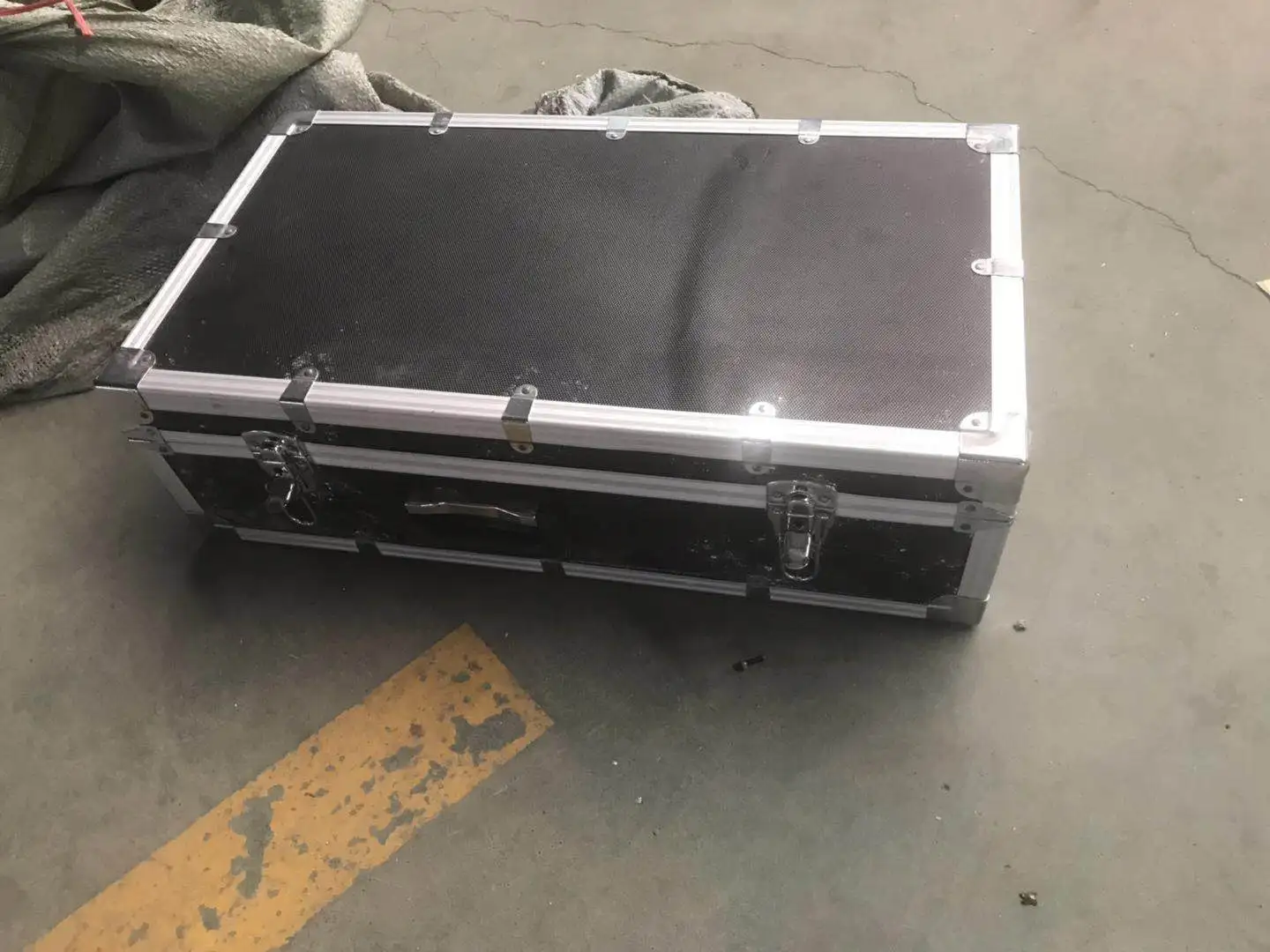

The machine packaged into a portable aluminum alloy case with all necessary parts, usual tool,
beveling tools, operation manual.
beveling tools, operation manual.
After Sales Service
After-sale service Problems, assembly or operation? Please tell us. we will send you the relevant user manuals or instructions immediately to you. We have video guidance or instructions as well. If all these are not working, please feel free to contact us directly. Send us an
email or by Skype, Whatsup, Wechat, or QQ.
email or by Skype, Whatsup, Wechat, or QQ.

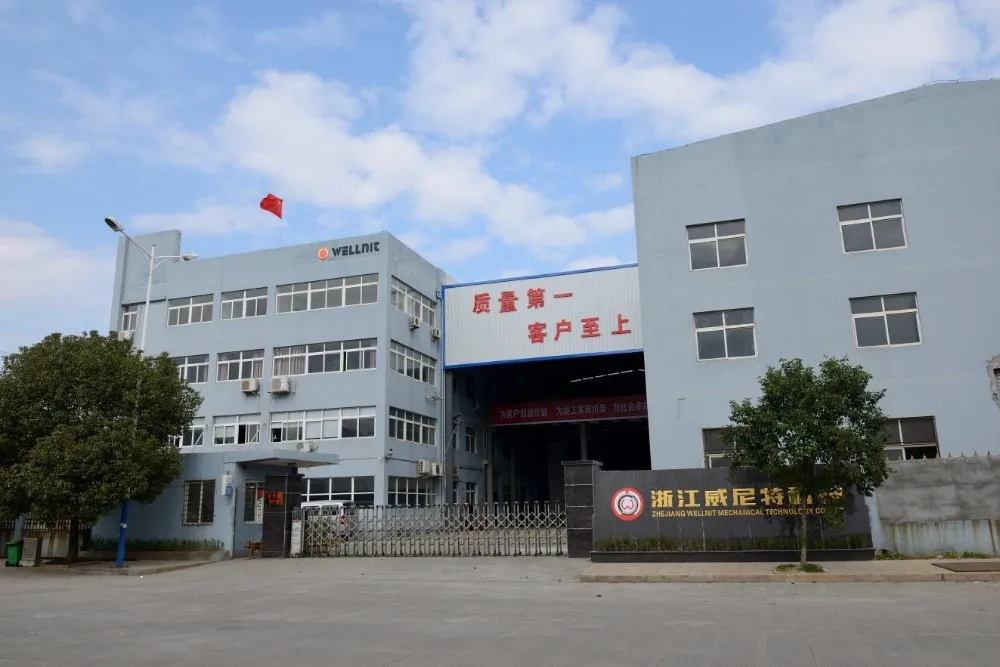

Company Introduction

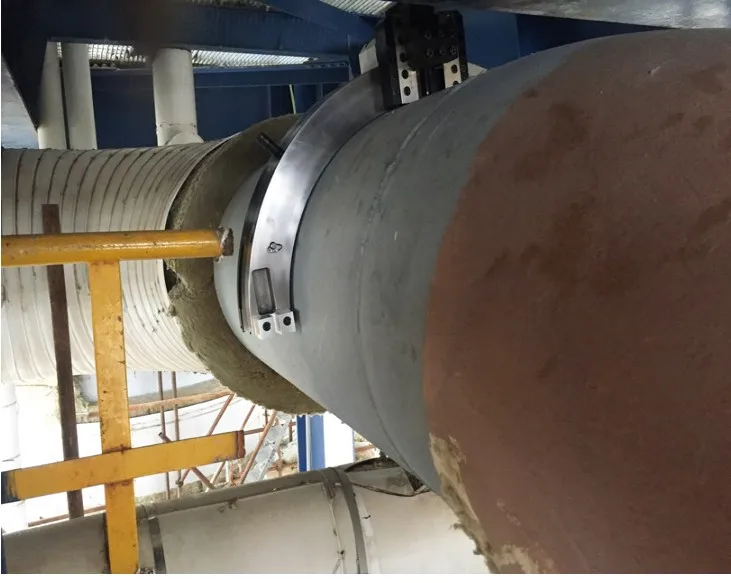

WELLNIT Splitframe Cutting & Bevelling range is a popular choice for on-site repair or procuction, the lightweight design is ideal for working in restrictive situations. Our machine with our latest cutter technology can cut & bevel all types of materials from carbon steel through to the extremely tough duplex steels and exotics like incaloy. The machine is available in a range of sizes with a choice of pneumatic, electric and for the larger sizes, hydraulic. Designed and manufactured by wellnit mechenical technology co. ltd
