Widescreen 21.5 inch Cheap All In One NODKA Industrial Touch Panel Computer PC
- Category: >>>
- Supplier: Shanghai NODKA Automation Technology Co. Ltd.
Share on (62514552743):
Product Overview
Description
Poster
Product Description
System | ||||||
CPU | Bay Trial J1900 | |||||
Frequency | Quad core 2GHz | |||||
L2 Cache | 2MB | |||||
Chipset | Bay Trail SOC | |||||
Memory | 1 x 204 - pin SODIMM DDR3L - 1333MHz support up to 8GB | |||||
Storage Medium | 1 x SATA2.0 + 1 x mSATA | |||||
LAN | 2 x Realteck RTL8111F 1000Mbps RJ - 45 with surge protection , lightning protection design and 15KV ESD protection | |||||
Audio | Realtek ACL6625.1 Channel HDA Codec , Support MIC/Line-out Ports | |||||
USB | 1 x USB3.0, 3 x USB2.0 | |||||
COM | 2 x RS - 232 | |||||

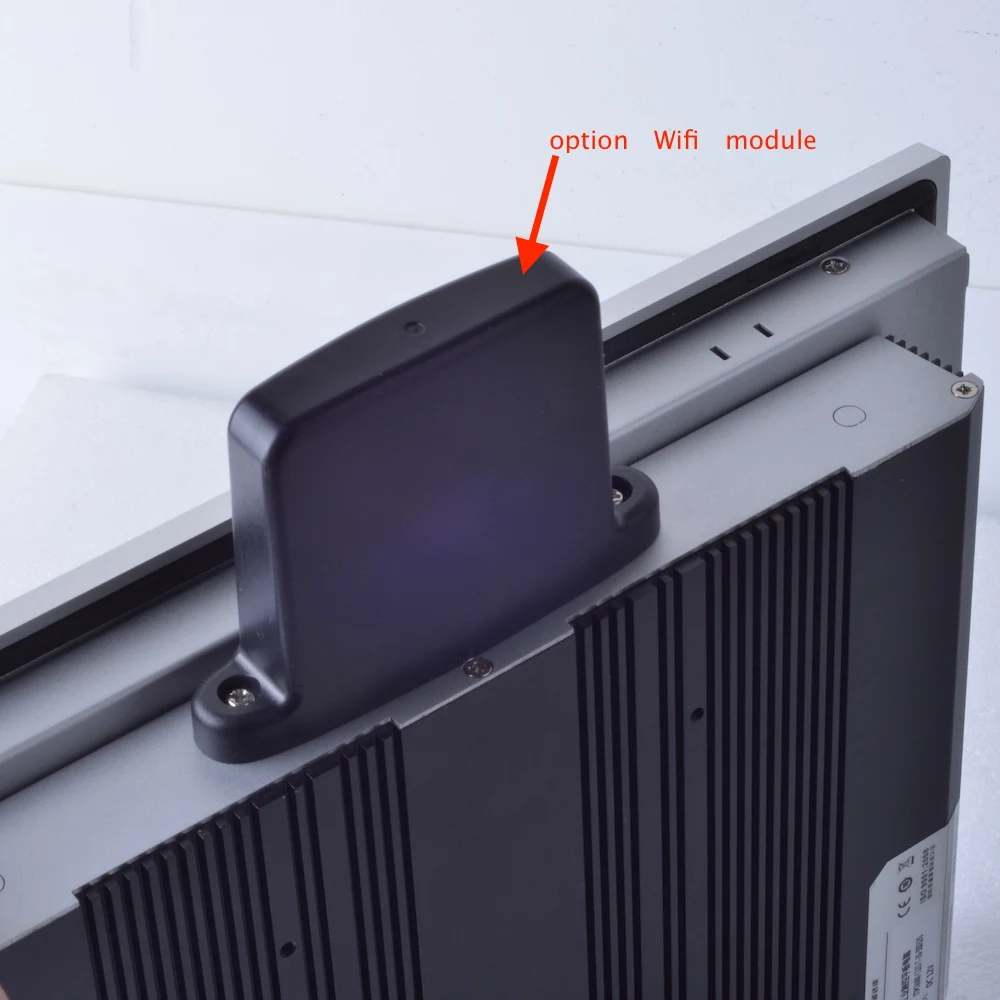

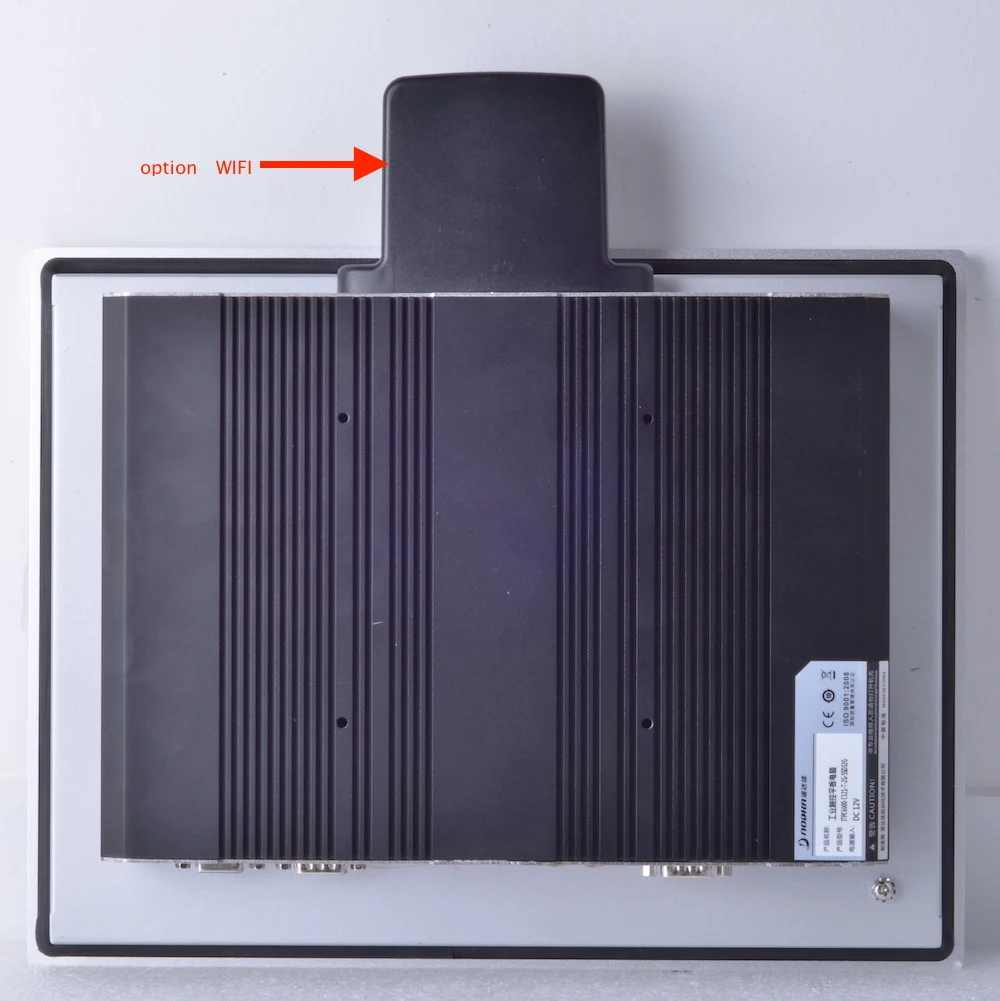

Texpansion slot | 1 x Mini - PCle slot , extensible 3G , WIFI wireless card | |||||
Institutional | ||||||
Dimensions(WxHxD) | 550mm×342mm×65.3mm | |||||
Drill Hole Size(WxH) | 533mm×325mm | |||||
NW | 7.58kg(16.72lb) | |||||
Input voltage | DC12V | |||||
Maximum Power Dissipation | 46.4Watt | |||||
Environmental | ||||||
Work Temperature | -10~50°C(14~122°F)(Wide temperature SSD) | |||||
Storage Temperature | -20~70°C(-4~158°F) | |||||
Relative humidity | 5~95%(Non condensation) | |||||
Shake | SSD applied:1.5 Grms,IEC 60068-2-64,random,5~500 Hz,1hr/axis | |||||
Shock | SSD applied:10 G,IEC60068-2-64,Half-sine wave,11ms duration | |||||
EMC | CE/FCC ClassA | |||||
Water-proof | Front panel IP65 | |||||
LCD | Touch screen | |||||
LCD Size | 21.5" Full HD TFT | Type | Capacitive touch screen | |||
Resolution | 1920×1080 | Controller interface | USB | |||
Colors | 16.7MB | Transmittance | >75% | |||
Active Area(WxH) | 476.64mm×268.11mm (18.77"×10.56") | Response Time | <5ms | |||
Backlight | LED | Multi-touch | 10 points | |||
MTBF | 30000hrs | Surface Hardness | Mohs'Number 7 | |||
Pixel Pitch(HxV) | 0.248×0.248 | Driver Support | Win7, Win8, Win10, Linux | |||
Luminance | 250cd/m2 | |||||
Contrast Ratio | 3000:1 | |||||
Viewing Angle | (L)89/(R)89/(T)89/(B)89 | |||||
