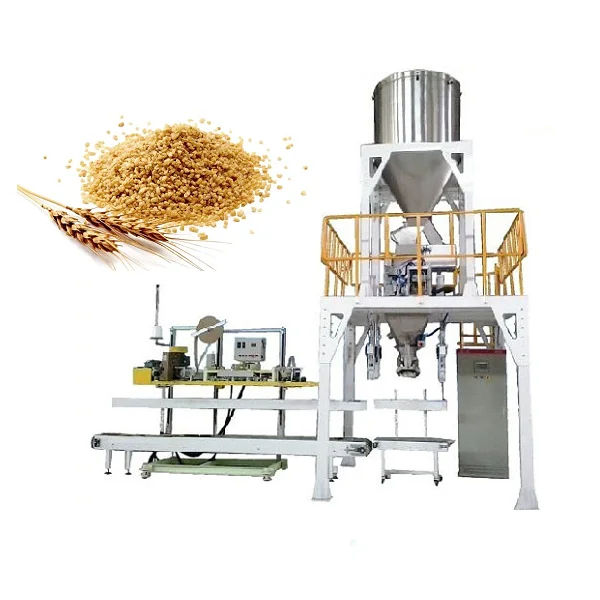

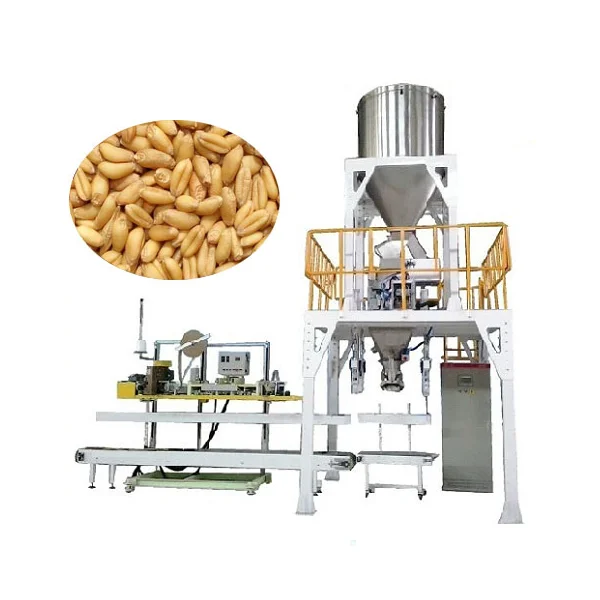

25KG bag filling machine gravity type packing scale

Product Overview

Description

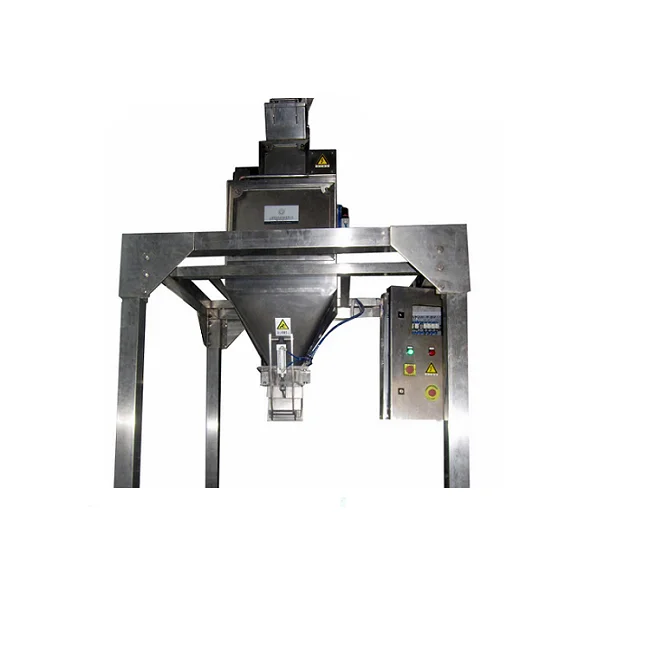

Gravity type Net weight packing scale



This video was taken at a Thailand’s client factory.



Material: Granule



Packing speed: 9 bags / minute



Equipment: Gravity type net weight packing scale + sewing machine with folding



Brief Introduction:



Technical parameter

Model:	DCS-55A-ZL-DJ
Filling Speed:	5-25KG
Powder Supply:	7-9bags/min
Air Consumption:	220V /50Hz, 0.3KW
Total Weight:	6m3/hr
Overall dimensions:	200kgs



Features:

Modular feeding type suit for diffirent kind of material.



Flexible dust collection tube avoid dust problem.



Quick open cover easy for cleaning.



Air-tight seal prevent powder leaking.



Net weigher type keep a high speed.



Flexible angle adjustable as diffirent kind of material fluidity.



Process:

An empty bag manually put onto the filling spout and bag clamp, the filling cycle acts ;



There is a buffer hopper above the bag clamp, the gravity feeder will fill the material into it;



When the weight close to the target value, the fast feeding will stop , meanwhile the slow feeding continues filling till it reached the target value , it stops , so that to keep the high packing accurate;



Empty bag will be filled with already weight products which stored in the buffer hopper ;



When filling complete, the operator is alerted and the bag was detached from the bag clamp and filling spout;



Filled bag was transported to next position to sealing .

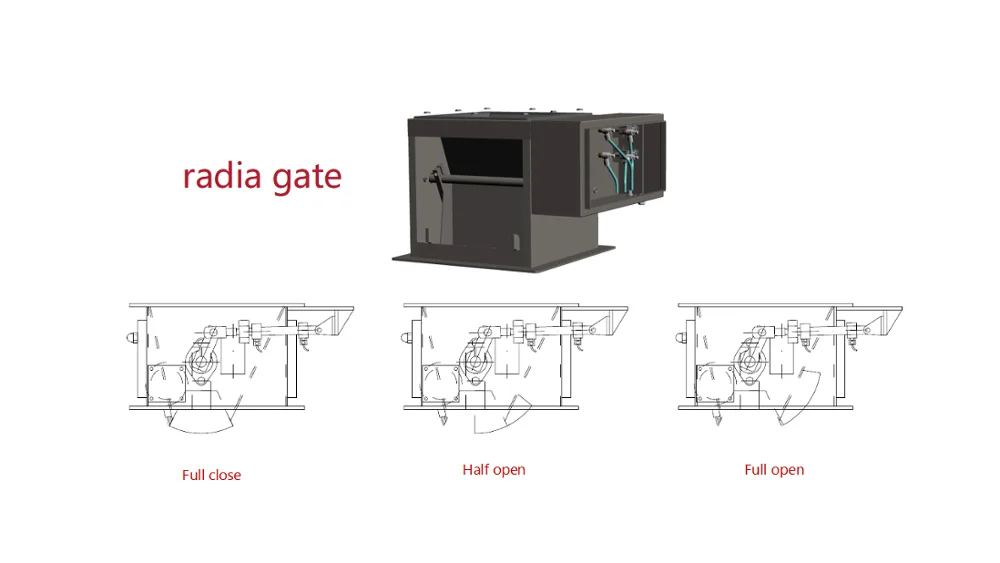

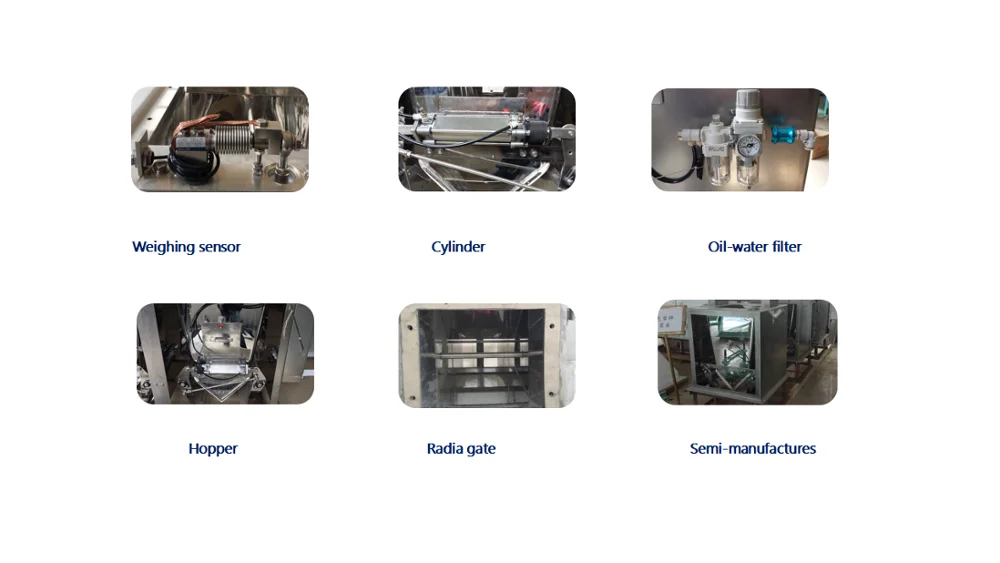

Details:

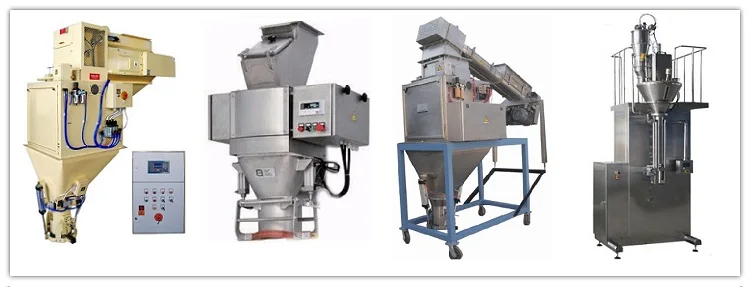

Options:



Project Cases:
