China Manufactory foil stamping and die cutting machine automatic embossing die cutting & hot
- Category: Heat Press Machines >>>
- Supplier: Huizhou Degang Machinery Co. Ltd.
Share on (62514607486):
Product Overview
Description
Product Description
Product Description
1 shaft longitudinal direction with 4 foil rolls + 1 shaft transverse direction with 2 foil rolls

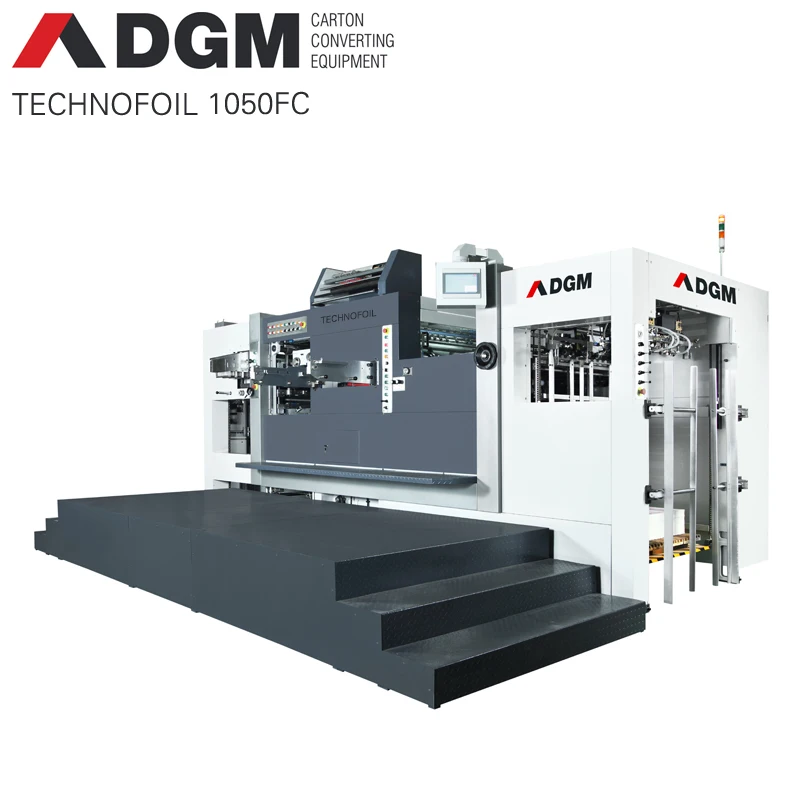

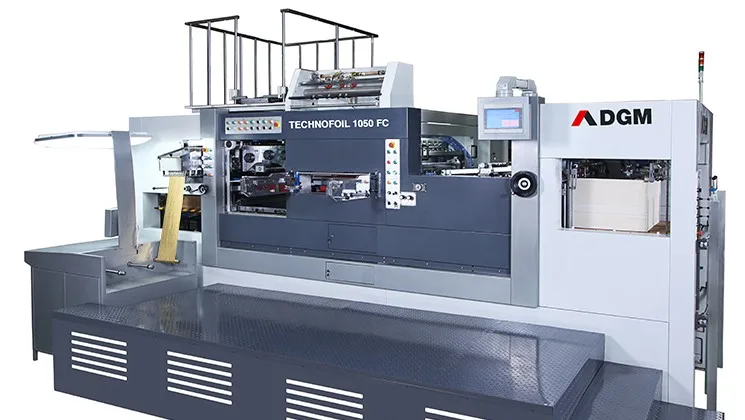

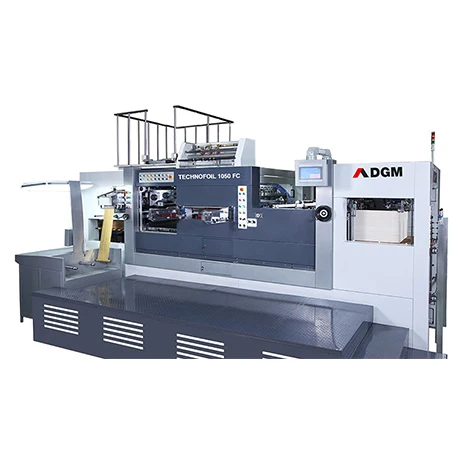

TECHNOFOIL 1050-FC Automatic Platen Hot Foil Stamper & Die Cutting Machine. It can run large format die-cutting and stamping with longitudinal and transversal foil pull system. High precision, high speed, easy to operate, quick changeovers, durability and
stable performance. Features that make this machine one of the best options available.
stable performance. Features that make this machine one of the best options available.

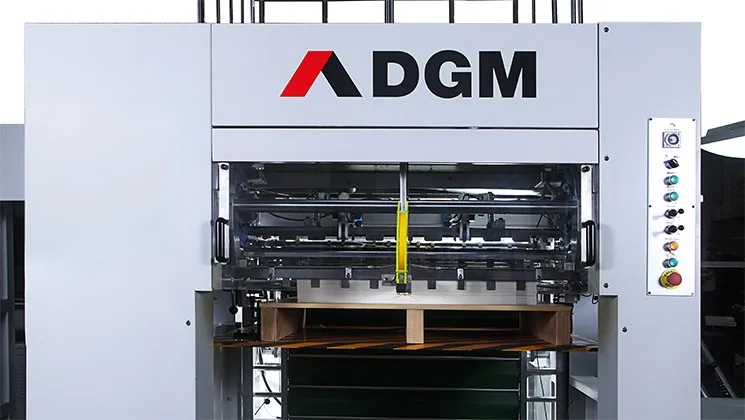

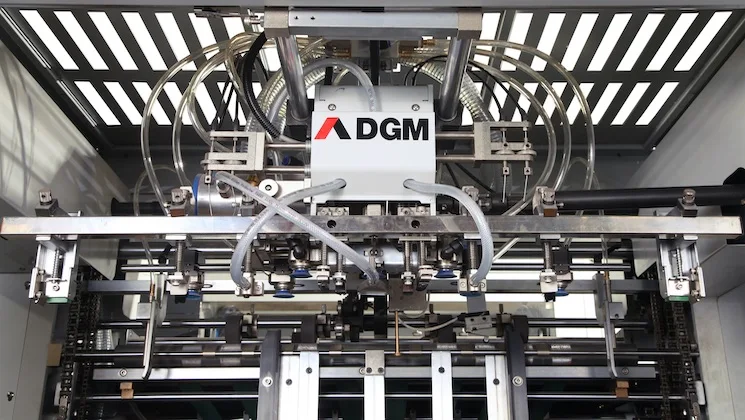

1. Feeder
* Automatic feeder with non-stop system, with pallet and cart direct load.
* 4 lift-up and 4 delivery suckers, designed to handle a wide range of materials from pa-per to corrugated board, guarantee the
accuracy, reliability and smoothness of paper feeding.
* Double sheet detector.
* 4 lift-up and 4 delivery suckers, designed to handle a wide range of materials from pa-per to corrugated board, guarantee the
accuracy, reliability and smoothness of paper feeding.
* Double sheet detector.

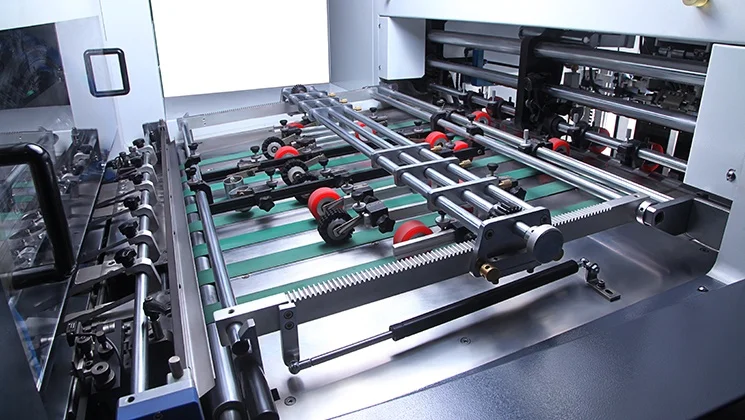

2. Register table
* Side-register table with 8 belts.
* 2 register side guides working with pulling and pushing system.
* 4 register front lays, independently adjustable.
* 2 register side guides working with pulling and pushing system.
* 4 register front lays, independently adjustable.

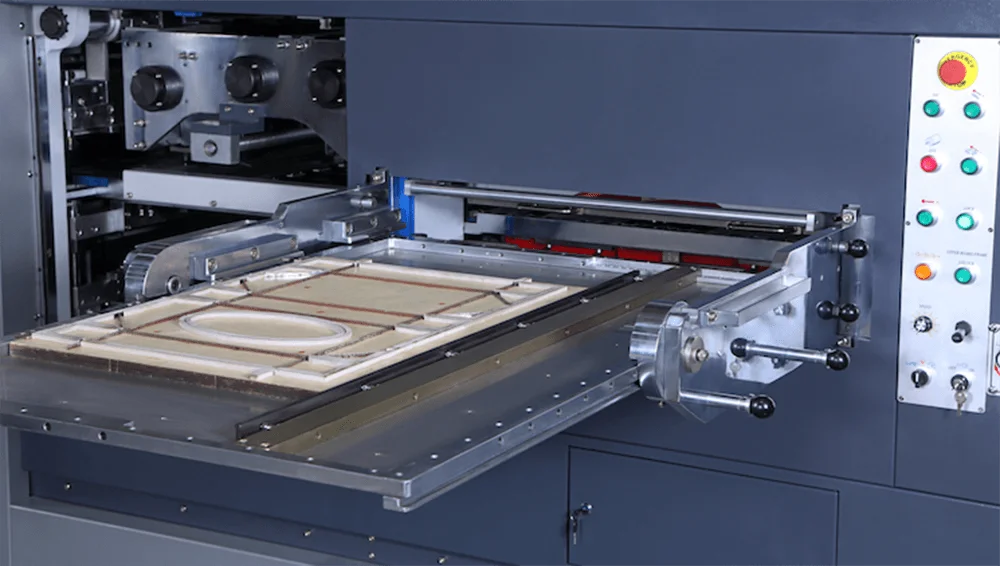

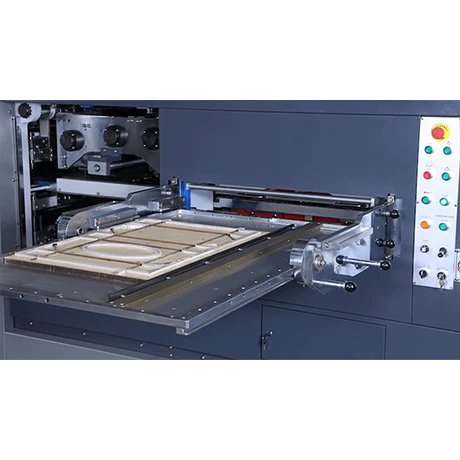

3. Press section
* Closed chase with central positioning system device for fast positioning of the die.
* Cutting plate 5 mm thickness.
* Pressure control system, can be easily adjusted through touch screen. It has a securi-ty system to avoid any damage in the
press.
* Manual and automatic lubrication system.
* 7 light weight gripper bars.

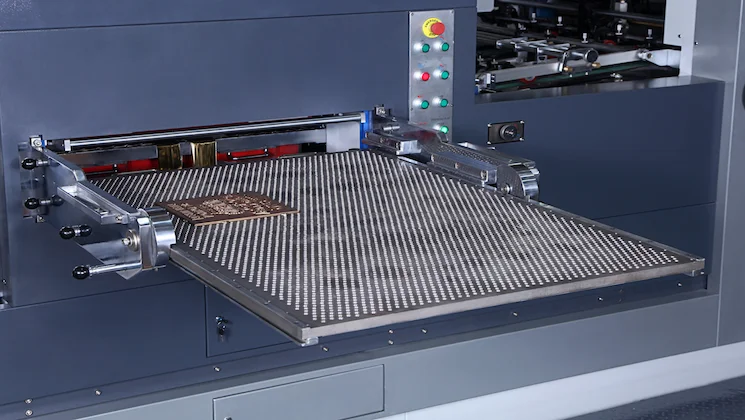

* Turn-over bracket for cutting chase and honeycomb chase.
* Pneumatic lock and release system for cutting chase and honeycomb plate.
* Cutting plate 5 mm thickness.
* Pressure control system, can be easily adjusted through touch screen. It has a securi-ty system to avoid any damage in the
press.
* Manual and automatic lubrication system.
* 7 light weight gripper bars.
* Turn-over bracket for cutting chase and honeycomb chase.
* Pneumatic lock and release system for cutting chase and honeycomb plate.
4. Foil stamping system
* Heating system in 12 temperature zones with individual temperature control.
* Foil break detector.
* Films fasten device.
* Foil unwind device.

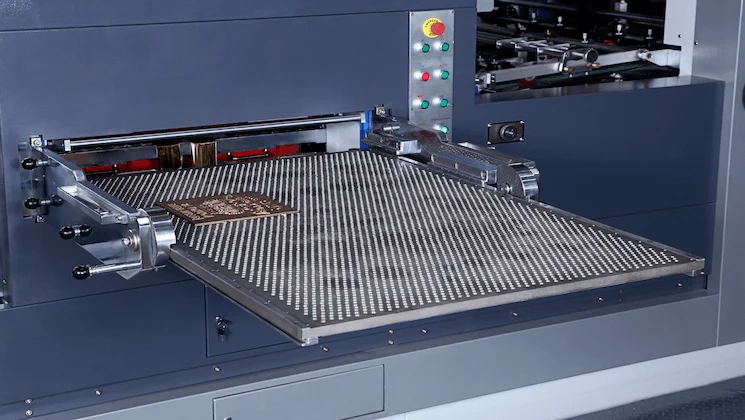

* Honeycomb chase.
* Foil break detector.
* Films fasten device.
* Foil unwind device.
* Honeycomb chase.
5. Delivery section
Non-stop device with automatic conveyor at delivery.

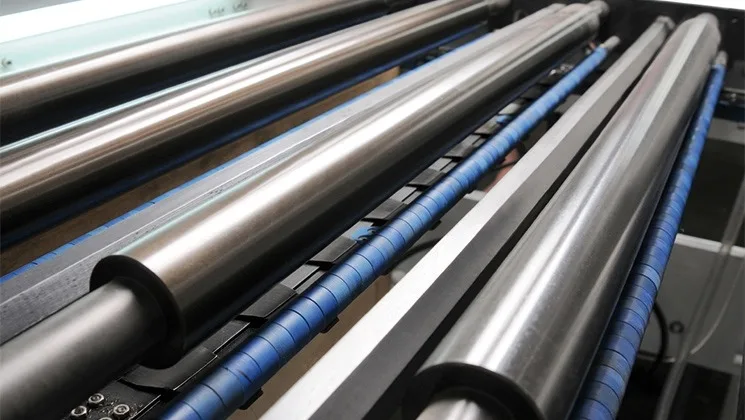

6. Longitudinal Shaft
* 4 foil rolls in a high precision longitudinal foil feeding system.
* Air blast foil separation system.
* Foil tensioning system.
* Air blast foil separation system.
* Foil tensioning system.
7. Transverse shaft
2 foil rolls in a high precision transversal foil feeding system.
