CODACA Medical DC DC SMD electronic CSI1060 R56M High Current Power Inductor 0.56uh choke coil
- Category: >>>
- Supplier: Shenzhen Codaca Electronic Co. Ltd.
Share on (62514650711):
Product Overview
Description
Features
- Magnetic shielded structure: excellent resistance to electro magnetic interference
- Flat wire winding, achieve a low D.C. Resistance.
- Low loss, high efficiency, wide application frequency and application scope.
- Vertical structure design, save space,
- suitable for high density SMT.
- Operating temperature : -40 +125 (Including coil’s temperature rise)
Product Description
1. Key Parameter
| Type | High Current Power Inductor |
| Inductance (μH) | 0.56 |
| Tolerance | 20% |
| DCR(mΩ) | 1.03(Typical) 1.1(Max) |
| Isat(A) | 45.0 |
| Irms(A) | 25.0 |
| Temp.Range(℃) | -40~+125 |
| Dimension(mm) | 10.0*5.7*12.0 |

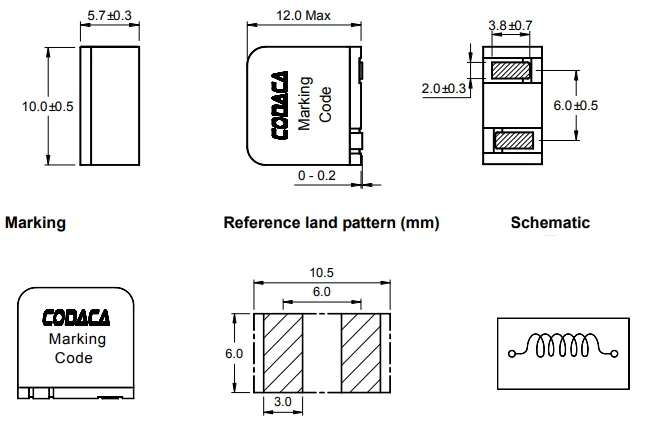

2. Product Appearance and Dimension (mm)
3. Saturation Current VS Temperature Rise Current Curve
4. Series Reference
| Part No. | Inductance(μH) | DCR(mΩ) | Saturation Current(A) | Temperature rise current(A) | |
|---|---|---|---|---|---|
| Typical | Max | ||||
| CSI1060-R56M | 0.56 | 1.03 | 1.10 | 45.0 | 25.0 |
Why CODACA
FAQ
Q1. What's your main products ?
A: Our main products are High Current Power Inductor, Molding Power Choke, High Current Power Inductor for Digital AMP, SMD Power Inductor and DIP Inductor.
Q2. Which area are your inductors applied to ?
A: Codaca inductors are widely applied to LED Lighting, Automotive Electronic, New Energy, Medical Electronic, Industrial Control, Communication Equipment etc.
Q3. Could you provide samples for testing ? And what is the lead time ?
A: Yes. Samples will be provided as per requirement and it will take about 4-7 days lead time.
Q4. What is the trade terms ?
A: EXW, FOB, CIF etc.
Q5.What is the payment terms?
A: T/T, Paypal, Western Union are available.
Q6. How can you ensure your quality?
A: Quality is our company Culture. We promise our products will be 100% inspected before shipment.
