4ch 1080P Wireless CCTV Camera System IP Camera Waterproof Outdoor P2P Home Security System Video Surveillance Kits

Product Overview

Description

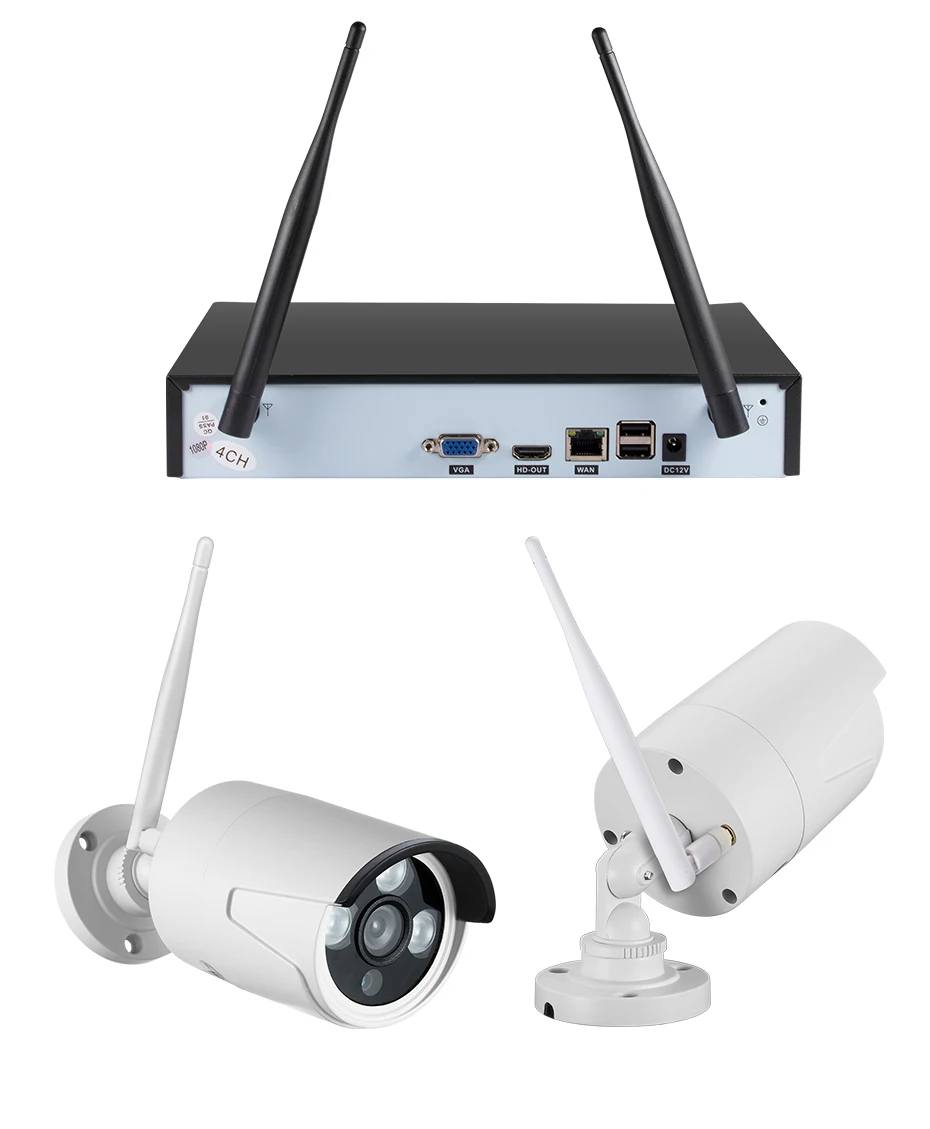

4CH 1080P WiFi NVR Feature:

* WiFi 1080P CAM
* 60 duckbilled housing
* 3pcs X 20 Lamp beads
* Infrared distance: 20~30 m
* HD lens 3.6MM
* IR cut filter with auto switch

Product Specification:

System	Main processor	Hi 3520D
	Operating System	Embedded Linux
	System resources	Simultaneous multi-channel real-time recording, playback, network operation, USB backup
Interface	Operator interface	16-bit true color graphic menu operation interface, support mouse operation
	Preview	“1/4/8”
	Video input (IP)	4*720P/4*960P/4*1080P
	Access bandwidth	24Mbps
	Forwarding bandwidth	24Mbps
	Video compression	H.264
	Display quality	Max 720P/960P/1080P
	Playback quality	720P/960P/1080P
	Decode	720P/960P/1080P
	VR	Unsupport
	Motion detection	Support(depend on camera)
Audio	Audio compression	G.711A
	Intercom	Unsupport
Record & playback	Recording mode	Manual>Alarm>Dynamic Detection>Timing
	Local payback	4ch
	Search mode	Search by Time/Calendar/Event/Channel
	Record storage	HDD,Network
	Backup mode	Network backup, USB hard disk, USB burner, SATA burner
External	Video output	1ch VGA,1ch HDMI HD output
Interface	Audio I/O	0/0
	Alarm I/O	0/0
	Network interface	1*RJ45 10M/100M Adaptive Ethernet port+4ch WIFI
	USB interface	2*USB2.0 ports
	HDD	1* SATA(Up to 6TB for each disk)
	ESATA	No
	Serial interface	No
Other	ONVIF	No
	Power supply	12V/2A
	Power Consumption	<10W(Without HDD)
	Work environment	Temperature:0℃-+55℃ , Humidity:10%-90%RH , Atm:86kpa-106kp

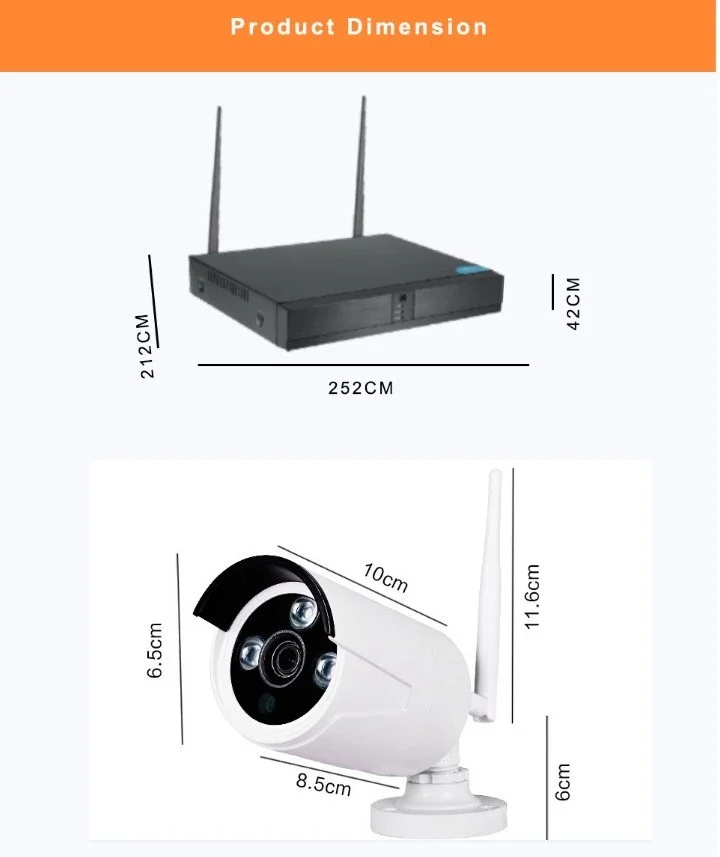

	Dimension	254mm*215mm*42mm
	Weight	1.05KG

Packaging:



Package Measure:

1pcs:
355*189*275 ; 3.3KG

4pcs/CTN:
395*365*575; 14KG

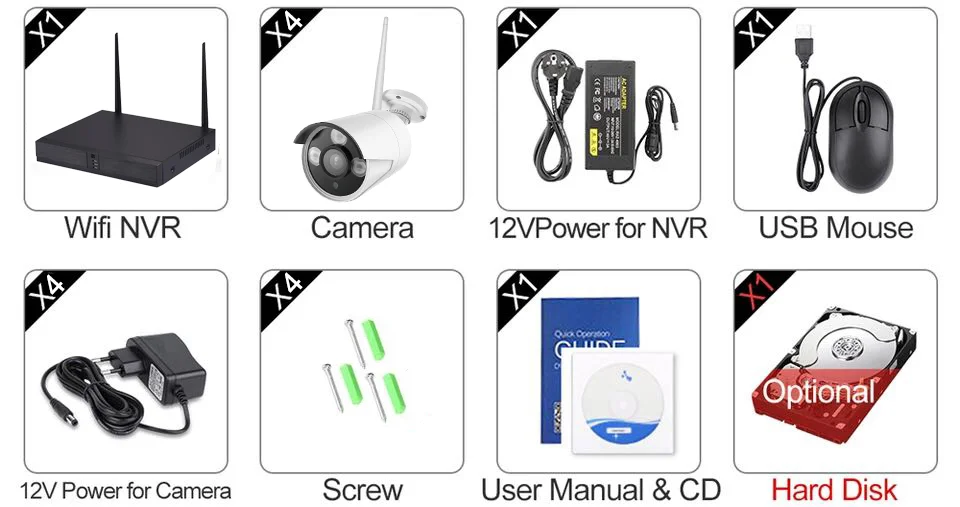

1 Set Includes:

* 4CH 1080P WiFi NVR (not HDD) X 1
* WiFi 720P/960P/1080P Cameras X 4
* 1m Network line X1
* DC 12V 2A Power adapter X1
* DC 12V 1A Power adapter X4
* USB Mouse X 1
* User Manual X1
* Screw bag X4
