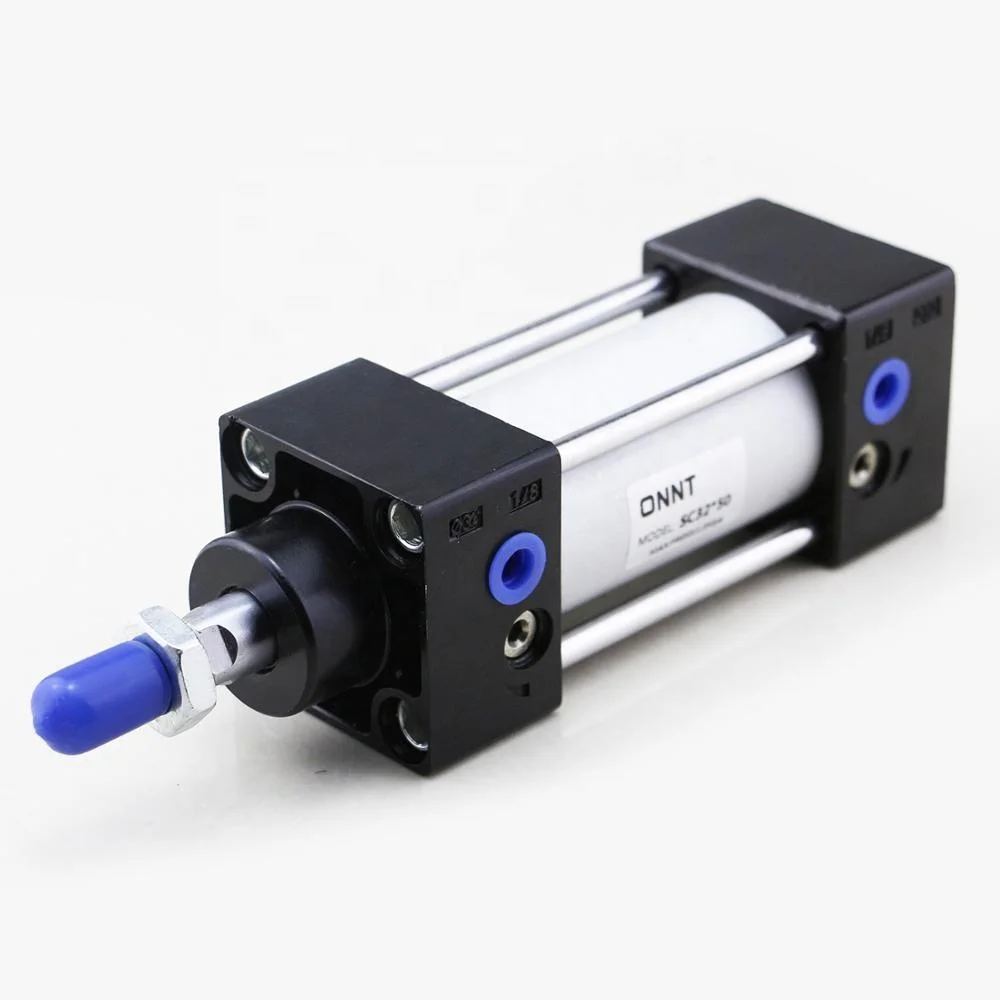

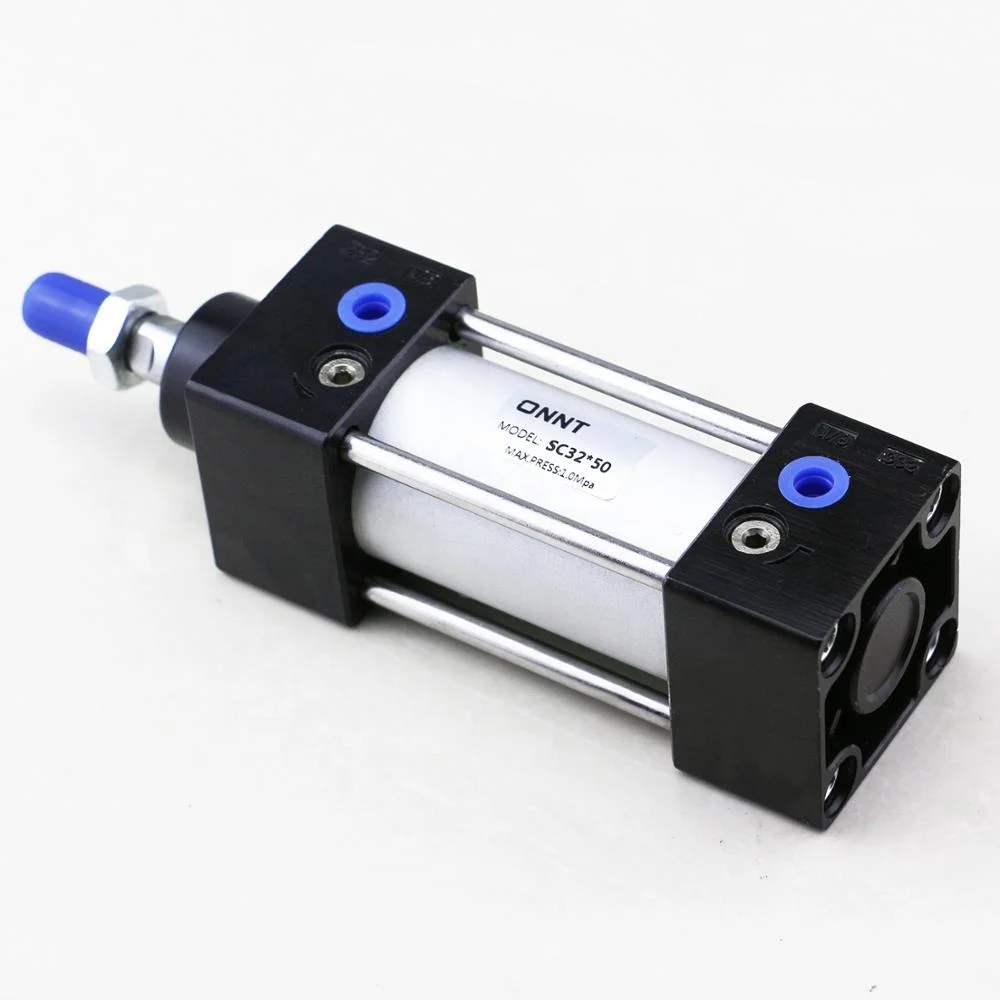

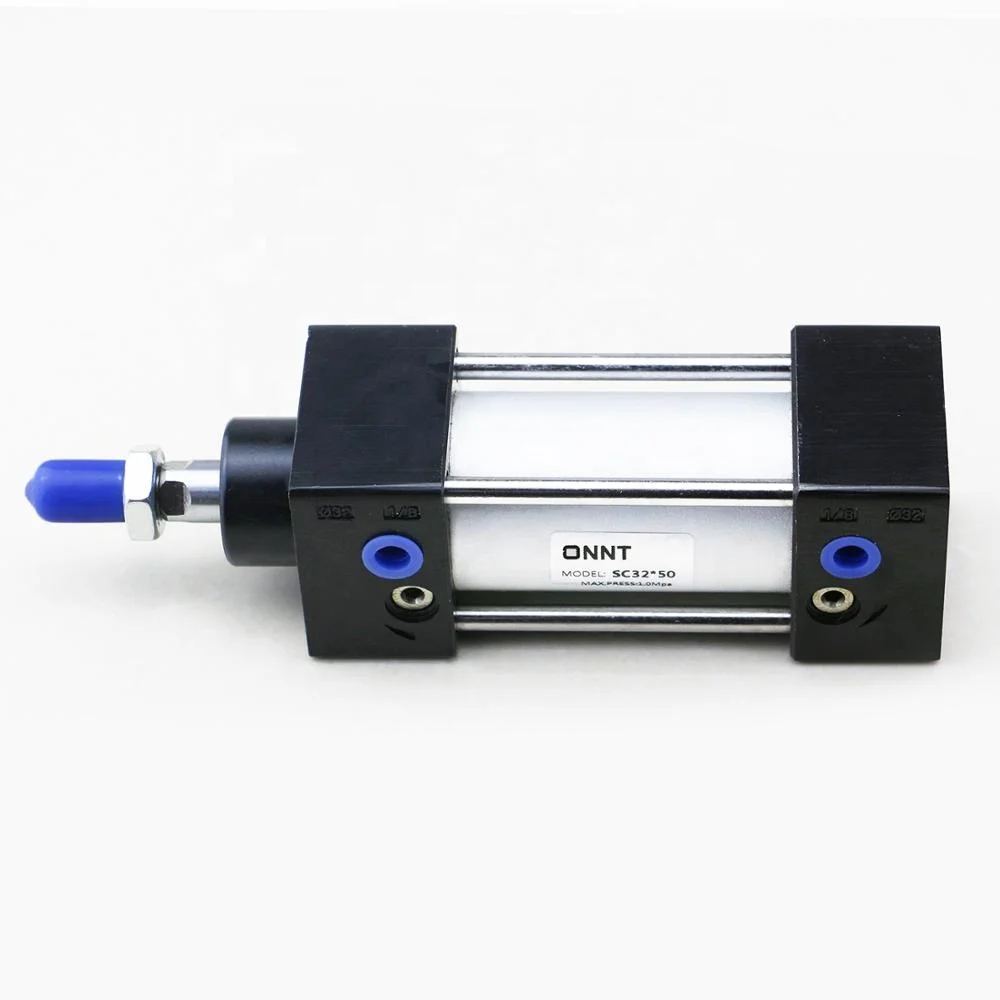

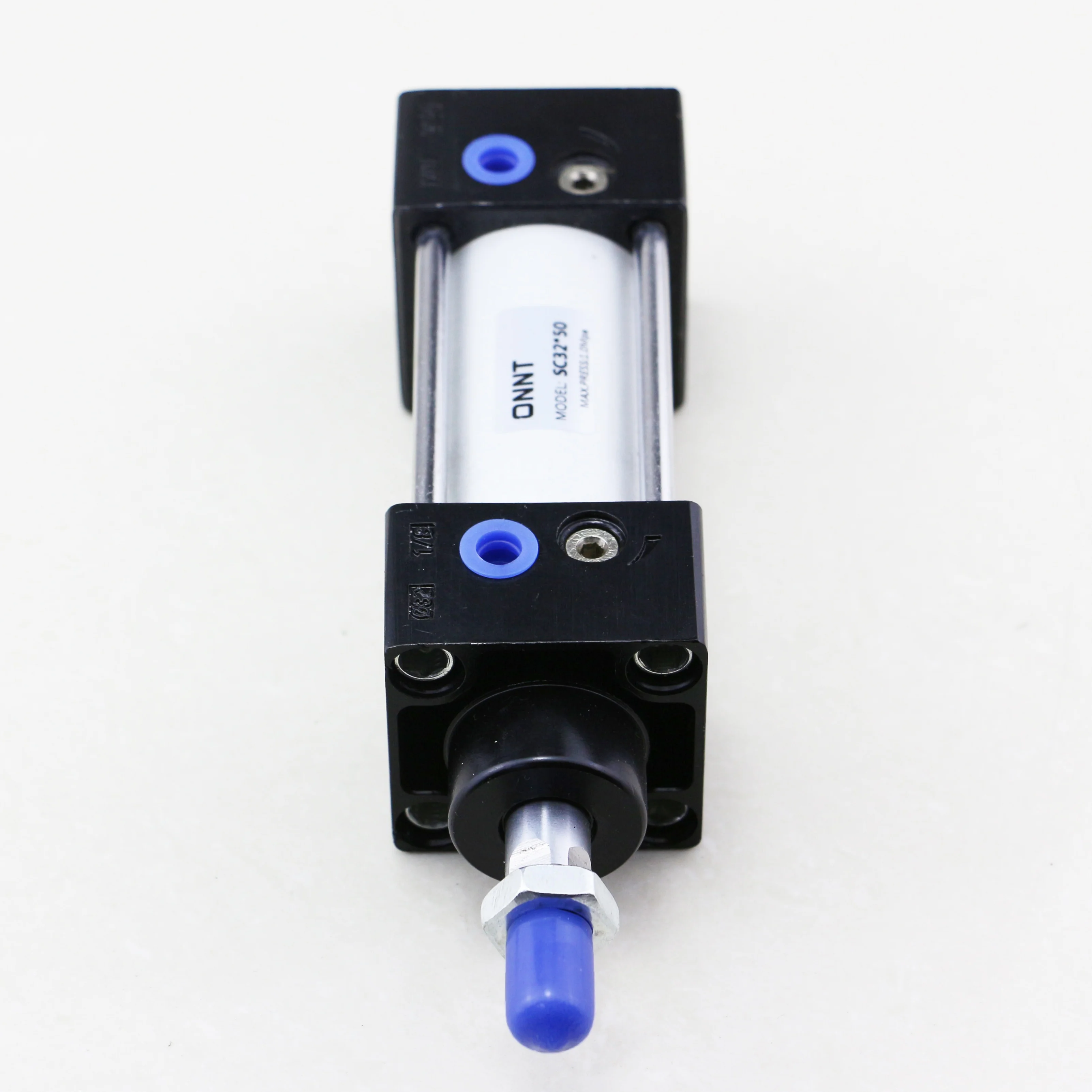

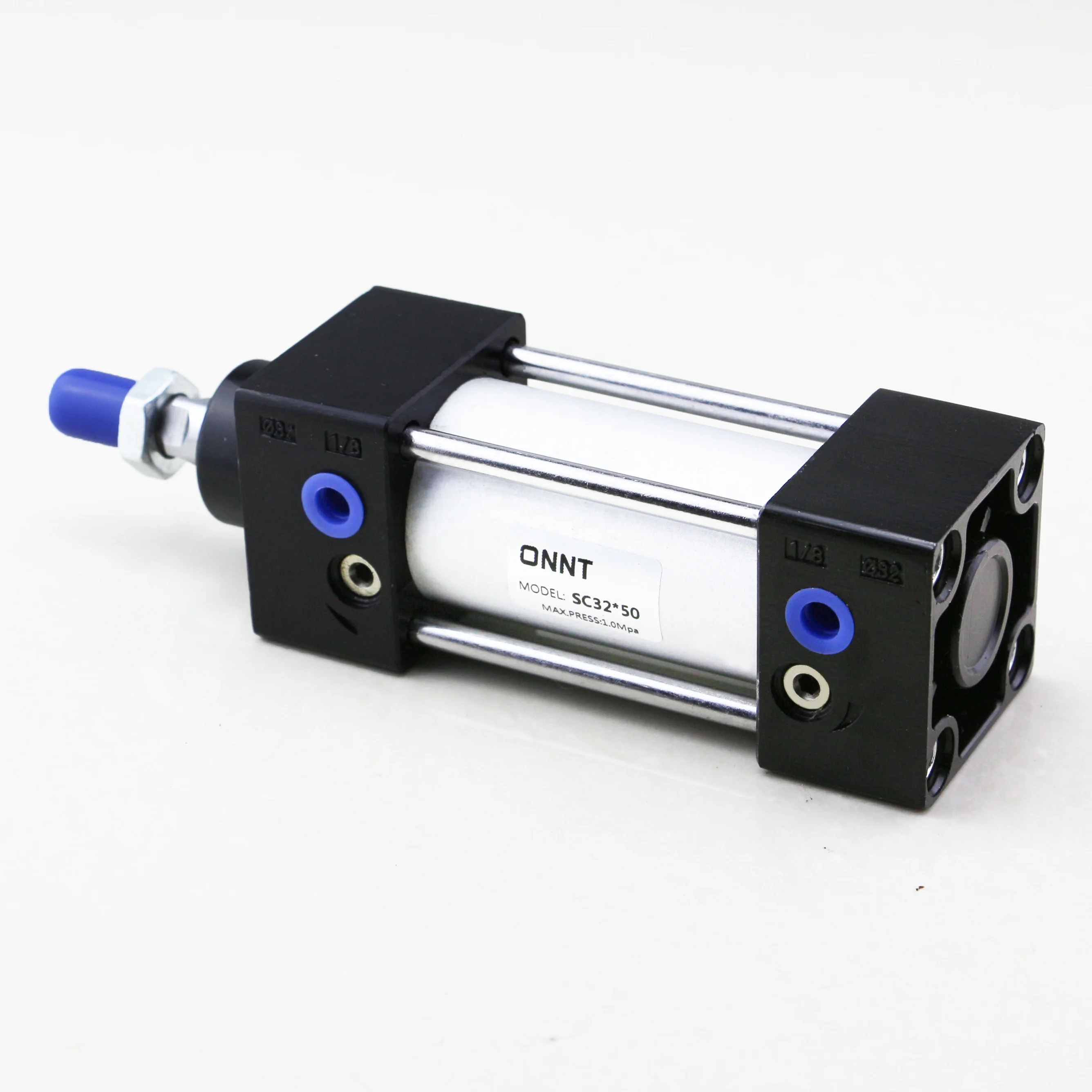

SC 32 40 50 63 80 100 125 160 200mm Double Action Pneumatic Cylinder with Double Acting Air Cylinder Airtac SC Series Cylinder
Product Description
Ordering Code
SC 50×50 - S
Modle Bore x Stroke Magnet
SC: Double acting type Blank: Without mahnet
SCD: Double rod type S: With magnet
SCJ: Adjustable stroke Type

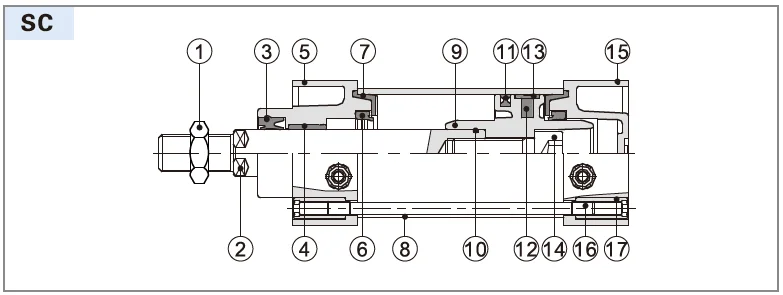

Inner structure and material of major parts:
| NO | Item | Material |
| 1 | Rod nut | Carbon steel |
| 2 | Piston rod | Carbon steel with 20 µ m chrome plated |
| 3 | Front cover packing | TPU |
| 4 | Bushing | Wear resistant material |
| 5 | Front cover | Aluminum alloy |
| 6 | Cushion O-ring | NBR |
| 7 | Cushion gasket | TPU |
| 8 | Barrel | Aluminum alloy |
| 9 | Piston | Aluminum alloy |
| 10 | Piston rod O-ring | NBR |
| 11 | Piston seal | NBR |
| 12 | Magnet | Plastic |
| 13 | Wearing ring | Wear resistant material |
| 14 | Bolt | Carbon steel |
| 15 | Back cover | Aluminum alloy |
| 16 | Tie-rod | Carbon steel |
| 17 | Tie-rod nut | Carbon steel |
Specifications
| Bore size | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | |
| Acting type | Double acting | ||||||||||
| Fluid | Air(to be filtered by 40 µm filter element) | ||||||||||
| Mounting | SC | Basic FA LB CA CB LB TC TCM1 | |||||||||
| SCD, SCJ | 0.15~1.0MPa(22~145psi)(1.5~10.0bar) | ||||||||||
| Proof pressure | 1.5MPa(215psi)(15bar) | ||||||||||
| Temperature °C | -20~70℃ | ||||||||||
| Speed range mm/s | 30~800 | ||||||||||
| Cushion type | Variable cushion | ||||||||||
| Port size | 1/8'' | 1/4'' | 3/8'' | 1/2'' | 3/4'' | ||||||
Stroke
|
Bore size (mm) |
Standard stroke(mm) |
Max.std stroke (mm) |
Max stroke (mm) |
| 32 | 25 50 75 100 125 150 175 200 250 300 350 400 450 500 | 1000 | 2000 |
| 40 | 25 50 75 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1200 | 2000 |
| 50 | 25 50 75 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1200 | 2000 |
| 63 | 25 50 75 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
| 80 | 25 50 75 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
| 100 | 25 50 75 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
| 125 | 25 50 75 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
| 160 | 25 50 75 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
| 200 | 25 50 75 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
| 250 | 25 50 75 100 125 150 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1500 | 2000 |
