Supply Fast Speed Water Well 400m Water Well Drilling Rig
US $19000-$30000
Factory Double Arm Full Hydraulic Hard Rock Drilling Machine for Sale China Water Wells Drilling Rigs 105 300 Mm 89/102 Mm 300mm
- Category: Mine Drilling Rig >>>
- Supplier: Shenyang ABT Drilling Equipment Co. Ltd.
Share on (62515025284):
Product Overview
Description
Products Description

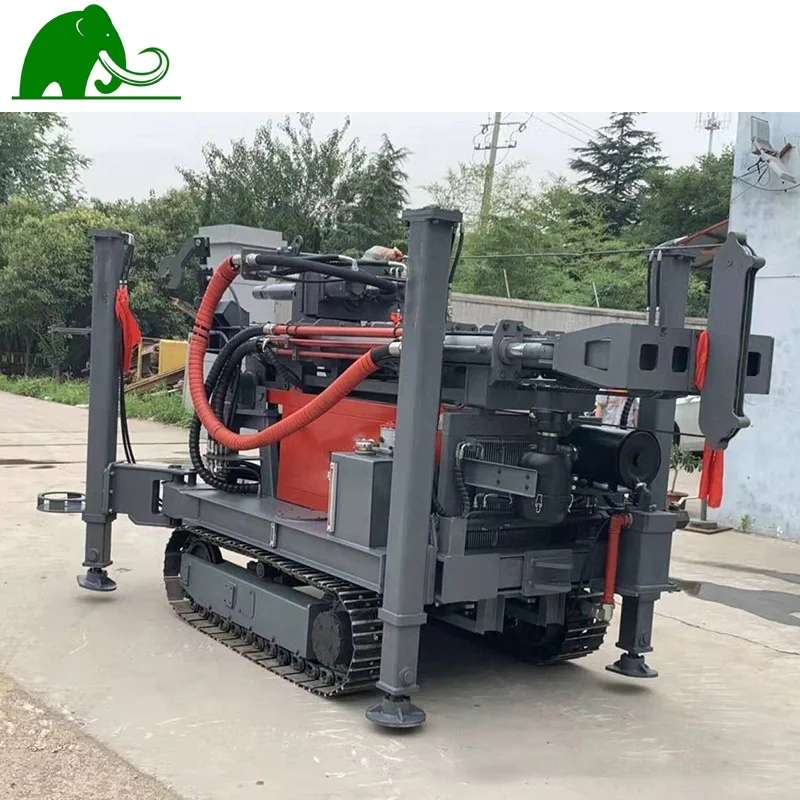

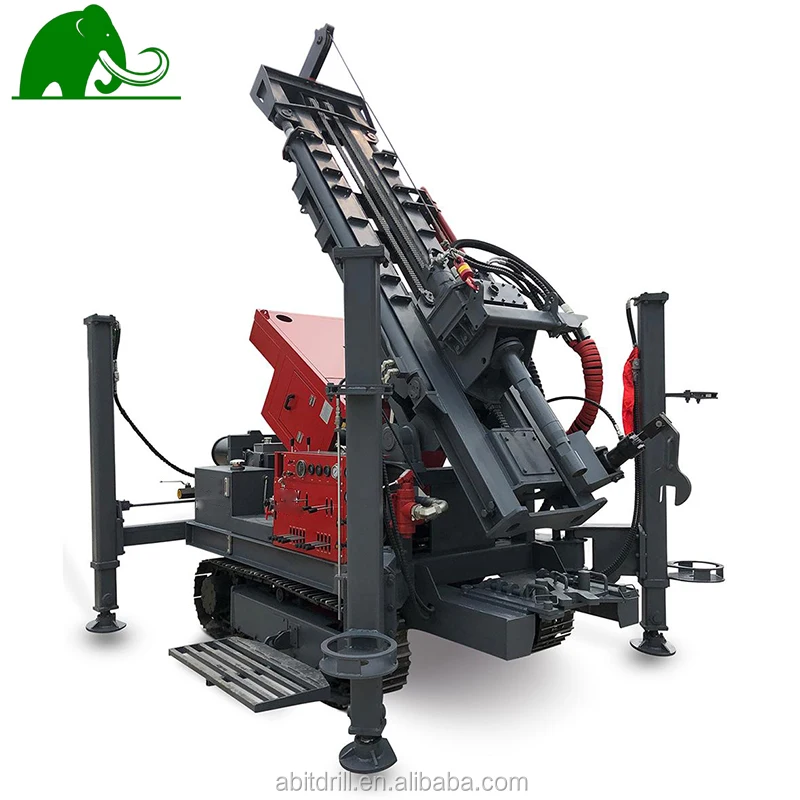

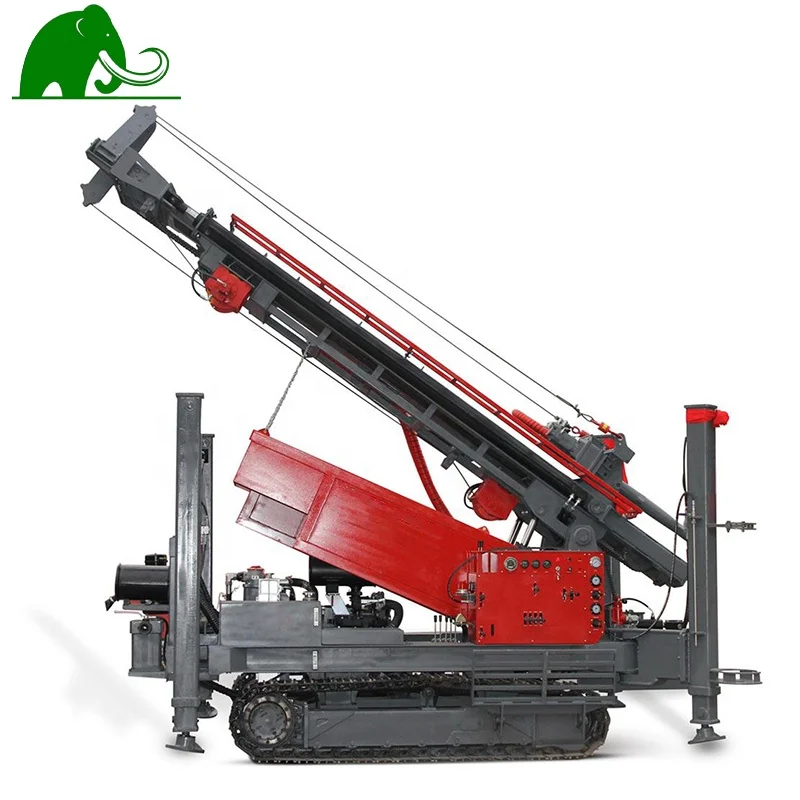

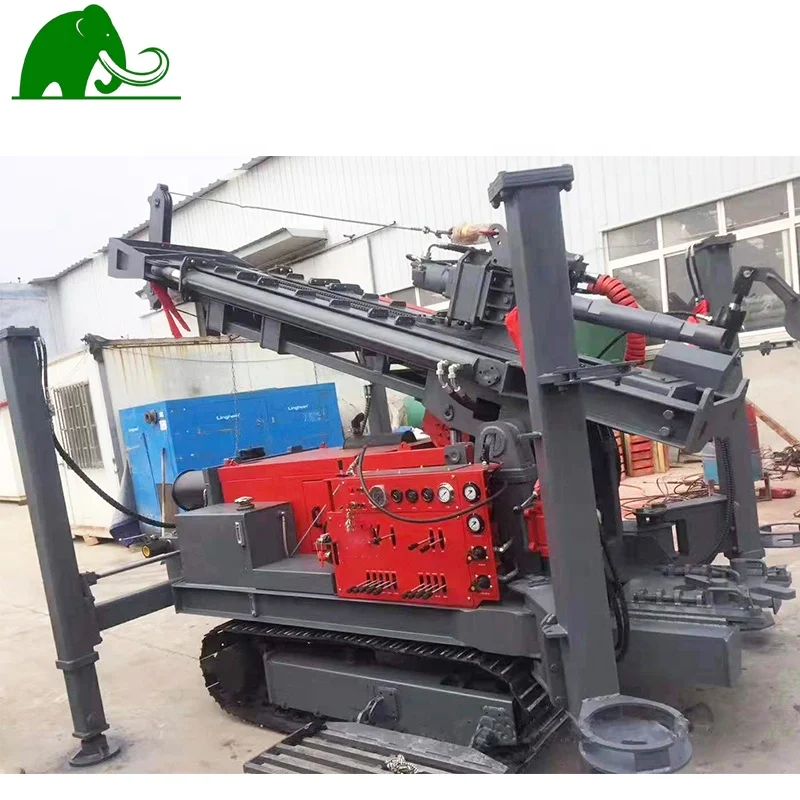

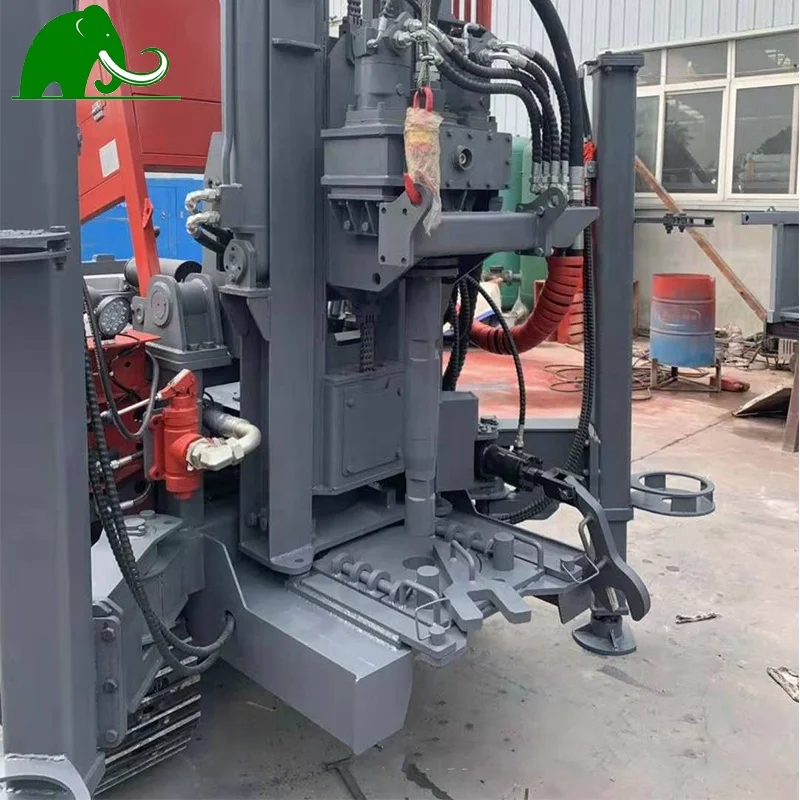

Track type multipurpose water well drill rig is a new designed, high efficient and multipurpose hydraulic drill rig, mainly for
drilling water wells, inspection camber wells and geothermal AC wells, etc.
drilling water wells, inspection camber wells and geothermal AC wells, etc.
Drill Depth | 260m | Rotation speed | 80/160 r/min |
Drill diameter | 105-300 mm | Rotation torque | 6500/3250 N.m |
Work pressure | 12-35 bar | Progressive efficiency | 10-35 m/h |
Air consumption | 16-55 m3/min | Hoisting lifting force | 1.1 ton |
Drill pipe length | 3 m | Tramming speed | 2.5 km/h |
Drill pipe diameter | 89/102 mm | Gradeability | 21 degree |
Feed power | 6.5 ton | High leg stroke | 1.5 m |
Lifting force | 15 ton | Loading width | 2550 m |
Feed speed | 60 m/min | L*W*H | 4100*1600*2220 mm |
Lift speed | 30 m/min | Weight | 6000 kg |
Engine | Yuchai 78 Kw | Engine speed | 2200 |
Size Information
ANBIT-260B | ANBIT-300S | ANBIT-330B | ANBIT-350 | ANBIT-370G | ANBIT-390G | ANBIT-450G | ANBIT-550G | |
Max Depth | 260m | 300m | 330m | 350m | 370m | 390m | 450m | 550m |
Max Hole diameters | 105-300mm | 105-300mm | 105-300mm | 105-325mm | 105-325mm | 105-350mm | 105-400mm | 105-450mm |
Recommend Products
Packing&Shipping
We deliver it by sea
After Sales Service
Online 24 hours
If you have any question , you can contact with our anytiome. We can give you best service.
Company Profile
Shenyang ABT Drilling Equipment Co., Ltd. mainly provides holistic drilling solutions, serving the mining, stone crushing, water conservancy drilling industry, to help you solve the problem of drilling at high efficiency and low cost. We mainly provide mobile air compressors, drilling rigs, hammer, drill bit, crushers, underground water detector.We are your trustworthy partner.
FAQ
1.How do you deliver shipment?We can deliver it by sea.
2.How can I pay?
You can order it on Alibaba directly.And we accept T/T, D/P,L/C, Westen Union and so on.
2.How can I pay?
You can order it on Alibaba directly.And we accept T/T, D/P,L/C, Westen Union and so on.
