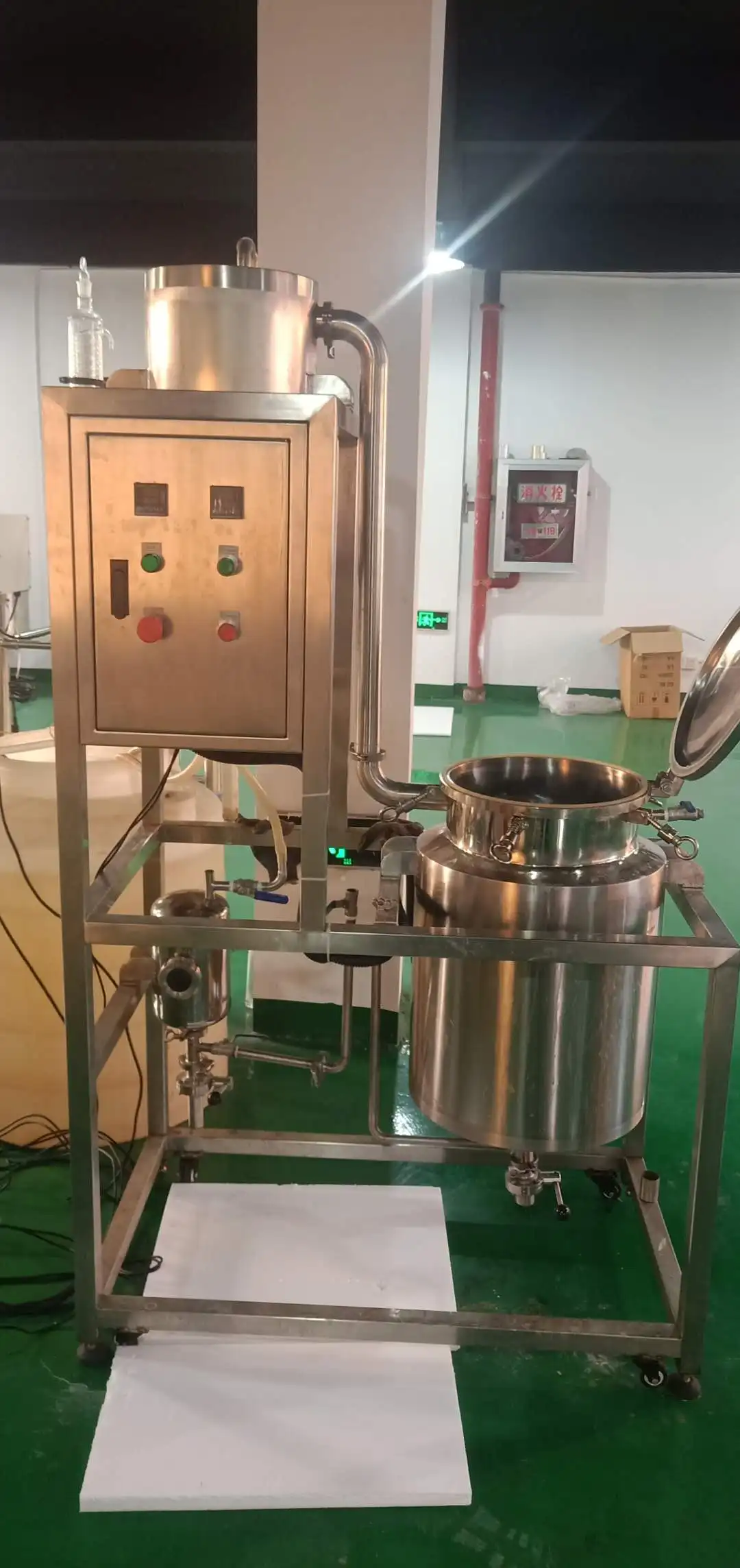

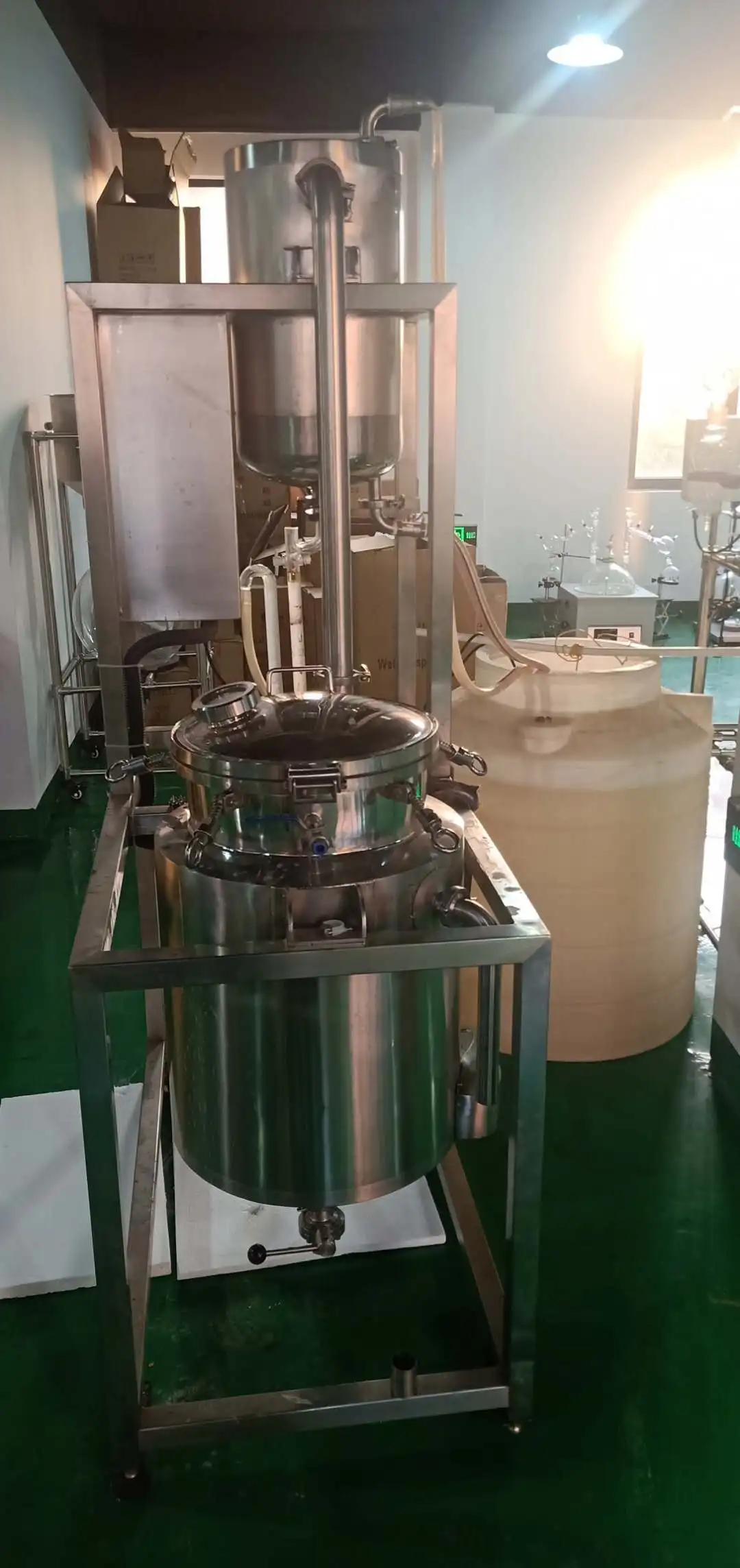

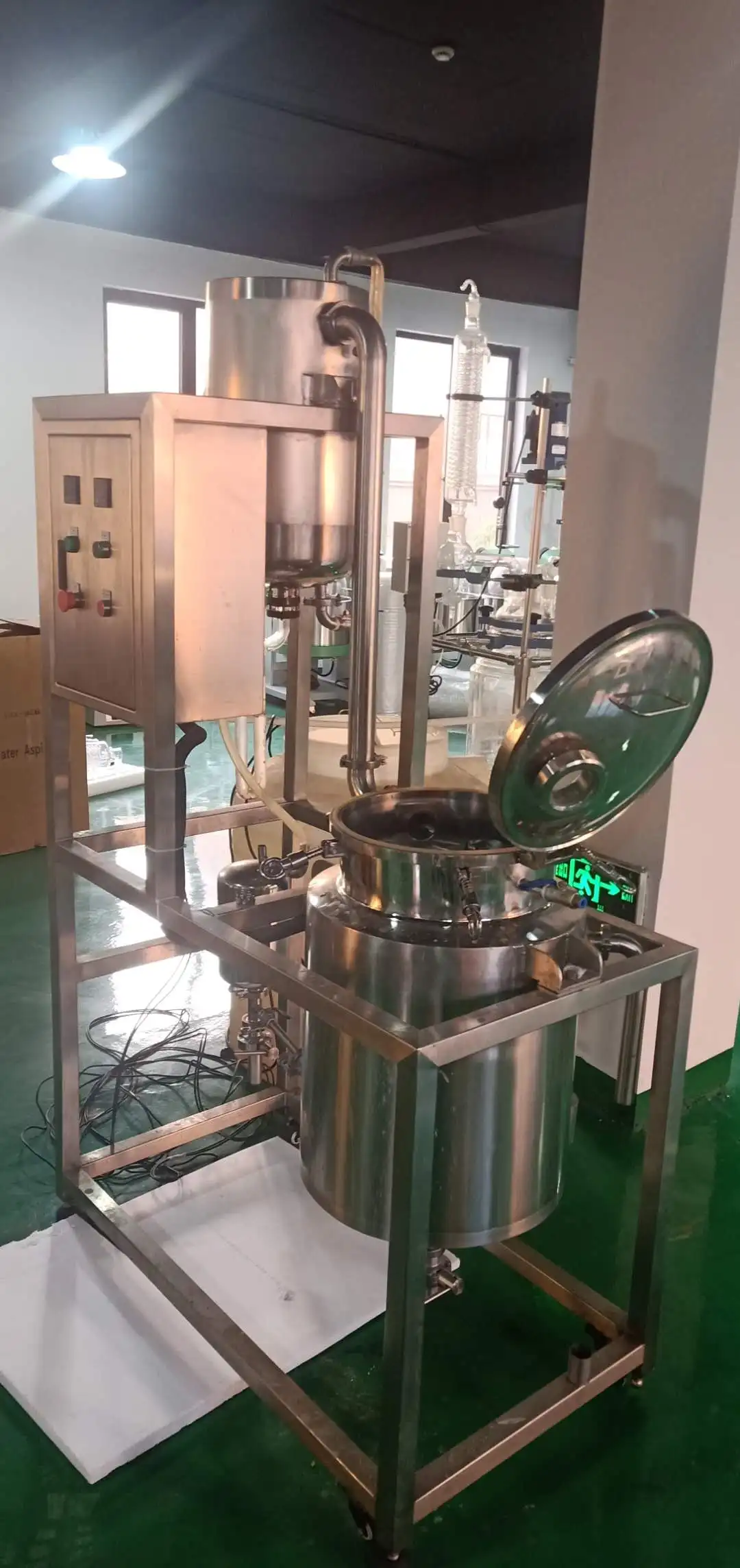

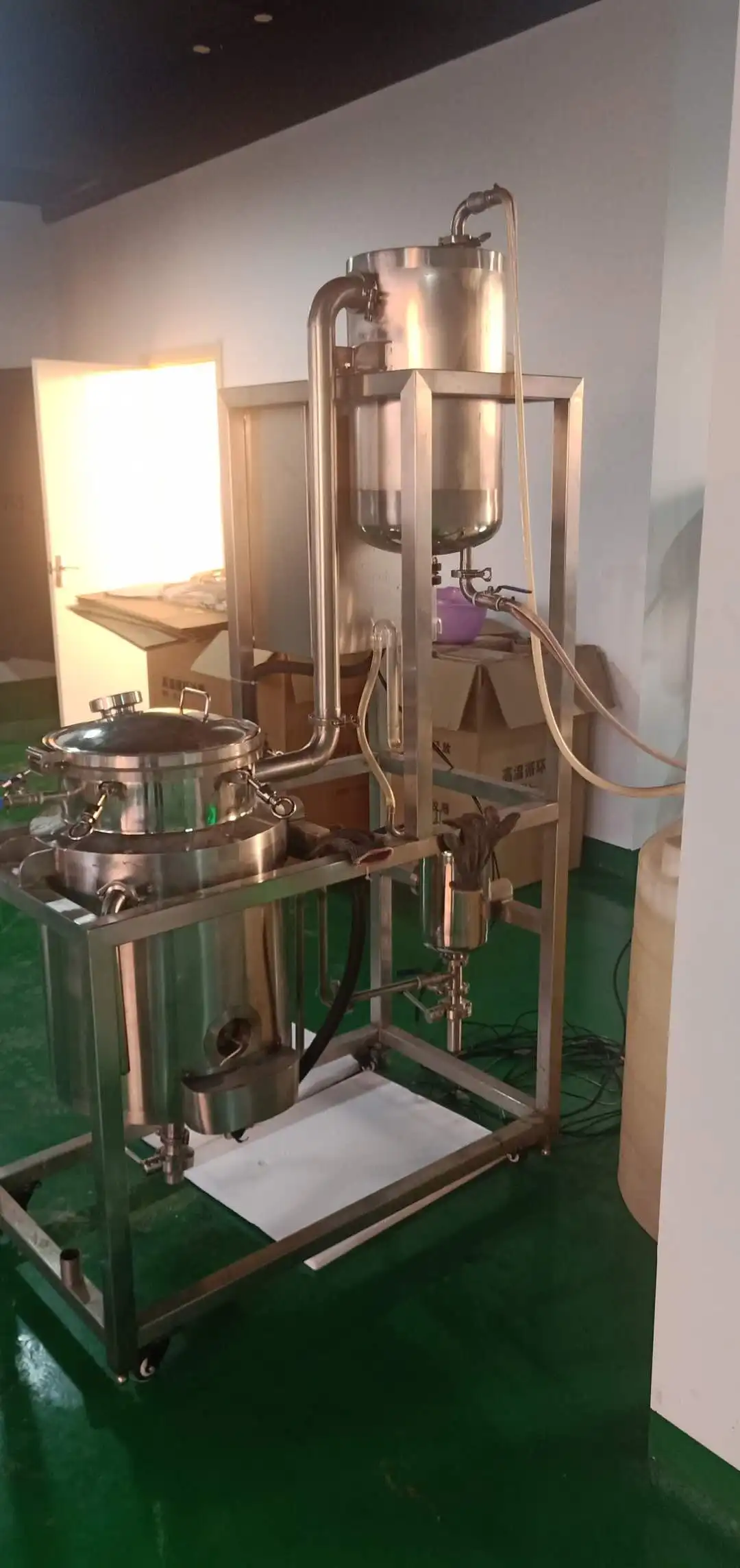

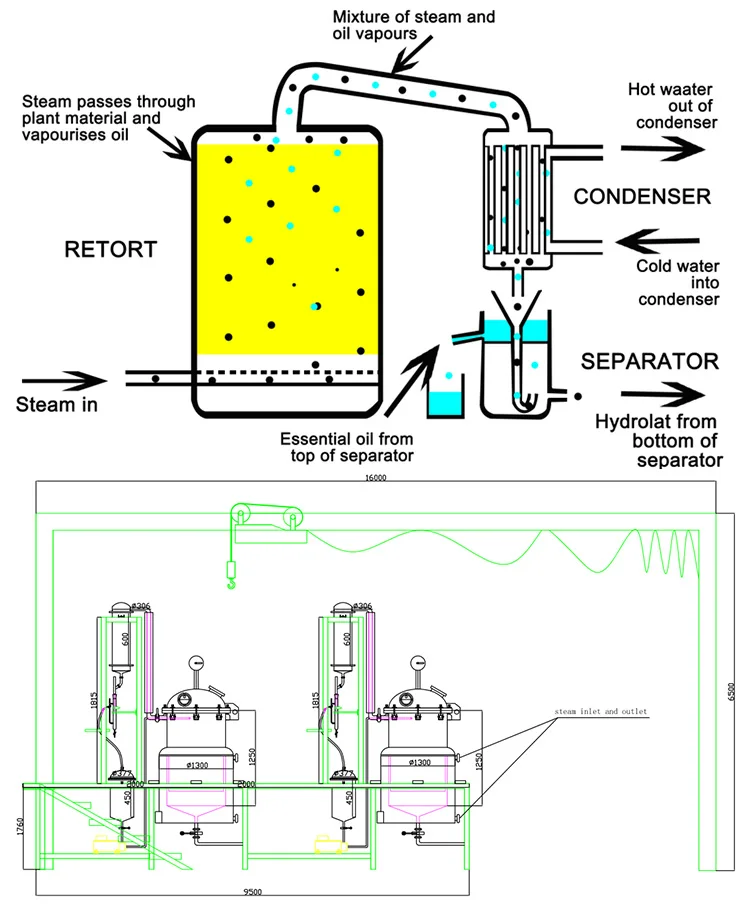

This unit is popular in extraction of essential oil from plants,flowers,leaves,wood, such as rose,lavender,eucalyptus leaves,lemongrass,citronella,sandalwood, agilawood etc.By steam distillation or water distillation, the steam passes through plants material and vaporizes oil,mixtures of steam and oil vapors go into the condenser.After the cooling,oil formed.This is the ideal device for you to make essential oil no matter for laboratory use or batch production.
Specifications

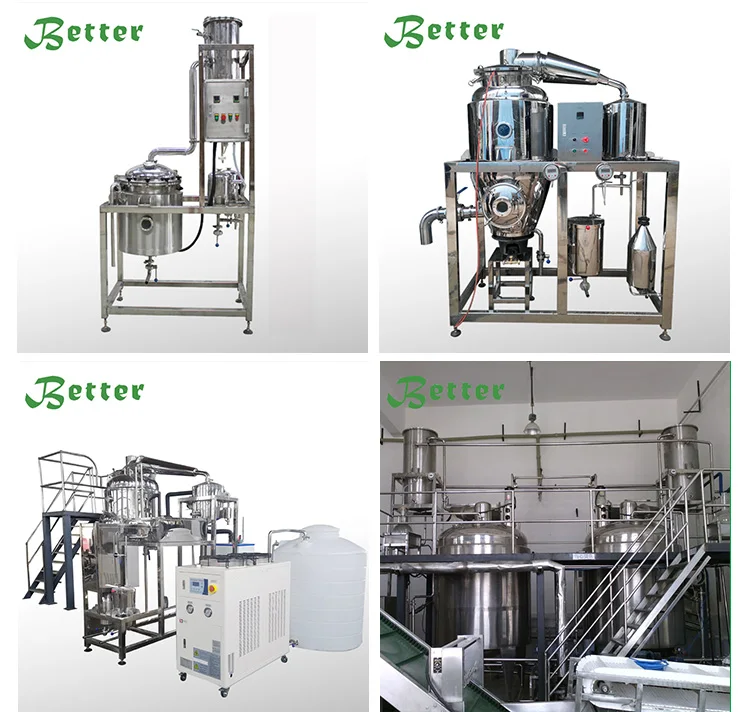

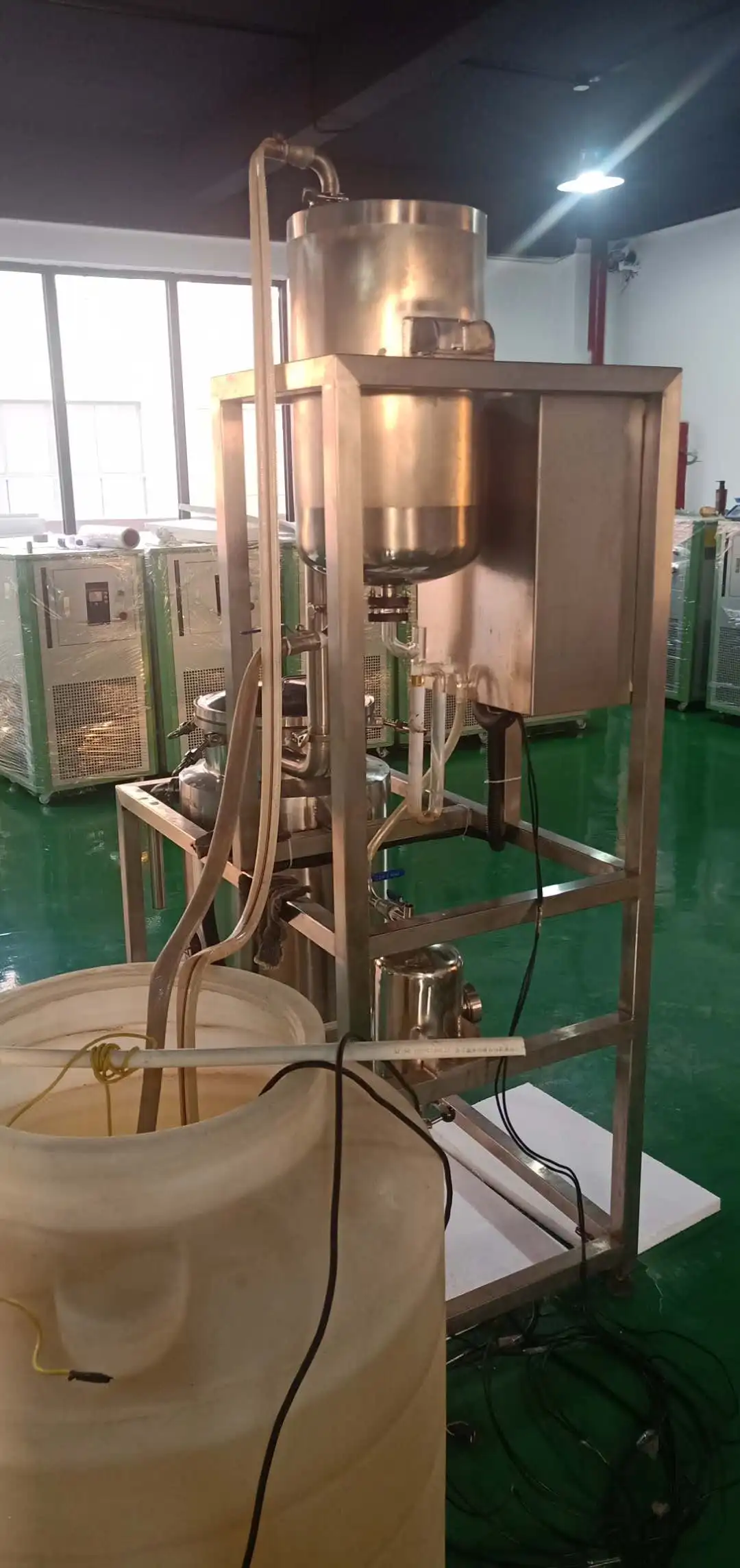

Essential oil extraction equipment

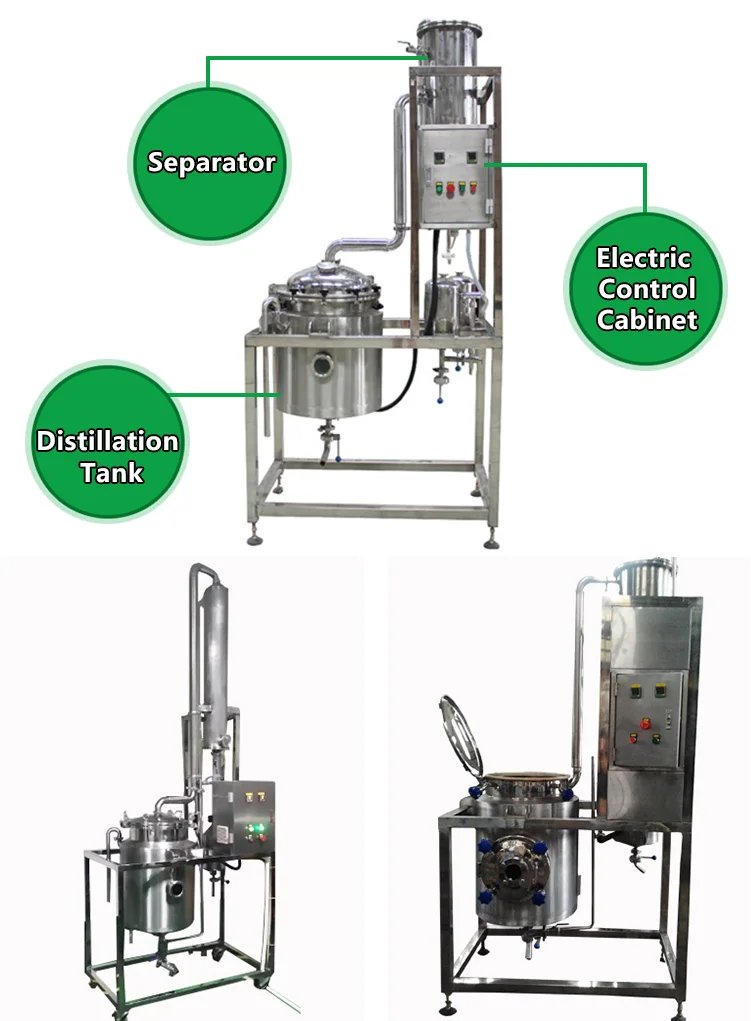

Small&Medium size Essential Oil Distiller
Model
Capacity
Power
Diameter of Condenser
Material
Heating Area of Extraction Tank
Condensing Area of Condenser
HEC10
10L
4KW
102mm
SUS304
0.3M2
0.7M2
HEC20
20L
4.5KW
102mm
SUS304
0.4M2
0.75M2
HEC30
30L
5KW
133mm
SUS304
0.45M2
0.8M2
HEC50
50L
11KW
133mm
SUS304
0.5M2
0.85M2
HEC100
100L
15KW
133mm
SUS304
1.05M2
0.95M2
HEC150
150L
17KW
133mm
SUS304
1.45M2
1.25M2
HEC200
200L
20KW
133mm
SUS304
1.85M2
1.50M2
HEC300
300L
25KW
133mm
SUS304
1.95M2
2.00M2
Large Customized Machines
Model
Capacity
Temperature display
Cooling water circulation pump
Crane system
Console
Boiler
HEC400
400L
Digital temperature control system, with steam stop valve, drain valves, steam traps, etc.
Cooling water circulation pump, 20tons/H, the cooling water through the pipe into the condenser
Carbon steel rust treatment table
The gas \ coal \ electric boilers according customer local conditions to select
HEC500
500L
750kg
HEC1000
1000L
1000kg
HEC1500
1500L
1000kg
HEC2000
2000L
1000kg
HEC3000
3000L
1500kg
HEC4000
4000L
2000kg
Description
Materials suitable for essential oil extraction machines
Flower
Rose, lavender, ylang ylang, chamomile, neroli, Geranium etc.
Plants
Rosemary, citronella, lemongrass etc.
Citrus
Lemon, orange, Bergamot, grapefruit,lime etc
Leaves
Eucalyptus leaves, Mugwort, Patchouli, Peppermint, pine needle etc.
Wood
Sandalwood, agarwood, cedarwood,Wintergreen etc.
Resin
Frankincense, myrrh etc.
Others
Cinnamon,pepper, fennel, ginger etc.
Our Services
Certifications
Our Exhibition
FAQ
I’m interested in purchasing one set of your essential oil distiller, could you provide me some specs and price?
---Yes,but we need to confirm the model first and then provide you with the specs and quotation.
What capacity do you provide?
---We have many different capacities from 10L to 6000L, larger models also can be customized by customer’s requirements.
Can I use the same machine to extract different raw materials?
---Yes, of course, before extract different raw matrials you need to cleaning the machine.
How to clean the machine?
---Just pour in water or ethanol and the cleaning process is the same as the extraction process.
What is the oil yield?
---It depends on the oil content of your raw materials, oil content is different, the oil yield will be different.
How long does it take to run one batch?
---The batch processing time of plant materials is about 3-4 hours, wood chips is about 6-8 hours generally.
Can I do the extraction test with my own raw material?
---Yes, you can come to our warehouse to do the test by yourself or send your raw materials to us ,we will help you do the test.
What kind of heating types does your machine support?
---Electricity/gas/wood/steam,you can choose by yourself and we do manufacture.
Do you provide installation service?
---Yes,we do. As for small models, we install it before we ship and also will provide online video to teach you how to operate it;As for big models, we can arrange our engineer fly to install in your factory.
Does the quotation include boiler and cold water system?
---Nope,boiler ,chiller or cold water circulating pump are the choices for customers.
