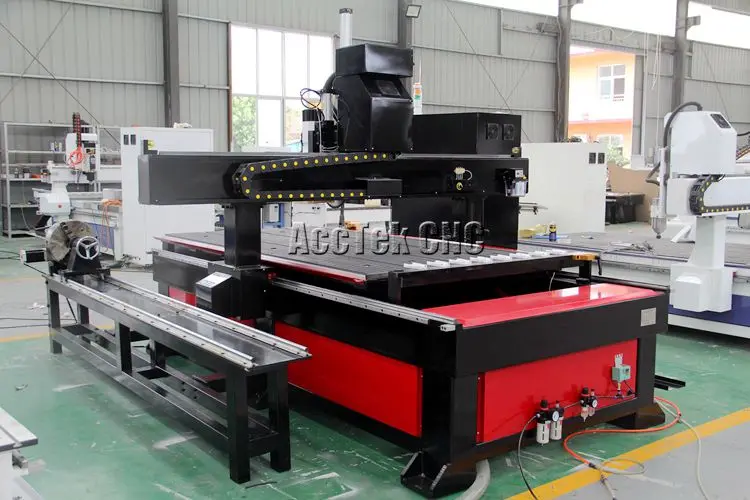

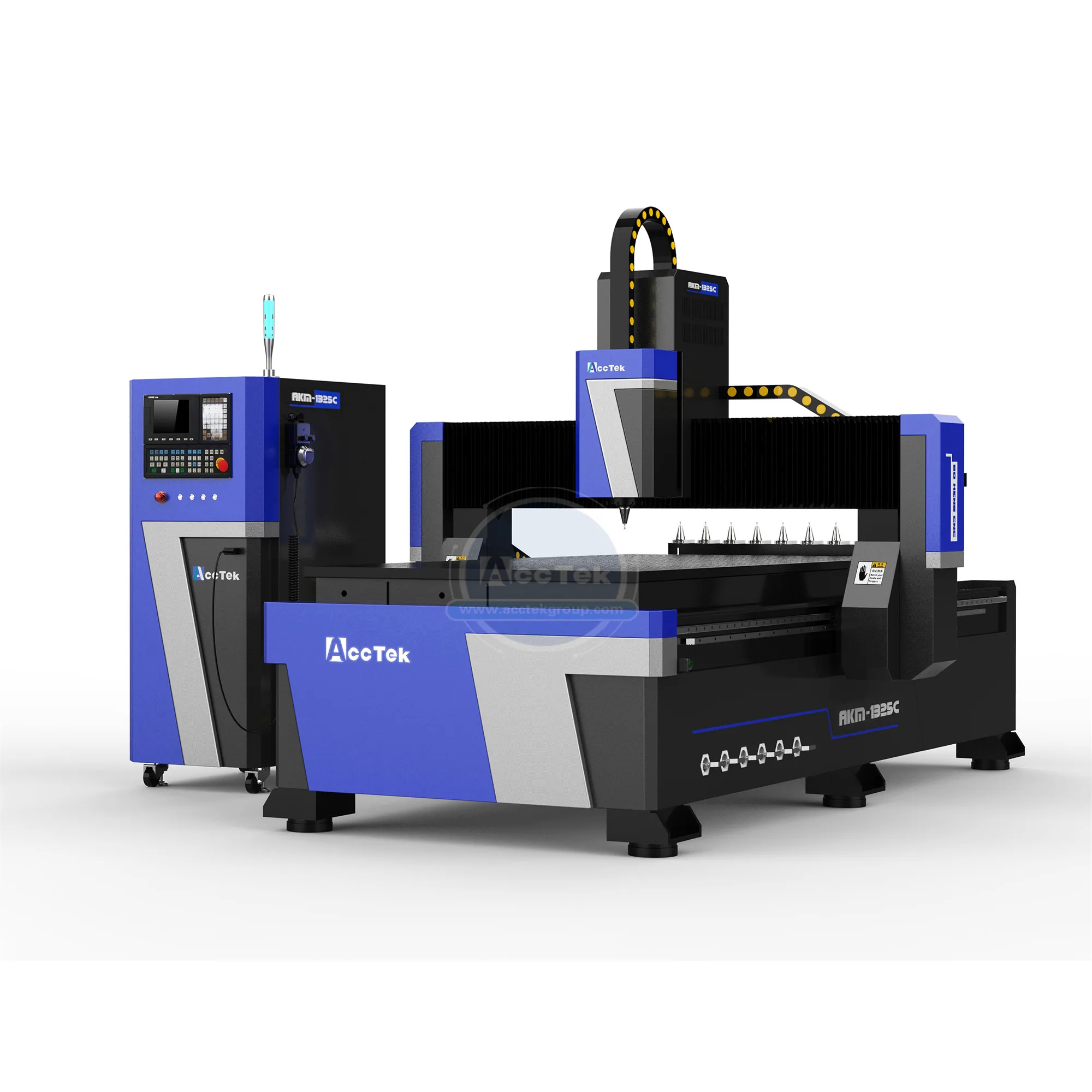

Automatic tool change 3d wood carving cnc router machine 1325 for plastic and die board cutting engraving

Product Overview

Description

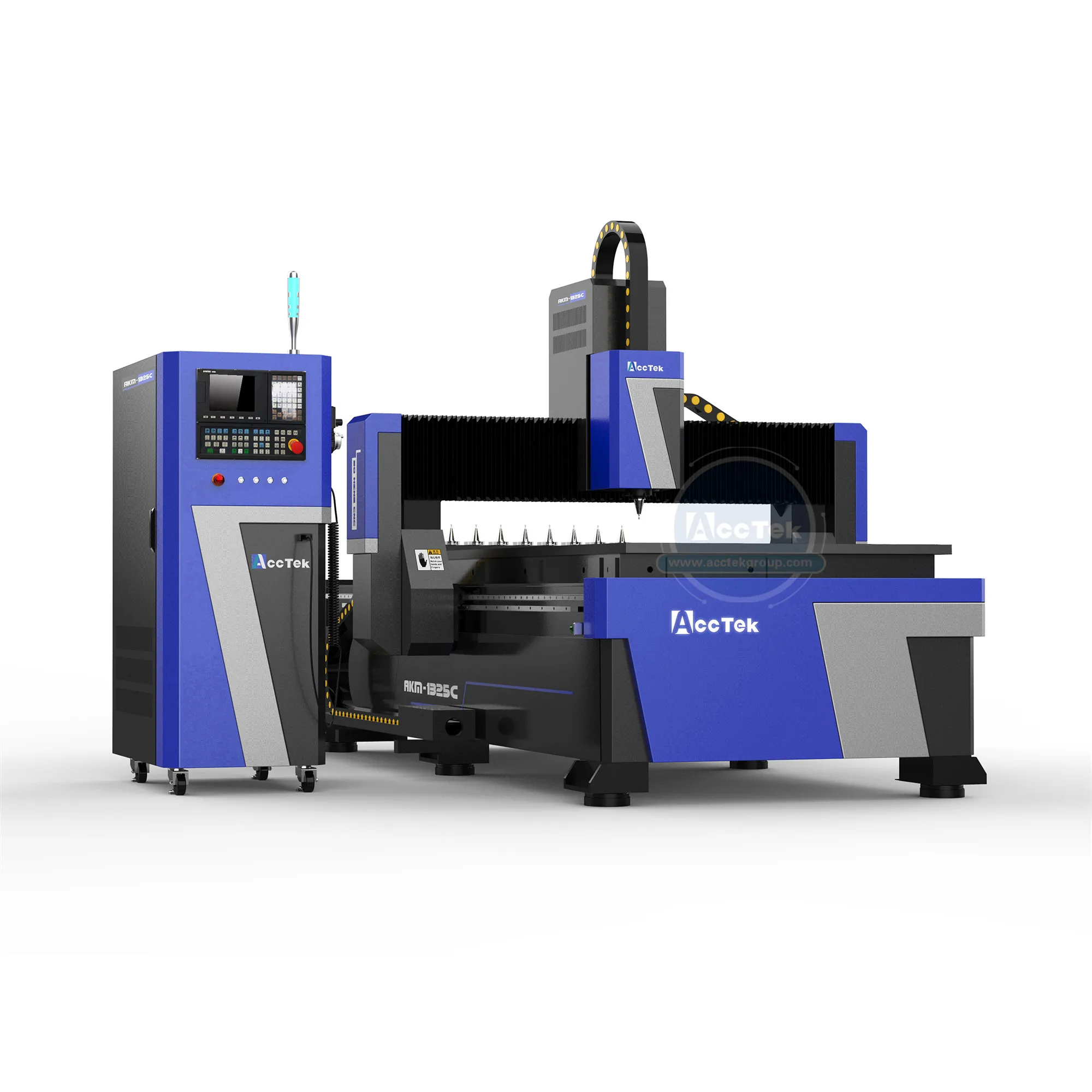

Automatic tool change 3d wood carving cnc router machine 1325 for plastic and die board cutting engraving



Automatic tool changer on the basis of the classic work surface 1300*2500mm, classic woodworking machine widely used in furniture processing plants.

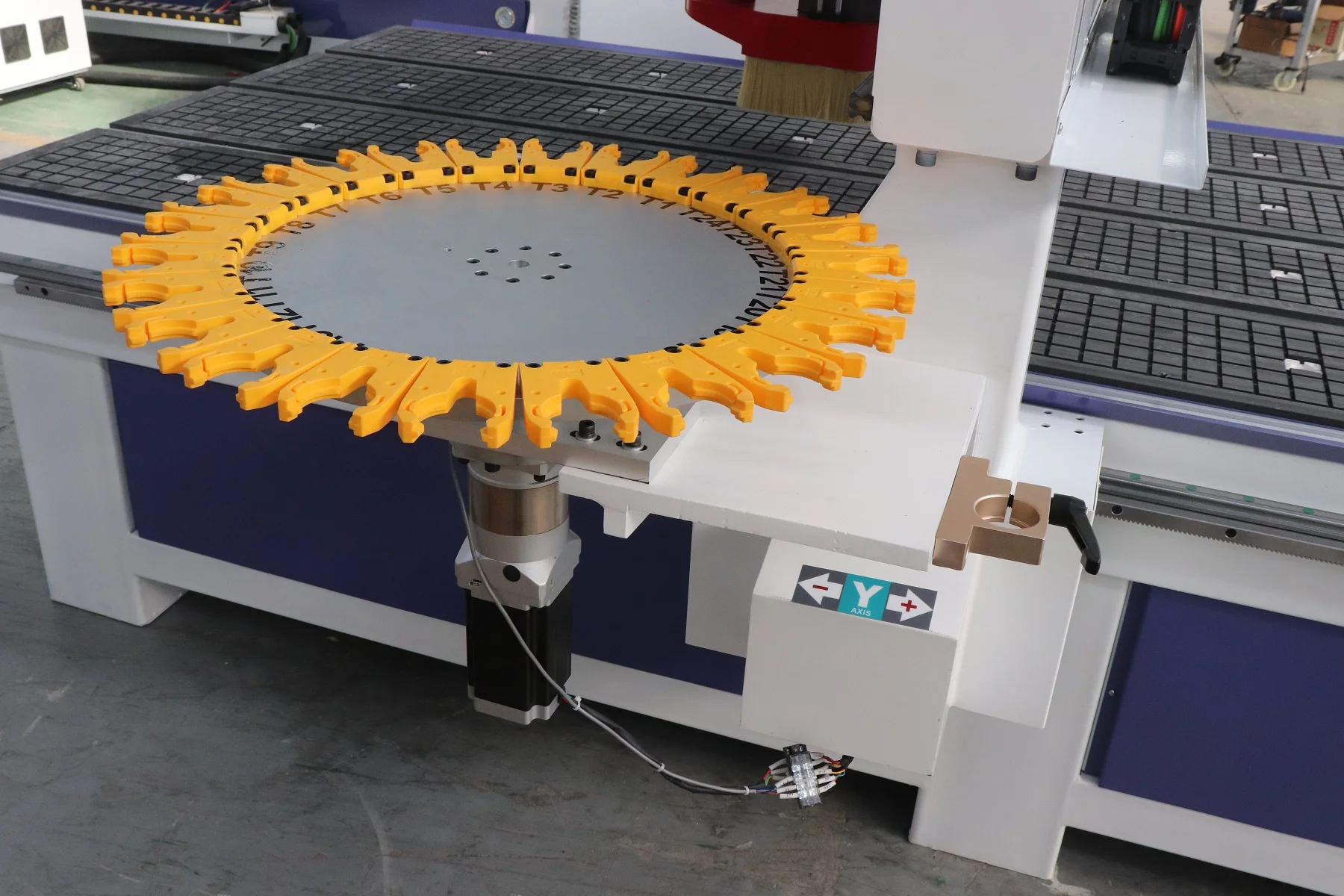

Equipped with 8 tools linear type tools magazines, save much labor time, high efficiency working for wood furniture field.
All the working area and specifications can be customized according to your request.











Parameters :

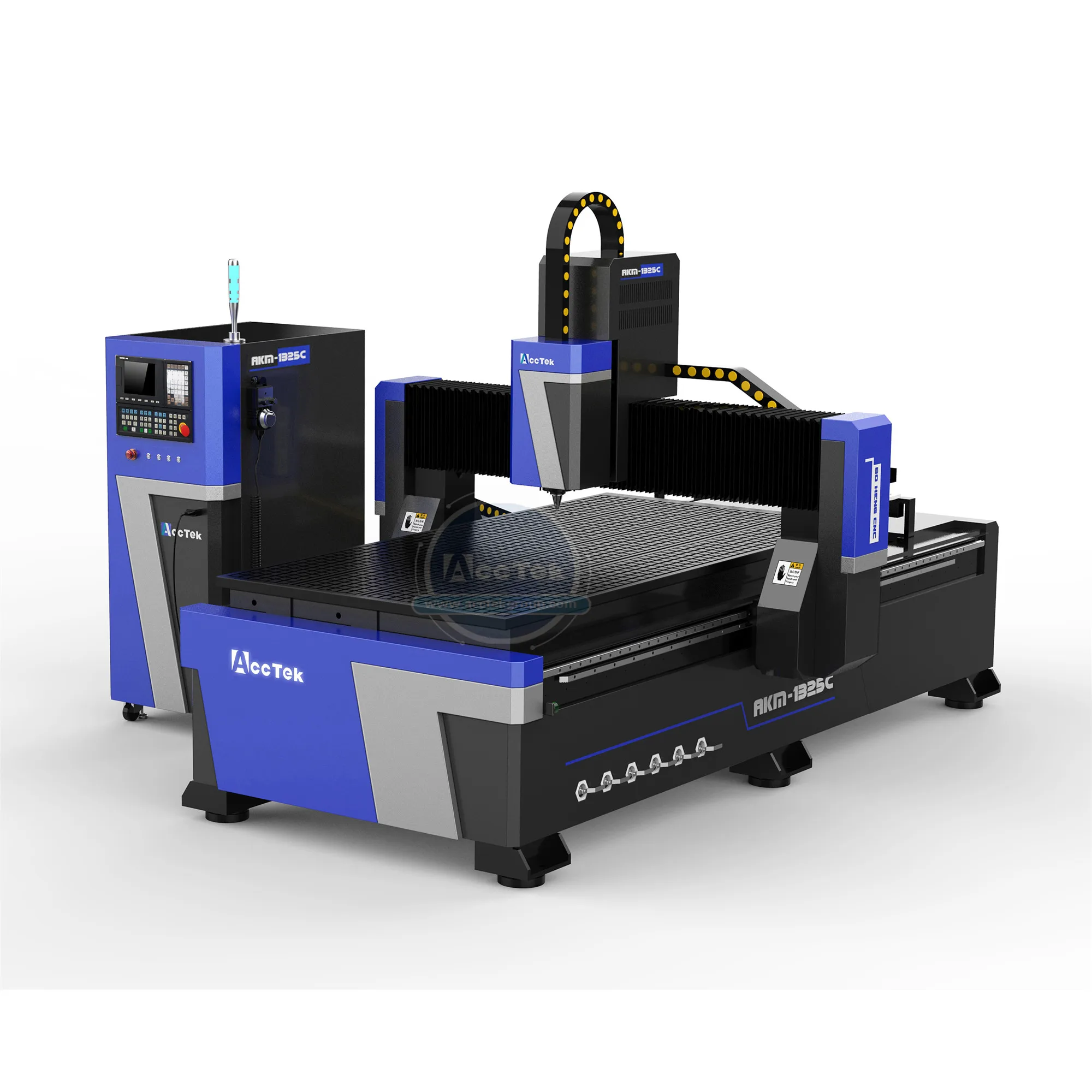

Machine Model	ATC cnc router	AKM1325C
Traveling size	X Working Area	1300mm
	Y Working Area	2500mm
	Z Working Area	250mm
Accuracy	Working Accuracy	±0.03mm
	Repositioning Resolution	±0.01 mm
Structure       Transmission	Table Surface	T-Slot & Vacuum table cobined
	The whole Machine	Heavy duty structure
	X/Y/Z	X/Y rack drive, Z ball screw with air cylinder system

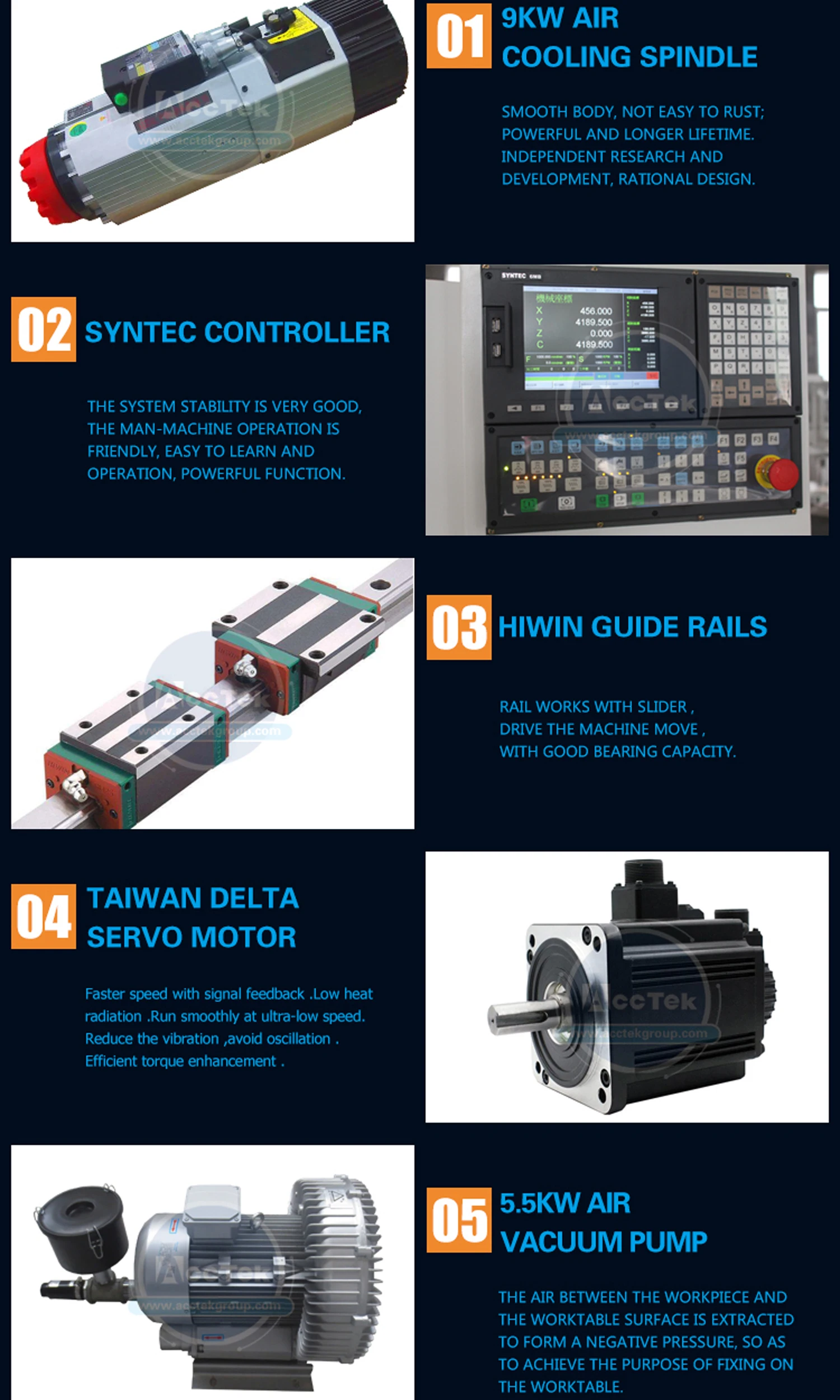

	X/Y axis	Taiwan HIWIN square guide rails 30mm
	Z axis	Taiwan TBI ball screw
Speed	Rapid Travel Rate	Max 50000mm/minute(servo)
	Working Speed	Max 40000mm/minute(servo)
Spindle	Spindle Power	9.0kw air cooling ATC spindle
	Spindle Speed	0-18000rpm
Working:	Drive System	Japan Yaskawa Servo motor and drivers/ Delts servo optional
	Command Language	G code
Others	Working Voltage	220v/380v  3 phase  50-60HZ
	Operating System	Taiwan Syntec control system
Weight	Gross weight: 1600kg	Net weight: 1200kg



 PS:All the working area and specifications can be customized according to your requests.

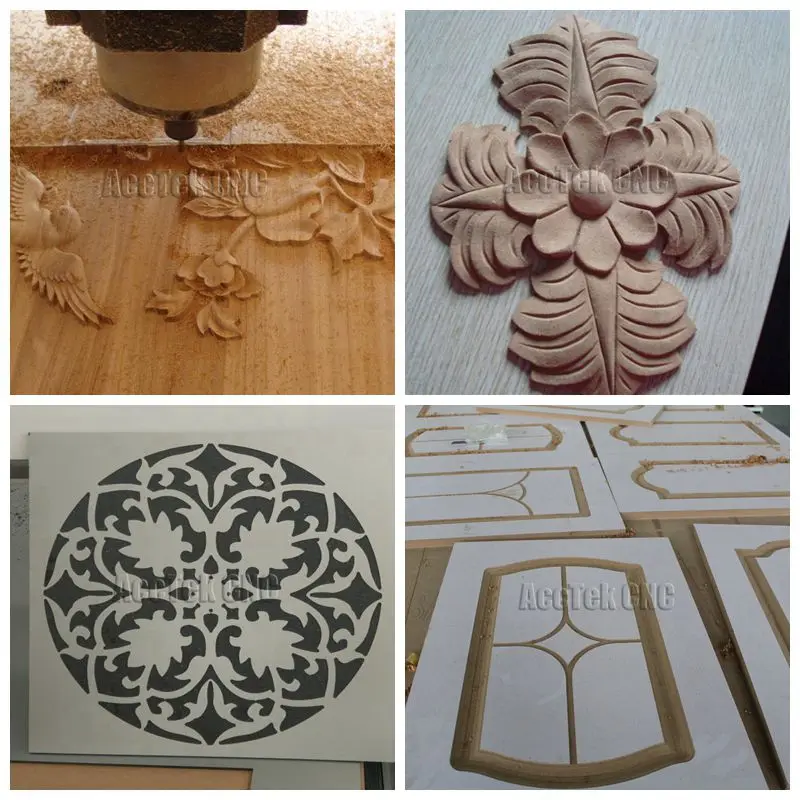

Applications:

# Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.









Our main products are AccTek CNC Routers and Laser engraving and cutting machines. Stock or custom configurations are our specialty.

Components for our machines are sourced from world class suppliers and innovators in machine control.
These machines are used in many industries, crafts and arts businesses around the world. These include woodwork, metal and stone work,

aluminum fabrication, boat building, shop fitting, mold making, to name a few.
Our dedicated and highly skilled after sales service department, sales team, and thorough quality assurance procedures mean that you can buy with confidence.
We welcome customers and potential business associates from around the world. We can work together cooperatively for mutual benefit.
“Our business is to improve your business”



















FAQ:

♥How can I get the best cnc wood carving machine?

You can tell us your working materials details work by picture or video,so that we can judge

wether our machine can meet your need or not .Then we can give you the best model depends

on our experences.

♥This is the first time I use this kinds of cnc wood carving machine,it is easy to operate ?

we will send you manual and guide video in english ,it can teach you how to operate the

machine .

♥The model is not suitable for me ,do you have any model avaiable?

Yes we an provide you many models ,such as co2 laser engraving and cutting machine ,co2 laser

marking  machine ,fiber laser marking machine ,laser metal cutting machine ,plasma cutting machine,

rotary router,stone cn router and so on .

♥How can i know that the cnc wood carving machine suitable for me ?

1.What materials do you want to engrave?

Different types cnc machine apply to different material.



2.What’s the max size of your material(Length *width* thickness)

Once you tell me this information of your material, then I'll recommend you the most suitable

machine and the best price for you. And we can also customize one for you or send you a solution.
