2.4GHz 100mW AS01 ML01DP3 Industrial Wireless Data Transceiver Module SPI Port SMA Connector nRF24L01P PA LNA
- Category: >>>
- Supplier: Chengdu Zeyao Technology Co. Ltd.
Share on (62515353738):
Product Overview
Description

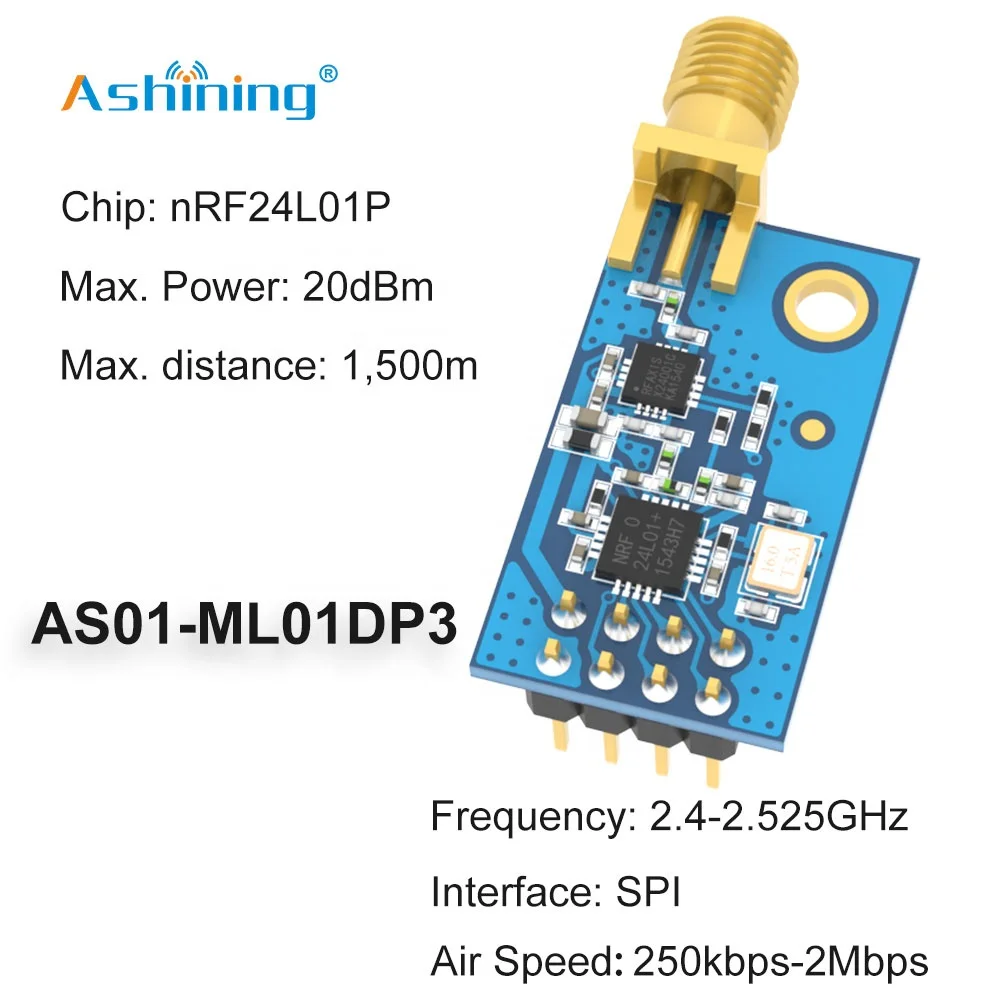

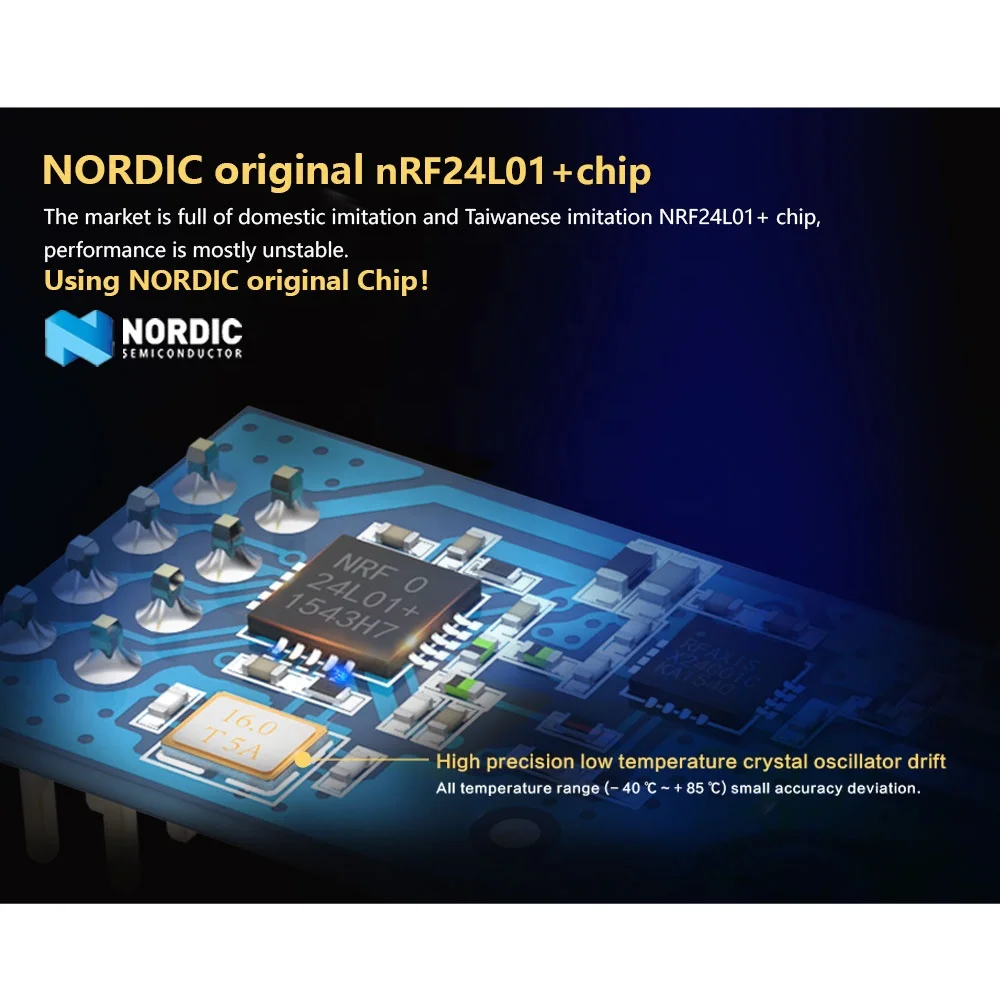

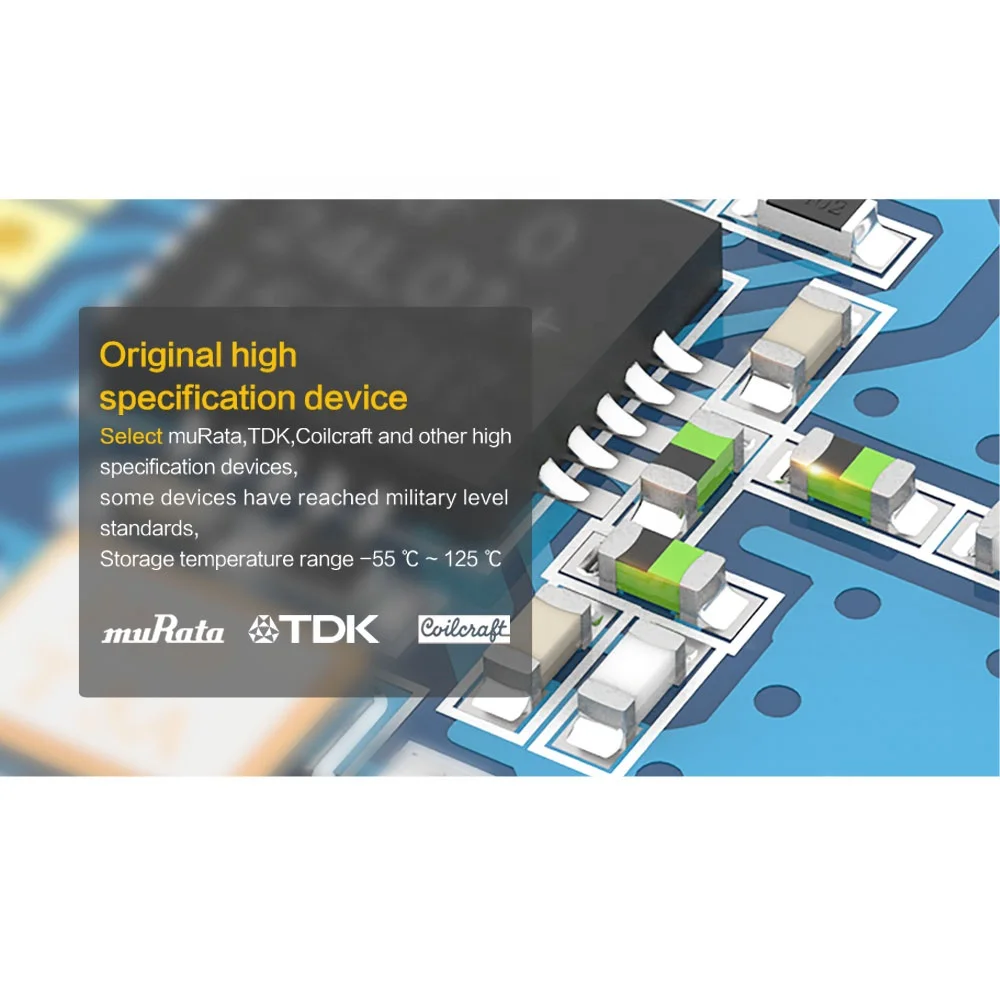

AS01-ML01DP3 is a 100mW industrial wireless data transceiver with high speed and high stability, operates at ISM band 2.4GHz~2.525GHz (default 2.4GHz). The module uses original nRF24L01P and power amplifier chip RFX2401C from Nordic. Built-in LNA improves the receiving sensitivity by 10dBm. It features enough power, good spectral properties, small harmonic wave, small cross talk and super small volume. Some of the devices meet military grade standard.
Electric Parameter
No. | Parameter Name | Parameter values details |
|---|---|---|
| 1 | Module Size | 15 * 27mm (not including antenna or SMA junction) |
| 2 | Source of the devices | All imported components from Japan, USA, Germany |
| 3 | Production craft | lead-free, electrostatic bag packaging |
| 4 | Interface mode | 2 * 4 * 2.54 mm, plug in packaging, you can use the universal board and DuPont line |
| 5 | Operating frequency | 2.4-2.525GHz, factory default: 2.4GHz |
| 6 | Supply Voltage | 1.8V-3.6VDC, meet a variety of system requirements. ( if the voltage is smaller than 3.3V, the transmission power will decline, which has little impact on the receiving performance) |
| 7 | Communication level | Maximum 3.6V, The difference between the recommended and supply voltage is less than 0.7V to reduce power consumption |
| 8 | Measured distance (3.0VDC) | About 1500m test conditions: sunny, open, the maximum power, Antenna gains 5dBi, higher than 2m, 250K air rate |
| 9 | Transmission power | Maximum 20dBm, about 100mW, 4 levels adjustable (0-3), increase or deduct about 3dBm each level. |
| 10 | Air rate | 3 air speeds are available (250kbps, 1Mbps, 2Mbps) |
| 11 | Transmitting current | 124.3mA@100mW |
| 12 | Receiving current | 26.5mA (CE=1) |
| 13 | RSSI support | Built-in intelligent processing |
| 14 | Receiving sensitivity | -104dbm @ 250Kbps (receiving sensitivity has nothing to do with serial port baud rate and delay time) |
| 15 | Antenna type | SMA-K antenna |
| 16 | Operation temperature | -40℃ to +85℃ |
| 17 | Operation humidity | 10%-90% relative humidity, no condensation |
| 18 | Storage temperature | -40℃ to +125℃ |
