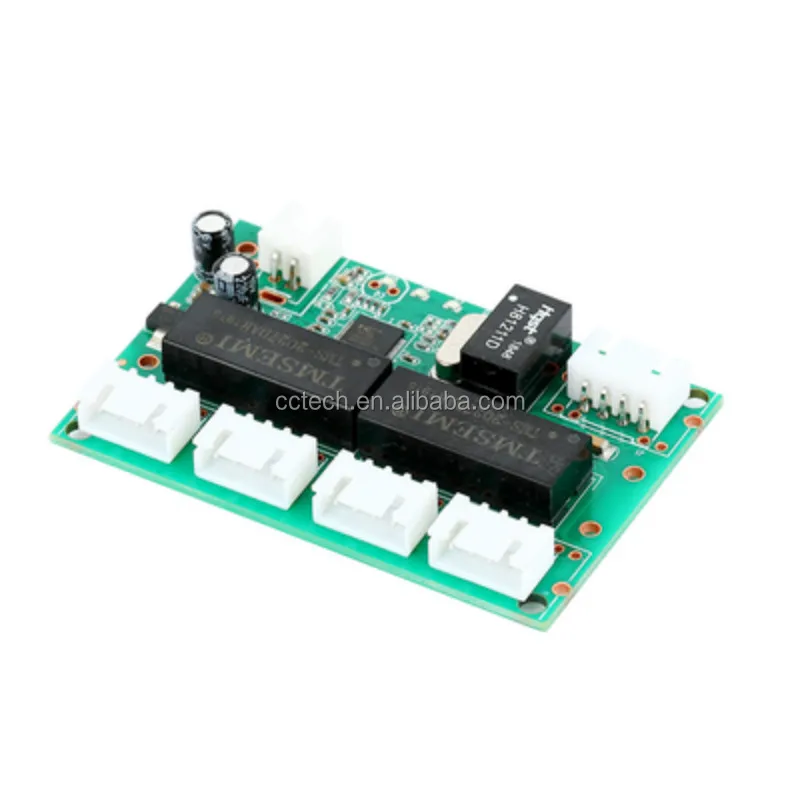

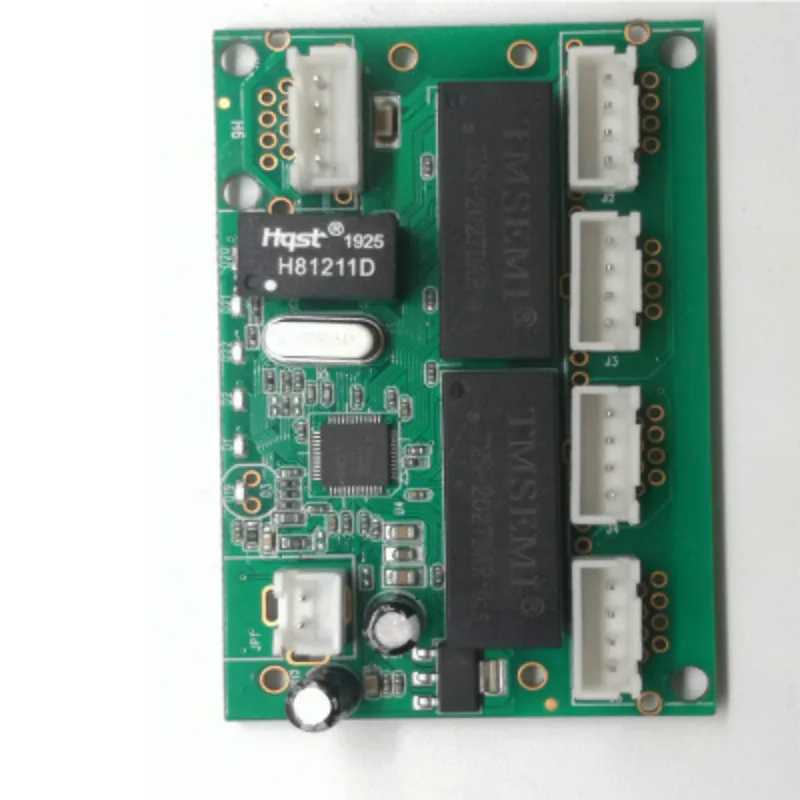

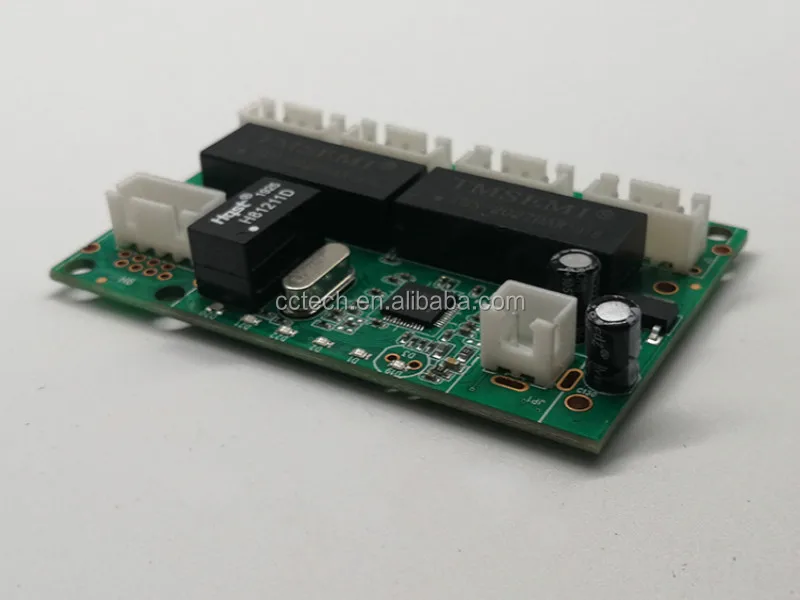

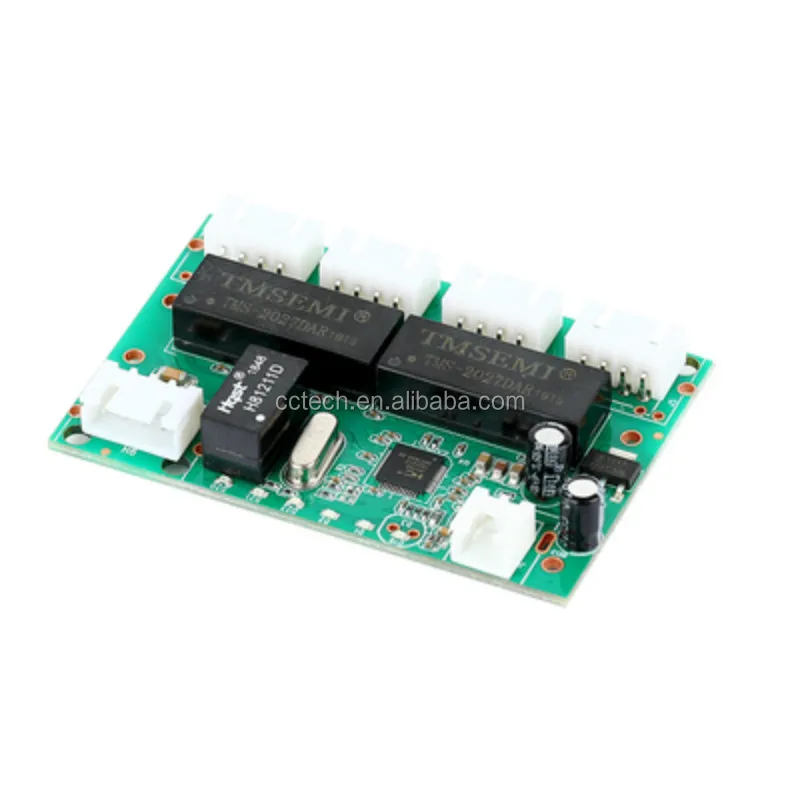

Factory price OEM mini 4 port ethernet switch with 1 uplink small printed circuit board

05E is a high quality reliable design 4 port ethernet switch board with 1 uplink.

DC voltage 5-15v wide range.Connector can be 5.5*2.1mm dc jack or 2.54mm space 2Pin header port.

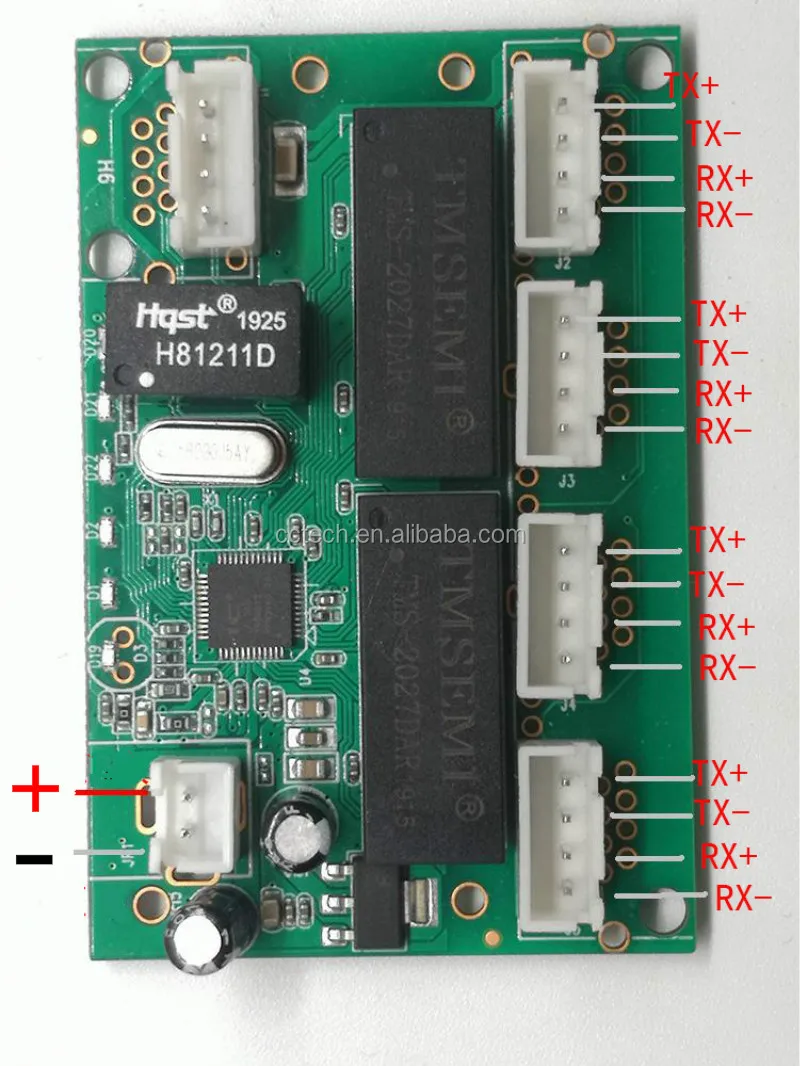

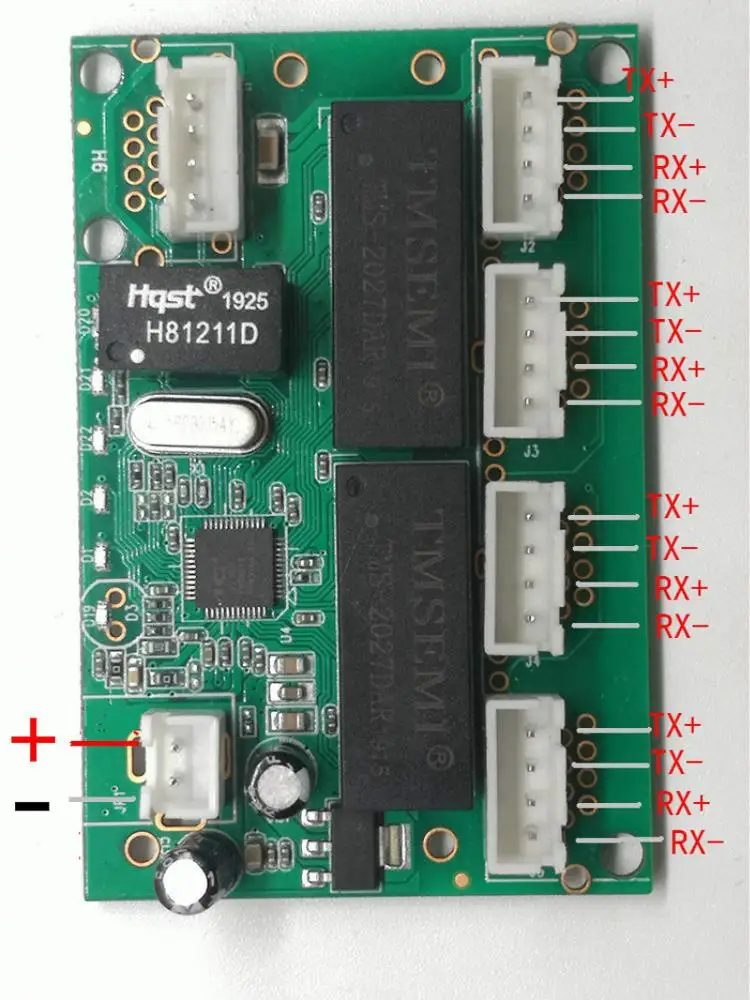

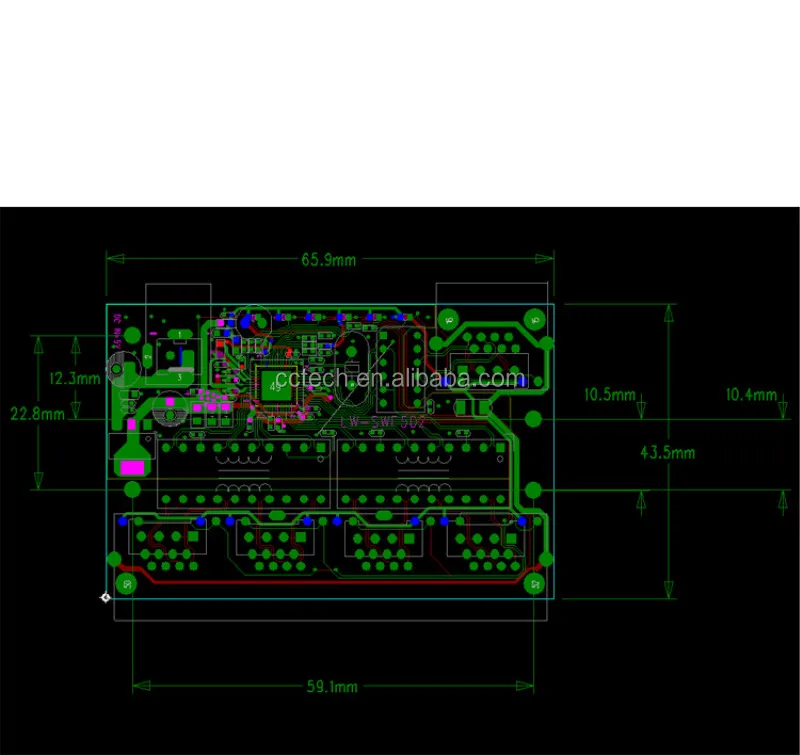

It provides 5 10/100mbps auto-sensing 4pin header ports.Compact size 65.9*43.5mm.

It's widely used for soho/factory/hotel/school/campus/building etc network deployment engineering project.

Features

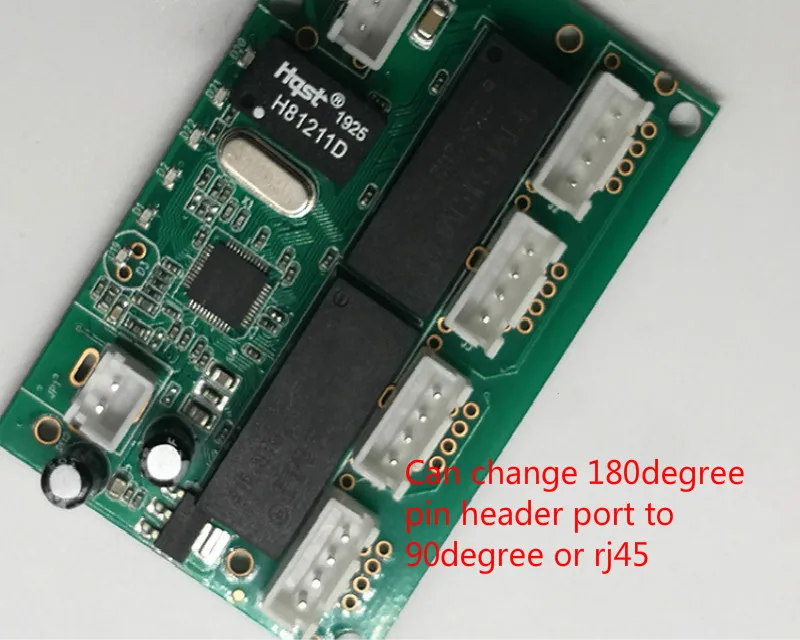

1,All 5 10/100mbps 4Pin header ports(4pin header can be 90degree or 180degree)

2,Comply to IEEE 802.3, IEEE 802.3u, IEEE 802.3x

4,Flow Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.

5,Auto MDI/MDIX.

6,Unmanaged,plug n play,no need configuration

7,Store-and-forward.

8,All ports support wire speed store-and-forward, jumbo frame transmission.

9,LED indicators monitor working status,supporting simple trouble shooting

10,No housing case

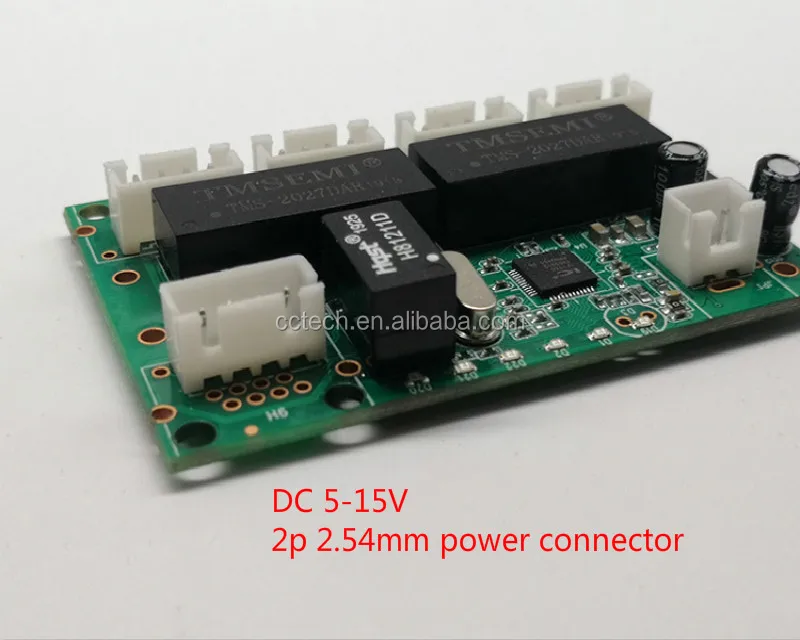

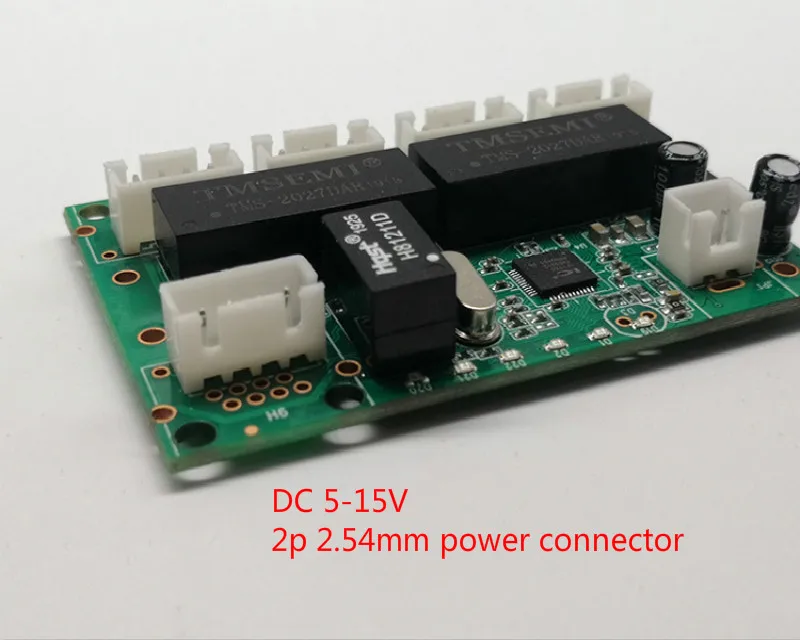

11,5-15v DC voltage.Power connector can be dc jack 5.5*2.1mm or 2p header 2.54mm space connector

12,size 65.9*43.5*16mm

Packing List

1*5 port ethernet switch board

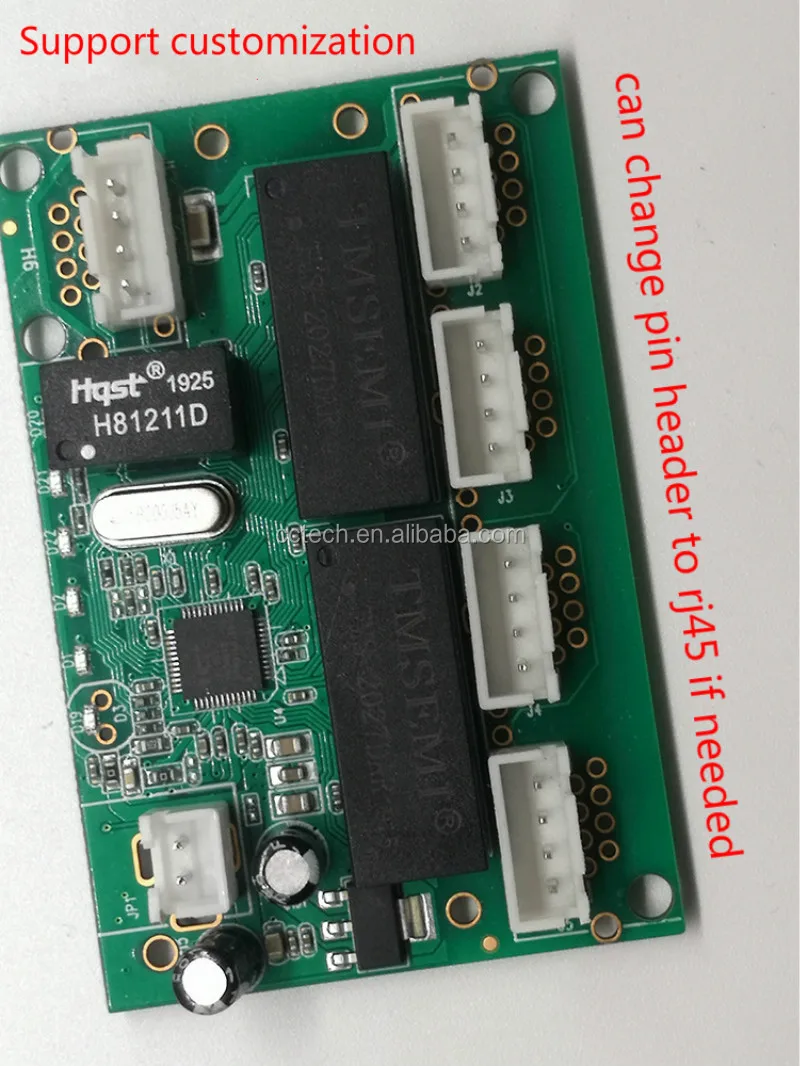

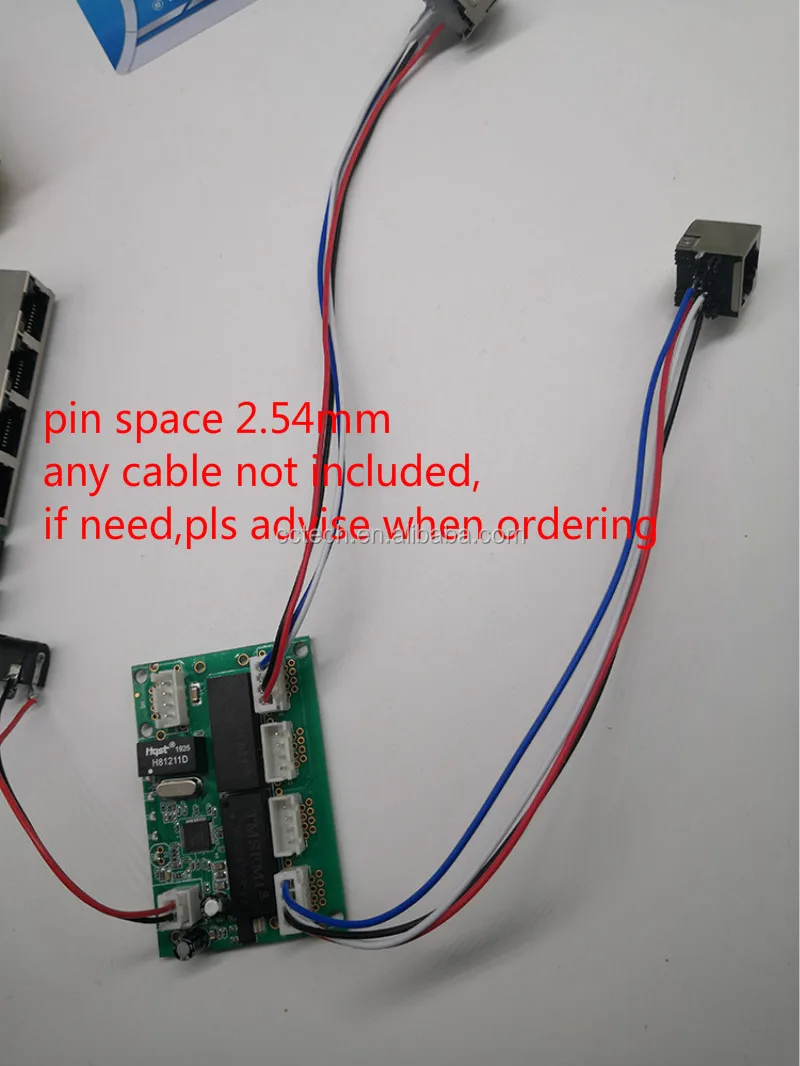

(5*4pin header 2.54mm space 90degree or 180degree optional.No cable provided.Pls advise your detailed requirements when ordering)

Shipped by EMS/FedEx/DHL/UPS/TNT/Air/Sea etc.
500pcs/ctn,kraft paper box or OEM package.

How about the quality?
All our products manufactured with new brand materials,best design with strict old-aging testing and qc tested.

Do you provide OEM service?
Yes, we mainly provide OEM/ODM manufacturing.

Do you provide only PCBA?
Sure,PCBA is welcome here.

Is there MOQ limited?
Welcome to place sample order to check the quality before bulk orders.
Any qty welcome,but as you know,different qty with different price.
Large qty means low cost.

How long warranty period?
All products offered by CCTECH provides 1 year warranty.
