TESmart 70M HDMI KVM Extender Video Transmitter and Receiver over ip 1080p60hz KVM Extender
- Category: >>>
- Supplier: Shenzhen Tesla Elec Technology Co. Ltd
Share on (62515438145):
Product Overview
Description
Product Description

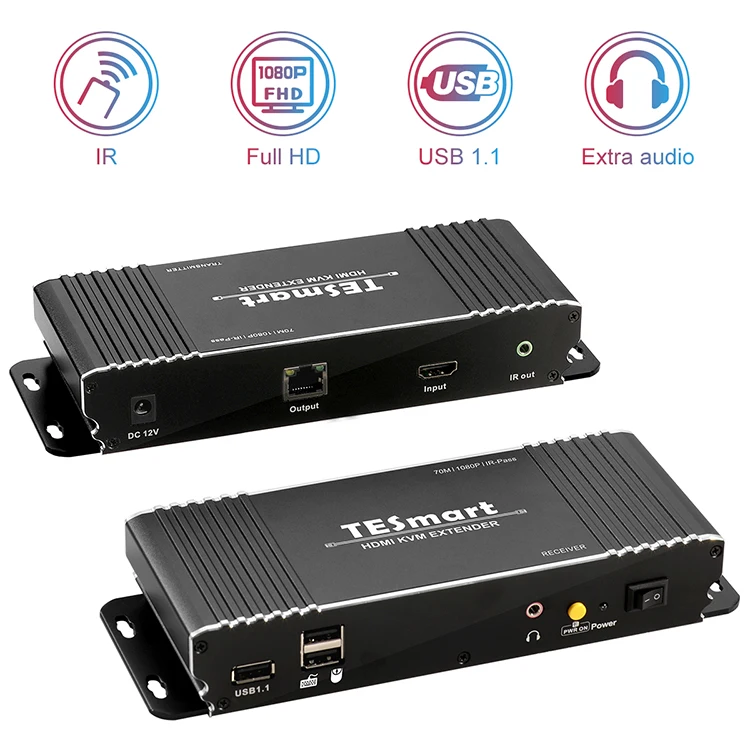

70M HDMI KVM Extender
This 70M HDMI KVM Extender with multi-function HKE0711C1H, extends HDMI and USB signal up to 70 meters over a single CAT5e/6 cable. Support USB1.1 extension, providing access to keyboard, mouse, touch-panels, printers, and USB drive. Support resolutions up to 1920*1080@60Hz (For 70M UTP/FTP). Support EDID pass though, best compliant with different display device. Support infrared control signal pass through. Support extra audio output. With customized remote button, it is easy to turn on PC remotely.
Features
HDCP 1.4 compliant.
Resolution up to 1920*1080@60Hz(For 70M UTP/FTP).
Support USB 1.1 extension.
Providing access to keyboard, mouse, touch-panels, printers, and USB drive etc.
Resolution up to 1920*1080@60Hz(For 70M UTP/FTP).
Support USB 1.1 extension.
Providing access to keyboard, mouse, touch-panels, printers, and USB drive etc.
IR pass through.
Remote PC power switch control.

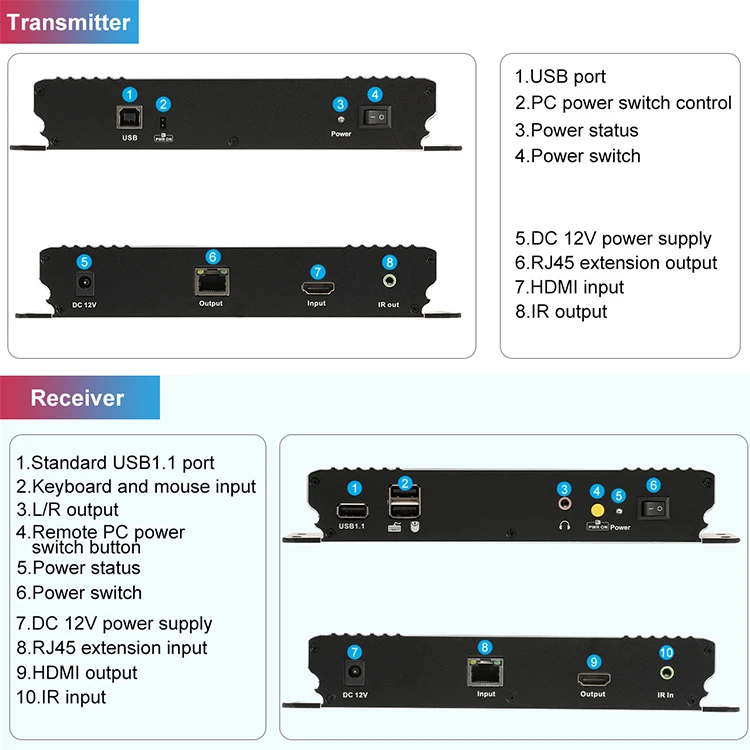

Support speaker output on receiver.Panel Description

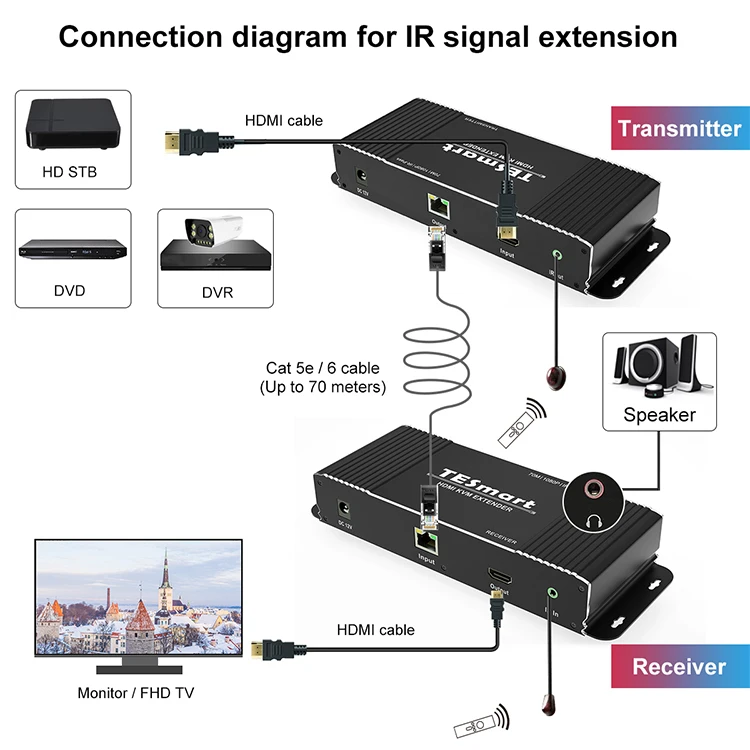

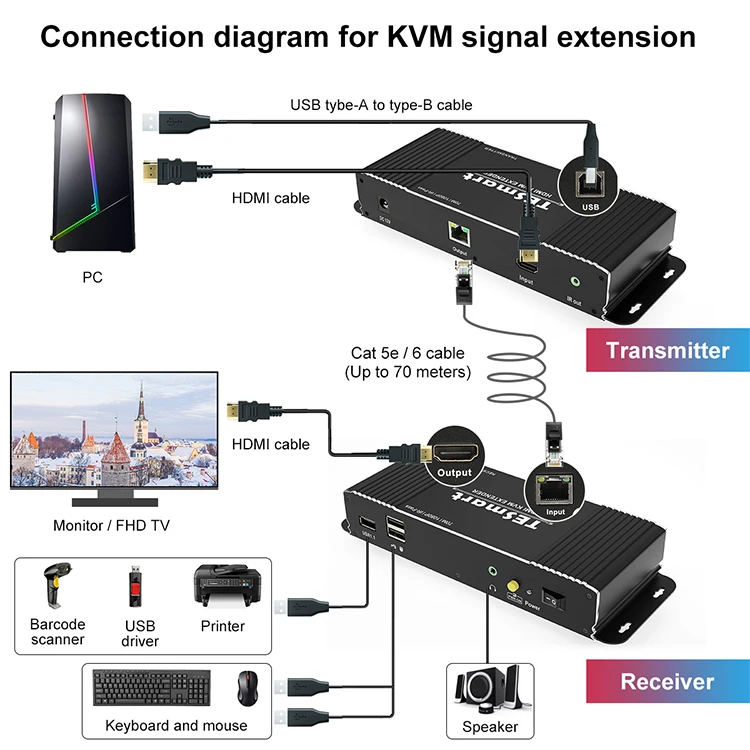

Connection Diagram
Specification
HKE0711B1H | 70M HDMI KVM Extender |
Technical | |
HDCP compliance | 1.4 |
Data rate | 10.2 Gbps |
Max. Resolution | 1920*1080@60Hz( For 100M UTP cable) |
ESD protection | Human body model - ±8kV (Air-gap discharge) |
Input | Transmitter: 1* HDMI Type A, Receiver: 1* RJ45, 2* USB Type A(keyboard and mouse), 1*USB Type A(USB1.1), 1* AUX(for IR in), |
Output | Transmitter: 1* RJ45, 1* USB Type B, 1* AUX(for IR out) Receiver: 1* HDMI Type A, 1* AUX(for Audio out) |
Mechanical | |
Chasing material | Aluminum Alloy |

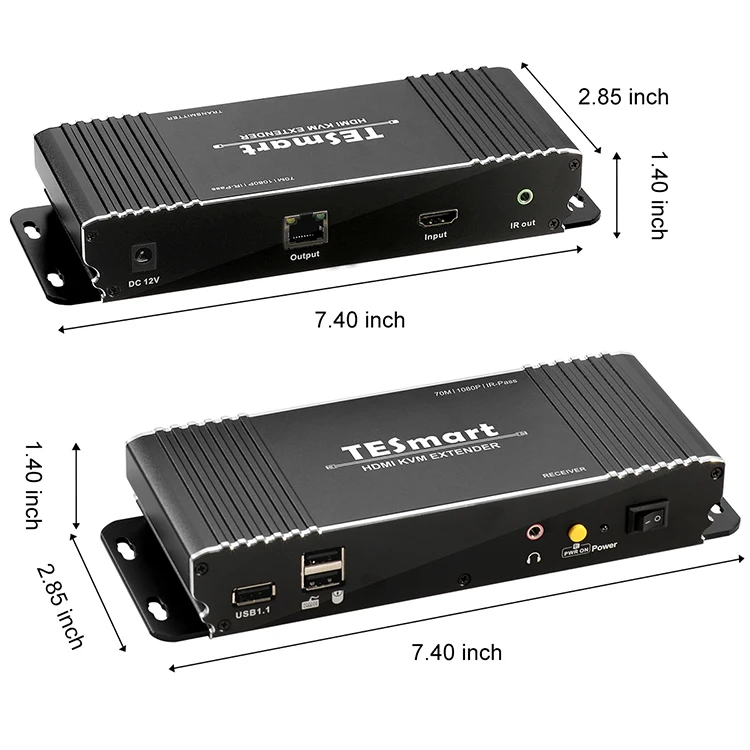

Product Dimensions | RX: 188 (W) x 72.5 (D) x 35.7 (H) mm TX: 188 (W) x 72.5 (D) x 35.7 (H) mm |
Item Weight | 330g |
Power supply | TX: DC 12V 2A RX: DC 12V 2A |
Operating/Storage temperature | 0 to 70 degree/-40 to 85 degree |
Operating Humidity | 10 to 90% RH |
Details Images
Packing and Shippment

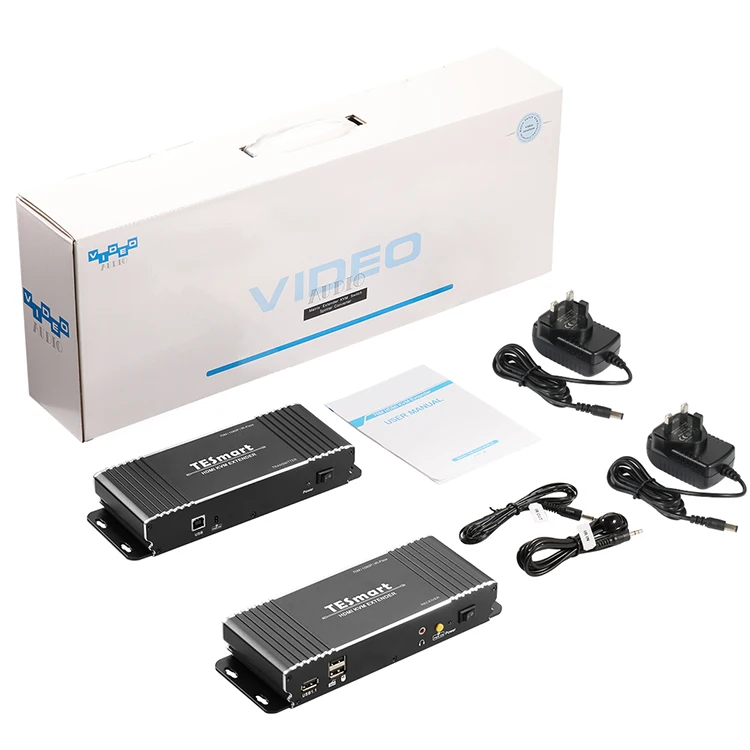

Packing list
1 * HDMI KVM Extender transmitter
1 * HDMI KVM Extender receiver
2 * DC 12V Adapter
1 * IR transmitter
1 * IR receiver
1 * User manual
1 * HDMI KVM Extender receiver
2 * DC 12V Adapter
1 * IR transmitter
1 * IR receiver
1 * User manual
DHL, UPS, EMS, FedEx, TNT, Air freight supported.
