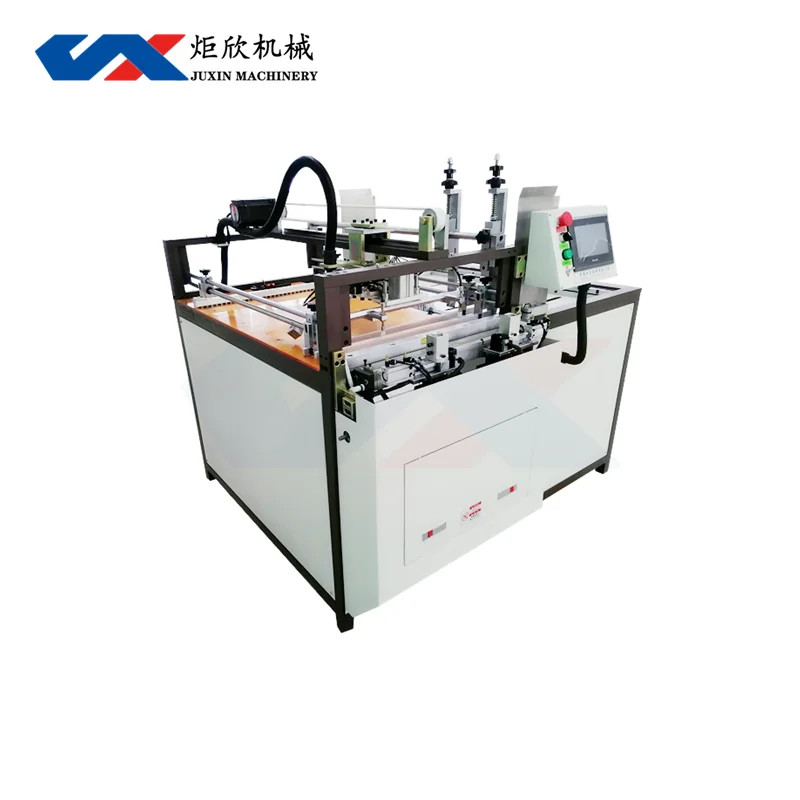

Simple type automatic rigid box magnet Pasting machine
- Category: >>>
- Supplier: Wenzhou Juxin Machinery Co. Ltd.
Share on (62515552973):
Product Overview
Description
——————— Recommend Products ———————
︾

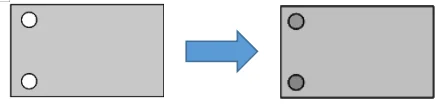

normal

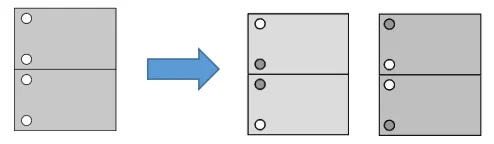

Dislocation mode
——————— Products Description ———————
︾
The design concept of this machine is derived from simple automation. It has the advantages of simple operation, convenient maintenance, easy to learn and understand, easy operation of single person, and excessive labor saving.
The frame of this machine adopts a modular integrated design to make the fuselage more stable and efficient. The electrification uses PLC, stepping motor and Wiron touch screen to achieve automatic operation, long life, and accurate magnetic patches.
The frame of this machine adopts a modular integrated design to make the fuselage more stable and efficient. The electrification uses PLC, stepping motor and Wiron touch screen to achieve automatic operation, long life, and accurate magnetic patches.
Max. board size | 400*700mm/700*1000mm | put cardboard height | 400mm(no-stop feeding) | ||
Min. board size | 50*55mm | board thickness | 1-3mm | ||
Magnetic or patch edge size | 0-450mm | Total power | 2KW | ||
Magnetism or patch pitch size (normal mode) | min. 50mm/max.500mm | air pressure | 0.6-0.8MPa | ||
Magnetism or patch pitch size (dislocation mode) | min. 0mm/max. 500mm | Equipment dimensions | L125*W110*H140cm | ||
attach round magnet iron sheet size | φ6-φ20mm | Heating tube power | 800W | ||
Square magnet iron sheet size | 8*10-15*20 | Glue | hot melt | ||
Place the highest position of the patch | 240mm | weight | 280KG/350KG | ||
Place the highest position of the magnet | 350mm | ||||
——————— Application ———————
︾
1、The simple fully automatic multifunctional magnet patch machine uses a queued working mode, with multiple dislocation paste functions, to achieve seamless docking of magnetic or patch spacing dimensions, and arbitrary adjustment.
2、Use automatic workflow, automatically push cardboard, automatic magnetic absorption iron adhesive, automatic magnetic patch, automatic receipt of cardboard and other actions.
3、Through the propulsion device lined up automatic feed, to achieve no stopping on the material, strong endurance, work without stopping, high efficiency.
——————— Details Images ———————
︾
——————— Product Packaging ———————
︾
——————— Certifications ———————
︾
——————— FAQ ———————
︾
1:Are you a manufacturer?
Yes,we are factory manufacturing cartoning machines and provide perfect OEM and prompt after-sale service.
Yes,we are factory manufacturing cartoning machines and provide perfect OEM and prompt after-sale service.
2: How is after-services of your factory?
We have aftersale department and provide one year warranty service.
We have aftersale department and provide one year warranty service.
3:Where is your factory?
We are in Wenzhou,Zhejiang Province, near Shanghai City(2 hour by plane,4 hour by train).
We are in Wenzhou,Zhejiang Province, near Shanghai City(2 hour by plane,4 hour by train).
4:How can I pay my order?
We accept T/T,WU,LC,etc. Mostly 30% in advanced,the rest need paid before shipping.
We accept T/T,WU,LC,etc. Mostly 30% in advanced,the rest need paid before shipping.
5:How can we ensure the safe production for product cartoning ?
The machine is equipped with a series of sensors and automatic overload protective devices to assure the machine runs safely and effectively.
The machine is equipped with a series of sensors and automatic overload protective devices to assure the machine runs safely and effectively.
