Stock Avavilable short path wiped film molecular distillation equipment
- Category: >>>
- Supplier: Nantong Sanjing Chemglass Co. Ltd.
Share on (62515683066):
Product Overview
Description
Product Description
Product Application
Molecular distillation is a distillation method operated under high vacuum, where the average free path of the vapor molecules is greater than the distance between the evaporating surface and the condensing surface.Thus, the liquid mixture can be separated by the difference of evaporation rate of each component in the feed liquid.
At a given temperature, the lower the pressure, the greater the average free path of the gas molecules.When the pressure in the evaporation space is very low (10-2 ~ 10-4 mmHg) and the condensation surface is close to the evaporation surface, and the vertical distance between them is less than the average free path of the gas molecules, the vapor molecules vaporized from the evaporation surface can directly reach the condensation surface without colliding with other molecules and condense.
Model | SPD-80 | SPD-100 | SPD-150 | SPD-200 |
Feed Rate(kg/hr) | 1.0-20 | 1.5-30 | 2.5-40 | 3.5-70 |
Estimate Throughput at End of 8-10 hr/day for CBD (kg) | 8 | 12 | 20 | 28 |
Effective Evaporationn Area(m2) | 0.1 | 0.15 | 0.25 | 0.35 |
Motor Power (W) | 120 | 120 | 120 | 120 |
Maximum Speed(rpm) | 350 | 350 | 350 | 350 |
Barrel Diameter (mm) | 80 | 100 | 150 | 200 |
Feeding Funel Volume( L) | 1 | 2 | 3 | 5 |
Dimension(DXWXH mm) | 2120X1740X628 | 2120X1740X628 | 2270X1940X628 | 2420x2040x628 |
Internal Condenser Area(m) | 0.2 | 0.3 | 0.4 | 0.5 |
Jacketed Feeding Vessel Volume ( L) | 1 | 2 | 3 | 5 |
Distillate Receiving Vessel Volume(L) | 1 | 2 | 5 | 5 |
Residue Receiving Vessel Volume(L) | 1 | 1 | 3 | 5 |
Wiper | PTFE scraper | PTFE scraper | PTFE scraper | PTFE scraper |
Main Features
According to the characteristics of molecular distillation technology, it has the following obvious advantages over conventional distillation technology in practical industrial application: (1) molecular distillation provides the best separation method for the separation of materials with high boiling point, thermal sensitivity and easy oxidation.Because the molecular distillation is operated at a temperature far below the boiling point of the material, and the material stays for a short time ; (2) molecular distillation can remove the substances, such as organic solvent, odor, etc., which is a very effective method for the dissolution of liquid after solvent extraction; (3) molecular distillation can selectively evaporate the target products, remove other impurities, and separate more than two substances at the same time through multistage separation;
(4) the fractionation process of molecular distillation is a physical process, so it can well protect separated substances from pollution and infringement.
(4) the fractionation process of molecular distillation is a physical process, so it can well protect separated substances from pollution and infringement.
Certifications
Detailed Images
FEEDING PART
Brand:NTSJ
Original: China
Jacketed glass feeding part is made by borosilicate 3.3 glass.Feeding unsulation is available.

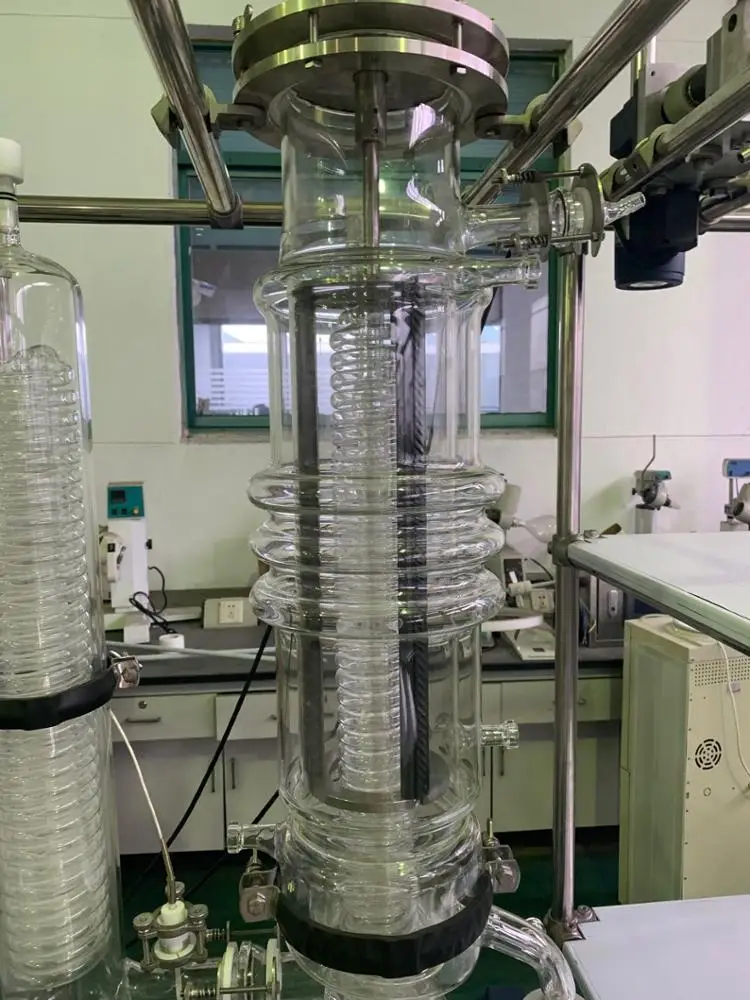

SHORT PATH EVAPORATOR WITH INTENAL CONDENSER
Brand: NTSJ
Original: China
The blades is made by PTFE ,which is high temprature resistance and anti-corrsive.

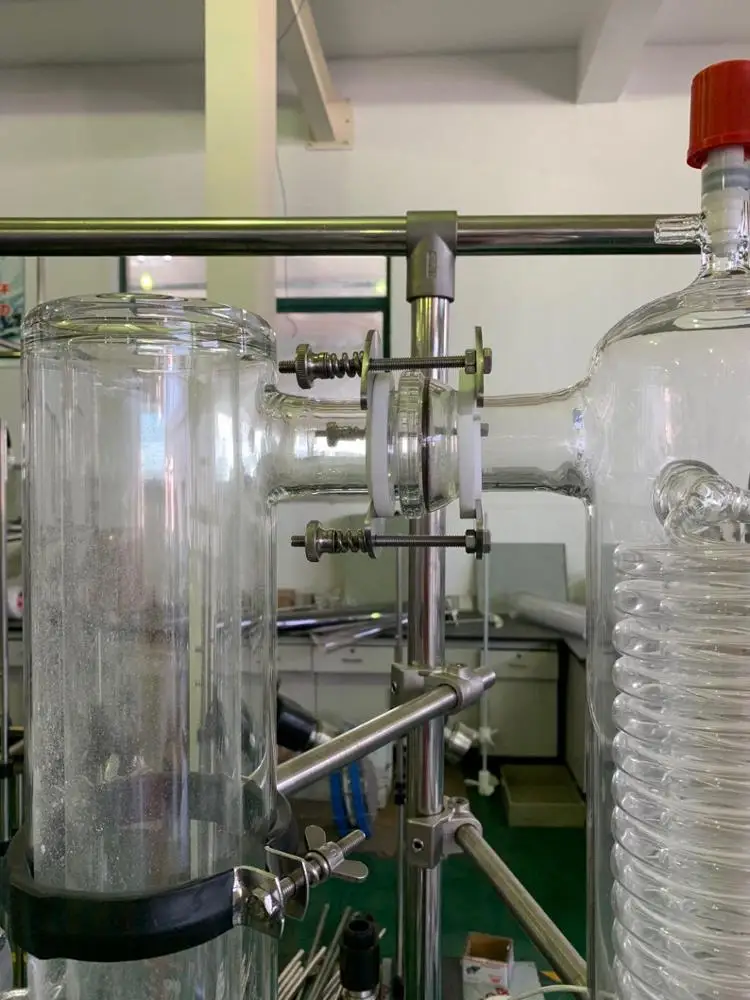

CONDENSER AND COLD TRAP
Brand: NTSJ
Original: China
Double cooling by condenser and cold trap .

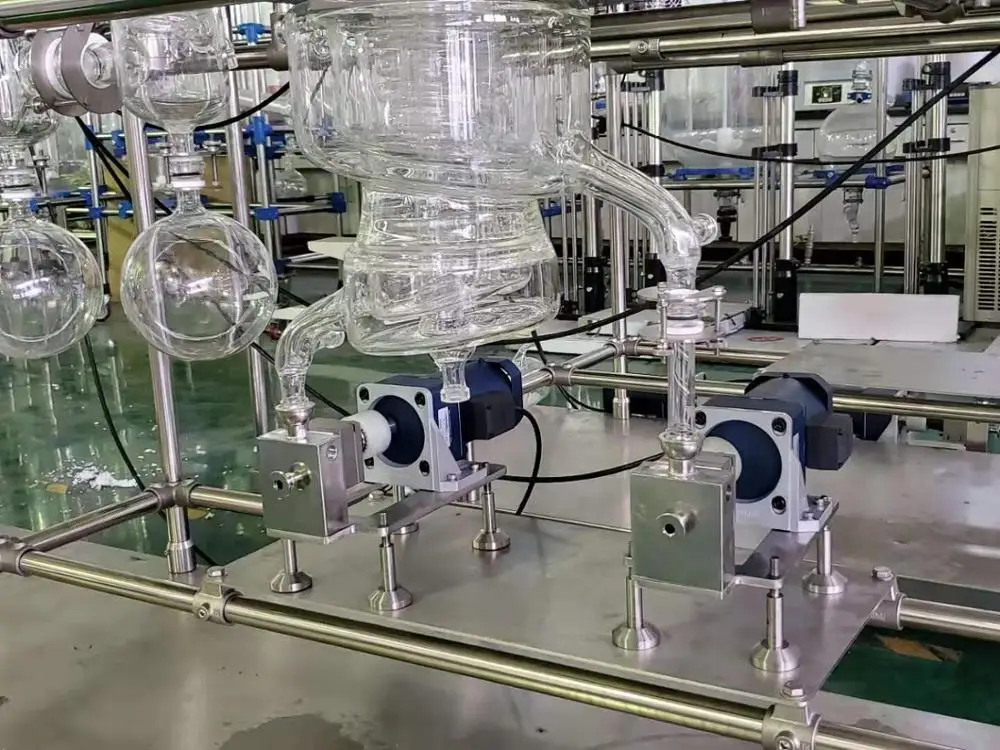

COLLECTION FLASK
Brand: NTSJ
Original: China
Two different collection flasks to get the different material.
Related Products
Packing & Delivery
Packaging | ||
Size | ||
Weight | ||
Packaging Details | The normal package is wooden box If export to by air , heavy-duty card board box will be used or pack it according to customers special request. | |
Packaging | ||
Size | ||
Weight | ||
Packaging Details | The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Our Service
Before-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* instruction manual
* instruction vedeo
* available engineers service overseas
